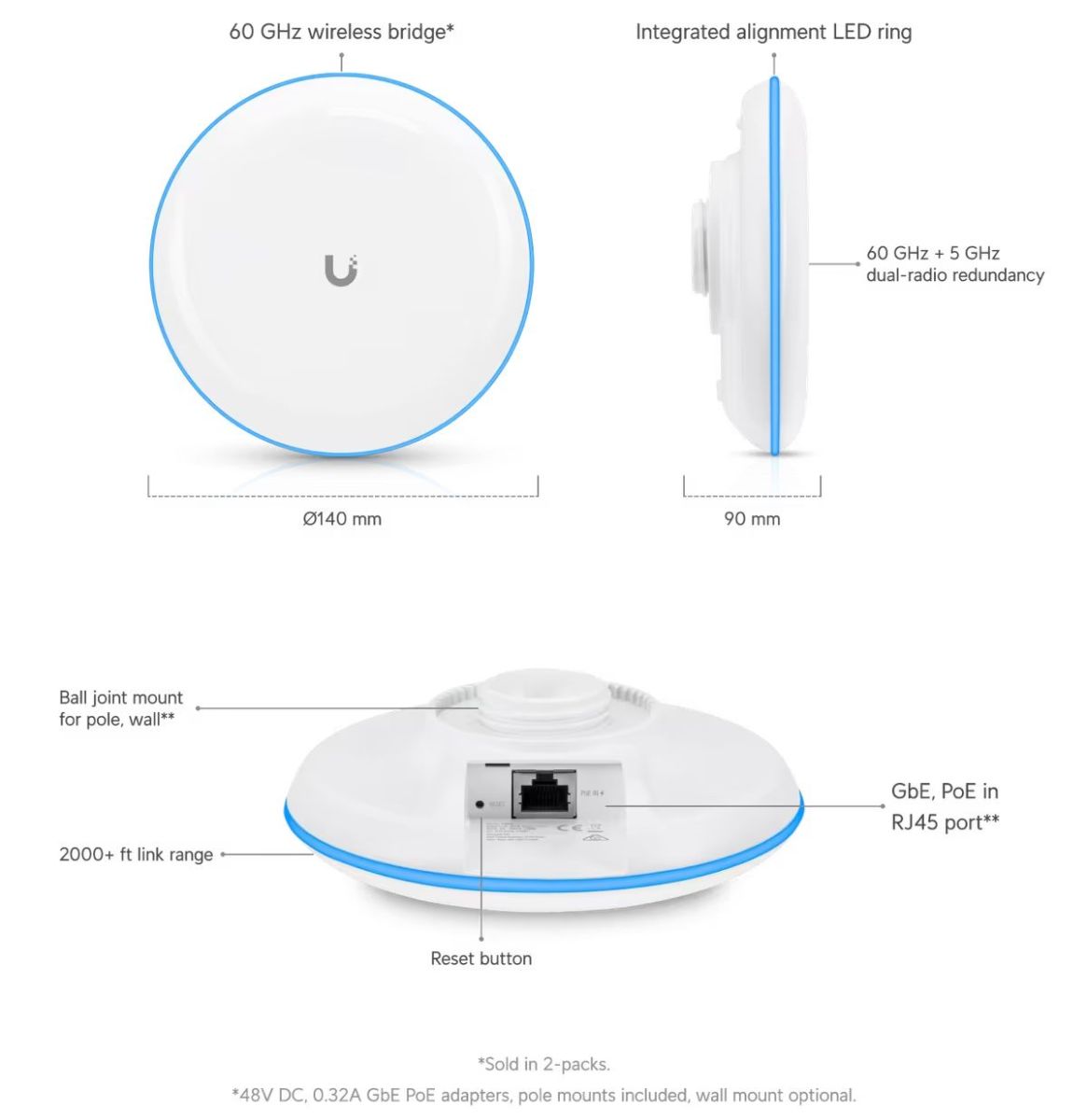

Ubiquiti UniFi UBB Building-to-Building Bridge - Pack of 2x - Complete Link

A 60 GHz wireless point-to-point bridge.

500 m (1,640 ft) maximum range

60 GHz & 5 GHz dual-radio redundancy

Includes PoE power adapters

Built-in LED alignment indicators

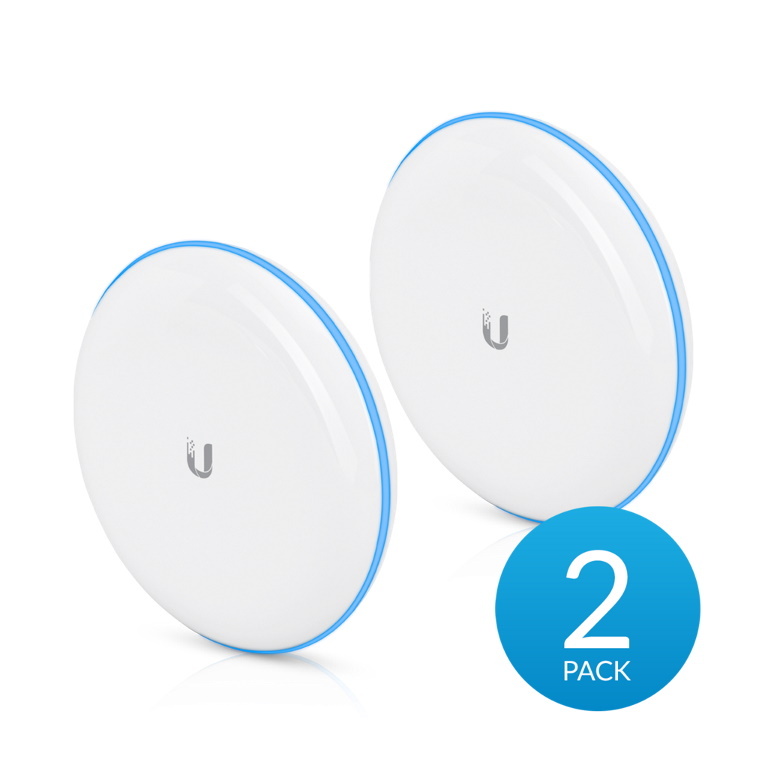

Sold as 2-pack

Note. Cannot be set up standalone and requires UniFi WiFi managed by a UniFi gateway or self-hosted Network server.

The Ubiquiti UniFi® Building-to-Building Bridge is a 1+ Gbps Plug and Play 60 GHz Bridge with 5 GHz Radio Redundancy, UniFi Controller Management, and range of up to 500 m. The UniFi® Building-to-Building Bridge is the ideal solution for short-range, high-throughput connectivity. Integration with the UniFi Controller makes bridging two networks seamless. As a pack of two radios, UniFi Building-to-Building Bridge contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere. Package Contents: UniFi Building-to-Building Bridge (x2) Ball joint mount (x2) Lock ring (x2) Metal strap (x2) Gigabit PoE (48V, 0.32A) with mounting bracket (x2) Power cord (x2)



(UBB)

Mechanical
Dimensions Ø140 x 90 mm (Ø5.51 x 3.54")
Weight 376 g (13.3 oz)
Enclosure material UV-resistant polycarbonate

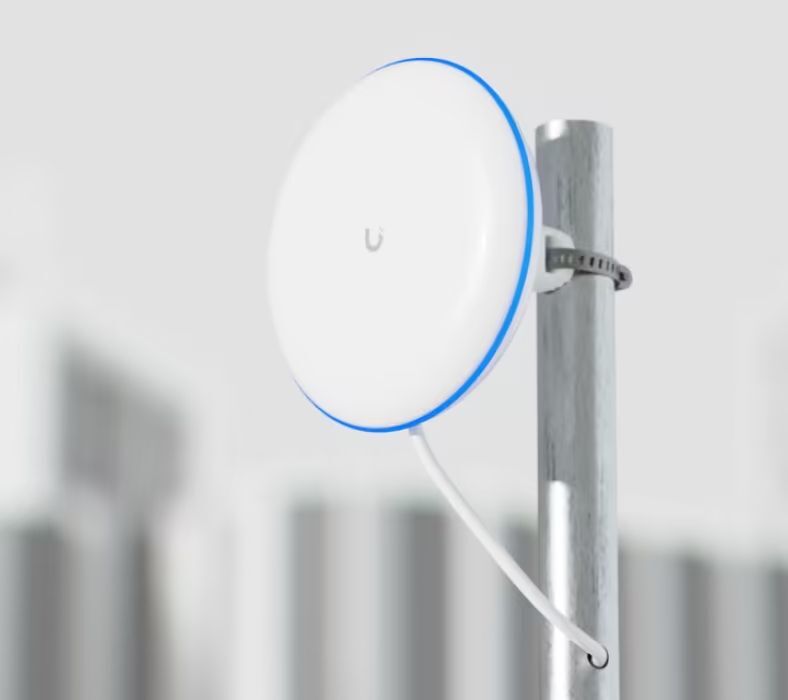

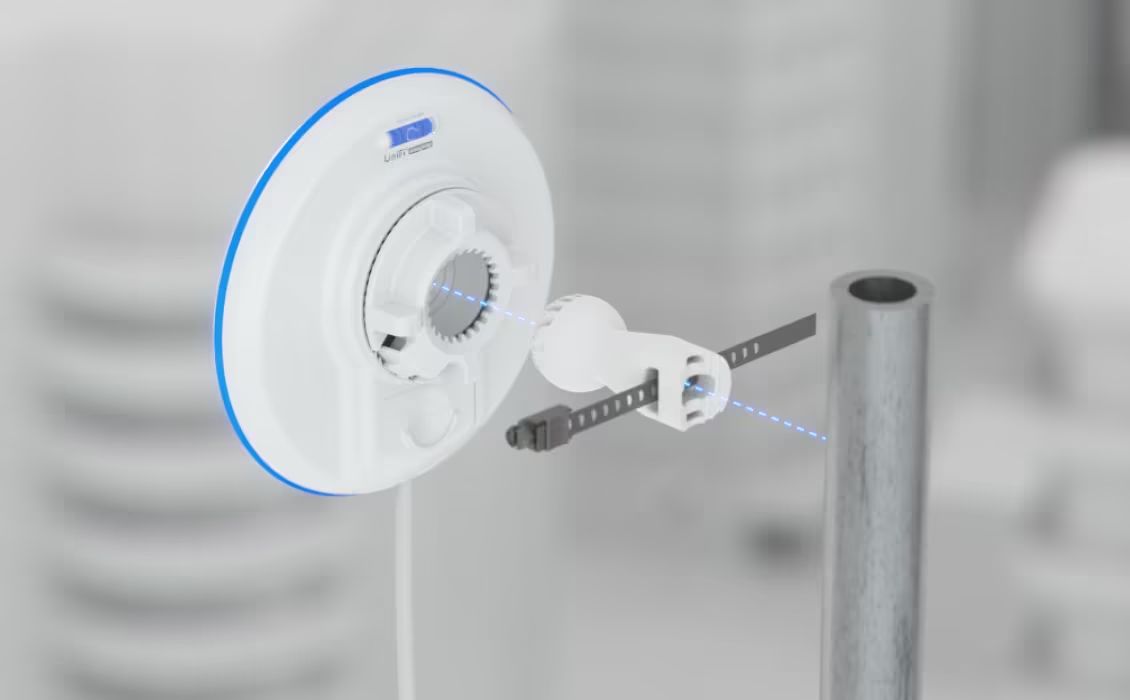

Mounting Pole-mount (Kit included)
Wall-mount (Not included)
Wind loading 56 N @ 200 km/h (12.6 lbf @ 125 mph)
Wind survivability 200 km/h (125 mph)
Hardware
Networking interface (1) 10/100/1000 MbE port
Management interface Ethernet
Bluetooth
Power method Passive PoE (48V)
Power supply UniFi PoE switch
48V, 0.32A Gigabit PoE adapter (Included)
Max power consumption 11W
ESD/EMP protection ± 24kV Contact/Air
Antenna Gain
2.4 GHz (BLE)
5 GHz
60 GHz

2 dBi
10 dBi
17.2 dBi
GPS Yes
Max. TX power
5GHz
60GHz

25 dBm
32 - 36.5dBm
60 GHz elevation beamwidth 30°
60 GHz azimuthal coverage ±60°
LEDs R/G/B
Button Factory-reset
Operating temperature -40 to 70° C (-40 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150 - 5875
57,000 - 66,000
US/CA U-NII-1: 5150 - 5250
U-NII-3: 5725 - 5850
57,000 - 66,000
Bluetooth (MHz)
Worldwide 2400 - 2483.5
SKU UBB
Barcode # 817882029674
Brand UBIQUITI
Shipping Weight 1.6541kg

Manufacturer Warranty : 1 Year Manufacturer Warranty
