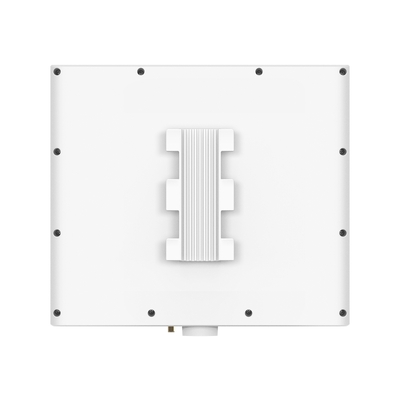

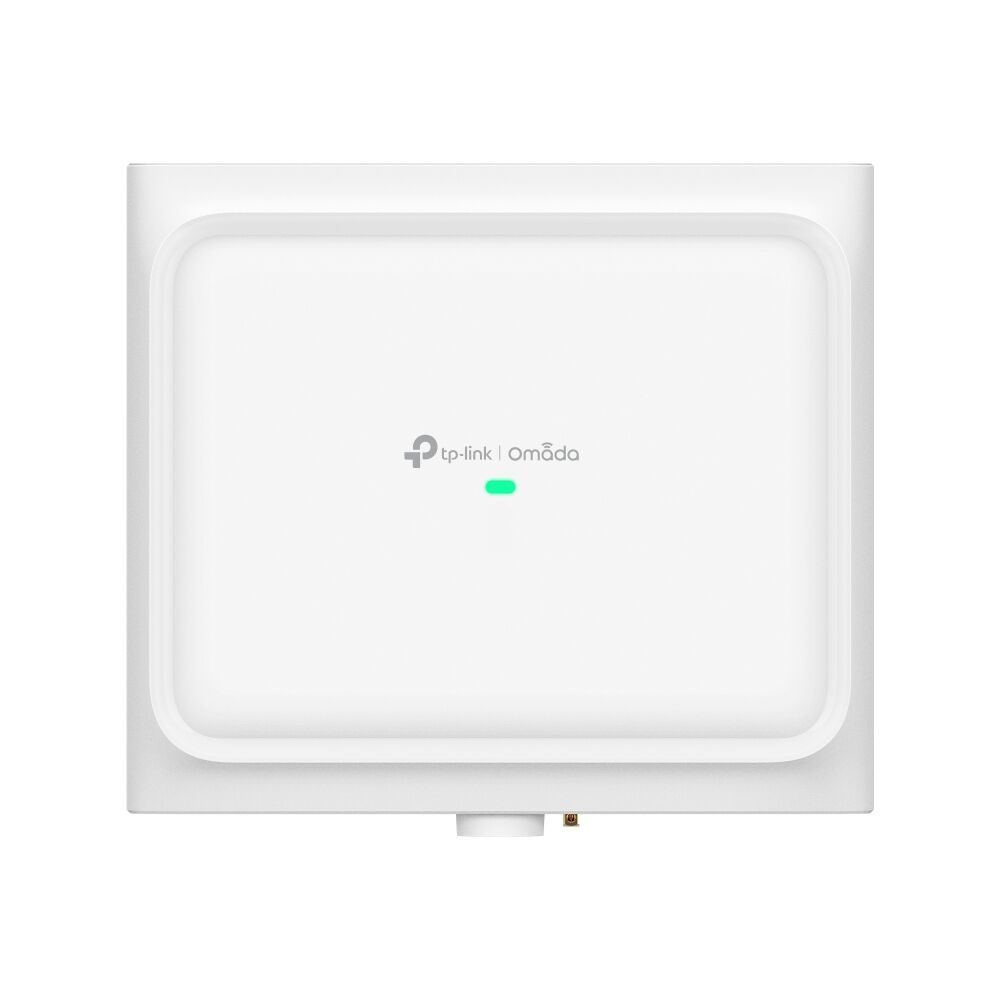

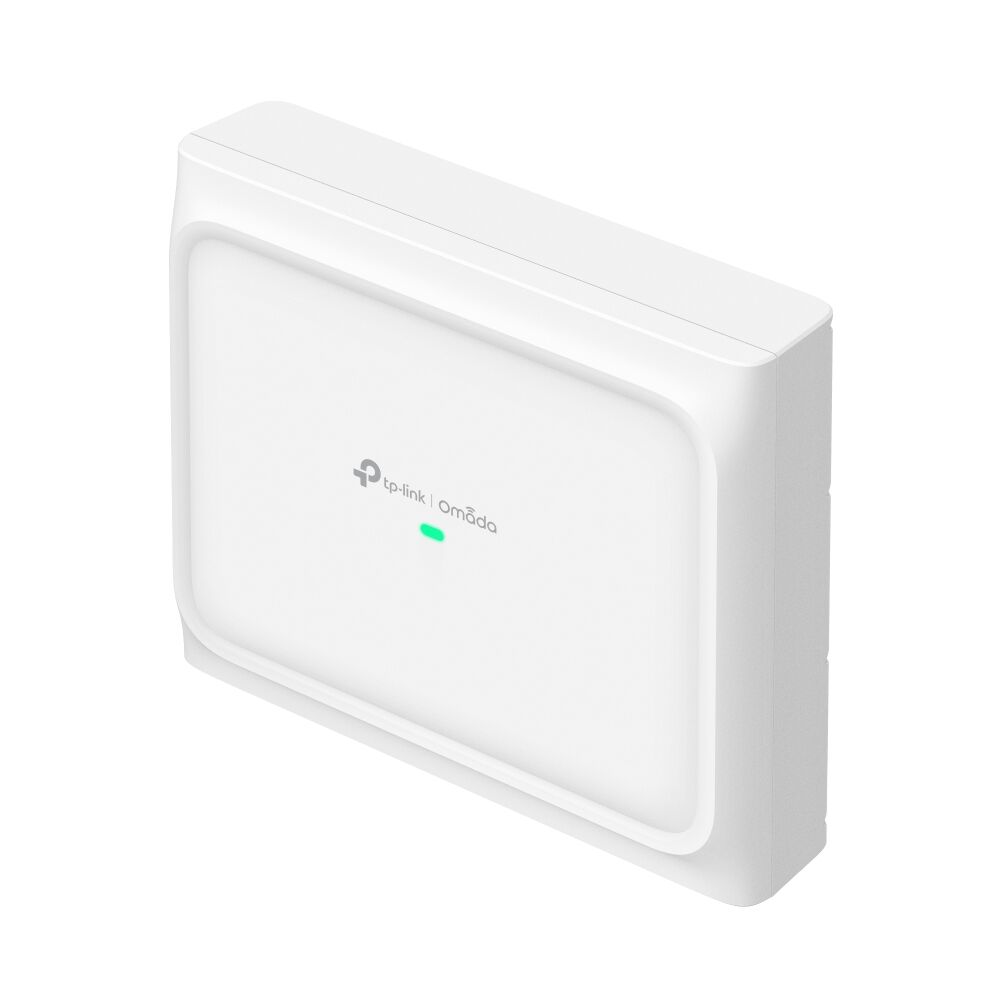

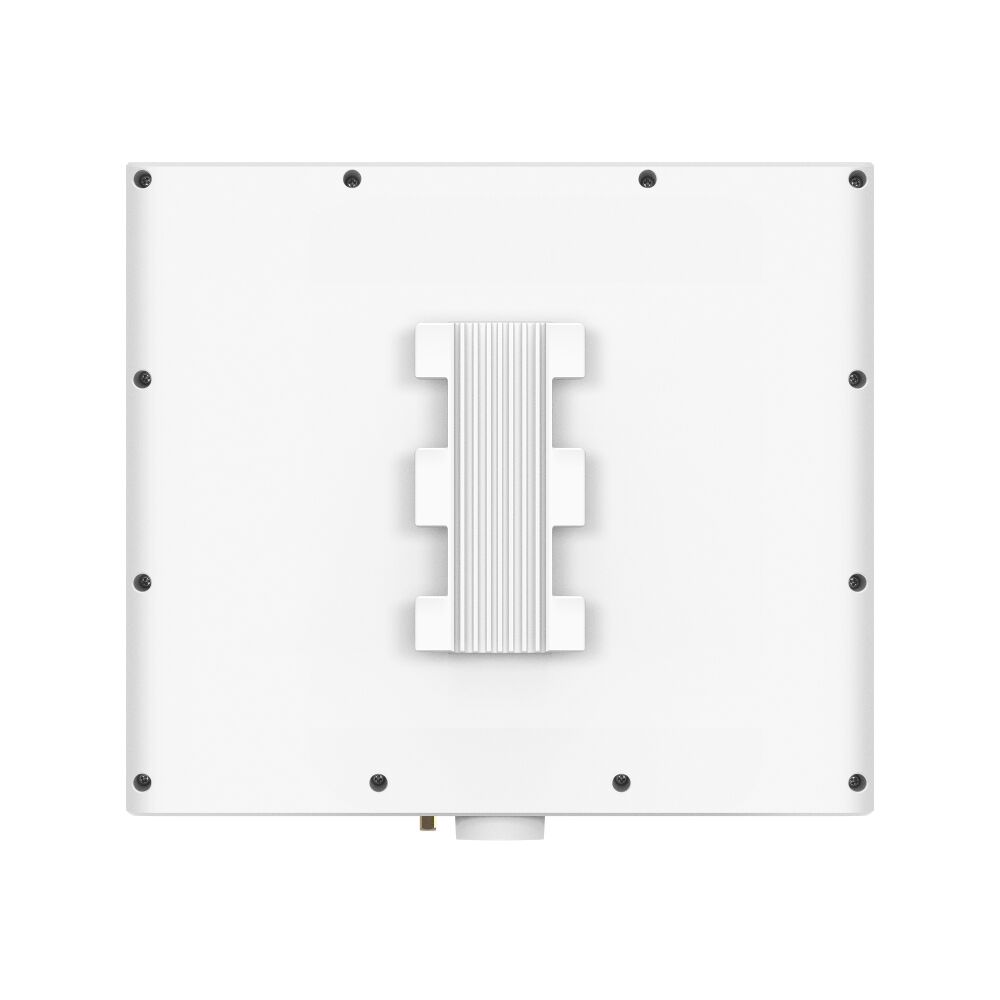

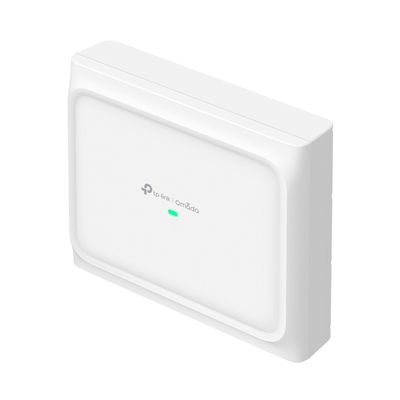

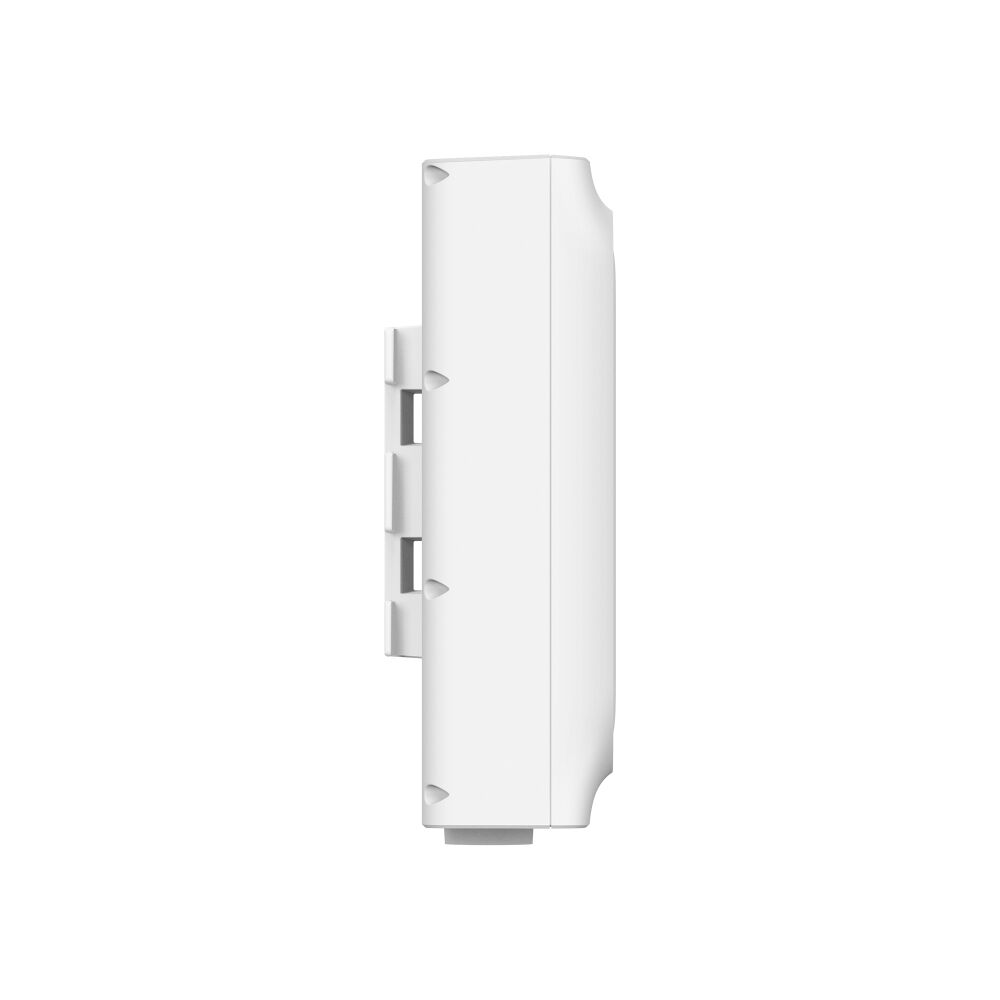

Omada Tri-Band Omnidirectional BE9300 Indoor/Outdoor Wi-Fi 7 Access Point

Name: TP-LINK EAP772-OUTDOOR Omada BE9300 Indoor/Outdoor Tri-Band Wi-Fi 7 Access Point
Brand: TP-LINK
SKU: EAP772-Outdoor
Price: 453 AUD
Availability: InStock

•Tri-Band Six-Stream Outdoor Wi-Fi 7: Up to 9.3 Gbps.^†

•6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses.^△

•True Tri-Band Omnidirectional Coverage: 300m² (3,200ft²) recommended coverage^*

•Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarised antennas.

•Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup

•Advanced Features: Centralised management, mesh, and seamless roaming.^§

(EAP772-Outdoor)

HARDWARE FEATURES

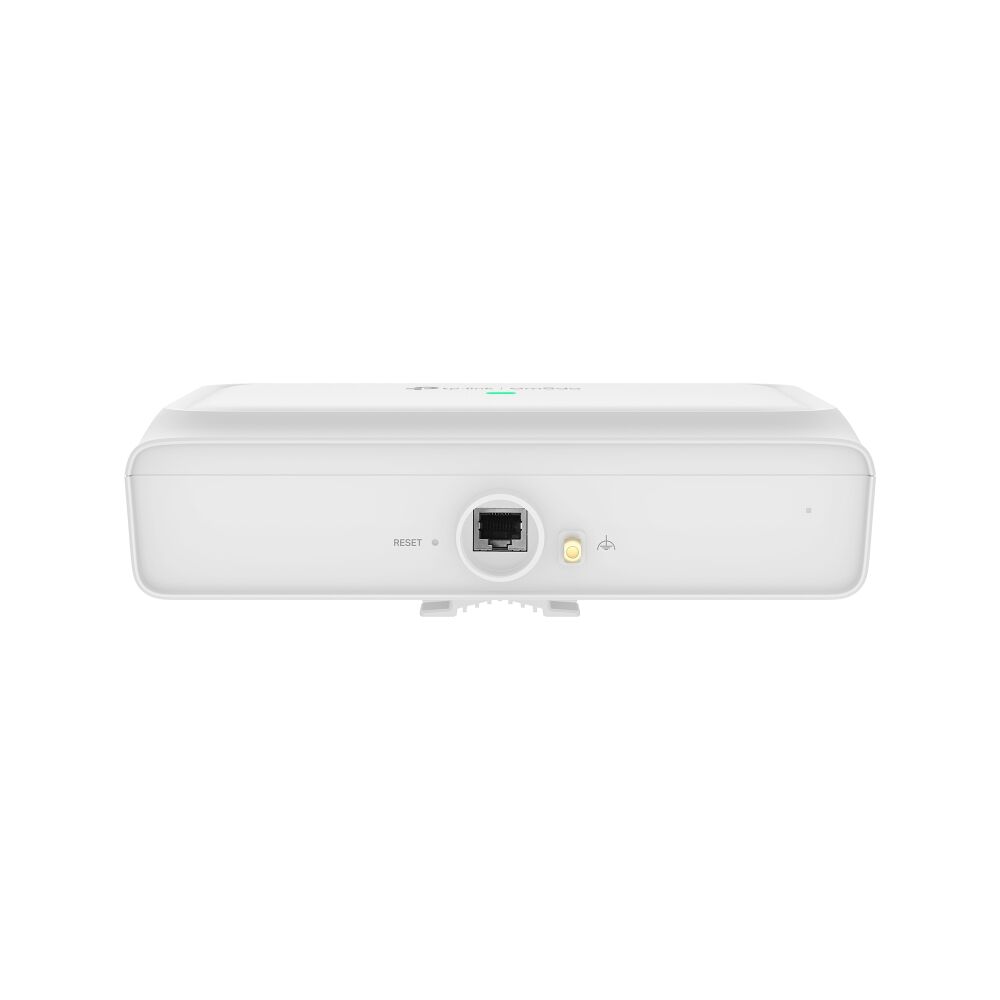

Interface	1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
Button	Reset
Power Supply	• 802.3at PoE
Max. Power Consumption	21.5W (for PoE)
Dimensions ( W x D x H )	9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna	• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6 dBi • 6 GHz: 2× 6 dBi
GNSS	L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals Receive sensitivity: -164dBm (tracking) GPS antennas: Integrated 3dBi omnidirectional antennas
Bluetooth	BLE 5.2
Weatherproof Enclosure	IP68
Mounting	Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage	300m² (3,200ft²) Recommended Omnidirectional Coverage
Concurrent Clients	380+^**
Wireless Standards	IEEE 802.11be/ax/ac/n/g/b/a
Frequency	2.4 GHz, 5 GHz, 6 GHz
Signal Rate	688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) + 5765 Mbps (6 GHz)^†
Wireless Functions	• 4k-QAM • OFDMA • Multiple SSIDs: 24 (8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • MLO • 320MHz • Omada Mesh^§ • Seamless Roaming(802.11k/v/r)^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Transmission Power	• CE: Indoor Mode: < 20 dBm (2.4 GHz, EIRP);, < 23 dBm (5 GHz, band 1 & band 2, ElRP), < 28 dBm (5 GHz, band 3, EIRP); <23dBm (6 GHz, EIRP) Outdoor Mode: < 20 dBm (2.4 GHz, EIRP); < 28 dBm (5 GHz, band 3, EIRP) • FCC: Indoor Mode: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz) Outdoor Mode:< 25 dBm (2.4 GHz); < 25 dBm (5 GHz); < 25 dBm (6 GHz)

Management Features
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of an Omada controller.
Email Alerts	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS
Certification	CE, FCC, RoHS
Package Content	• Access Point EAP772-Outdoor • Waterproof Kit • Mounting Kits • Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment	• Operating Temperature: -30–70 ℃ (-22–158 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

SKU	EAP772-Outdoor
Barcode #	1210002602280
Brand	TP-LINK
Shipping Weight	0.7400kg
Shipping Width	0.110m
Shipping Height	0.330m
Shipping Length	0.250m
