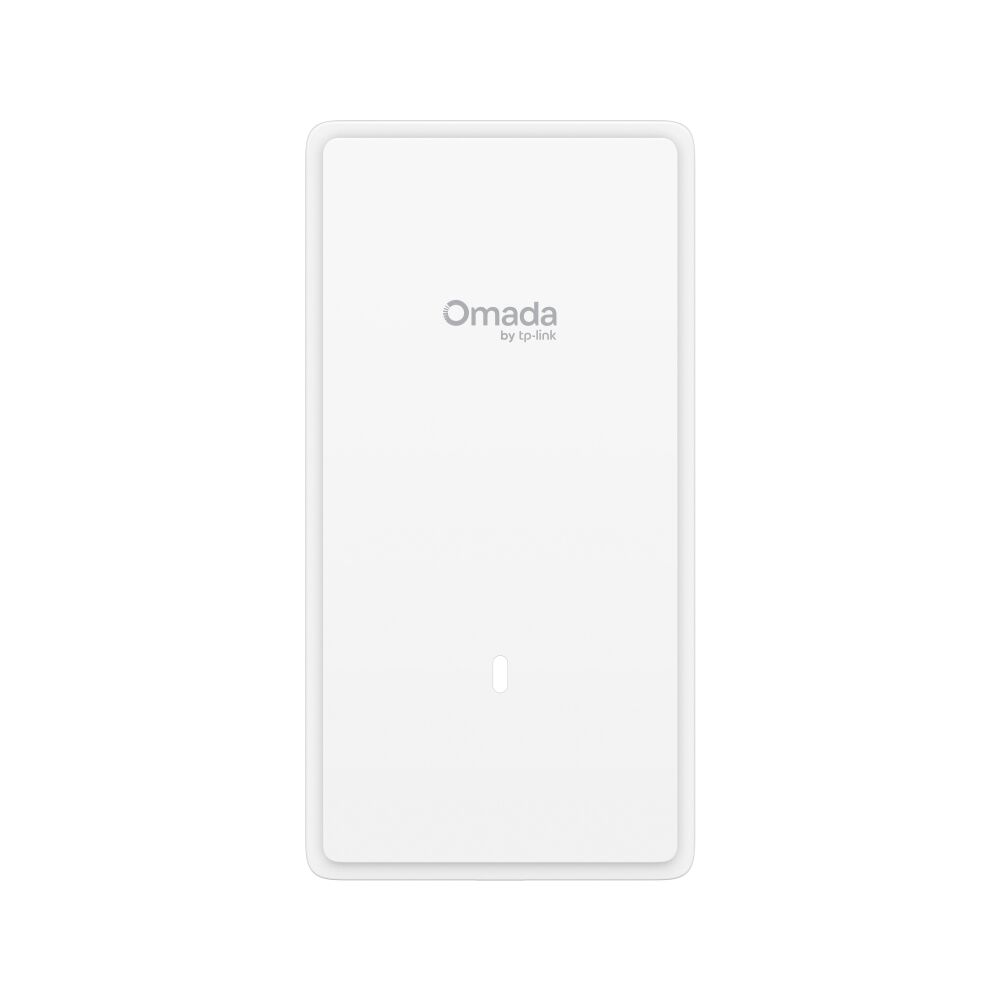

View PDF BrochureTP-Link EAP775-Wall BE9300 Wall Plate Wi-Fi 7 Access Point
Model# EAP775-Wall
-
SKU: EAP775-Wall
- Pick Up Available
- Australian Warranty
- Checkout Securely
(EAP775-Wall)
| HARDWARE FEATURES | |
|---|---|

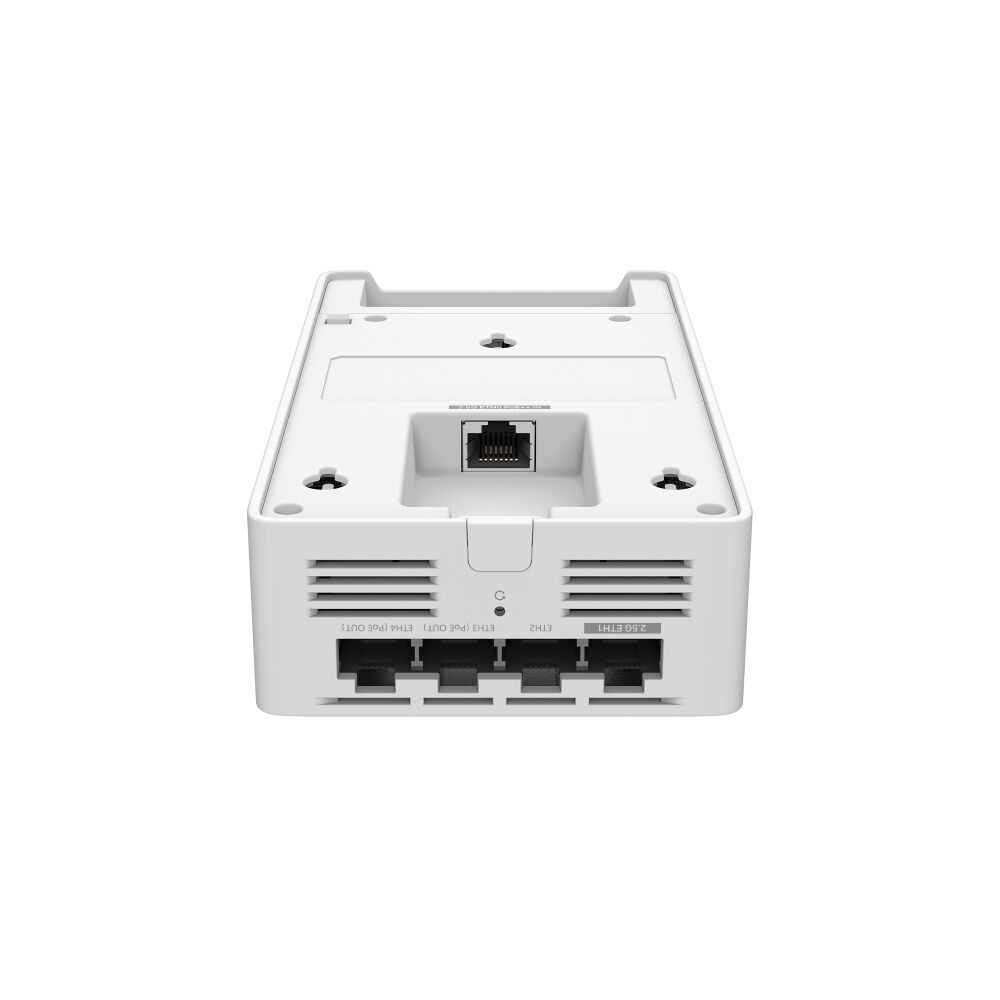

| Interface | • Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports (Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output.The PoE Out feature requires 802.3bt input.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| PoE Out | Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. The PoE Out feature requires 802.3bt input. |
| Max. Power Consumption | 43.35W（with 25W PoE Out) |
| Dimensions ( W x D x H ) | 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm) |
| Antenna | 6× Internal Antennas • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 5.5 dBi • 6 GHz: 2× 5.5 dBi |
| Bluetooth | V5.2 |
| Mounting | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 1050 ft² (100 m²)* |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate | • 6 GHz: Up to 5765 Mbps • 5 GHz: Up to 2882 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions | • MLO‡ • 4K-QAM‡ • Multi-RUs‡ • 320 MHz Bandwidth‡ • 24 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming△ • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication△ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | 6-20 dBm (2.4 GHz, ERIP) 6-23 dBm (5 GHz, U-NII-1, U-NII-2A, ERIP) 6-27.5 dBm (5 GHz, U-NII-2C, ERIP) 6-23 dBm (6 GHz,ERIP) |
| Management Features | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of an Omad Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Content | • EAP775-Wall • Paintable Cover • Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| SKU | EAP775-Wall |
| Barcode # | 840460607148 |
| Brand | TP-LINK |
| Shipping Weight | 0.7700kg |
Manufacturer warranty: 5 years Manufacturer warranty
