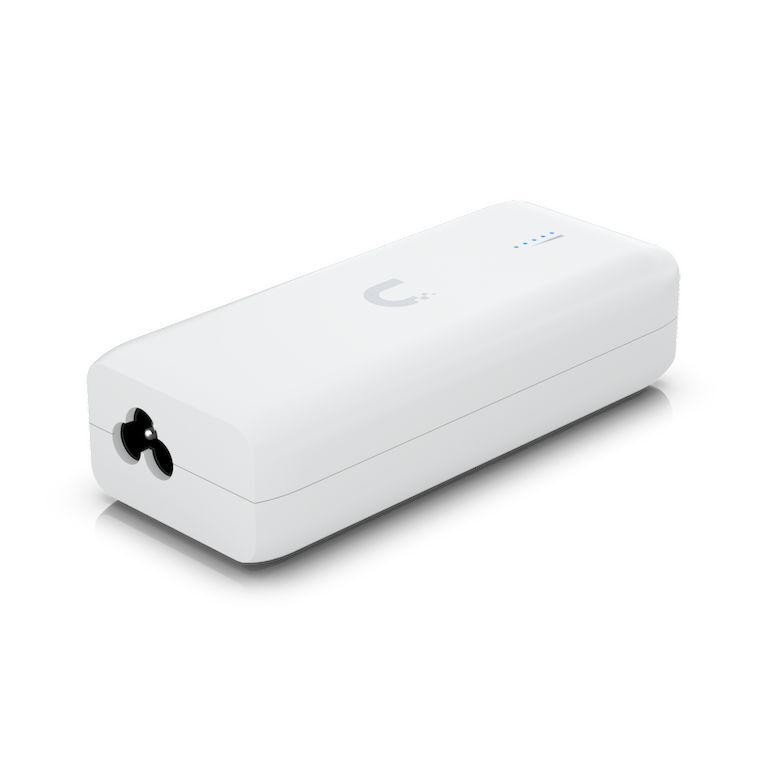

Ubiquiti UDB Wireless Device Bridge - Connecting a Wire Device to Unifi WiFi Network - Plug-and-Play Installation

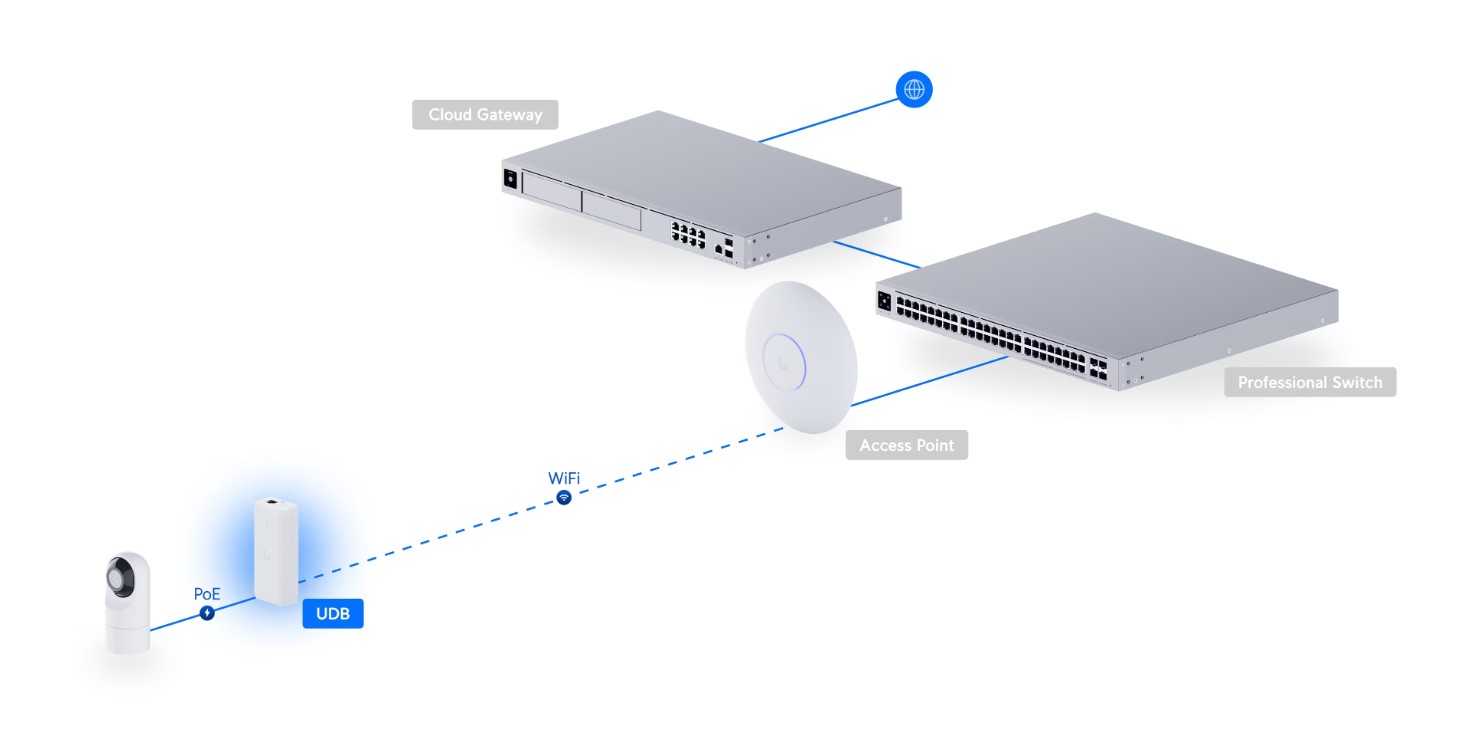

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.

(1) GbE LAN port that provides up to 15W of PoE

5 GHz band with up to 867 Mbps throughput rate

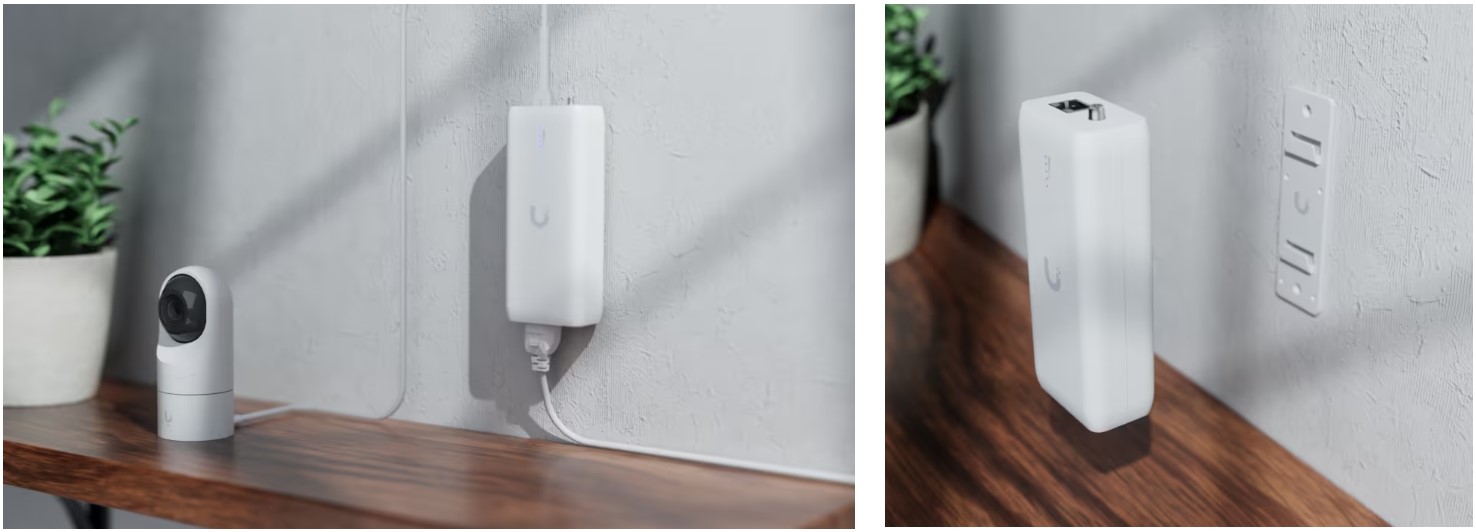

Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection

Note. UniFi Consoles and APs must have the latest software updates installed.



(UDB)

Mechanical

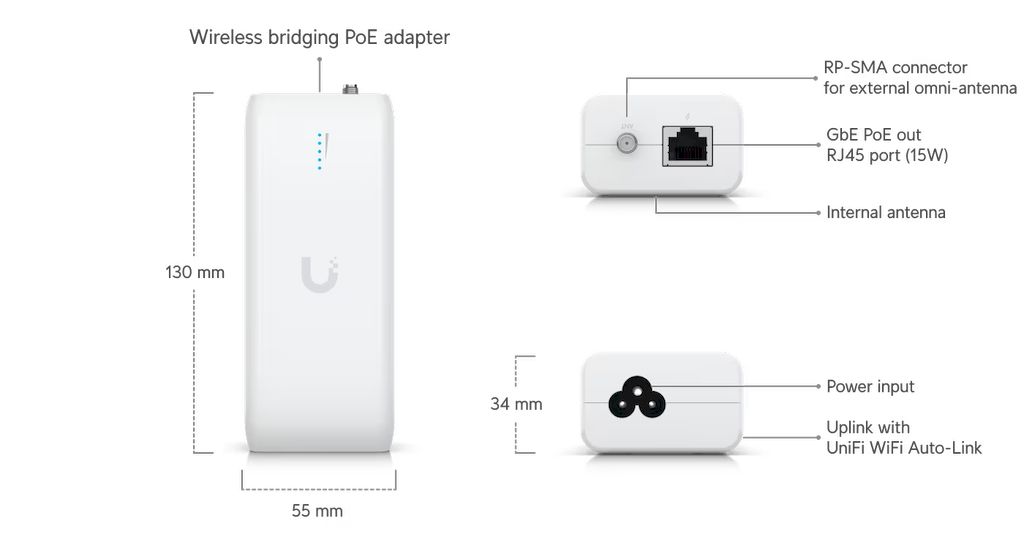

Dimensions 130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
Weight 200 g (7.1 oz)
Enclosure material Polycarbonate
Mount material Polycarbonate
Hardware
Management interface WiFi

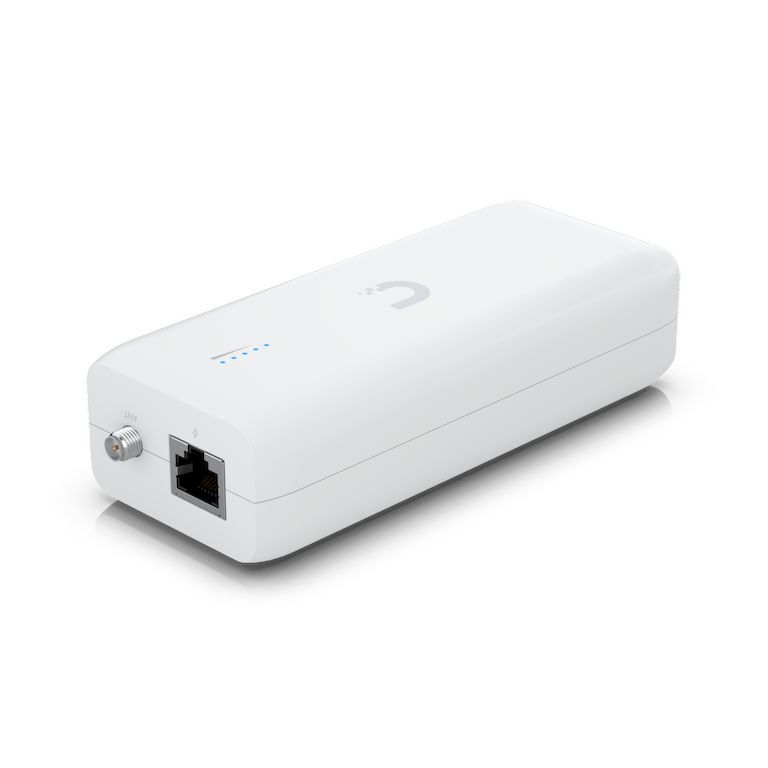

Networking interface (1) GbE RJ45 port
PoE interface (1) Passive PoE output
Button (1) Factory-reset
LED (4) Blue: signal
(1) White/blue: indicator
Power method 100—240V AC, 0.45A Max., 50/60 Hz
Max. power consumption AC input: 25W
Excluding PoE output: 10W
Max. PoE wattage per port 15W
Supported voltage range 100—240V AC
WiFi standards 802.11a/b/g/n/ac
Max. TX power
2.4 GHz
5 GHz
6 GHz


21 dBm
MIMO
2.4 GHz
5 GHz
6 GHz


2 x 2
Max. data rate
2.4 GHz
5 GHz
6 GHz


866.7 Mbps (BW80)
Antenna gain
2.4 GHz
5 GHz
6 GHz


Internal antenna : 5 dBi / External omni antenna : 4 dBi
Antenna (1) Internal antenna
(1) RP-SMA connector for external omni-antenna

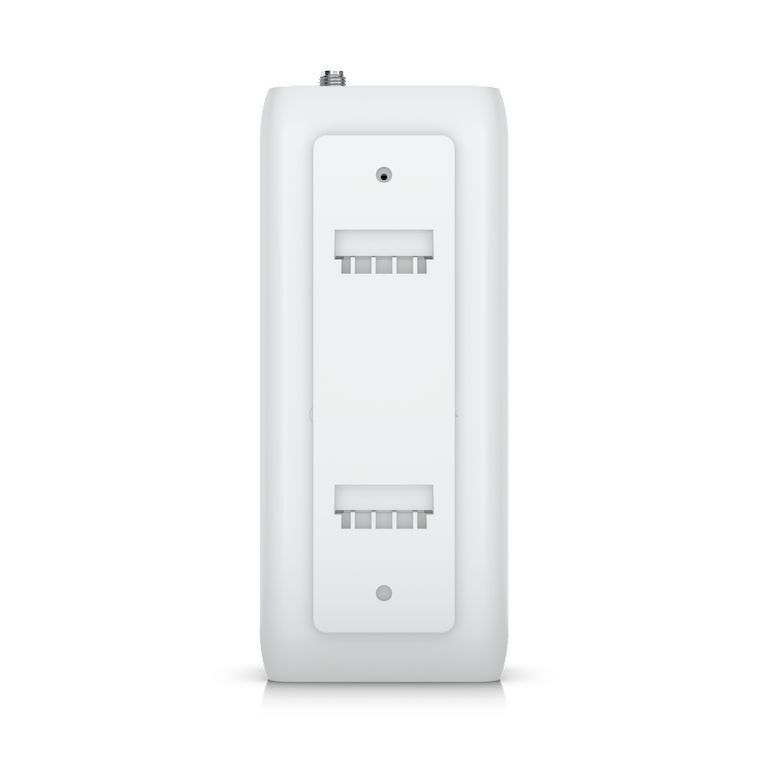

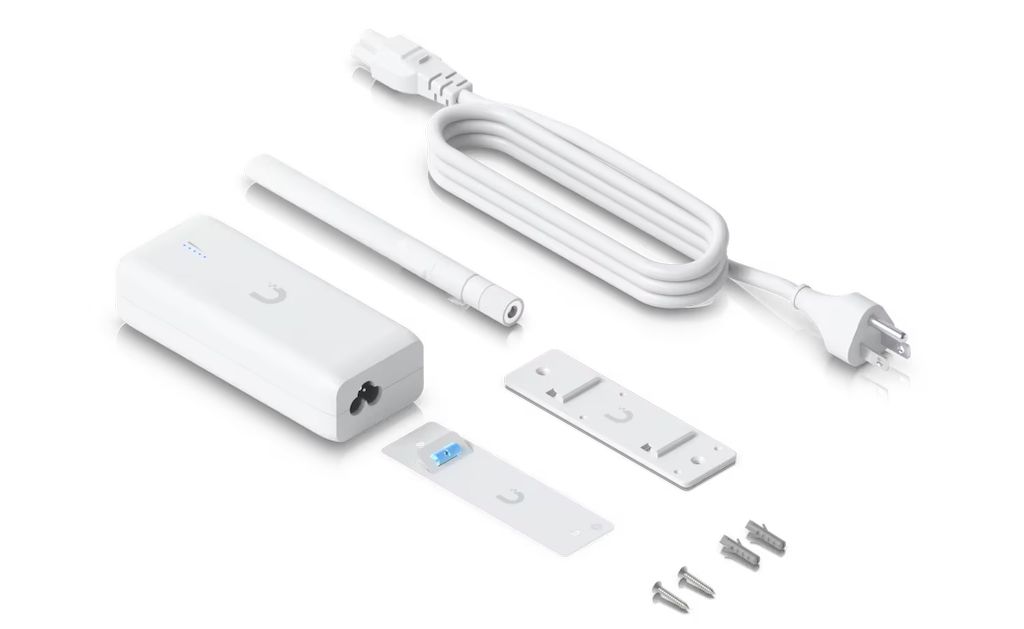

Mounting Wall (Included)
Ambient operating temperature -10 to 40° C (14 to 104° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 866.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
SKU UDB
Barcode # 810084698204
Brand UBIQUITI
Shipping Weight 3.0000kg

Manufacturer Warranty : 1 Year Manufacturer Warranty
