Overview
Dimensions
Device: 307.9 x 203.5 x 43.7 mm
(12.1 x 8 x 1.7")
Table stand: 203.5 x 100.2 x 21.9 mm
(8 x 3.9 x 0.9")
UniFi Application Suite
Network
✓
Protect
✓
Access
✓
Talk
✓
Connect
✓
Managed UniFi Devices
50+
Managed Cameras
(15) HD
(8) 2K
(5) 4K
Managed Access Hubs
50
Simultaneous Users Connected
500+
Max. WAN Port Count
5
Default WAN Ports
(1) 10G SFP+
(1) 10 GbE RJ45
(1) 2.5 GbE RJ45

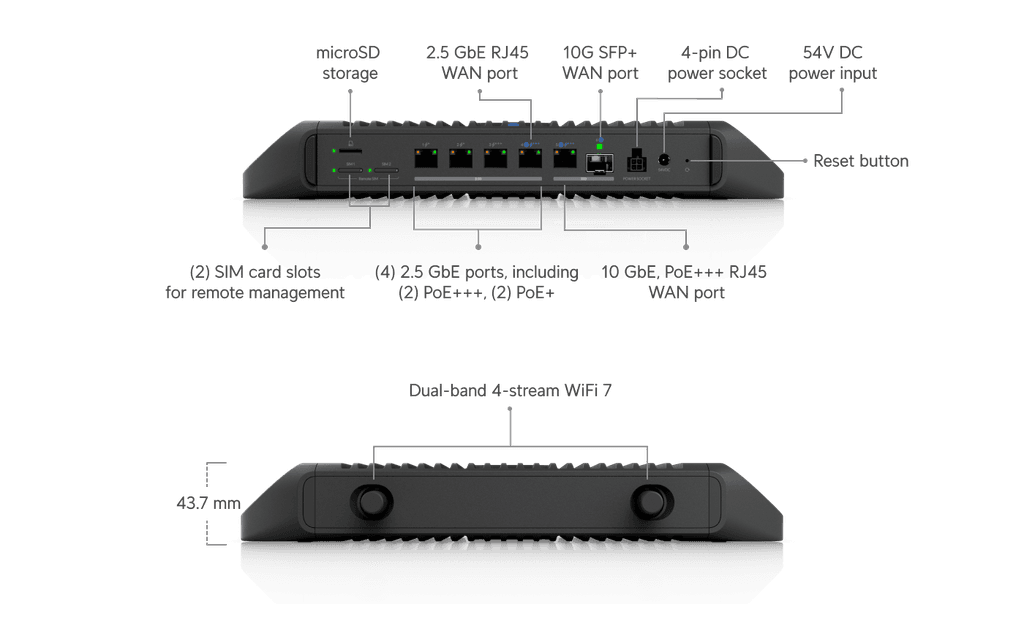

Port Layout
2.5 GbE RJ45
4 (2 PoE+++, 2 PoE+)
(2.5G/1G/100M)
10 GbE RJ45
1 (PoE+++)
(10G/5G/2.5G/1G/100M)
10G SFP+
1
(10G/1G)
IDS/IPS Throughput
5 Gbps
Form Factor
Wall-mounted
Compact desktop (Table stand included)
Rack mount (Accessory sold separately)
Coverage Area
115 m² (1,250 ft²)

Security
Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
55,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

VPN & SD-WAN
License-Free SD-WAN
✓
Site-to-Site VPN
Site Magic
✓
IPsec
✓
OpenVPN
✓
VPN Server
Identity Endpoint One-Click VPN
✓
Teleport Zero-Configuration VPN
✓
WireGuard
✓
OpenVPN
✓
L2TP
✓
VPN Client
OpenVPN
✓
WireGuard
✓

Networking
Multi-WAN Load Balancing
✓
Dynamic Routing
OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
4,000
Virtual Network Override
✓
All Traffic Flows
—

Integrated WiFi
WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Throughput
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps
MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain
5 GHz
Stub antenna: 5 dBi
Terminal (Omni) antenna: 6 dBi
2.4 GHz
Stub antenna: 3 dBi
Terminal (Omni) antenna: 6 dBi
Max. TX Power
5 GHz
26 dBm
2.4 GHz
23 dBm
Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

Hardware
NVR Storage
Pre-installed 128 GB microSD for NVR
Expansion Slot
MicroSD Card
PoE Budget
DC input: 270W
ATX power: 75W
Max. PoE Wattage per Port by PSE
PoE+
30W
PoE+++
90W
Voltage Range PoE Mode
50-57V
Max. Power Consumption
28W (Excluding PoE output)
Power Method
(1) DC Input (350W PSU)
(1) ATX power (48V)
Power Supply
54V DC, 350W (Adapter included)
ATX power (48V)
Supported Voltage Range
100–240V AC
Heat Dissipation
95 BTU/hr (Excluding PoE output)
Processor
Quad-core ARM® Cortex®-A73 at 2.2 GHz
System Memory
3 GB
Weight
Device: 2.4 kg (5.3 lb)
Table stand: 321 g (11.3 oz)
Enclosure Material
Device: Polycarbonate, aluminium alloy
Table stand: Polycarbonate, galvanized steel, silicone rubber
Management
Ethernet
Bluetooth
LEDs
Ethernet
✓
SFP+
✓
System
✓
MicroSD
✓
SIM
✓
Button
(1) Factory reset
(2) Handle release buttons
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC

Software
Application Requirements
Mobile App
UniFi iOS™: Version 10.32.0 and later
UniFi Android™: Version 10.35.0 and later

Manufacturer Warranty : 1 Year Manufacturer Warranty
