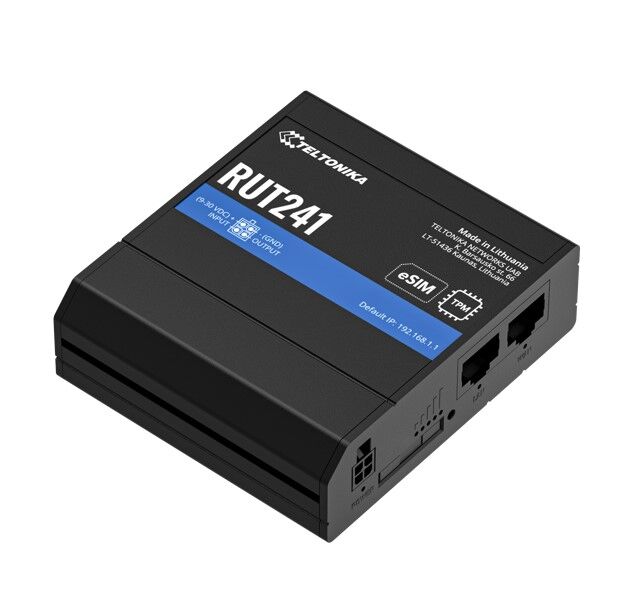

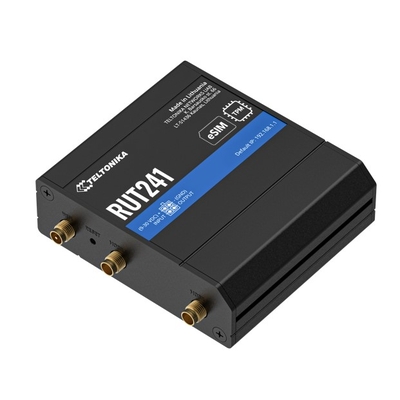

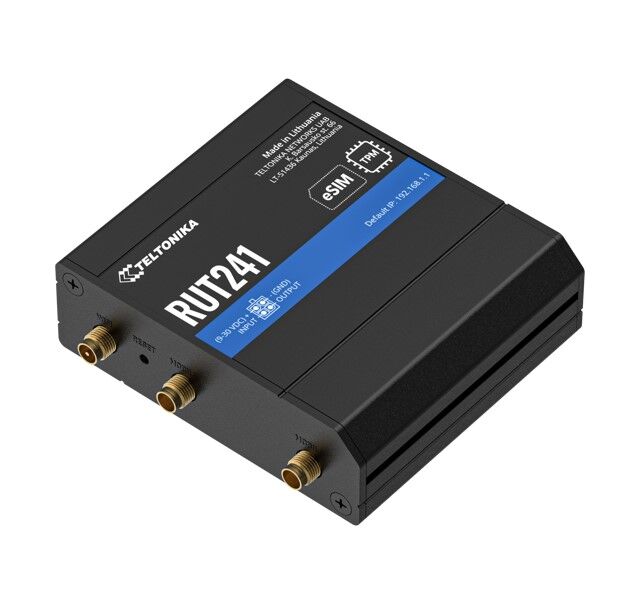

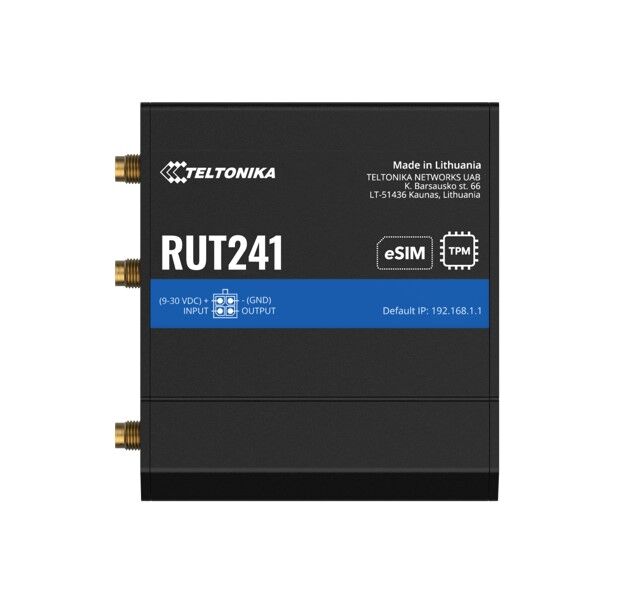

Teltonika Industrial 4G eSIM Router, Instant LTE Failover, Compact and Powerful Industrial 4G LTE Router/Firewall, PSU included

The RUT241 eSIM™ is an industrial cellular router equipped with LTE Cat 4 and eSIM™ with SGP.22 pull-based consumer architecture. This compact eSIM™ router supports a physical SIM card, up to seven eSIM™ profiles, controlled via WebUI and RMS, and Trusted Platform Module (TPM) for enhanced security. The RUT241 eSIM™ router provides undisrupted connectivity with automatic WAN failover and two Ethernet ports, making it perfect for your M2M and IoT solutions. – PSU included

(RUT241233B40)

Mobile

  • Mobile module

    4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps

  • 3GPP Release

    Release 10/11 depending on the hardware version

  • eSIM

    Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles

  • Status

    IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

  • SMS

    SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

  • USSD

    Supports sending and reading Unstructured Supplementary Service Data messages

  • Black/White list

    Operator black/white list (by country or separate operators)

  • Multiple PDN

    Possibility to use different PDNs for multiple network access and services

  • Band management

    Band lock, Used band status display

  • SIM PIN code management

    SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

  • APN

    Auto APN

  • Bridge

    Direct connection (bridge) between mobile ISP and device on LAN

  • Passthrough

    Router assigns its mobile WAN IP address to another device on LAN

Wireless

  • Wireless mode

    802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)

  • Wi-Fi security

    WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect

  • SSID/ESSID

    SSID stealth mode and access control based on MAC address

  • Wi-Fi users

    Up to 50 simultaneous connections

  • Wireless Connectivity Features

    Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

  • Wireless MAC filter

    Whitelist, blacklist

  • Wireless QR code generator

    Once scanned, a user will automatically enter your network without needing to input login information.

Network

  • Hotspot

    Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

  • Routing

    Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

  • Network protocols

    TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)

  • VoIP passthrough support

    H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

  • Connection monitoring

    Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

  • Firewall

    Port forward, traffic rules, custom rules

  • Firewall status page

    View all your Firewall statistics, rules, and rule counters

  • Ports management

    View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

  • Network topology

    Visual representation of your network, showing which devices are connected to which other devices

  • Hotspot

    Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

  • DHCP

    Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

  • QoS / Smart Queue Management (SQM)

    Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

  • DDNS

    Supported >25 service providers, others can be configured manually

  • DNS over HTTPS

    DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

  • Network backup

    Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover

  • Load balancing

    Balance Internet traffic over multiple WAN connections

  • SSHFS

    Possibility to mount remote file system via SSH protocol

Ethernet

  • WAN

    1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

  • LAN

    1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

DLMS

  • DLMS Support

    DLMS - standard protocol for utility meter data exchange

  • Supported modes

    Client

  • Supported connection types

    TCP

  •
  •

Security

  • Authentication

    Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

  • Firewall

    Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

  • Attack prevention

    DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

  • VLAN

    Port and tag-based VLAN separation

  • Mobile quota control

    Mobile data limit, customizable period, start time, warning limit, phone number

  • WEB filter

    Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

  • Access control

    Flexible access control of SSH, Web interface, CLI and Telnet

  • TPM

    Identification and authentication module, TPM 2.0 standard

  • SSL certificate generation

    Let's encrypt support

VPN

  • OpenVPN

    Multiple clients and a server can run simultaneously, 27 encryption methods

  • OpenVPN Encryption

    DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,

    BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

  • IPsec

    XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

  • GRE

    GRE tunnel, GRE tunnel over IPsec support

  • PPTP, L2TP

    Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

  • Stunnel

    Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

  • DMVPN

    Method of building scalable IPsec VPNs

  • SSTP

    SSTP client instance support

  • ZeroTier

    ZeroTier VPN client support

  • WireGuard

    WireGuard VPN client and server support

  • Tinc

    Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA

  • Supported modes

    Client, Server

  • Supported connection types

    TCP

MODBUS

  • Supported modes

    Server, Client

  • Supported connection types

    TCP

  • Custom registers

    MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

  • Supported data formats

    8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

  • Protocol

    HTTP(S), MQTT, Azure MQTT, Kinesis

  • Data to server

    Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

  • Modbus MQTT Gateway

    Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

  • Supported modes

    Station, Outstation

  • Supported connection

    TCP

API

  • Teltonika Networks Web API (beta) support

    Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

  • WEB UI

    HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

  • FOTA

    Firmware update from server, automatic notification

  • SSH

    SSH (v1, v2)

  • SMS

    SMS status, SMS configuration, send/read SMS via HTTP POST/GET

  • Call

    Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

  • TR-069

    OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

  • MQTT

    MQTT Broker, MQTT publisher

  • SNMP

    SNMP (v1, v2, v3), SNMP Trap, Brute force protection

  • JSON-RPC

    Management API over HTTP/HTTPS

  • RMS

    Teltonika Remote Management System (RMS)

IoT Platforms

  • ThingWorx

    Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

  • Cumulocity - Cloud of Things

    Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions.

  • Azure IoT Hub

    Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

System Characteristics

  • CPU

    Mediatek, 580 MHz, MIPS 24KEc

  • RAM

    128 MB, DDR2

  • FLASH storage

    16 MB, SPI Flash

Firmware / Configuration

  • WEB UI

    Update FW from file, check FW on server, configuration profiles, configuration backup

  • FOTA

    Update FW

  • RMS

    Update FW/configuration for multiple devices at once

  • Keep settings

    Update FW without losing current configuration

  • Factory settings reset

    A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

  • Operating system

    RutOS (OpenWrt based Linux OS)

  • Supported languages

    Busybox shell, Lua, C, C++

  • Development tools

    SDK package with build environment provided

  • GPL customization

    You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

  • Package Manager

    The Package Manager is a service used to install additional software on the device

Input / Output

  • Input

    1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

  • Output

    1 x Digital Output, Open collector output, max output 30 V, 300 mA

  • Events

    Email, RMS, SMS

  • I/O juggler

    Allows to set certain I/O conditions to initiate event

Power

  • Connector

    4-pin industrial DC power socket

  • Input voltage range

    9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max

  • PoE (passive)

    Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

  • Power consumption

    < 6.5 W Max

Physical Interfaces

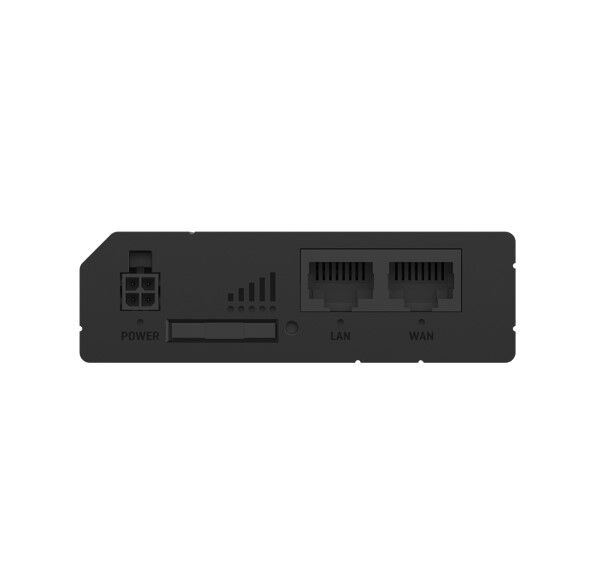

  • Ethernet

    2 x RJ45 ports, 10/100 Mbps

  • I/O’s

    1 x Digital Input, 1 x Digital Output on 4-pin power connector

  • Status LEDs

    3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED

  • SIM

    1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder

  • Power

    1 x 4-pin power connector

  • Antennas

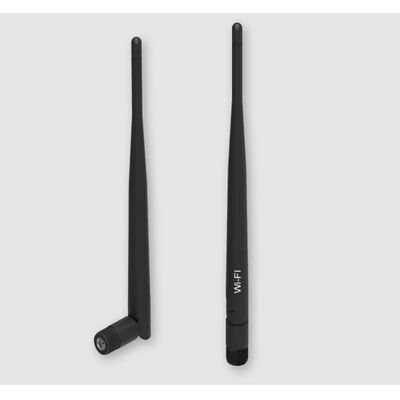

    2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors

  • Reset

    Reboot/User default reset/Factory reset button

Physical Specification

  • Casing material

    Aluminium housing, plastic panels

  • Dimensions (W x H x D)

    83 x 25 x 74 mm

  • Weight

    125 g

  • Mounting options

    DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    10% to 90% non-condensing

  • Ingress Protection Rating

    IP30

Regulatory & Type Approvals

  • Regulatory

    CE, UKCA, ANRT, Kenya, ICASA, FCC, IC, PTCRB, NOM, RCM, KC, Giteki, IMDA, E-mark, CB, UL/CSA Safety, RoHS, REACH, R118

  • Operator

    AT&T, Verizon, T-Mobile, Uscellular

EMC Emissions & Immunity

  • Standards

    EN 55032:2015 + A11:2020

    EN 55035:2017 + A11:2020

    EN IEC 61000-3-2:2019

    EN 61000-3-3:2013 + A1:2019

    EN 301 489-1 V2.2.3

    EN 301 489-17 V3.2.4

    Final Draft EN 301 489-52 V1.2.0

  • ESD

    EN 61000-4-2:2009

  • Radiated Immunity

    EN IEC 61000-4-3:2020

  • EFT

    EN 61000-4-4:2012

  • Surge Immunity (AC Mains Power Port)

    EN 61000-4-5:2014 + A1:2017

  • CS

    EN 61000-4-6:2014

  • DIP

    EN 61000-4-11:2020

RF

  • Standards

    EN 300 328 V2.2.2

    EN 301 511 V12.5.1

    EN 301 908-1 V15.2.1

    EN 301 908-2 V13.1.1

    EN 301 908-13 V13.2.1

Safety

  • Standards

    CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017

    RCM: AS/NZS 62368.1:2022

    CB: IEC 62368-1:2018

    UL/CSA Safety: UL 62368-1, Ed. 3 dated December 13, 20, CAN/CSA C22.2 No. 62368-1:19

SKU RUT241233B40
Brand Teltonika
Shipping Weight 0.5000kg

Manufacturer Warranty : 2 years Manufacturer Warranty
