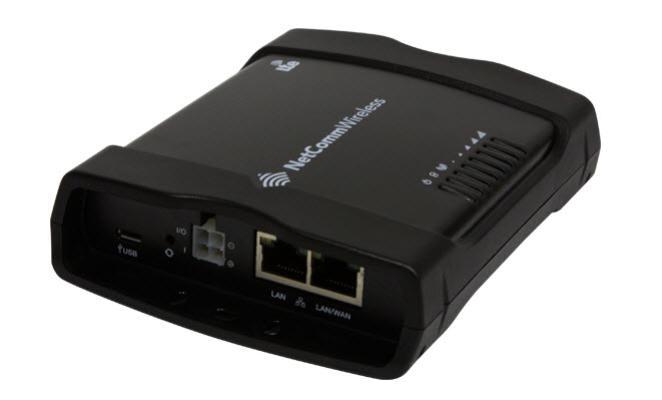

The NetComm Wireless 4G M2M Router (NTC-140) is built for industrial applications. Feature rich and user friendly, the powerful router enables highly complex M2M and industrial IoT deployments. It features dual 4G antennas for improved cellular performance, two Gigabit Ethernet ports, a USB port and a MicroSD slot for added storage flexibility. The device is ideal for mobile asset monitoring, supporting vehicle voltage power supply, an Ignition sensing port and built-in stand-alone GPS.

CARRIER GRADE MANAGEMENT

The NTC-140 is all about simplicity. It has 8 tri-colour LED indicators and a user friendly web interface, making onsite setup and ongoing remote management simple, easy and cost-effective

The NTC-140 supports a wide range of telecommunication standards based remote management protocols such as LWM2M, TR-069 and SNMP to allow quick and easy integration with a wide range of remote management platforms

Extensive support for managing the device via SMS allows enterprises to communicate, get status reports, change settings or even execute commands using an SMS gateway.

The built-in event notification engine, which sends alarms and notifications via email or SMS, allows an automated layer of self-monitoring to ensure a quick response to events requiring human intervention.

INDUSTRIAL GRADE DESIGN

Designed from the ground up with harsh industrial and automotive environments in mind, the NTC-140 features a state-of-the-art enclosure made from a composite of hard wearing, shock absorbing and environmentally stable industrial materials.

Electrical components have been carefully selected to allow the NTC-140 to operate at extreme temperatures.

Most importantly NetComm Wireless has done extensive environmental tests to ensure the device continues to operate under extreme conditions of temperature, shock and vibration.

POWERFUL IOT EDGE PROCESSOR

The NTC-140 runs an open, embedded Linux based NetComm OS. Boasting a powerful processor and spare memory allows IOT developers to run custom applications developed using the NetComm Wireless Software development Kit (SDK). Edge processing allows new and innovative IOT solutions such as saving cellular bandwidth though intelligent data filtering or speeding up control processes by processing data locally.

Download NTC-140-02 User Manual

Download NTC-140 Spec Data Sheet

(NTC14002)

PROCESSOR & STORAGE

Powerful 720Mhz ARM Cortex A8 processor with 128MByte DDR2 RAM
256MByte Flash memory storage (~120MB available on board space for user storage)
MicroSD card slot for additional storage

OPERATING SYSTEM

Embedded Linux & Software Development Kit (SDK)

CELLULAR BANDS

LTE:
- Band 1 (2100 MHz)
- Band 3 (1800 MHz)
- Band 7 (2600 MHz)
- Band 8 (900 MHz)
- Band 20 (800 MHz)
UMTS/HSDPA/HSUPA/HSPA+/DC-HSPA+:
- Band 1 (2100 MHz)
- Band 2 (1900 MHz)
- Band 5 (850 MHz)
- Band 8 (900 MHz)
GSM/GPRS/EDGE:
- GSM 850 (850 MHz)
- EGSM 900 (900 MHz)
- DCS 1800 (1800 MHz)
- PCS 1900 (1900 MHz)

PEAK DATA SPEED

LTE: Category 3:
- 100 Mbps / 50 Mbps (Downlink/Uplink) (20Mhz bandwidth)
- 50 Mbps / 25 Mbps (Downlink/Uplink) (10Mhz bandwidth)
HSPA+:
- 42 Mbps downlink (Category 24)
- 5.76 Mbps uplink (Category 6)
EDGE
- 236 kbps throughput

CONNECTIVITY

2 x 10/100/1000 Base-T Ethernet RJ45 ports with Auto MDIX
Micro USB 2.0 OTG interface with 0.5A supply capability
1 x multipurpose I/O pin

SIM CARD READER

Lockable Tray Reader with Push-Button-to-Release
- optional soldered-down SIM (ETSI MFF2 DFN-8 USIM)
Supports Mini USIM/SIM Format (2FF)

RESET BUTTON

Reset button (recessed, requiring pen/paperclip) with three functions: Reboot, reboot into recovery mode, and reset unit to factory defaults

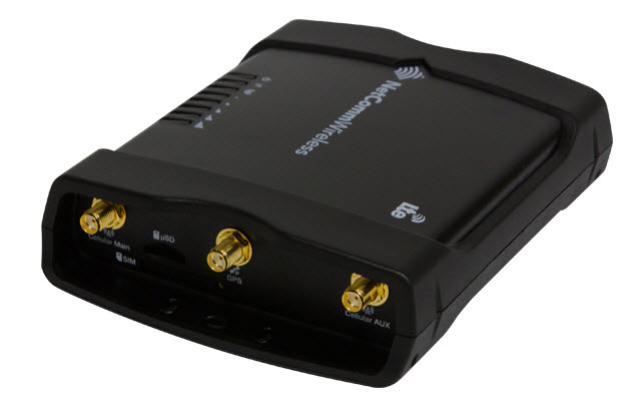

ANTENNA CONNECTORS

2x SMA connectors for 3G/4G
1x SMA connector for GPS

LED INDICATORS

Tri-colour (Red/Amber/Green) LEDs. Power, Mobile Broadband, Service Type and Signal Strength indicators
Easy and clear LED status display for connection status, connected network type, and connection errors

CELLULAR

Profile managed packet data connections
NAT Disable for framed route configuration
Transparent bridge mode using PPPoE to allow the router to transparently forward Public WAN IP address to a downstream device
SIM Security Management (PIN configuration, enable
and disable)
Automatic and manual cellular band selection
Automatic and manual operator selection

GPS

Embedded GPS receiver (1575.42Mhz)
SMA Connector for external passive or active GPS Antenna
Active antenna voltage: 3.05V
Maximum current: 50mA
Tracking sensitivity under open sky: -161dBm
Acquisition sensitivity under open sky: -145dBm
Cold start sensitivity: -145dBm
Time to first fix (TTFF): Cold 32s, Warm 29s, Hot 1s

NETWORK & ROUTING

Static Routing, RIP (v1/v2), Port Forwarding and DMZ
Dynamic DNS
VRRP for redundant router failover
DHCP Server, including :
- Address reservation by MAC address
- Custom DNS server definitions
- DHCP Relay
- DHCP list display in Web-UI
- Advanced DHCP Option configuration (Option 42 NTP, Option 66 TFTP, Option 150, Option 160)
Data Stream Manager providing ability to create mappings between input and output ports (e.g. Serial Port, SMS, GPS, USB) and perform required translation or data processing by each virtual tunnel.
Modbus Server TCP/IP Gateway and Client TCP/IP Agent with up to 247 slaves connected to the Serial TCP/IP Gateway.
Modbus RTU/ASCII frames support.

VPN

PPTP Client for VPN connectivity to remote PPTP VPN Server
IPSec tunnel termination (for up to 5 tunnels)
GRE Tunnelling
OpenVPN (Client, Server and P2P)

ADMIN & CONFIGURATION

Web-based User Interface (HTTP/HTTPS) for full device status and configuration
Password protected configuration file backup and restore for quick device configuration and device cloning
Telnet Command Line Interface for status monitoring, configuration and control
SNMP v1/v2 including cellular specific MIB, config and firmware download
TR-069 Client for remote device configuration, configuration backup and restore, and firmware upgrade
SMS messaging (Send/Receive) including inbox, outbox
Ping monitor watchdog (Reset connection on repeated ping failure)
Diagnostic Log Viewer (remote and local)
System Status and Security Logs
NTP Server Support for network time sync of deviceís system clock
Device User Guide stored on the device and accessible via the Web-based User Interface (HTTP/HTTPS)
Advanced Diagnostics and Control via SMS
- Query status information ñ such as Signal Strength, WAN IP, Uptime, and many more
- Configure device remotely via SMS ñ such as APN, authentication settings, and many more
- Execute commands via SMS ñ such as reboot, reset to defaults, go offline, and many more
- Secure SMS management using sender whitelisting and password management
- SMS acknowledgement replies for queries and commands

FIRMWARE MANAGEMENT

Firmware upgrade locally via LAN or remotely Over-The-Air (HTTP/ HTTPS, SNMP, TR-069)
Multiple firmware image storage on device and dynamic install
Triggered firmware upgrade via SMS (initiate download & install from HTTP/HTTPS)

SOFTWARE DEVELOPMENT KIT

Develop and install custom software applications
Open Linux standard development environment
Develop applications/scripting in standard ANSI C/Shell script and LUA
Package manager built into Web-UI for Application installation/removal
API (C, LUA and Shell libraries) to the unitís internal Runtime Database to allow full status monitoring configuration and control of the device from custom applications

TEMPERATURE

Module Manufacturerís Recommended Operating Temperature: -40oC to +85oC
Storage Temperature: -40oC to +85oC

POWER SUPPLY

AC Power supply available as an optional accessory
Power input and I/O via 4 way Molex mini-fit connector
DC Power (8 - 40V DC)
1x dedicated ignition input on 4 way connector
Minimum power input rating of 6W via 4 way mini-fit connector. Recommended power input 12V 1.5A.
Vehicle compatible protection on DC Input Jack.
(ISO7637 standard)

DIMENSIONS & WEIGHT

Device dimensions (excluding external antenna): 143mm (L) x 107mm (W) x 34mm (D) / ~235g

MOUNTING OPTIONS

Wall mount support in multiple orientations via embedded mounting holes
DIN Rail mount support via plastic bracket included in box (Top hat section rail TH 35 IEC60715)

CERTIFICATIONS

CE (Europe)
RCM (Australia)
E-Mark (Europe)
RoHS
WEEE

CARRIER APPROVALS

Telstra*
* In progress
