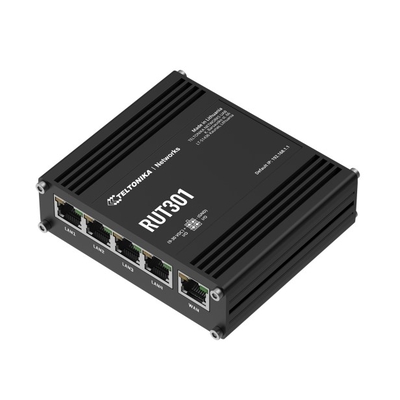

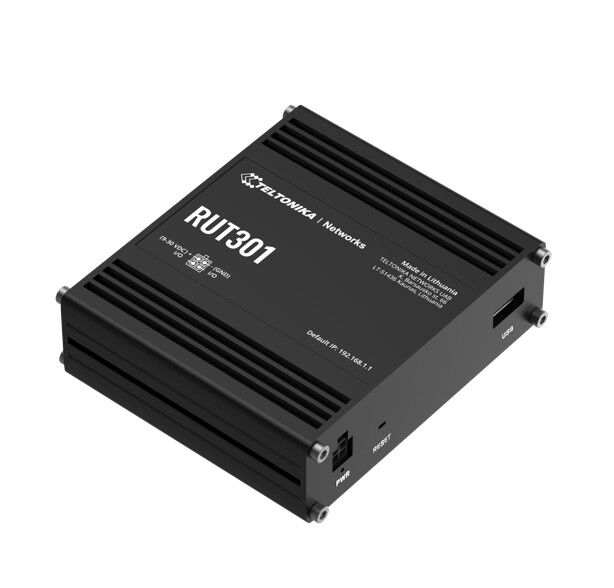

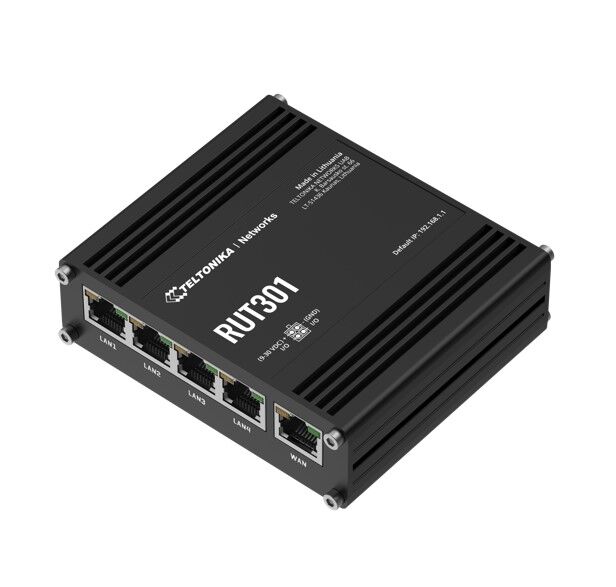

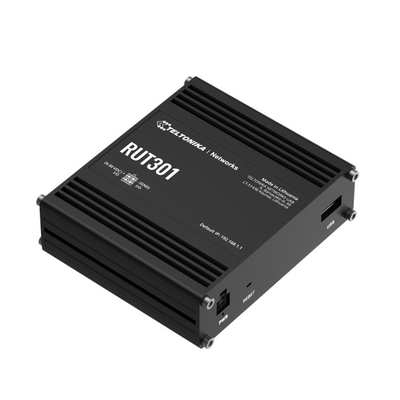

RUT301

Name: Teltonika RUT301 Industrial Ethernet Router, Rugged Industrial Ethernet Router, 5 Ethernet Ports, 2 Configurable Digital Inputs/Outputs, PSU included
Brand: TELTONIKA
SKU: RUT301
Price: 137 AUD
Availability: InStock

INDUSTRIAL ETHERNET ROUTER

The RUT301 is one of the most cost-efficient industrial Ethernet routers in the IoT market, providing robust network connectivity with advanced security features. This Ethernet router comes with five Ethernet ports, two configurable digital I/Os, and a USB 2.0 port for easy compliance with industrial machinery, enterprise, or retail equipment. Additionally, the RUT301 has a pre-configured firewall and supports multiple industrial communication protocols.

INTERFACES

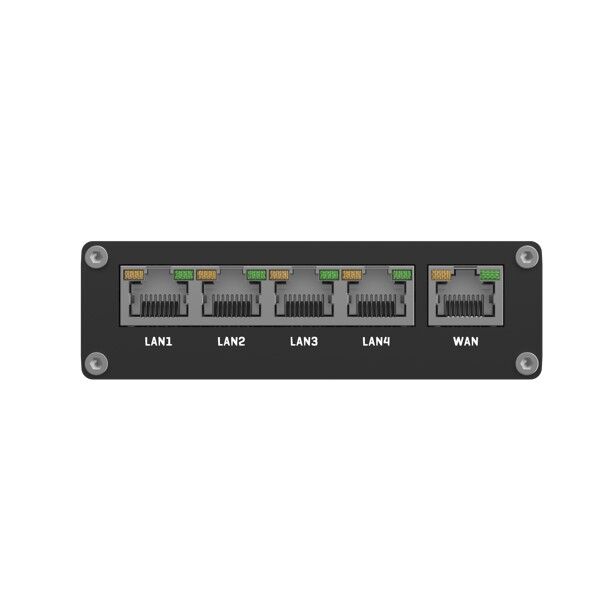

5 x Ethernet ports (10/100 Mbps), Digital I/Os, and USB 2.0

RMS

For remote management, access & VPN services

SECURITY SUITE

Pre-configured firewall and multiple VPN services

DURABLE

Industrial-grade design for withstanding harsh environments

Secure remote accessibility for manufacturing machinery

Category	Feature	Description
Ethernet	WAN	1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
Ethernet	LAN	4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network	Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
	Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
	VoIP passthrough support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
	Connection monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
	Firewall	Port forward, traffic rules, custom rules, TTL target customisation
	Firewall status page	View all your Firewall statistics, rules, and rule counters
	Ports management	View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
	Network topology	Visual representation of your network, showing which devices are connected to which other devices
	DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
	QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
	DDNS	Supported >25 service providers, others can be configured manually
	DNS over HTTPS	DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
	Network backup	VRRP, Wired options, each of which can be used as an automatic Failover
	Load balancing	Balance Internet traffic over multiple WAN connections
	Hotspot	Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
	SSHFS	Possibility to mount remote file system via SSH protocol
	Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history
Security	Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
	Firewall	Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
	Attack prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
	VLAN	Port and tag-based VLAN separation
	WEB filter	Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
	Access control	Flexible access control of SSH, Web interface, CLI and Telnet
	SSL certificate generation	Let's Encrypt and SCEP certificate generation methods
	802.1x	Port-based network access control server
VPN	OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
	OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
	IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
	GRE	GRE tunnel, GRE tunnel over IPsec support
	PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
	Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
	DMVPN	Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
	SSTP	SSTP client instance support
	ZeroTier	ZeroTier VPN client support
	WireGuard	WireGuard VPN client and server support
	Tinc	Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
OPC UA	Supported modes	Client, Server
OPC UA	Supported connection types	TCP
MODBUS	Supported modes	Server, Client
	Supported connection types	TCP, USB
	Custom registers	MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
	Supported data formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER	Protocol	HTTP(S), MQTT, Azure MQTT
DATA TO SERVER	Data to server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway	Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3	Supported modes	Station, Outstation
DNP3	Supported connection	TCP, USB
DLMS/COSEM	DLMS Support	DLMS - standard protocol for utility meter data exchange
	Supported modes	Client
	Supported connection types	TCP, USB
API	Teltonika Networks Web API (beta) support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:https://developers.teltonika-networks.com
Monitoring & Management	WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
	FOTA	Firmware update from server, automatic notification
	SSH	SSH (v1, v2)
	TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
	MQTT	MQTT Broker, MQTT publisher
	SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
	JSON-RPC	Management API over HTTP/HTTPS
	RMS	Teltonika Remote Management System (RMS)
IoT Platforms	Cumulocity - Cloud of Things	Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP. Has reboot and firmware upgrade actions
IoT Platforms	Azure IoT Hub	Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
System Characteristics	CPU	Mediatek, 580 MHz, MIPS 24KEc
	RAM	128 MB, DDR2
	FLASH storage	16 MB serial NOR flash
Firmware / Configuration	WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
	FOTA	Update FW
	RMS	Update FW/configuration for multiple devices at once
	Keep settings	Update FW without losing current configuration
	Factory settings reset	A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION	Operating system	RutOS (OpenWrt based Linux OS)
	Supported languages	Busybox shell, Lua, C, C++
	Development tools	SDK package with build environment provided
	GPL customization	You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
	Package Manager	The Package Manager is a service used to install additional software on the device
USB	Data rate	USB 2.0
	Applications	Samba share, USB-to-serial
	External devices	Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
	Storage formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
Input / Output	Input	Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
	Output	Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA
	Events	Email, RMS
	I/O juggler	Allows to set certain I/O conditions to initiate event
Power	Connector	4-pin industrial DC power socket
