RUTM54

Name: Teltonika RUTM54 Dual 5G Router, Dual SIM & eSIM™, Telit 5G Modem, Auto-Failover,
Brand: Teltonika
SKU: RUTM54
Price: 1234 AUD
Availability: InStock

5G ROUTER WITH TELIT MODEM

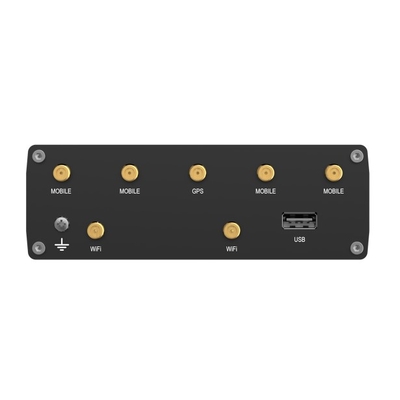

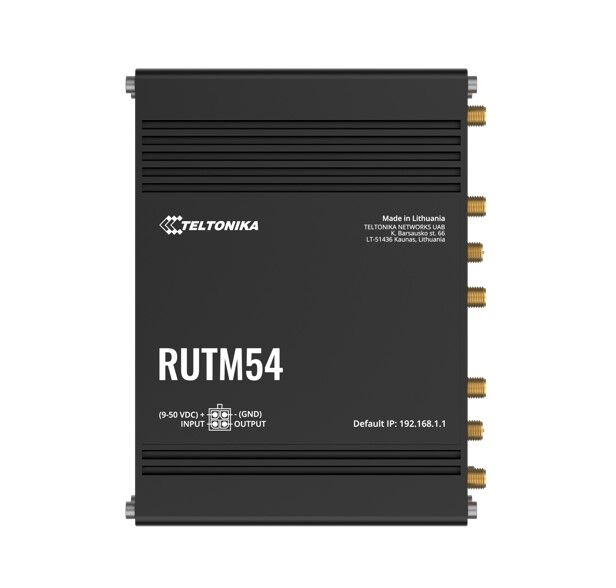

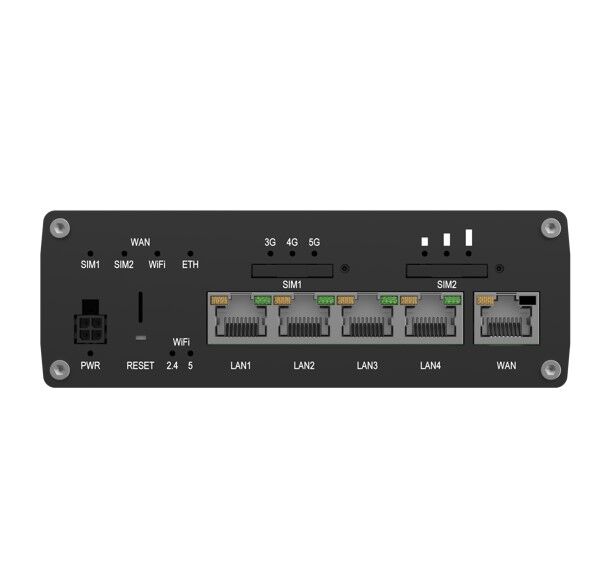

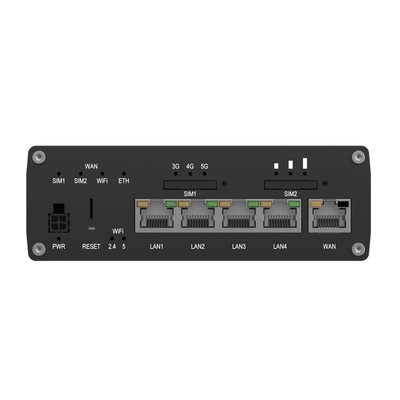

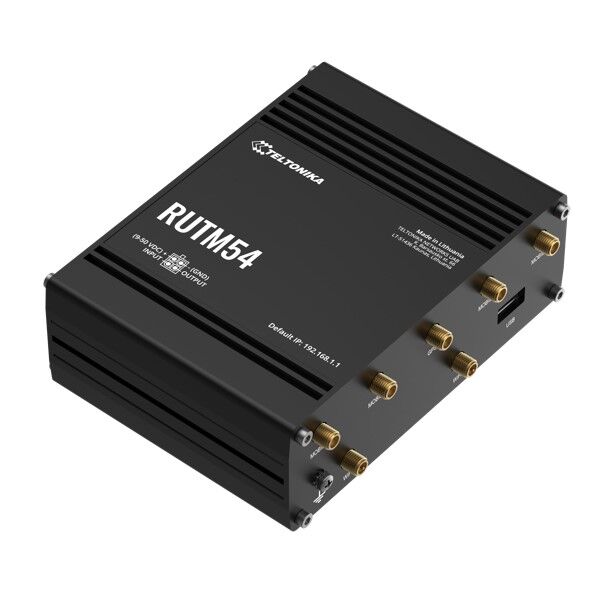

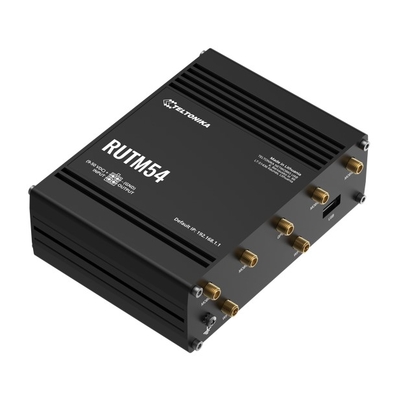

The RUTM54 is a high-performance, dual-SIM and eSIM 5G router, ideal for data-intensive applications that demand reliable, high-speed connectivity. With a global Telit 5G modem, the RUTM54 delivers exceptional connectivity and consistent performance. Its 5 Gigabit Ethernet ports and dual-band Wi-Fi provide robust redundancy, while auto-failover ensures uninterrupted service. With backward compatibility to 4G and multiple interface options, the RUTM54 is designed for seamless expandability and future upgrades.

Ultra-high cellular speeds of up to 3.4 Gbps

DUAL SIM & eSIM™

With auto failover, backup WAN and other switching scenarios

SA & NSA

Supports both architectures to leverage the 5G infrastructure

TELIT MODEM

US-made module inside

Category	Feature	Description
Mobile	Mobile module	5G Sub-6Ghz SA/NSA 2.5/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6Gbps DL, LTE Cat 18 211Mbps UL; 3G – 42 Mbps DL, 5.7Mbps UL
	3GPP Release	Release 16
	eSIM	Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
	SIM switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
	Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
	SMS	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
	USSD	Supports sending and reading Unstructured Supplementary Service Data messages
	Block/Allow list	Operator block/allow list (by country or separate operators)
	Multiple PDN	Possibility to use different PDNs for multiple network access and services
	Band management	Band lock, Used band status display
	SIM idle protection service	Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
	SIM PIN code management	SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
	APN	Auto APN
	Bridge	Direct connection (bridge) between mobile ISP and device on LAN
	Passthrough	Router assigns its mobile WAN IP address to another device on LAN
	Framed routing	Framed routing: support an IP network behind 5G UE
Wireless	Wireless mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
	WiFi security	WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
	SSID/ESSID	SSID stealth mode and access control based on MAC address
	Wi-Fi users	Up to 150 simultaneous connections
	Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
	Wireless MAC filter	Allowlist, blocklist
	Wireless QR code generator	Once scanned, a user will automatically enter your network without needing to input login information
	TravelMate	Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet	WAN	1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Ethernet	LAN	4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network	Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
	Network protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
	VoIP passthrough support	H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
	Connection monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
	Firewall	Port forward, traffic rules, custom rules, TTL target customisation
	Firewall status page	View all your Firewall statistics, rules, and rule counters
	Ports management	View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
	Network topology	Visual representation of your network, showing which devices are connected to which other devices
	DHCP	Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
	QoS / Smart Queue Management (SQM)	Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
	DDNS	Supported >25 service providers, others can be configured manually
	DNS over HTTPS	DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
	Network backup	Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
	Load balancing	Balance Internet traffic over multiple WAN connections
	Hotspot	Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
	SSHFS	Possibility to mount remote file system via SSH protocol
	VRF support	Initial virtual routing and forwarding (VRF) support
	Traffic Management	Real-time monitoring, wireless signal charts, traffic usage history
Security	Authentication	Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
	Firewall	Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
	Attack prevention	DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
	VLAN	Port and tag-based VLAN separation
	Mobile quota control	Mobile data limit, customizable period, start time, warning limit, phone number
	WEB filter	Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
	Access control	Flexible access control of SSH, Web interface, CLI and Telnet
	TPM	Identification and authentication module, TPM 2.0 standard
	SSL certificate generation	Let's Encrypt and SCEP certificate generation methods
	802.1x	Port-based network access control client
VPN	OpenVPN	Multiple clients and a server can run simultaneously, 27 encryption methods
	OpenVPN Encryption	DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
	IPsec	XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
	GRE	GRE tunnel, GRE tunnel over IPsec support
	PPTP, L2TP	Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
	Stunnel	Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
	DMVPN	Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
	SSTP	SSTP client instance support
	ZeroTier	ZeroTier VPN client support
	WireGuard	WireGuard VPN client and server support
	Tinc	Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
	Tailscale	Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
OPC UA	Supported modes	Client, Server
OPC UA	Supported connection types	TCP
MODBUS	Supported modes	Server, Client
	Supported connection types	TCP, USB
	Custom registers	MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
	Supported data formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER	Protocol	HTTP(S), MQTT, Azure MQTT
DATA TO SERVER	Data to server	Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway	Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3	Supported modes	DNP3 Station, DNP3 Outstation
DNP3	Supported connection	TCP, USB
DLMS/COSEM	DLMS Support	DLMS - standard protocol for utility meter data exchange
	Supported modes	Client
	Supported connection types	TCP
API	Teltonika Networks Web API (beta) support	Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation:https://developers.teltonika-networks.com
Monitoring & Management	WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
	FOTA	Firmware update from server, automatic notification
	SSH	SSH (v1, v2)
	SMS	SMS status, SMS configuration

SKU	RUTM54
Barcode #	4779051843398
Brand	Teltonika
Shipping Weight	0.5300kg
Shipping Width	0.095m
Shipping Height	0.132m
Shipping Length	0.045m
