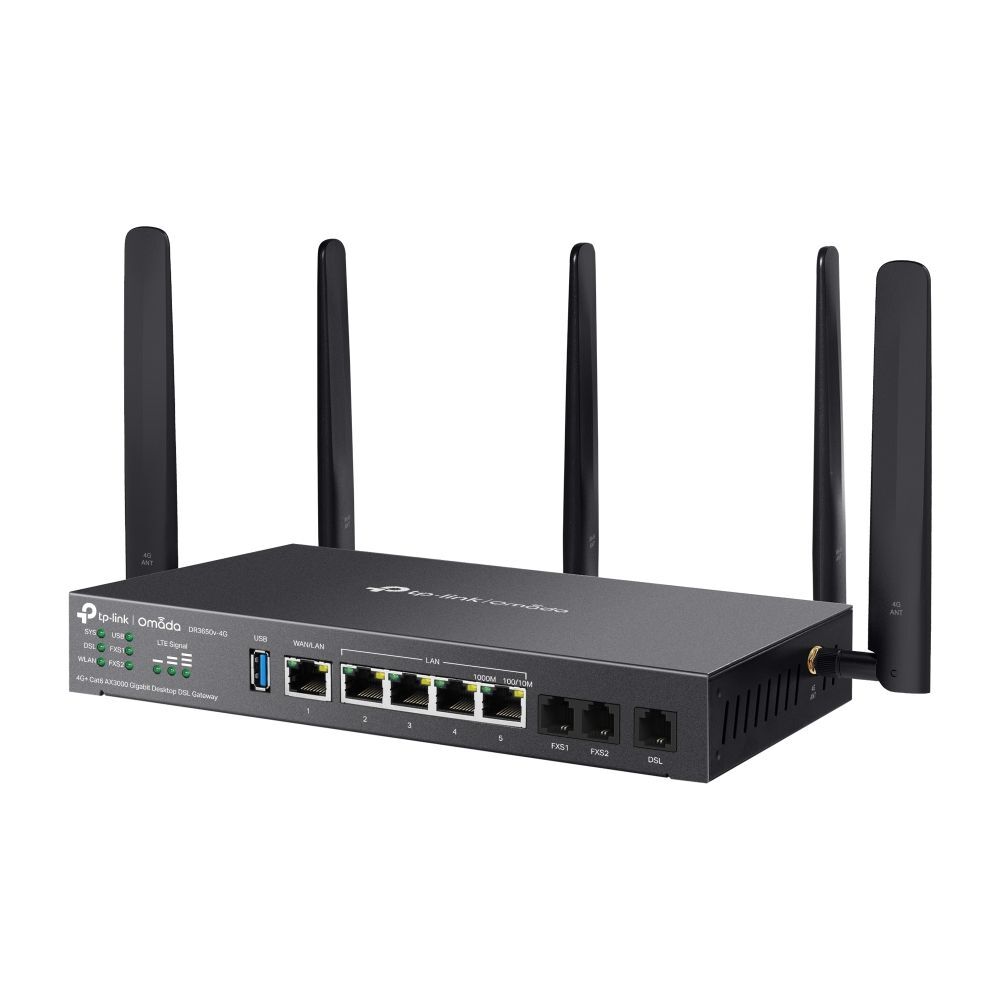

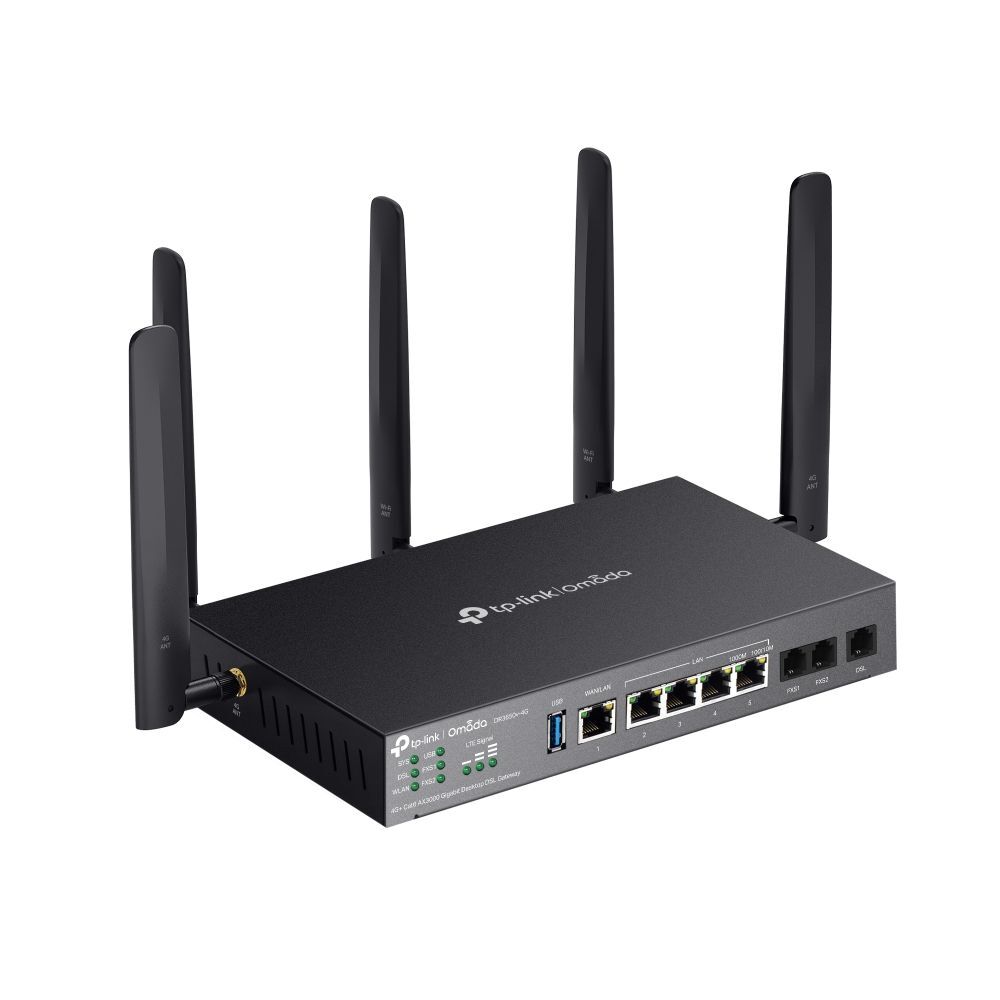

Omada 4G+ Cat6 AX3000 Wi-Fi 6 Gigabit Desktop DSL Gateway

AX3000 WiFi 6 with 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz*¹
4G+ Cat6 up to 300Mbps
3× RJ11 Ports (2× FXS, 1× DSL) & 5× RJ45 Gigabit Ports & 1× USB 3.0 Port
2× Nano SIM for 4G/LTE Failover
VDSL2 35b: Supports 350Mbps DSL Access*²
VDSL2/ADSL2+/ADSL2/ADSL Compatibility
IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL VPN
Load Balancing Across DSL, 4G, and Ethernet WAN for Optimized Connectivity
Centralized Cloud Management
Desktop/Wall/Rack Mounting (Purchase Rackmount Kit-D226 Separately)

(DR3650V-4G)

SECURITY
Access Control	Source/Destination IP Based Access Control
Filtering	• Web Group Filtering⁵ • URL Filtering • Web Security⁵
ARP Inspection	• Sending GARP Packets • ARP Scanning*⁵ • IP-MAC Binding
Attack Defense	• TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN

HARDWARE FEATURES

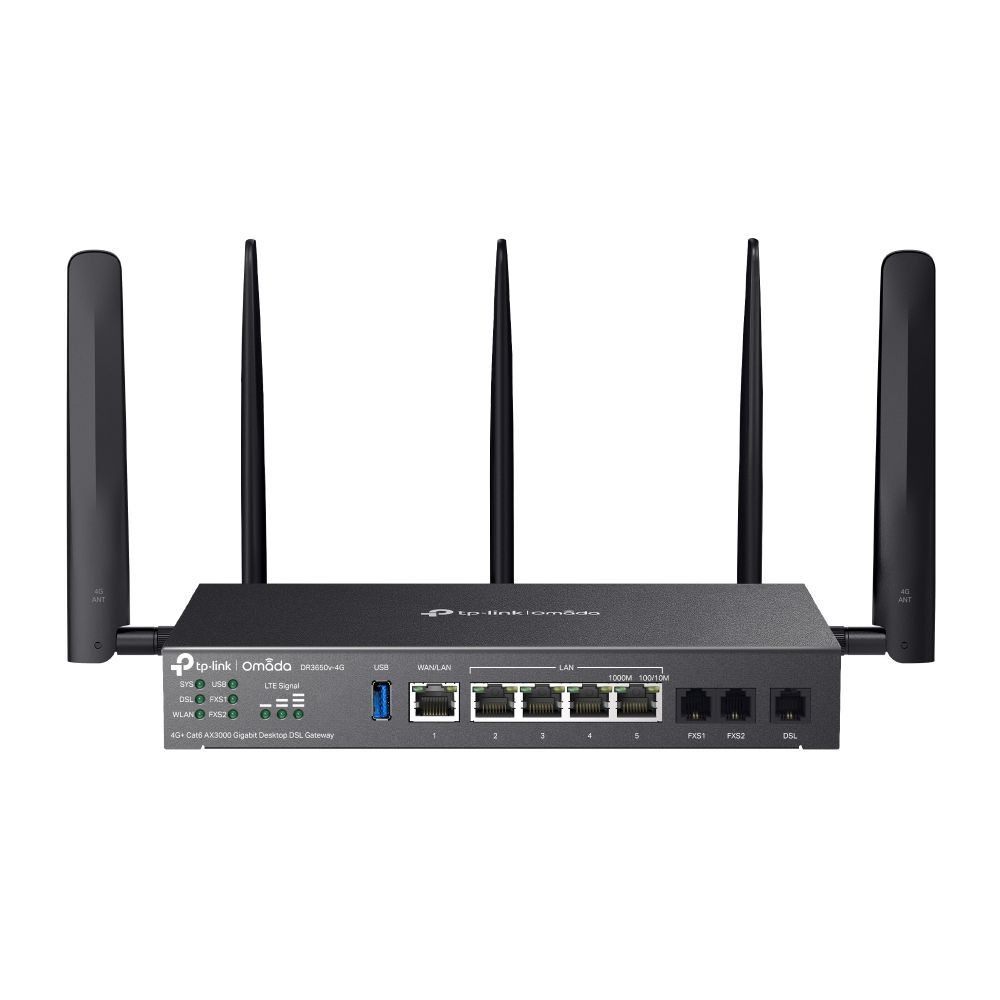

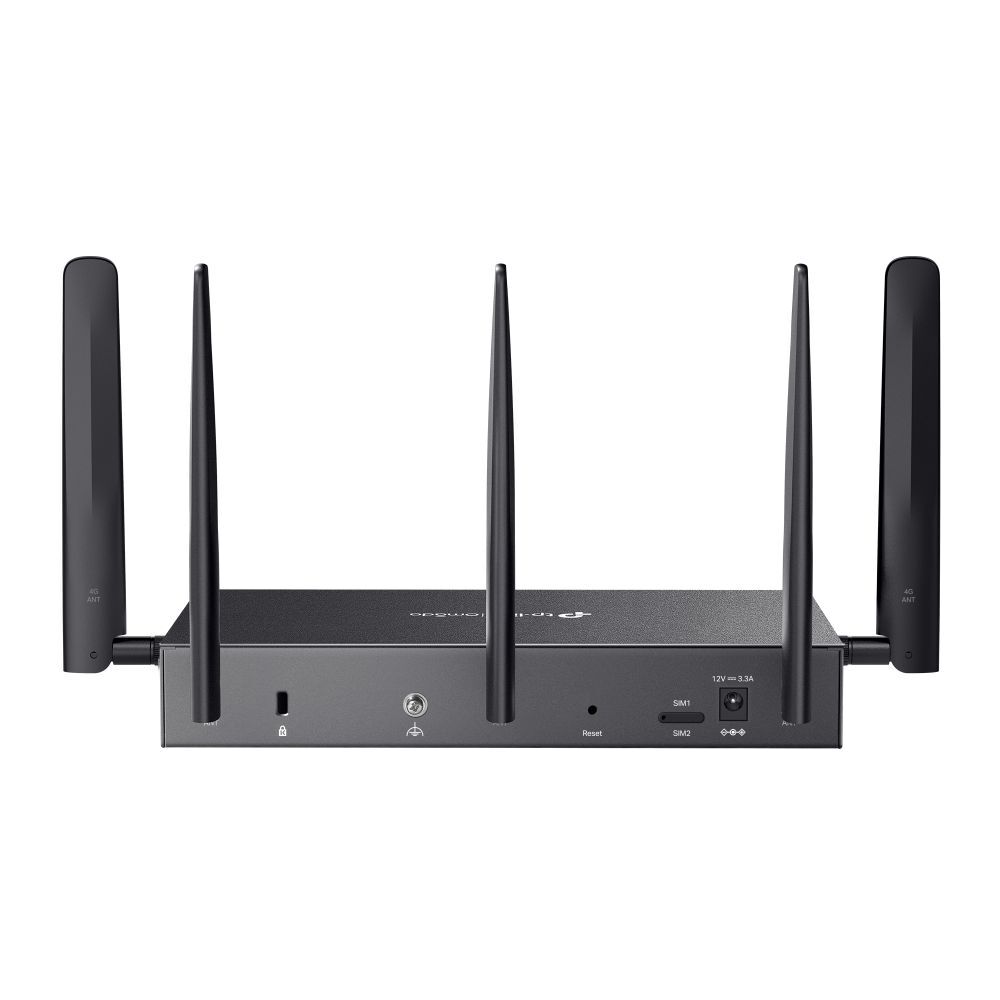

Interface	• 1× Gigabit WAN/LAN Port • 4× Gigabit LAN Ports • 1× DSL Port • 2× FXS Ports • 1× USB 3.0 (supports USB LTE dongle and USB Storage) • Dual Nano SIM Slot (4G+ Cat6)
Button	Reset Button
Power Supply	12V DC / 3.3A Power Adapter
Wi-Fi Frequency & Signal Rate	• 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160)
Flash	256 MB NAND
DRAM	512 MB DDR4
Dimensions ( W x D x H )	8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna	• Wi-Fi: 3× 5GHz 5dBi & 2.4GHz 3.5dBi dual-band detachable antennas • LTE: 2× 4.0dBi omnidirectional detachable antennas

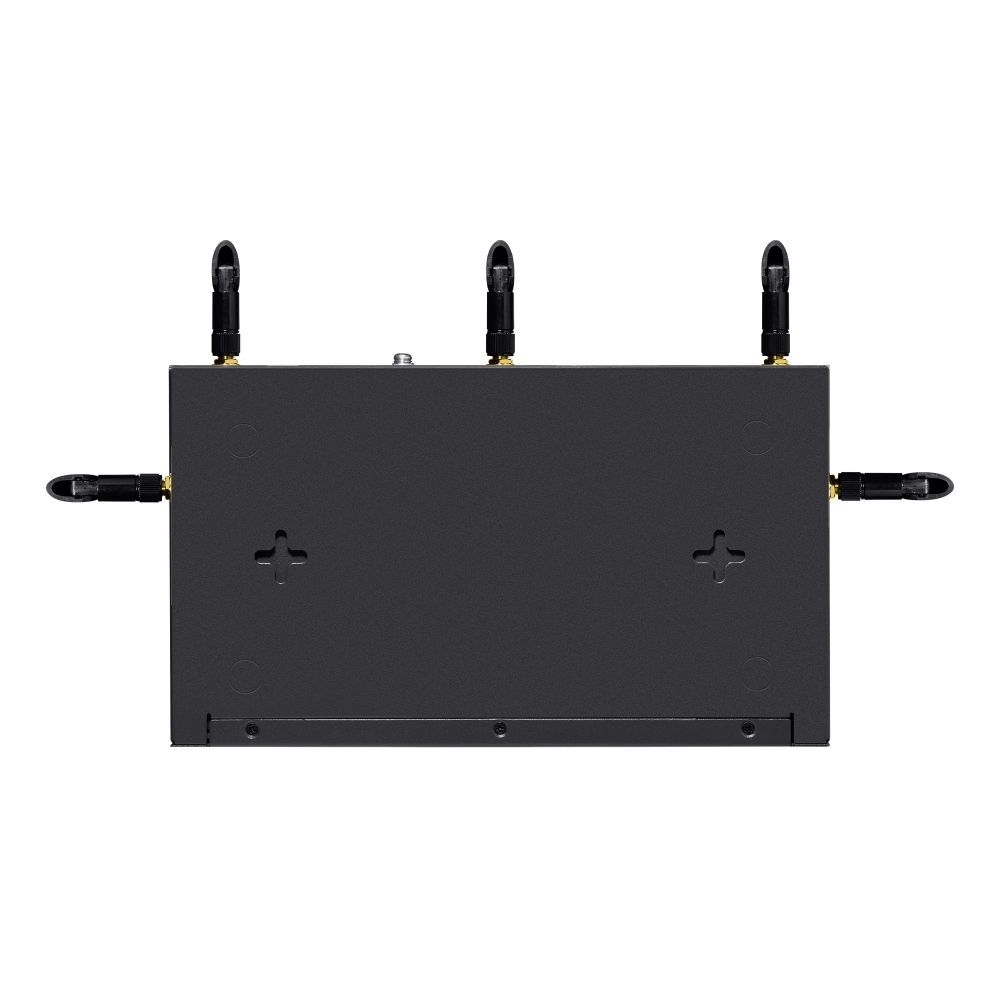

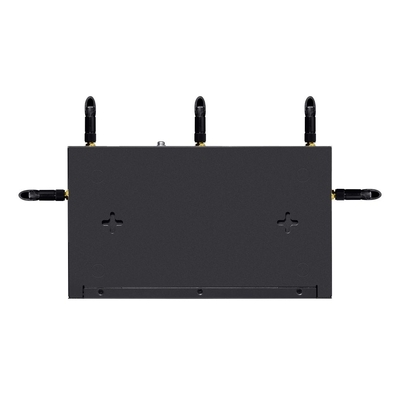

Mounting	Desktop / Wall / Rack mount (Purchase Rackmount Kit-D226 Separately)
Max. Power Consumption	Power adapter not included: 28.482 W (Full load + USB) Power adapter included: 31.42 W (Full load + USB)

PERFORMANCE
GRE	• Unencrypted: 541.8Mbp • Encrypted: 289.2Mbps
WireGuard VPN	311.6Mbps
Concurrent Session	150,000
New Sessions /Second	3,800
NAT (Static IP)	937.2 Mbps / 936.1Mbps
NAT(DHCP)	945.8 Mbps / 940.6Mbps
NAT(PPPoE)	942.9 Mbps / 942.9Mbps
NAT (L2TP)	837.4 Mbps / 881.5Mbps
NAT (PPTP)	803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput	• ESP-SHA1-AES256: 569.9Mbps • ESP-SHA256-AES256: 543.3Mbps • ESP-SHA384-AES256: 549.0Mbps • ESP-SHA512-AES256: 539.3Mbps
OpenVPN	129.3Mbps
L2TP VPN Throughput	• Unencrypted: 909.4 Mbps • Encrypted: 494.9Mbps
PPTP VPN Throughput	• Unencrypted: 897.5 Mbps • Encrypted: 190.8 Mbps
SSL VPN Throughput	126.7Mbps
66 Byte Packet Forwarding Rate	1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate	81,274 pps / 91,275 pps

WIRELESS FEATURES

Advanced Features

• Seamless Roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• MU-MIMO
• Load Balance
• Automatic Channel Selection Algorithm
• Airtime Fairness
• Rate Limit: Based on SSID/Client
• Transmit Power Control: Adjust transmit Power on dBm
• Multiple SSIDs: 16 in total (8 per radio)
• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise

Guest Network

Support

BASIC FUNCTIONS
WAN Connection Type	• Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP
MAC Clone	Modify WAN Address
DHCP	• DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP
IPv6	StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN	802.1Q VLAN
IPTV	IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Advanced Features
Advanced Routing	• Static Routing • Policy Routing • RIP⁵ • OSPF⁵
Bandwidth Control	IP-Based Bandwidth Control
Load Balance	• Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection
NAT	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering*⁵ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP
Session Limit	IP-Based Session Limit

VPN
GRE	Only in Standalone Mode
SSL VPN	50 Tunnels
IPsec VPN	• 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)
PPTP VPN	• PPTP VPN Server • PPTP VPN Client (10)*⁶ • 50 Tunnels • PPTP with MPPE Encryption
L2TP VPN	• L2TP VPN Server • L2TP VPN Client (10)*⁶ • 50 Tunnels • L2TP over IPSec
OpenVPN	• OpenVPN Server • OpenVPN Client (5)*⁶ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode
WireGuard VPN	Yes

AUTHENTICATION
Web Authentication	• No Authentication • Simple Password⁶ • Hotspot (Local User / Voucher⁶ / SMS⁶ / Radius⁶) • External Radius Sever • External Portal Sever*⁶ • LDAP

Management Features
Omada App	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Require the use of Omada Controller.
Service	Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance	• Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)⁵ • NTP Synchronize⁵ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support • TR-069 (data models of TR-098 and TR181 are supported)
Zero-Touch Provisioning	Yes.Require the use of Omada Controller.
Management Features	• Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration

OTHERS
Certification	CE, RoHS
Package Content	• DR3650v-4G • Power Adapter • Ethernet Cable • Phone Cable • Rubber Feet, • SIM Card Eject Pin • Quick Installation Guide
System Requirements	• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux
Environment	• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing
