Teltonika Industrial Cellular Modem, 4G/LTE (Cat 1), USB LTE Cat 1 Modem with a Rugged Housing and External Antenna Connector, PSU excluded
Model # TRM240100000
-
SKU: TRM240100000
- Pick Up Available
- Australian Warranty
- Checkout Securely
TRM240
INDUSTRIAL CELLULAR MODEM

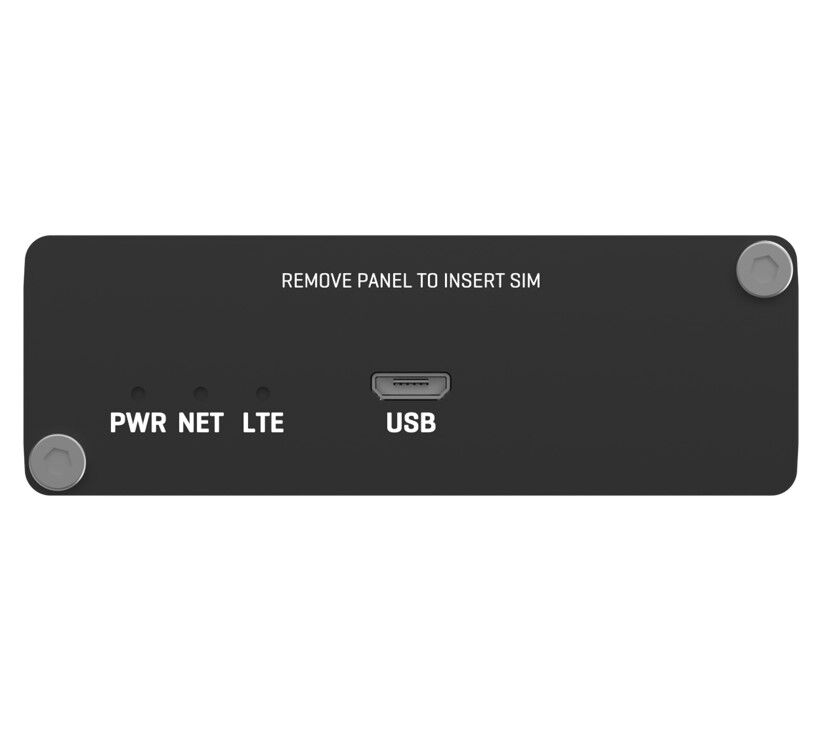

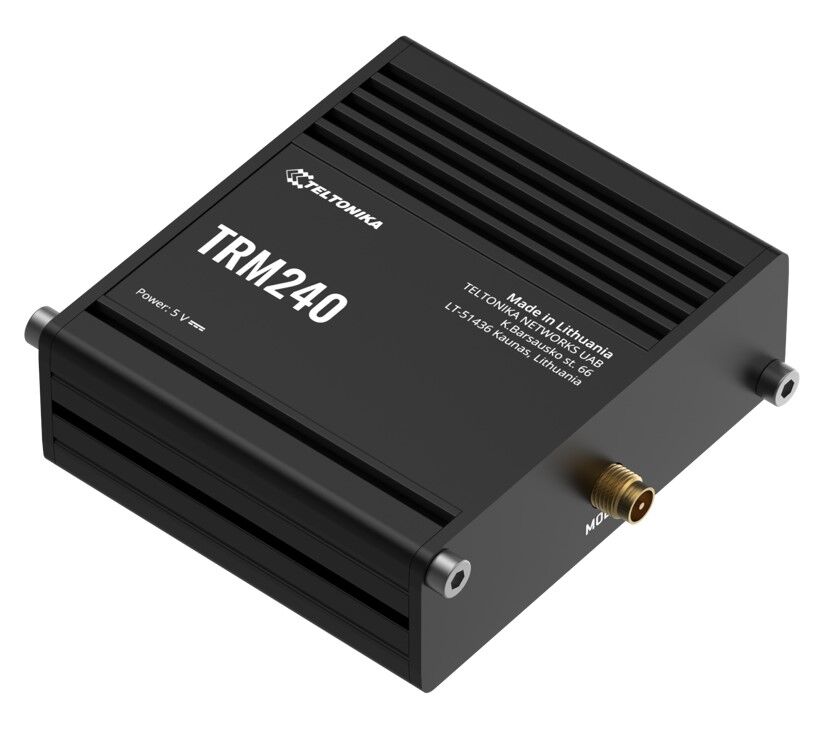

TRM240 is an industrial-grade USB LTE Cat 1 modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for upgrading existing industrial equipment with cost-efficient LTE connectivity.
| CONNECTIVITY 4G/LTE (Cat 1), 3G, 2G | COMPACT & DURABLE Small size, easy installation | USB Interface for internet access | EXTERNAL ANTENNA For deployment flexibility |
For More Case Studies Click Here ...
(TRM240100000)
| Category | Feature | Description |
|---|---|---|
| Mobile | Mobile module | 4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps |
| 3GPP Release | Release 12 | |
| Power | Connector | microUSB |
| Input voltage range | 5V - powered via microUSB | |
| Power consumption | 3.2 W Max | |
| Physical Interfaces | Status LEDs | 1 x Power LED, 1 x Network LED, 1 x Mobile LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V | |
| Power | 1x microUSB | |
| Antennas | 1 x SMA for LTE | |
| Physical Specification | Casing material | Aluminium housing |
| Dimensions (W x H x D) | 74.5 x 25 x 64.5 mm | |
| Weight | 131 g | |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing | |
| Ingress Protection Rating | IP30 | |
| TRM SOFTWARE | Management Software | Windows Connection Manager (NDIS driver) |
| USB Driver | Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x | |
| RIL Driver | Android 4.x/5.x/6.x/7.x/8.x | |
| NDIS Driver | Windows 7/8/8.1/10 | |
| Gobinet Driver | Linux 2.6/3.x/4.1~4.14 | |
| Linux Driver | 3.x (3.4 and later)/4.1~4.14 | |
| Regulatory & Type Approvals | Regulatory | CE, UKCA, EAC, UCRF, Kenya, ICASA |
| EMC Emissions & Immunity | Standards | Draft EN 303 446-1 V1.1.0 |
| ESD | EN 61000-4-2:2009 | |
| Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 | |
| RF | Standards | EN 301 511 V12.5.1EN 301 908-1 V13.1.1EN 301 908-2 V13.1.1EN 301 908-13 V13.1.1 |
| Safety | Standards | CE: EN 62368-1:2014 + A11:2017, EN 62311:2008 |
| SKU | TRM240100000 |
| Barcode # | 4779027312774 |
| Brand | TELTONIKA |
| Shipping Weight | 0.2800kg |
Manufacturer Warranty: 2 Years Manufacturer Warranty
