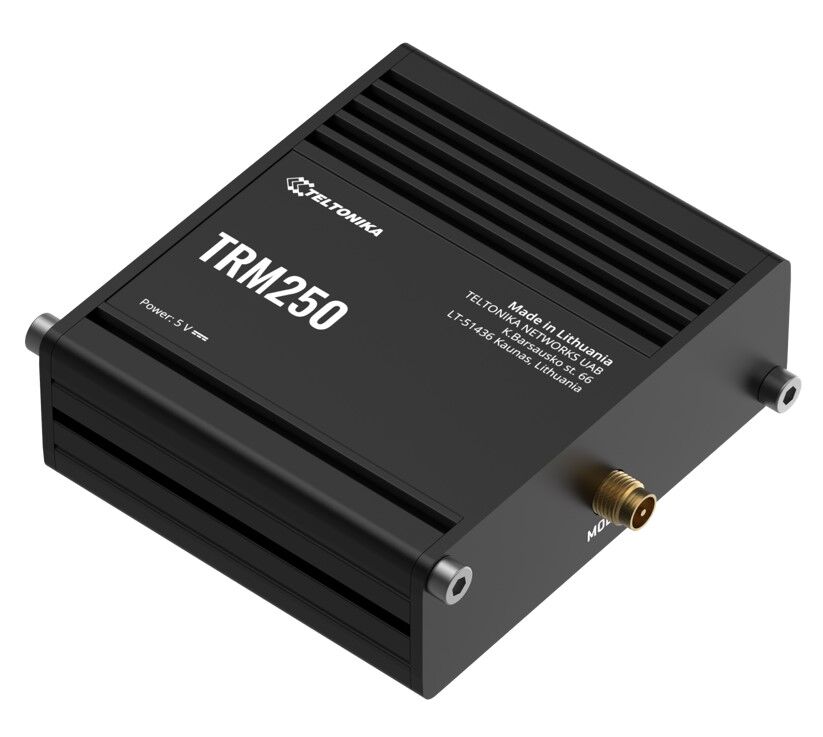

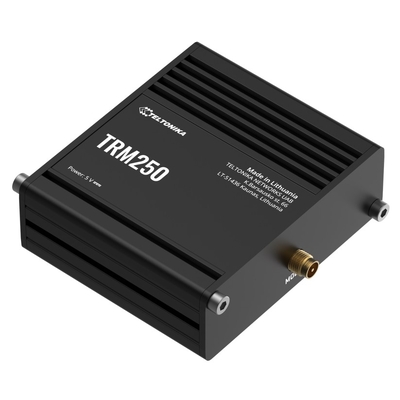

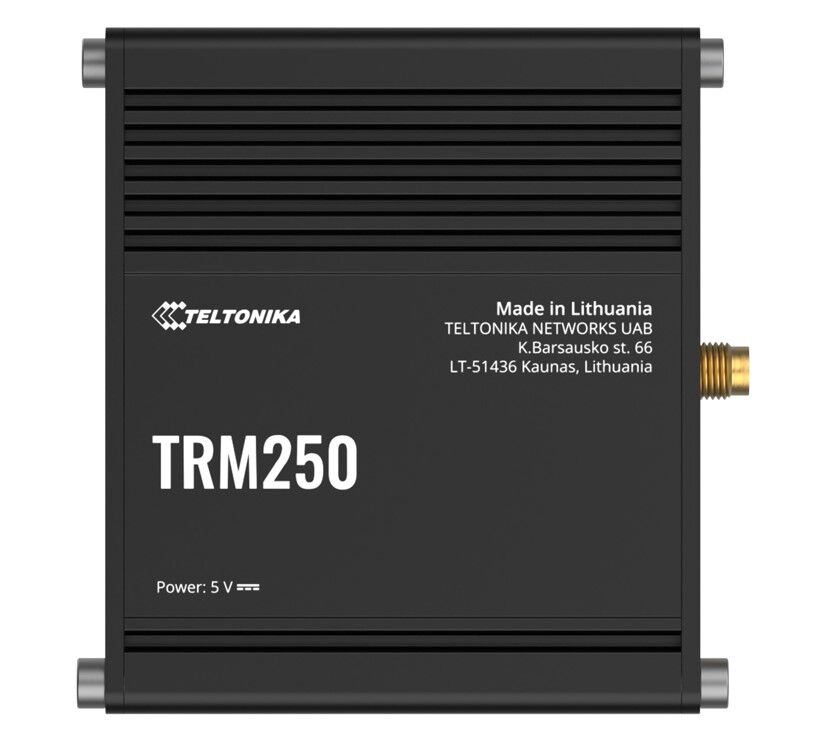

TRM250
INDUSTRIAL CELLULAR MODEM
TRM250 is an industrial-grade USB LTE Cat-M1/NB-IoT/EGPRS modem with a rugged housing and an external antenna for better signal coverage. This product is perfect for providing cost-efficient internet connectivity in remote monitoring applications.
| CONNECTIVITY 4G/LTE (Cat M1), NB-IoT, 2G | COMPACT &DURABLE Small size, easy installation | USB Interface for internet access | EXTERNAL ANTENNA For deployment flexibility |
For More Case Studies Click Here ...
(TRM250000000)
| Category | Feature | Description |
|---|---|---|
| Mobile | Mobile module | 4G LTE Cat M1 up to 375 DL/375 UL kbps; Cat NB1 up to 32 DL/70 UL kbps; 2G up to 296 DL/ 236.8 UL kbs |
| 3GPP Release | Release 12 | |
| Power | Connector | microUSB |
| Input voltage range | 5V - powered via microUSB | |
| Power consumption | 3.6 W Max | |

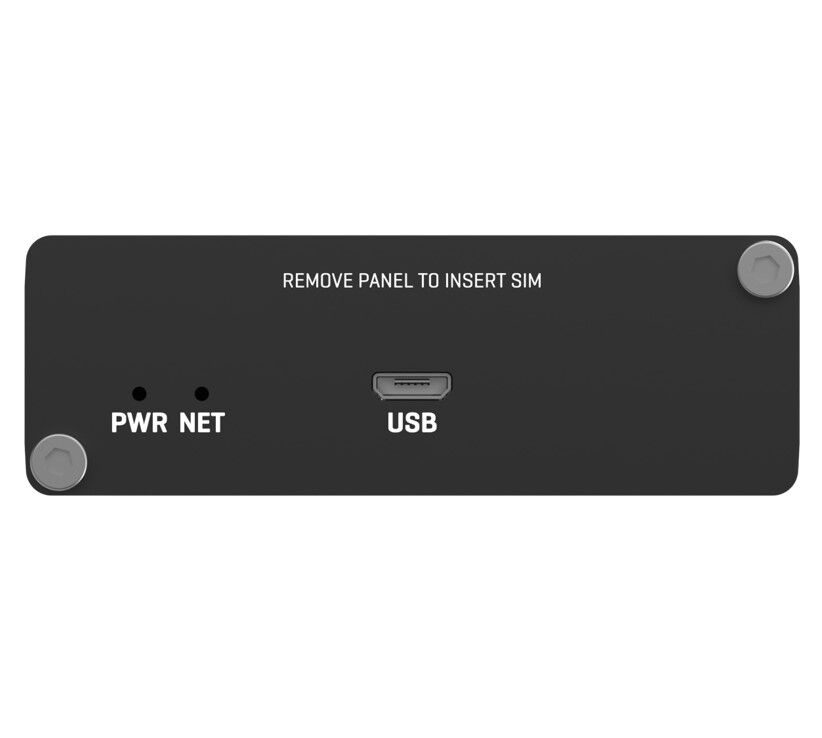

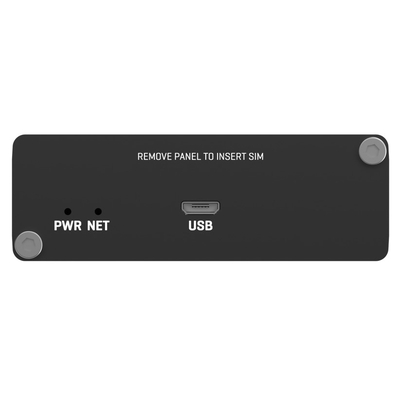

| Physical Interfaces | Status LEDs | 1 x Power LED, 1 x Network LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V | |
| Power | 1x microUSB | |
| Antennas | 1 x SMA for LTE | |
| Physical Specification | Casing material | Aluminium housing |
| Dimensions (W x H x D) | 74.5 x 25 x 64.5 mm | |
| Weight | 130 g | |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) | |
| Operating Environment | Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10% to 90% non-condensing | |
| Ingress Protection Rating | IP30 | |
| TRM SOFTWARE | Management Software | Windows Connection Manager (NDIS driver) |
| USB Driver | Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x | |
| RIL Driver | Android 4.x/5.x/6.x/7.x/8.x | |
| NDIS Driver | Windows 7/8/8.1/10 | |
| Gobinet Driver | Linux 2.6/3.x/4.1~4.14 | |
| Linux Driver | 3.x (3.4 and later)/4.1~4.14 | |
| Regulatory & Type Approvals | Regulatory | CE, UKCA, EAC, UCRF, Kenya |
| EMC Emissions & Immunity | Standards | Draft EN 303 446-1 V1.1.0 |
| ESD | EN 61000-4-2:2009 | |
| Radiated Immunity | EN IEC 61000-4-3:2006 + A1:2008 + A2:2010 | |
| RF | Standards | ETSI EN 301 511 V12.5.1ETSI EN 301 908-1 V13.1.1ETSI EN 301 908-13 V13.1.1 |
| Safety | Standards | CE: EN 62368-1:2014 + A11:2017, EN 62311:2008 |
| SKU | TRM250000000 |
| Barcode # | 4779027312781 |
| Brand | TELTONIKA |
| Shipping Weight | 0.2700kg |
Manufacturer Warranty : 2 years Manufacturer Warranty
