ARCHER-NX600

5G AX3600 Wireless Dual-Band 2.5 Gig Router

Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
AX3600 Dual-Band Wi-Fi 6 Speed - 2402 Mbps (5 GHz) + 1148 Mbps (2.4 GHz).
Plug & Play - Enjoy 5G network right after inserting a SIM card.
EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
2.5 Gbps WAN/LAN Port - The 2.5 Gbps WAN/LAN port enables NX600 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.

(ARCHER-NX600)

HARDWARE FEATURES

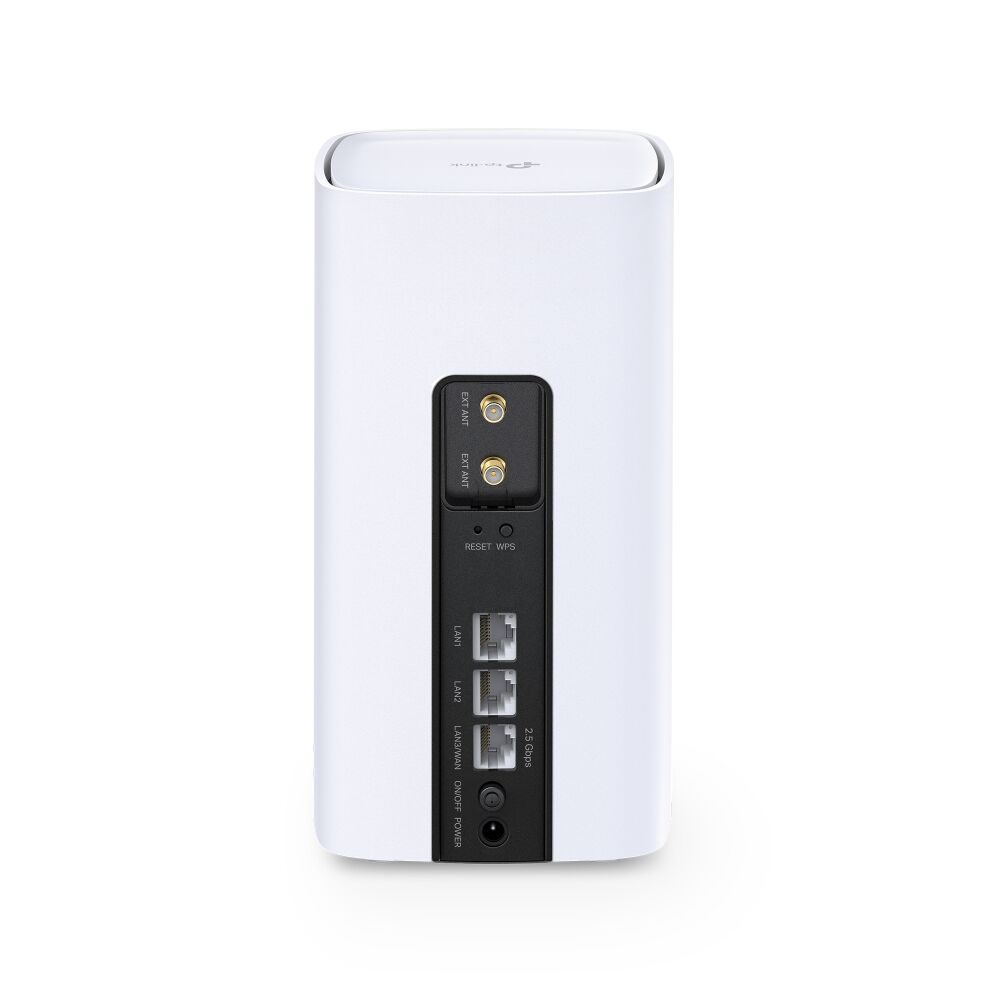

Interface	1 × 2.5 Gbps WAN/LAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface
Button	WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
External Power Supply	Power Adapter: Input Power 100-240v~50/60 Hz 0.6A Output parameter 12VDC 2A
Dimensions ( W x D x H )	3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm)
Antenna	8 × 5G/LTE Internal Antennas 2 × Wi-Fi Internal Antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	1148 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz
Reception Sensitivity	5GHz： 11a 54M：-80 dBm 11ax HE20：-68 dBm 11ax HE40：-65 dBm 11ax HE80：-62 dBm 11ac VHT20：-76 dBm 11ac VHT40：-72 dBm 11ac VHT80：-68 dBm 11n HT20：-79 dBm 11n HT40：-75 dBm 2.4GHz 11g 54M：-78 dBm 11ax HE20：-65 dBm 11ax HE40：-62 dBm 11ac VHT20：-73 dBm 11ac VHT40：-68 dBm 11n HT20：-75 dBm 11n HT40：-72 dBm
Wireless Functions	Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics
WAN Failover	Yes
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
Transmission Power	<23dBm (5.15GHz~5.35GHz) <30dBm (5.47GHz~5.71GHz) <20dBm (2.4GHz)
Network Type	5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz) FDD-LTE: B1/B3/B5/B7/B8/B20/B28/ (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz) DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES
Quality of Service	Prioritizes network traffic by device or application
Security	DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
Management Features	TP-Link Cloud, Local Management, Remote Management
DHCP	Server, DHCP Client List, Address Reservation
Port Forwarding	ALG, Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	TP-Link, DynDns, NO-IP
VPN	PPTP VPN, IPSec VPN , OpenVPN
Access Control	Parental Control, Local Management Control
Firewall Security	DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
Protocols	IPv4, IPv6
Guest Network	2.4 GHz Guest Network x 1 5 GHz Guest Network x 1

OTHERS
Certification	CE, RCM, RoHS
Package Content	5G AX3600 Wireless Dual-Band Gigabit Router Archer NX600 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide
System Requirements	Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Nano SIM Card
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

SKU	ARCHER-NX600
Barcode #	8885020624878
Brand	TP-LINK
Shipping Weight	1.2700kg
Shipping Width	0.115m
Shipping Height	0.230m
Shipping Length	0.221m
