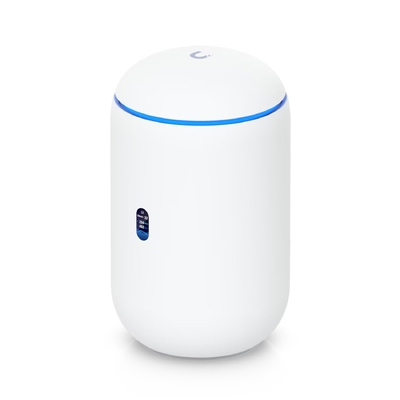

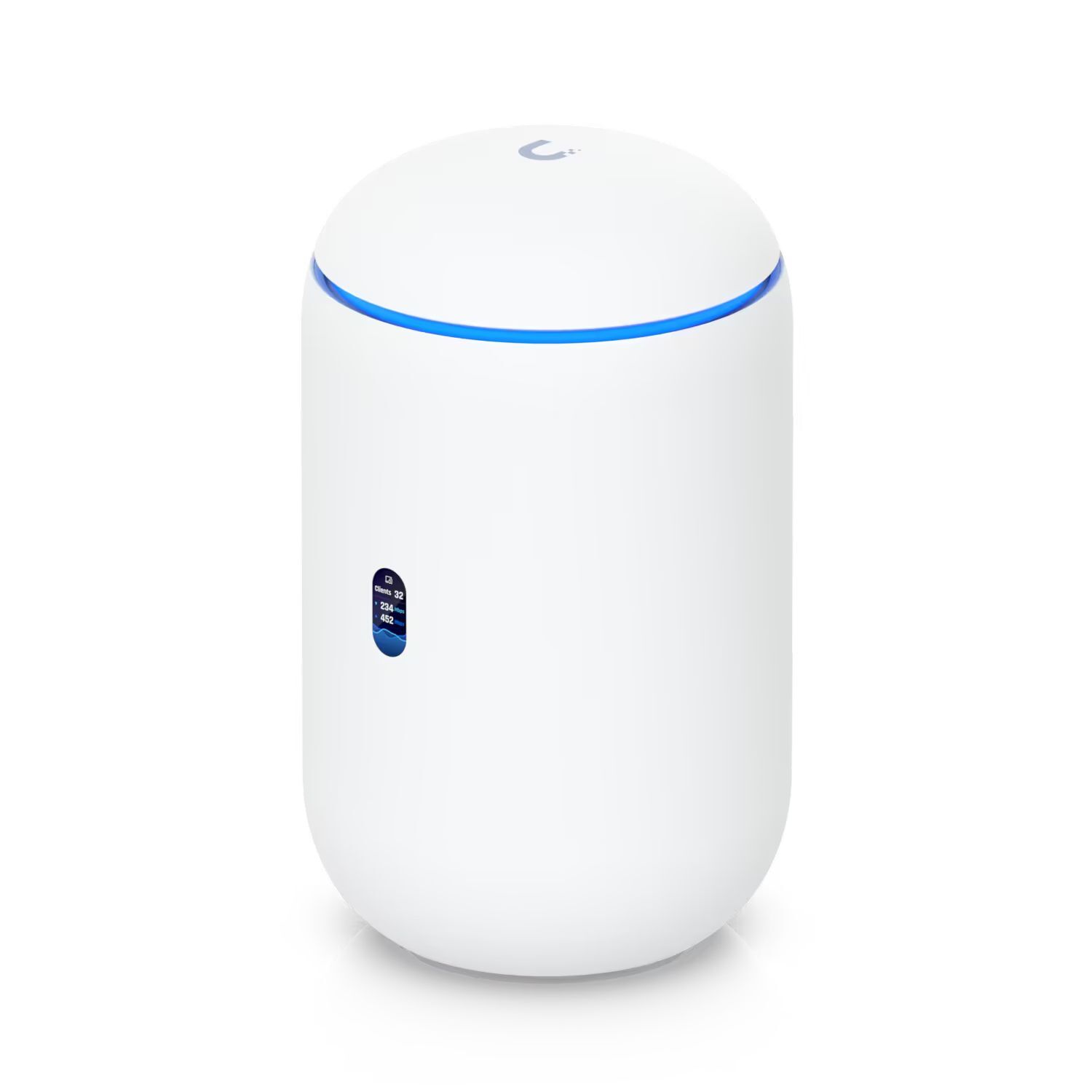

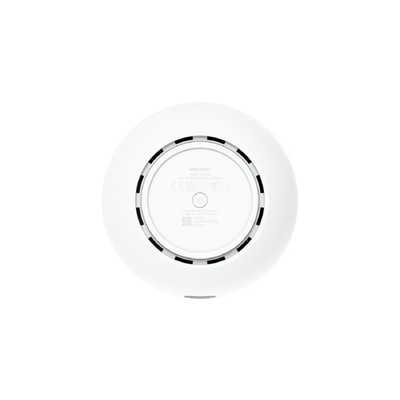

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.



(UDR7-15W)

Router Comparison UX7

UniFi Express 7

UX7

 UDR7

Dream Router 7

UDR7

 UDR-5G-Max

Dream Router 5G Max

UDR-5G-Max
Overview
Dimensions 117 x 117 x 42.5 mm
(4.61 x 4.61 x 1.67")		 ⌀110 x 184.1 mm
(⌀4.3 x 7.3")		 110 x 110 x 250 mm
(4.3 x 4.3 x 9.8")
Form Factor Compact desktop Compact desktop Desktop
Managed Cameras — (5) HD, (2) 2K, (1) 4K (5) HD, (2) 2K, (1) 4K
Max. WAN Port Count 1 4 4
Default WAN Ports (1) 10 GbE RJ45 (1) 10G SFP+
(1) 2.5 GbE RJ45		 (1) 10G SFP+
(1) 2.5 GbE RJ45
Port Layout
2.5 GbE RJ45 1 (2.5G/1G/100M/10M) 4 (1 PoE)
(2.5G/1G/100M/10M)		 4 (1 PoE)
(2.5G/1G/100M)
10 GbE RJ45 1 (10G/5G/2.5G/1G/100M) — —
10G SFP+ — 1 (10G/1G) 1 (10G/1G)
UniFi Application Suite
Protect — ✓ ✓
Access — ✓ ✓
Talk — ✓ ✓
Connect — ✓ ✓
Networking & WiFi
Multi-WAN Load Balancing — ✓ ✓
MAC Address Table Size — 2,000 2,000
Max. BSSIDs 4 per Radio (Gateway/AP Mode) 4 per Radio 4 per Radio
Antenna Gain
6 GHz 6 dBi 6 dBi 8 dBi
5 GHz 7 dBi 7 dBi 5 dBi
2.4 GHz 4 dBi 5 dBi 4 dBi
Hardware
NVR Storage — Pre-installed 64GB microSD Pre-installed 64GB microSD
Expansion Slot — MicroSD Card MicroSD Card
PoE Budget — 15.4W 15.4W
Max. PoE Wattage per Port — 15.4W 15.4W
Voltage Range PoE Mode — 44-57V 44–57V
Max. Power Consumption 22W 26W (Excluding PoE) 34.5W (Excluding PoE)
Power Method USB type C (5V DC/5A) Universal AC input, 100–240V AC, 1.5A Max DC jack (54V DC/1.1A)
Power Supply USB type C (Adapter included) AC/DC, Internal, 50W 54V DC/1.1A (Adapter included)
Heat Dissipation 75 BTU/hr 89 BTU/hr (Excluding PoE) 115 BTU/hr (Excluding PoE)
Weight 422 g (14.9 oz) 1.1 kg (2.4 lb) 1.4 kg (3.1 lb)
LCM Display 0.96" status display 0.96" status display 4.7" touchscreen
Ambient Operating Temp -10 to 40° C (14 to 104° F) -10 to 40° C (14 to 104° F) 0 to 40° C (32 to 104° F)
Certifications CE, FCC, IC, Anatel: 06656-25-08356 CE, FCC, IC, Anatel: 05650-25-08356 FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®

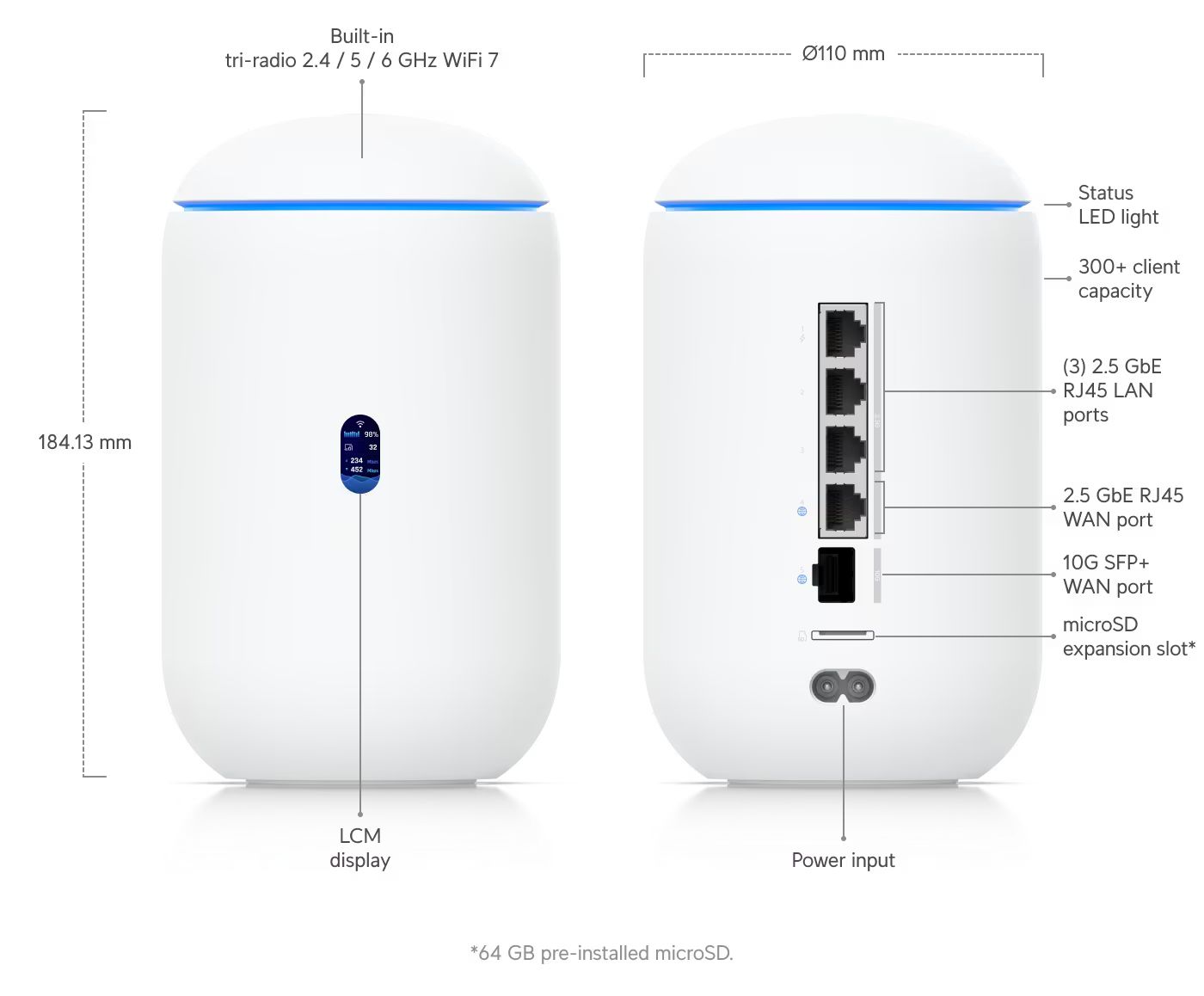

Dimensions
Ø110 x 184.1 mm (Ø4.3 x 7.3")
UniFi Application Suite



Network
✓


Protect
✓


Access
✓


Talk
✓


Connect
✓
Managed UniFi Devices
30+
Managed Cameras
(5) HD (2) 2K (1) 4K
Simultaneous Users Connected
300+
Max. WAN Port Count
4
Default WAN Ports
(1) 10G SFP+ (1) 2.5 GbE RJ45

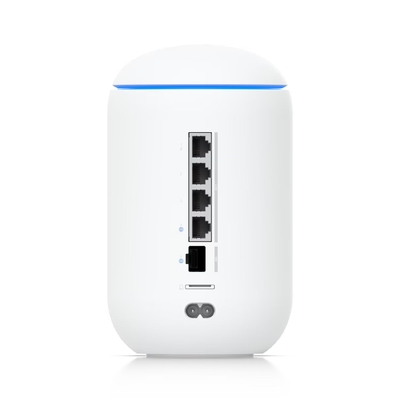

Port Layout



2.5 GbE RJ45
4 (1 PoE) (2.5G/1G/100M/10M)


10G SFP+
1 (10G/1G)
IDS/IPS Throughput
2.3 Gbps
Form Factor
Compact desktop
Coverage Area
160 m² (1,750 ft²)

Stateful Firewall
✓
Application-Aware Layer 7 Firewall
✓
DPI & Traffic Identification
✓
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
✓
Content Filtering
✓
Intrusion Prevention (IPS/IDS)
✓
Ad Blocking
✓
IDS/IPS Signatures
20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation
✓

License-Free SD-WAN
✓
Site-to-Site VPN



Site Magic
✓


IPsec
✓


OpenVPN
✓
VPN Server



Identity Endpoint One-Click VPN
✓


Teleport Zero-Configuration VPN
✓


WireGuard
✓


OpenVPN
✓


L2TP
✓
VPN Client



OpenVPN
✓


WireGuard
✓

Multi-WAN Load Balancing
✓
Dynamic Routing



OSPF
✓
Advanced QoS
✓
Multicast DNS (mDNS)
✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)
✓
Integrated RADIUS Server
✓
RADIUS over TLS (RadSec)
✓
Additional Internet Failover with UniFi LTE Backup
✓
Internet Quality and Outage Reporting
✓
MAC Address Table Size
2,000
Policy-based WAN and VPN Routing
✓
Customizable DHCP Server
✓
IPv6 ISP Support
✓
IGMP Proxy
✓

WiFi Standard
802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput



6 GHz
5.7 Gbps


5 GHz
4.3 Gbps


2.4 GHz
688 Mbps
MIMO



6 GHz
2 x 2 (DL/UL MU-MIMO)


5 GHz
2 x 2 (DL/UL MU-MIMO)


2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Antenna Gain



6 GHz
6 dBi


5 GHz
7 dBi


2.4 GHz
5 dBi
Max. TX Power



6 GHz
24 dBm


5 GHz
26 dBm


2.4 GHz
23 dBm
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs
4 per Radio
Supported Data Rates



802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps


802.11b
1, 2, 5.5, 11 Mbps


802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps


802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)


802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)


802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)


802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

NVR Storage
Pre-installed 64GB microSD for NVR
Expansion Slot
MicroSD Card

PoE Budget
15.4W
Max. PoE Wattage per Port by PSE



PoE
15.4W
Voltage Range PoE Mode
44-57V
Max. Power Consumption
26W (Excluding PoE output)
Power Method
Universal AC input, 100—240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 50W
Supported Voltage Range
100—240V AC
Processor
Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory
3 GB
Weight
1.1 kg (2.4 lb)
Enclosure Material
Polycarbonate
LCM Display
0.96" status display
Management
Ethernet Bluetooth
LEDs



System
✓
Button
(1) Factory-reset
ESD/EMP Protection
Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC

VLAN
802.1Q
Guest Traffic Isolation
✓
Application Requirements



UniFi Network
Version 9.0.108 and later
SKU UDR7-15W
Barcode # 810177160489
Brand UBIQUITI
Shipping Weight 1.8000kg
Shipping Width 0.290m
Shipping Height 0.170m
Shipping Length 0.160m
Shipping Cubic 0.007888000m3

Manufacturer Warranty: 1 Year Manufacturer Warranty
