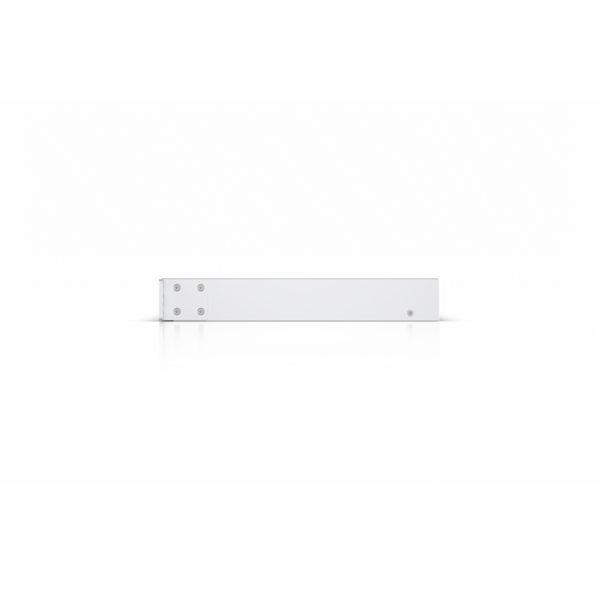

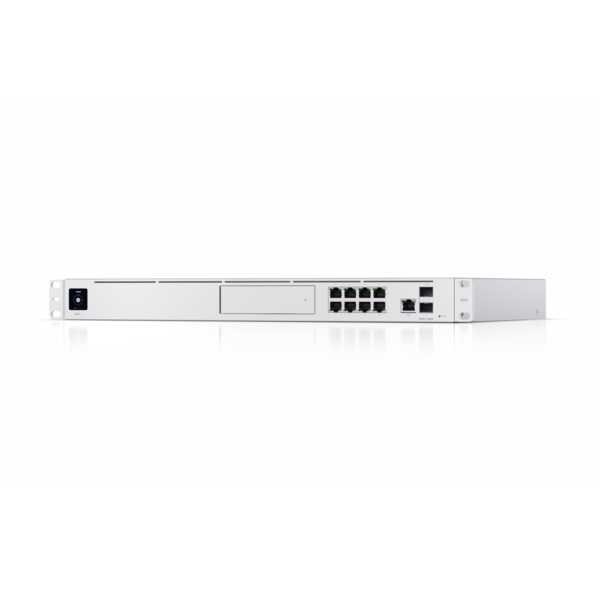

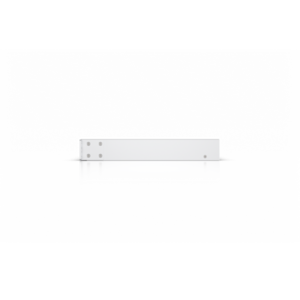

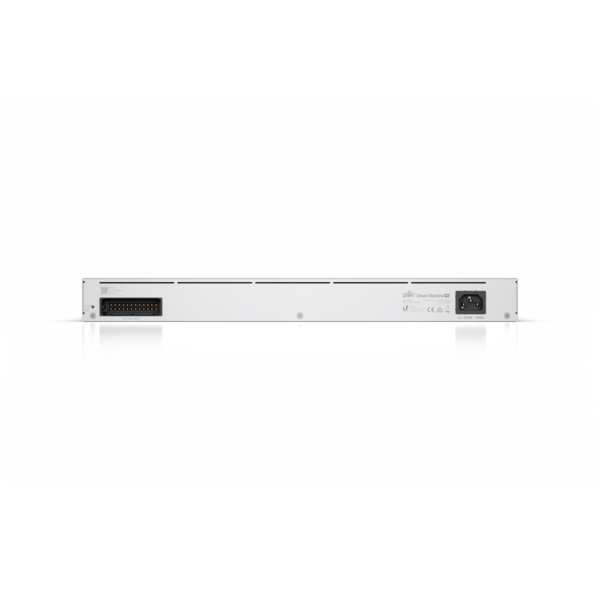

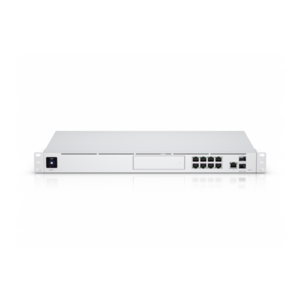

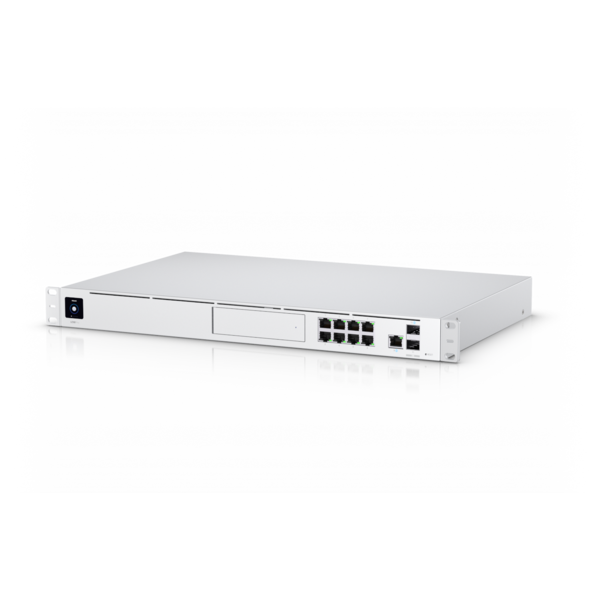

Ubiquiti UDM-PRO UniFi Dream Machine Pro Enterprise Security Gateway and Network Appliance with 10G SFP+
Model # UDM Pro
-
SKU: UDM-PRO
- Pick Up Available
- Australian Warranty
- Checkout Securely

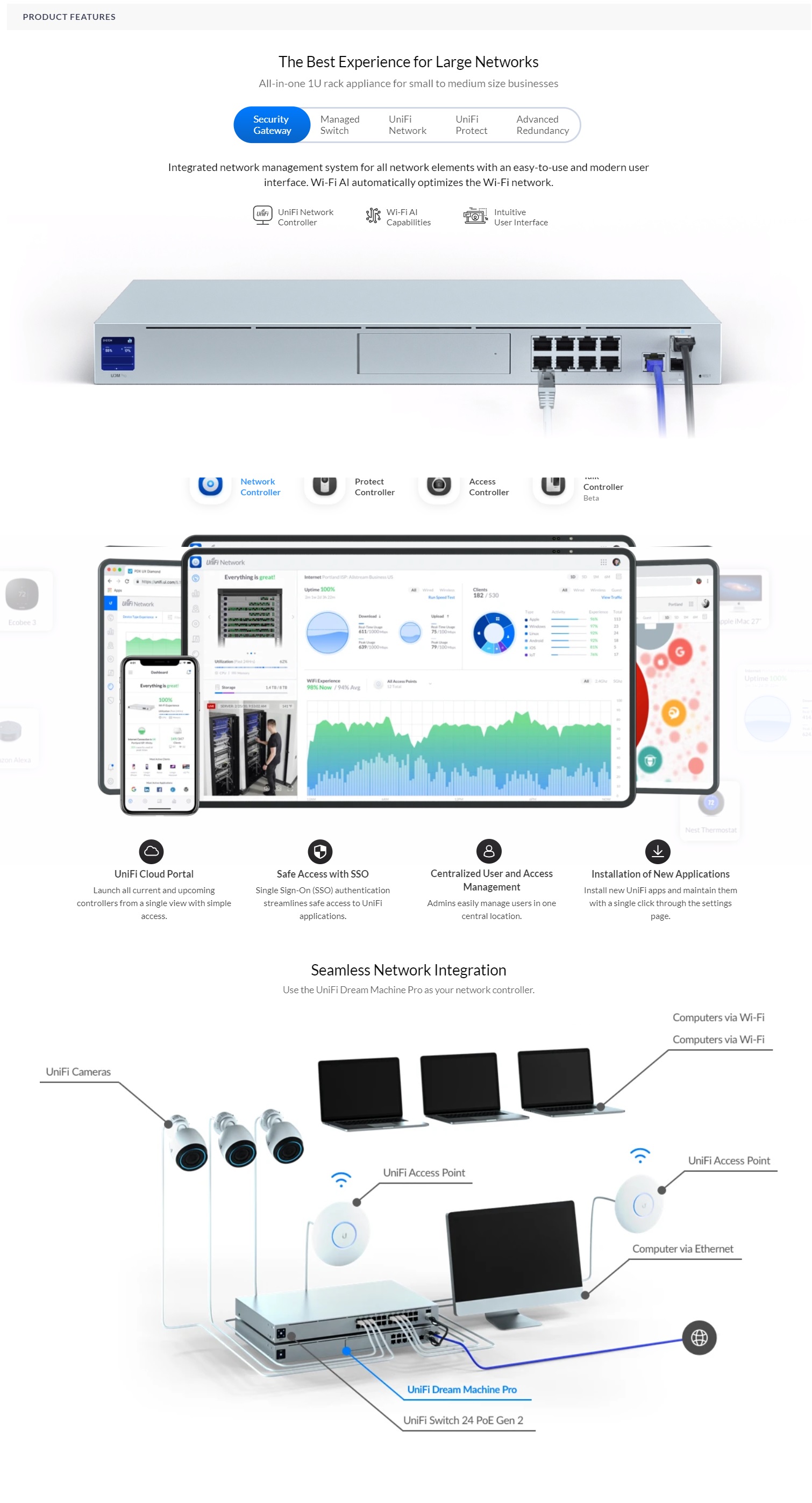

All-in-one enterprise security gateway & network appliance for small to medium-sized businesses. The optimal experience for larger networks.
UniFi Dream Machine Pro (UDM-Pro) is an all-in-one enterprise network appliance. UDM-Pro integrates all current and upcoming UniFi controllers with a security gateway, 10G SFP+ WAN, 8-port Gbps switch and off-the-shelf 3.5" HDD support.
- All-in-one 1U rack appliance for small to medium sized businesses
- Combines new UniFi OS with 8-port switch and security gateway
- UniFi Protect video surveillance NVR with off-the-shelf 3.5" HDD support
- 8-port Gigabit Switch with 1 Gbps RJ45 and 10G SFP+ LAN
- Enterprise-class IPS/IDS, DPI, and Wi-Fi AI capabilities
- Powered by fast 1.7 GHz quad-core processor
Ubiquiti UniFi Dream Machine Pro - All-in-one Home/Office Network Solution - USG, UniFi Controller, Protect Server, and Gigabit Switch
| Model |
Dream Machine Pro Max UDM-Pro-Max |
Dream Machine Special Edition UDM-SE |
Dream Machine Pro UDM-Pro |
|---|---|---|---|
| Overview | |||
| Managed UniFi Devices | 200+ | 100+ | 100+ |
| Managed Cameras | (50) HD, (25) 2K, (15) 4K | (24) HD, (14) 2K, (8) 4K | (24) HD, (14) 2K, (8) 4K |
| Simultaneous Users | 2,000+ | 1,000+ | 1,000+ |
| IDS/IPS Throughput | 5 Gbps | 3.5 Gbps | 3.5 Gbps |
| Port Layout 1 GbE RJ45 |
8 (1G/100M/10M) | 8 (1G/100M/10M) | 9 (1G/100M/10M) |
| Port Layout 2.5 GbE RJ45 |
1 (2.5G/1G/100M/10M) | 1 (2.5G/1G/100M/10M) | — |
| Hardware | |||
| NVR Storage | (2) 3.5" NVR HDD bays Built-in 128 GB SSD |
(1) 3.5" NVR HDD bay Built-in 128 GB SSD |
(1) 3.5" NVR HDD bay |
| PoE Budget | — | 180W | — |
| Max. PoE Wattage/Port | — | PoE: 15.4W PoE+: 30W |
— |
| Max. Power Consumption | 60W | 50W (Excl. PoE) | 33W |
| Heat Dissipation | 205 BTU/hr | 170 BTU/hr | 112 BTU/hr |
| System Memory | 8 GB | 4 GB | 4 GB |
| Processor | Quad-core ARM® Cortex®-A57 at 2.0 GHz | Quad-core ARM® Cortex®-A57 at 1.7 GHz | Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| Power Method | (1) Universal AC Input (1) USP-RPS DC Input |
(1) Universal AC Input (1) USP-RPS DC Input |
(1) Universal AC Input (1) USP-RPS DC Input |
| Weight | 4.7 kg (10.4 lb) | 5 kg (10.9 lb) | 3.9 kg (8.6 lb) |
| Certifications | CE, FCC, IC, Anatel, SRRC | CE, FCC, IC, Anatel, SRRC | CE, FCC, IC, Anatel, SRRC |
(UDM-PRO)
DIMENSIONS
- Width x Height x Depth:
442.4 x 43.7 x 285.6 mm
(17.42 x 1.72 x 11.24") - Weight: 3.90 kg (8.60 lb)
- With Mounting Kits:
3.99 kg (8.80 lb)
PACKAGE CONTENTS
- (2) Rackmount Brackets
- (8) Bracket Screws
- (4) Mounting Screws
- (4) Cage Nuts
- (1) Security Screw
- (4) 2.5" HDD Screws
- Power Cord
- (4) Rubber Feet
TECHNICAL SPECIFICATIONS
Interfaces
- (8) 10/100/1000 RJ45 LAN Ports
- (1) 10/100/1000 RJ45 WAN Port
- (1) 1/10G SFP+ LAN Port
- (1) 1/10G SFP+ WAN Port
Management Interfaces
- Ethernet In-Band
- (1) Bluetooth BLE
Technical Information
- IDS/IPS Throughput: 3.5 Gbps *
- Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
- System Memory: 4 GB DDR4
- On-Board Flash Storage: 16 GB eMMC
- * Measured with iPerf3.
Environment
- Operating Temperature: -10° to 40° C (14° to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
Power
- Max. Power Consumption: 33W
- Voltage Range: 100 to 240VAC
- Power Method: (1) Universal AC Input, 100-240VAC, 50/60 Hz
- Redundant Power: (1) RPS DC Input
- Power Supply: Internal 50W/12V
- ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Certifications
- CE, FCC, IC
| SKU | UDM-PRO |
| Barcode # | 810010071071 |
| Brand | UBIQUITI |
| Shipping Weight | 5.1000kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.390m |
| Shipping Length | 0.520m |
Manufacturer Warranty : 1 Year Manufacturer Warranty
