Omada 8-Port PoE+ Network Video Recorder with 2TB HDD, Up to 16 Channel

16-Channel Live View and 4K HDMI Video Output
16-Channel Synchronous Playback**
Preinstalled 2TB HDD (Expandable up to 1× 16 TB)
8× PoE+ Ports
Remote Monitoring

(Omada-NVR16-8P-2T)

Video and Audio
IP Video Input	16-Channel
Managed Cameras	• 16 (HD) • 16 (2K/5MP) • 12 (4K/8MP) • 8 (12MP) • 6 (16MP)
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode	HDMI and VGA Simultaneous Output
Multi-View Display	1/4/6/8/9/16

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	16MP/8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-Channel**
Capability	• 25fps: 10-ch @ 2MP • 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Event Recording
Playback Mode	• Instant Playback • Regular Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Play By Frame • Video Clip • Export Clip • Audio On/Off

NETWORK
Protocol	• UPnP (Plug and Play) • NTP (Network Timing) • SMTP • DNS • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • RTSP • SSL/TLS • RTP • IPv4 • ARP • LLDP • FTP • IPv6 • SNMP
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF Profile G/S/T

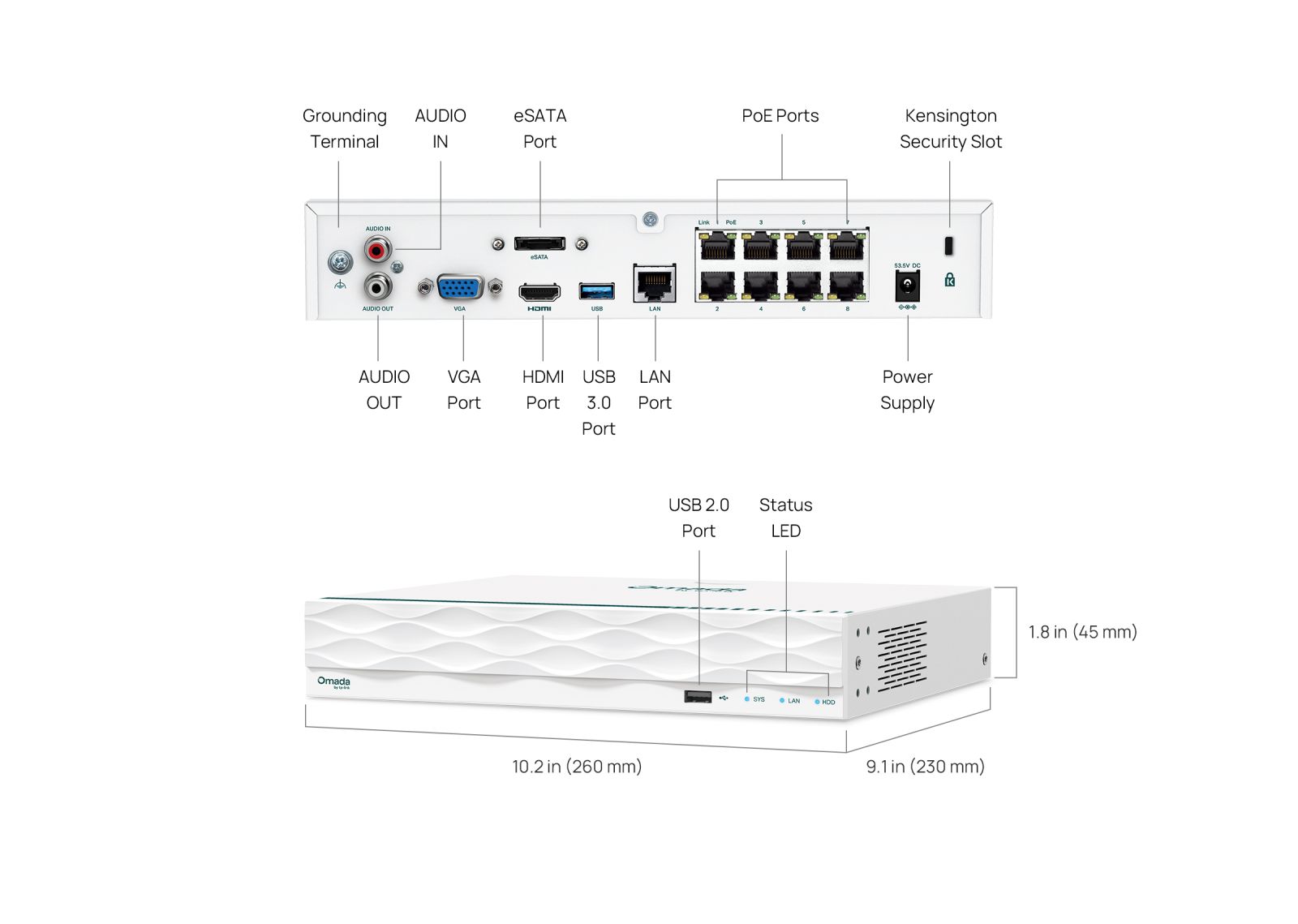

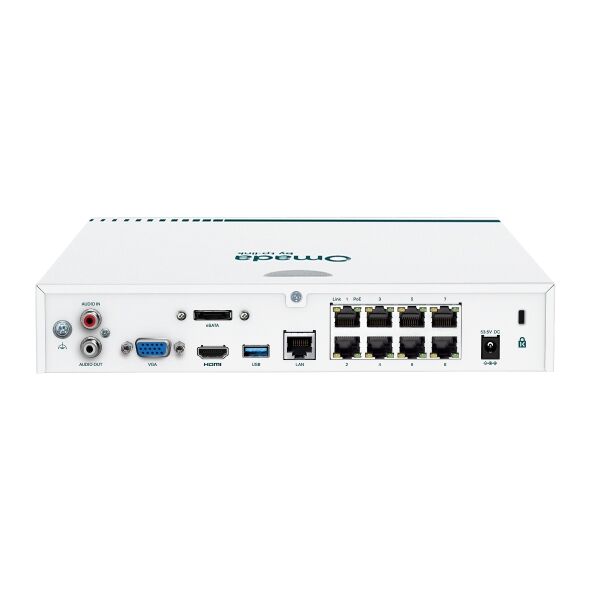

External Interface
Network Interface	1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface	• 1-ch RCA Input (1.4 Vp-p, 10KΩ) • 1-ch RCA Output (2.8 Vp-p, 1KΩ)
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	1
VGA	1

HARD DISK
SATA	1 SATA Interfaces
Capacity	• 1× SATA Interface, Up to 16 TB Capacity • 1× 2TB HDD Preinstalled

PoE
Standard	802.3at/af Compliant
Interface	1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget	115 W^△ Available for All PoE+ Ports, 30 W Max per Port

Alarm
General Alarm	• Motion Detection (Vehicle Detection, Human Detection, Pet Detection) • Video Tampering • Line-Crossing Detection • Intrusion Detection Note: The alarm function requires the use of a camera.
Anomaly Alarm	• IPC IP Conflict • Video signal loss Note: The alarm function requires the use of a camera. • No disk • Hard drive exception • Hard drive reallocated section count error • No enough space of hard drive • Hard drive password error • NVR offline • NVR IP Conflict • Single Port Short Circuit • Single port power exceeded • Pse chip temperature is too high • Total power exceeded • FTP Directory Storage Space Insufficient • The IP address obtained from DHCP conflicts with the internal IP • Login Exception
Alarm Linkage	Basic Event/Smart Event: • Buzzer • Pop-up Alarm Screen • Push Notification • Send Email • Highlight Window • Recording Linkage • Light Alarm • Audible Alarm • Channel Alarm Output Note: The alarm function requires the use of a camera. Anormaly Alarm: • Buzzer • Send Email

GENERAL
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Storage Humidity	10%~90% RH Non-Condensing

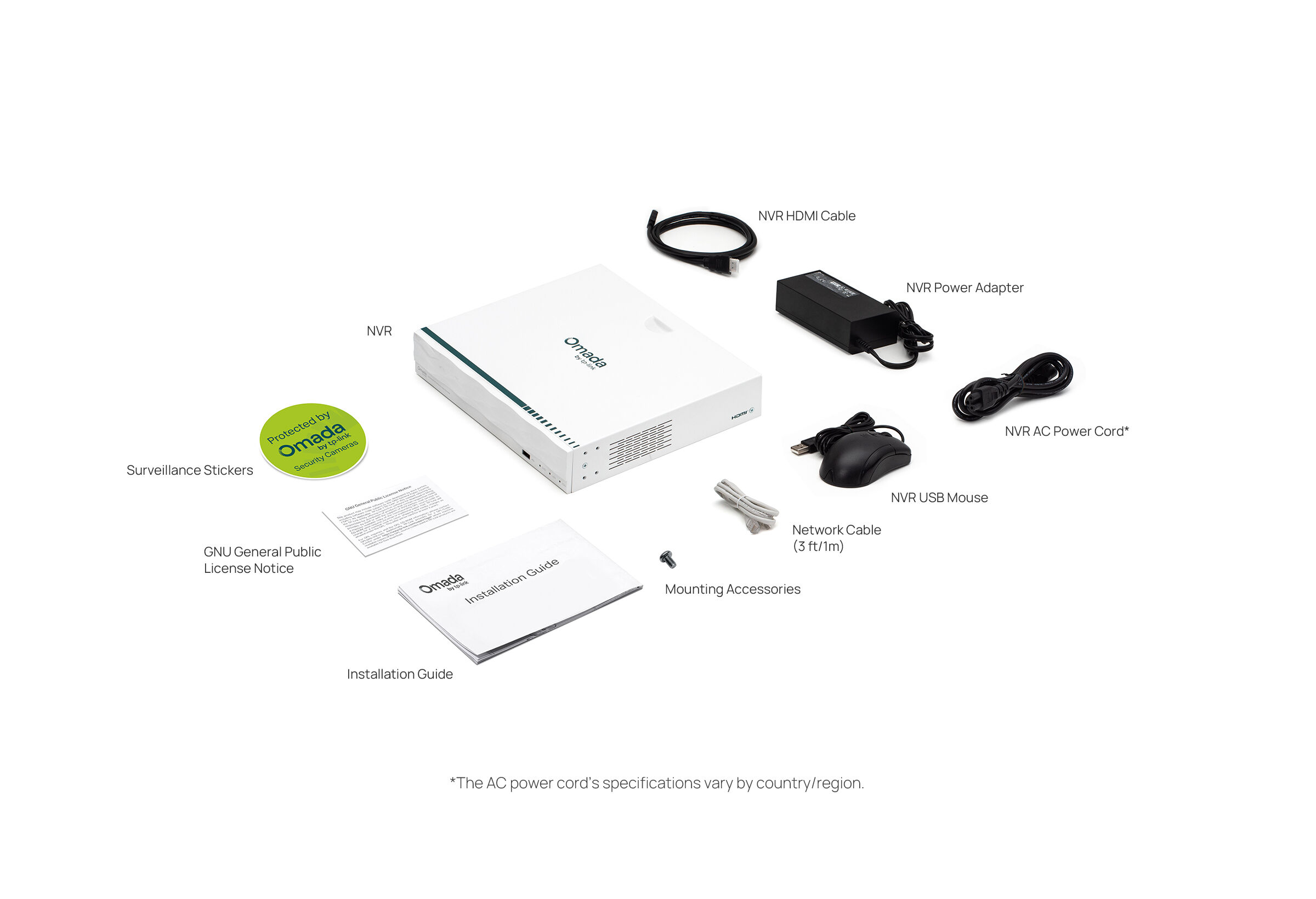

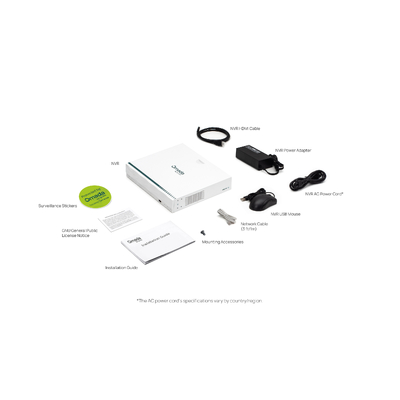

Package Content	• Omada Network Video Recorder • Power Adapter • AC Power Cord • HDMI Cable • Network Cable (3 ft/1 m) • Mounting Accessories • USB Mouse • Installation Guide • Surveillance Sticker
Working Temperature	• NVR: -10 °C to 55 °C (14 °F to 131 °F) • Power Adapter: 0°C to 40°C (32 °F to 104 °F)
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	10 × 9.1 × 1.8 in (260 × 230 × 45 mm)
Net Weight	2.19 Kg (4.83 lbs)
Gross Weight	3.58 Kg (7.89 lbs)
Power Supply	53.5V DC/2.43A
Max. Power Consumption	• 4.17 W (Without Disk) • 7.81 W (With Disk)
Certifications	CE, NTRA, HDMI, FCC, VCCI, BSMI, ONVIF, UL 4200A

SKU	Omada-NVR16-8P-2T
Barcode #	840460605564
Brand	TP-LINK
