Name: Ubiquiti ENVR UniFi Protect Enterprise Network Video Recorder - 3U NVR with (16) 2.5/3.5” drive bays
Brand: Ubiquiti
SKU: ENVR
Price: 3999 AUD
Availability: LimitedAvailability

Mechanical

Dimensions

481.4 x 480 x 132 mm (19 x 18.9 x 5.2")

Weight

16.6 kg (36.6 lb)

Enclosure material

SGCC steel

Mount material

Aluminum

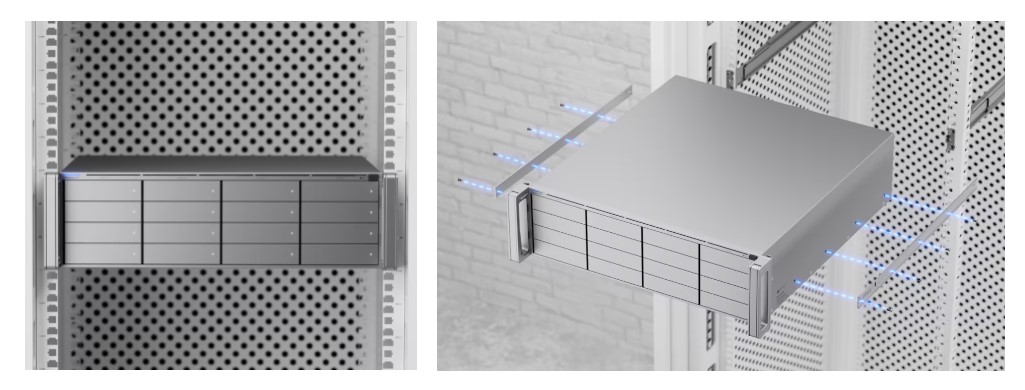

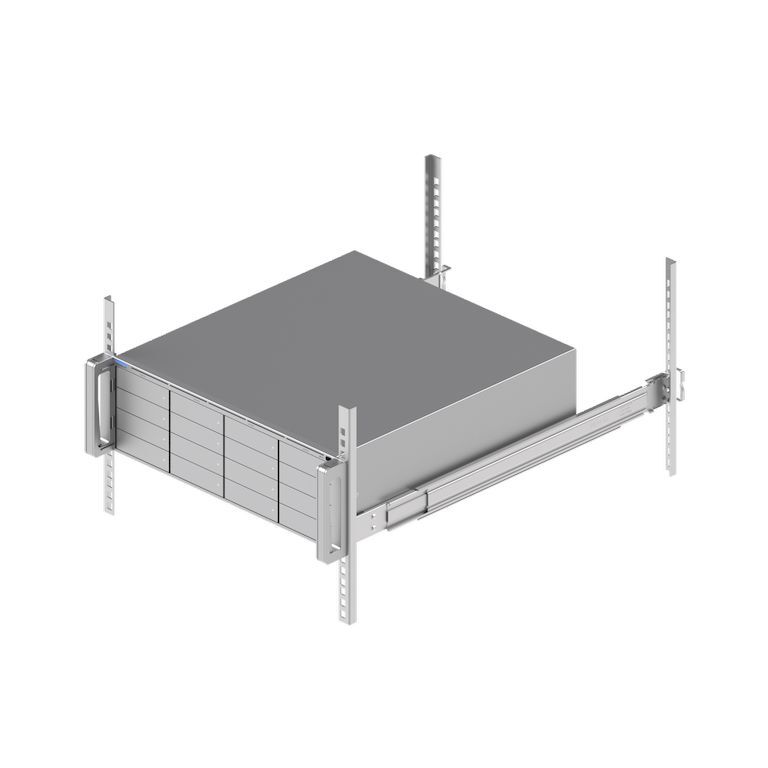

Slide rails support

The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1000 mm (25.6–39.4”)

Hardware

Management interface

Ethernet In-Band

Networking interface

(1) 1/2.5/5/10 GbE RJ45 port
(2) 1/10 GbE SFP+ ports

Power method

(2) AC input, 100-240V, 7A Max., 50/60Hz (redundant, hot-swappable)

Power supply

Hot-swappable 550W CRPS

Supported voltage range

100—240V AC

Max. power consumption

410W

Max. power budget for Drives

310W

ESD/EMP protection

Air: ± 12kV, contact: ± 8kV

Button

Factory reset

Ambient operating temperature

-5 to 40° C (23 to 104° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

FCC, CE, IC

Capacity

HD cameras
2K cameras
4K cameras

210
140
70

LEDs

System

(1) Power: blue/white
Flashing white: bootup in progress
Flashing blue: firmware upgrading
Steady white: factory defaults, awaiting adoption
Steady blue: device is adopted

Ethernet

Green: link/activity

SFP+

Green: link/activity

HDD

White: disk detected
Amber: disk error
