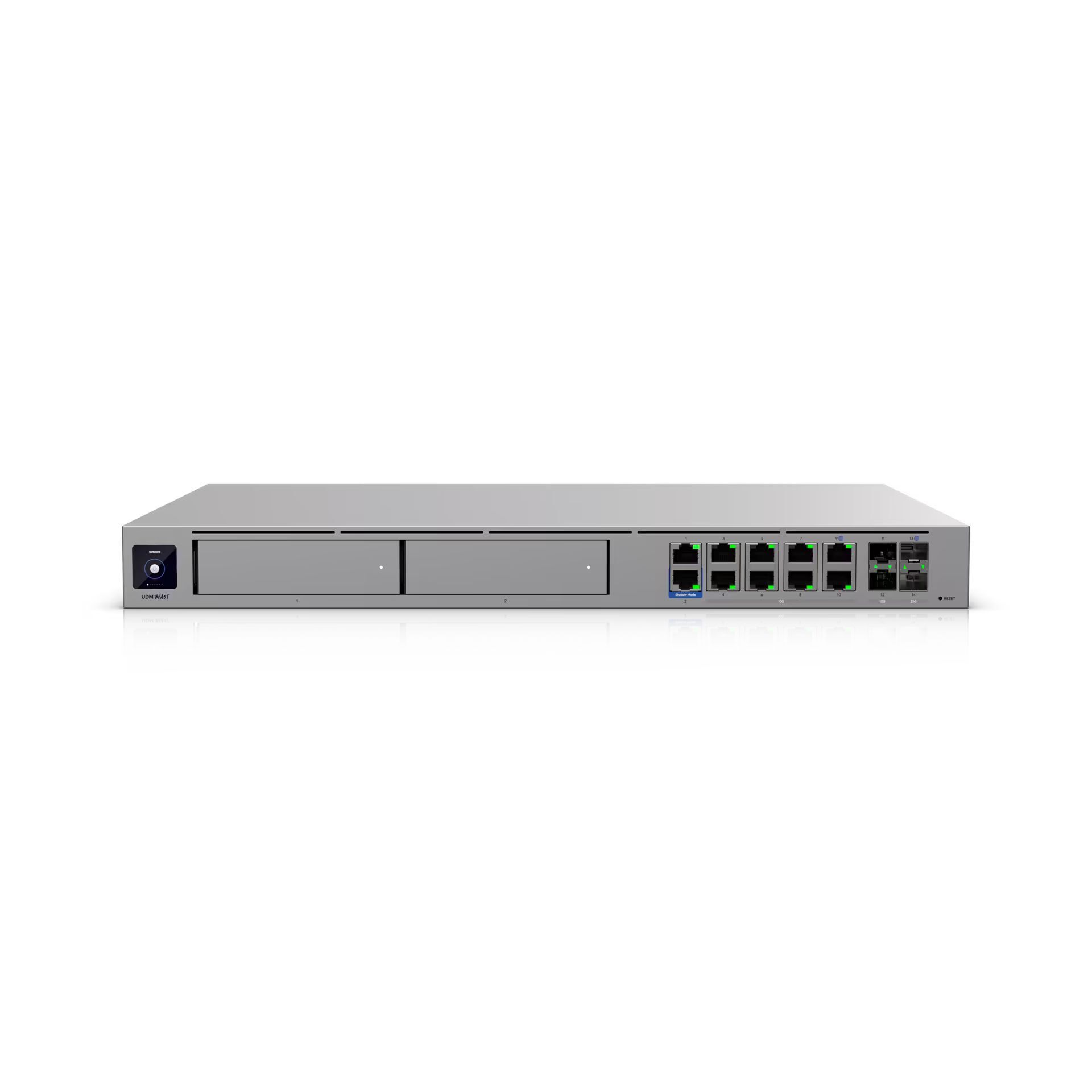

Ubiquiti UDM-Beast UniFi Dream Machine Beast Hyperscale-Class Cloud Gateway - Rackmount
The UDM-Beast Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.

Enhanced computing power and memory

Includes full UniFi application suite for device management

25 Gbps routing with IDS/IPS

(1) 1Gbe RJ45*, (8) 10GbE RJ45 LAN ports

(2) 25G SFP28*, (2) 210G SFP+

(2) 3.5" NVR HDD bays with RAID data protection

Built-in 128 GB SSD for NVR detection recordings

1.3" touchscreen

(UDM-Beast)

Model	Dream Machine Pro Max UDM-Pro-Max	Dream Machine Special Edition UDM-SE	Dream Machine Pro UDM-Pro
Overview
Managed UniFi Devices	200+	100+	100+
Managed Cameras	(50) HD, (25) 2K, (15) 4K	(24) HD, (14) 2K, (8) 4K	(24) HD, (14) 2K, (8) 4K
Simultaneous Users	2,000+	1,000+	1,000+
IDS/IPS Throughput	5 Gbps	3.5 Gbps	3.5 Gbps
Port Layout 1 GbE RJ45	8 (1G/100M/10M)	8 (1G/100M/10M)	9 (1G/100M/10M)
Port Layout 2.5 GbE RJ45	1 (2.5G/1G/100M/10M)	1 (2.5G/1G/100M/10M)	—
Hardware
NVR Storage	(2) 3.5" NVR HDD bays Built-in 128 GB SSD	(1) 3.5" NVR HDD bay Built-in 128 GB SSD	(1) 3.5" NVR HDD bay
PoE Budget	—	180W	—
Max. PoE Wattage/Port	—	PoE: 15.4W PoE+: 30W	—
Max. Power Consumption	60W	50W (Excl. PoE)	33W
Heat Dissipation	205 BTU/hr	170 BTU/hr	112 BTU/hr
System Memory	8 GB	4 GB	4 GB
Processor	Quad-core ARM® Cortex®-A57 at 2.0 GHz	Quad-core ARM® Cortex®-A57 at 1.7 GHz	Quad-core ARM® Cortex®-A57 at 1.7 GHz
Power Method	(1) Universal AC Input (1) USP-RPS DC Input	(1) Universal AC Input (1) USP-RPS DC Input	(1) Universal AC Input (1) USP-RPS DC Input
Weight	4.7 kg (10.4 lb)	5 kg (10.9 lb)	3.9 kg (8.6 lb)
Certifications	CE, FCC, IC, Anatel, SRRC	CE, FCC, IC, Anatel, SRRC	CE, FCC, IC, Anatel, SRRC

Technical Specifications Overview Dimensions 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8") UniFi Application Suite Network Yes Protect Yes Access Yes Talk Yes Connect Yes Managed UniFi Devices 750+ Managed Cameras (100) HD (60) 2K (40) 4K Managed Access Hubs 200 Simultaneous Users Connected 7,500+ Max. WAN Port Count 8 Default WAN Ports (1) 25G SFP28 (1) 10 GbE RJ45 Port Layout 1 GbE RJ45 2 (1G/100M/10M) 10 GbE RJ45 8 (10G/5G/2.5G/1G/100M) 10G SFP+ 2 (10G/1G) 25G SFP28 2 (25G/10G/1G) Console 1 IDS/IPS Throughput 25 Gbps Form Factor Rack mount (1U) Redundancy Shadow Mode (VRRP) Gateway Failover DC Power Backup Security Stateful Firewall Yes Application-Aware Layer 7 Firewall Yes DPI & Traffic Identification Yes Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) Yes Content Filtering Yes Intrusion Prevention (IPS/IDS) Yes Ad Blocking Yes IDS/IPS Signatures 55,000+ with CyberSecure VPN & SD-WAN License-Free SD-WAN Yes Site-to-Site VPN Site Magic Yes IPsec Yes OpenVPN Yes VPN Server Identity Endpoint One-Click VPN Yes Teleport Zero-Configuration VPN Yes WireGuard Yes OpenVPN Yes L2TP Yes VPN Client OpenVPN Yes WireGuard Yes Networking Multi-WAN Load Balancing Yes Shadow Mode (VRRP) High Availability Yes LACP Port Aggregation Yes Dynamic Routing OSPF Yes BGP Yes Advanced QoS Yes Multicast DNS (mDNS) Yes Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) Yes Integrated RADIUS Server Yes RADIUS over TLS (RadSec) Yes Additional Internet Failover with UniFi LTE Backup Yes Internet Quality and Outage Reporting Yes Policy-based WAN and VPN Routing Yes Customizable DHCP Server Yes IPv6 ISP Support Yes IGMP Proxy Yes All Traffic Flows Yes Hardware NVR Storage (2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience Max. Power Consumption 100W Power Method (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.05A Power Supply AC/DC, internal, 150W Supported Voltage Range 100–240V AC Heat Dissipation 342 BTU/hr Processor Octa-core ARM® v9 at 2.1 GHz System Memory 16 GB On-board Storage Integrated 128 GB SSD Weight 5.5 kg (12.13 lb) Enclosure Material Aluminium CNC, SGCC steel Mount Material SGCC steel LCM Display 1.3" touchscreen Management Ethernet Bluetooth LEDs Ethernet Yes SFP+ Yes SFP28 Yes RPS Yes HDD Yes Button (1) Factory reset ESD/EMP Protection Air: ± 8kV, contact: ± 4kV Ambient Operating Temperature 0 to 40° C (32 to 104° F) Ambient Operating Humidity 5 to 95% noncondensing NDAA Compliant Yes Certifications CE, FCC, IC

SKU	UDM-Beast
Barcode #	810177166627
Brand	UBIQUITI
Shipping Weight	6.1000kg
Shipping Width	0.520m
Shipping Height	0.130m
Shipping Length	0.420m
Shipping Cubic	0.028392000m3

Manufacturer Warranty : 1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti UDM-Beast UniFi Dream Machine Beast Hyperscale-Class Cloud Gateway

Name: Ubiquiti UDM-Beast UniFi Dream Machine Beast Hyperscale-Class Cloud Gateway
Brand: UBIQUITI
SKU: UDM-Beast
Price: 3065 AUD
Availability: InStock
