Ubiquiti Enterprise Network Video Recorder, 3U UniFi Protect NVR, 16-Bay Supp, 2.5"/3.5" HDDs/SSDs,4

Pick Up Available
Australian Warranty
Checkout Securely

Ubiquiti Enterprise Network Video Recorder, 3U UniFi Protect NVR, 16-Bay Supp, 2.5"/3.5" HDDs/SSDs,4K HD Cameras,16-Bay Expan.Units.

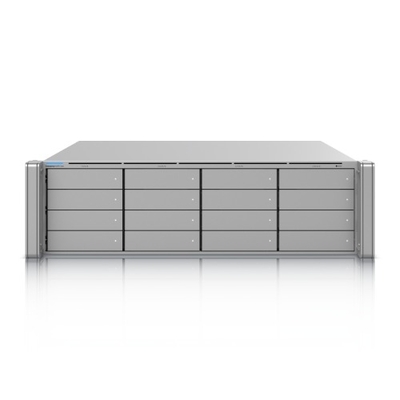

3U UniFi Protect NVR with 16-bay support for 2.5"/3.5" HDDs/SSDs, up to (300) 4K or (500) Full HD cameras, hot-swappable power supplies and optional 16-bay storage expansion units.

Tech Specs: Click Here
Installation Guide: Click Here

*Require Enterprise Deal Registration, please register the deal Here before place the order.*

(ENVR-Core)

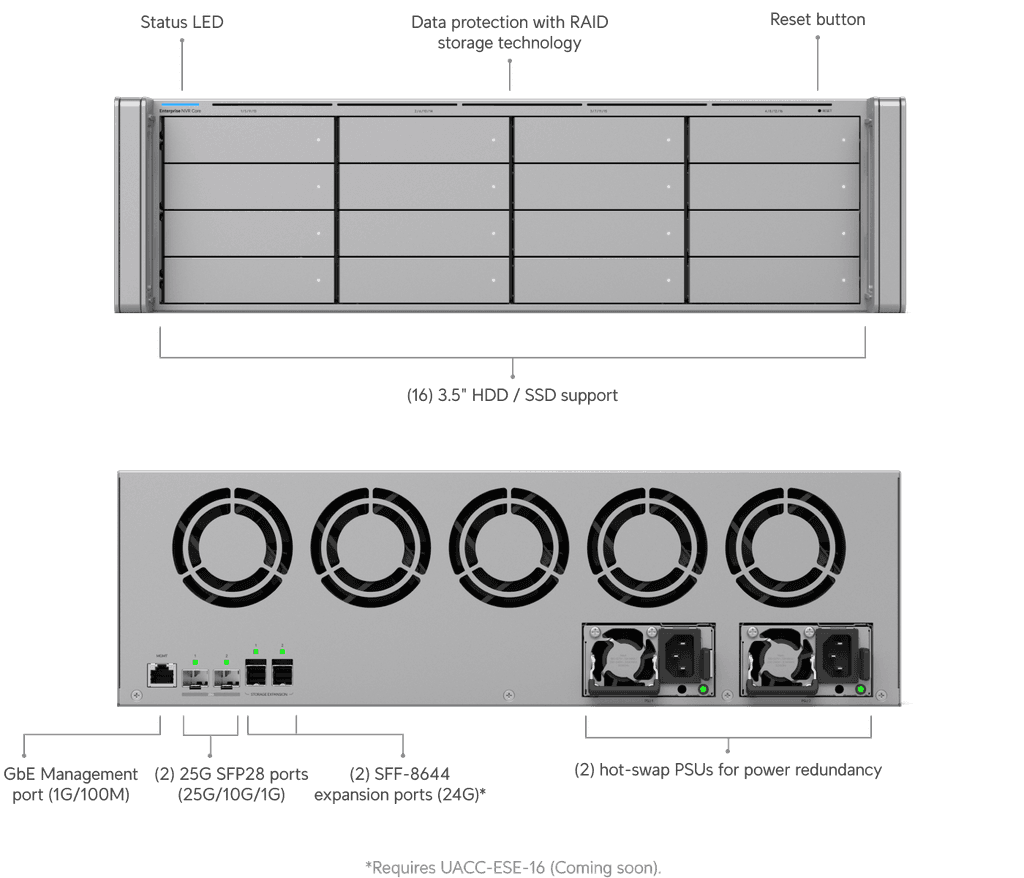

(16) 2.5/3.5” HDD / SSD Bays

Supports up to (16) 2.5/3.5” HDDs or SSDs for high-capacity, scalable storage. Configurable RAID helps protect data and extend video retention.

(2) Storage Expansion Ports

Easily scale recording capacity with two expansion ports to connect to Enterprise Storage Expansion 16 for up to 48 total drives.

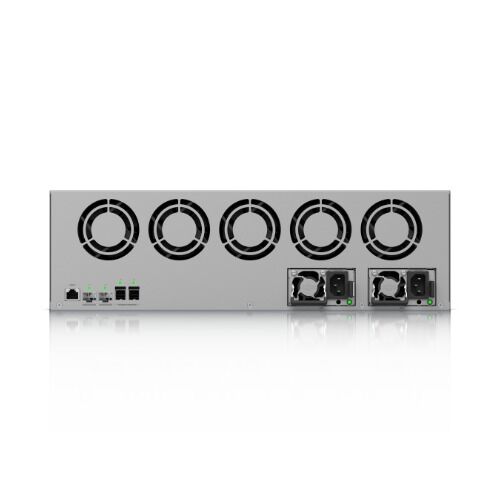

(2) Hot-Swap Power Supplies
Dual hot-swappable PSUs provide built-in power redundancy to ensure continuous operation in case of power supply failure.

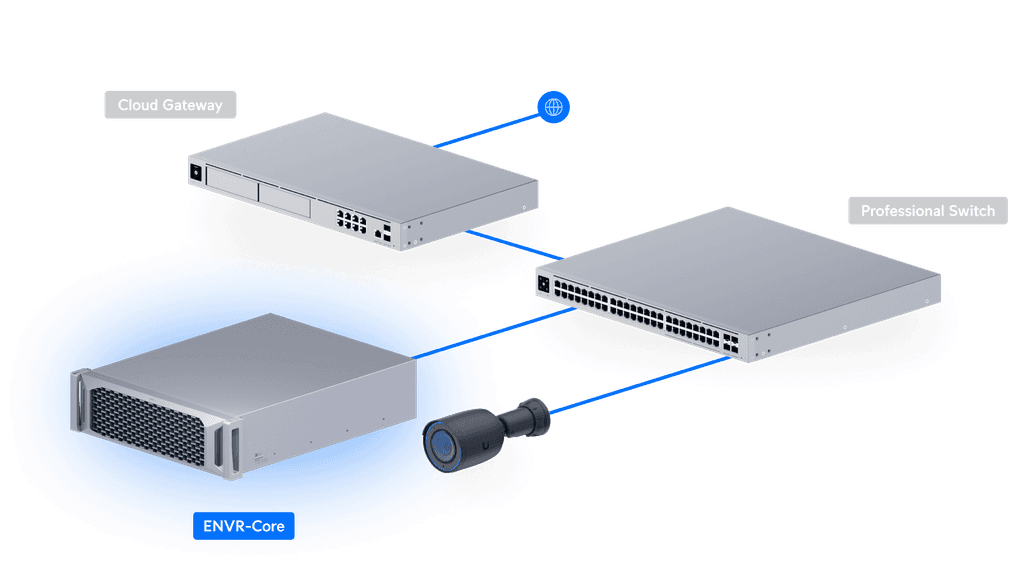

(2) 25G SFP28 Uplink Ports
High-speed uplink ports for core network connection. Supports link aggregation for higher throughput and added redundancy.

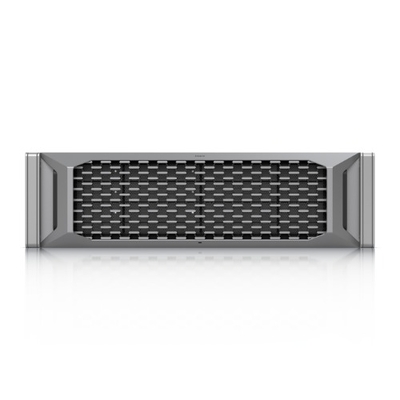

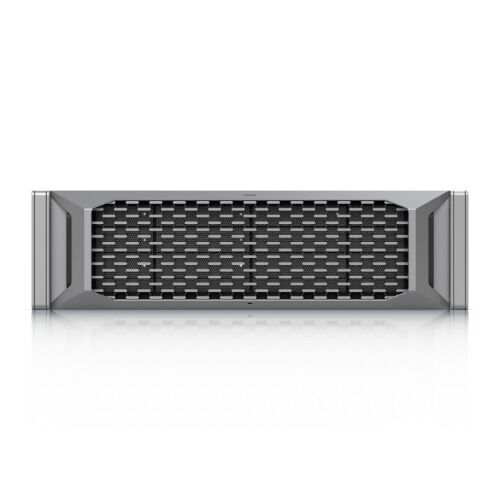

Included Front Bezel
Includes a front bezel for a clean rackmount finish and added drive bay protection, while preserving service access.

Overview

Dimensions

481.4 x 550 x 132 mm (19 x 21.7 x 5.2")

Managed Cameras

(500) HD (400) 2K (300) 4K

Managed Access Hubs

300+

Storage Capacity

(16) 3.5" drive bays

Data Protection

✓

Vantage Point

✓

Networking Interface

(2) 25G SFP28 ports (25G/10G/1G) (1) GbE MGMT RJ45 port (1G/100M)

Expansion Port

(2) SFF-8644 ports (24G)

Power Redundancy

✓

Form Factor

Rack Mount (3U)

Door Access Support

✓

Management Application

UniFi Protect UniFi Access UniFi Connect

Hardware

Hard Drive Capacity

(16) 2.5/3.5" HDD / SSD support (2) Expansion ports, support up to 48 total HDD/SSD

Max. Power Budget for Drives

313W

Max. Power Consumption

237W

Power Method

(2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable)

Power Supply

Hot-swappable 550W CRPS

Processor

128-core Arm® v8.2 at 2.6 GHz

Memory

64 GB

Management

Ethernet Bluetooth

Weight

Without rails: 20.5 kg (45.2 lb) With rails: 23.4 kg (51.6 lb)

Enclosure Material

SGCC steel

Mount Material

Aluminum

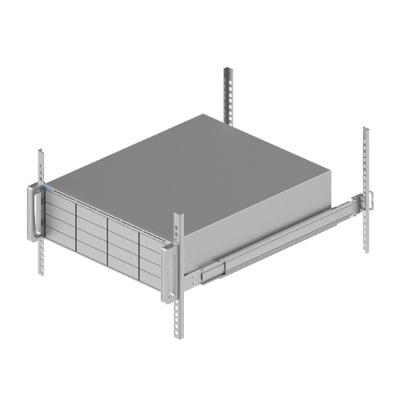

Slide Rails

The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42")

Faceplate

Support UACC-3U-Bezel-Lite (Included)

LEDs

SFP28

✓

HDD

✓

System

✓

Expansion Port

✓

CRPS

✓

Ambient Operating Temperature

10 to 35° C (50 to 95° F)

Ambient Operating Humidity

20 to 90% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC

Software

Application Requirements

Mobile App

UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later

SKU	ENVR-Core
Brand	UBIQUITI
Shipping Weight	15.0000kg
Shipping Width	0.600m
Shipping Height	0.200m
Shipping Length	0.600m
Shipping Cubic	0.072000000m3
