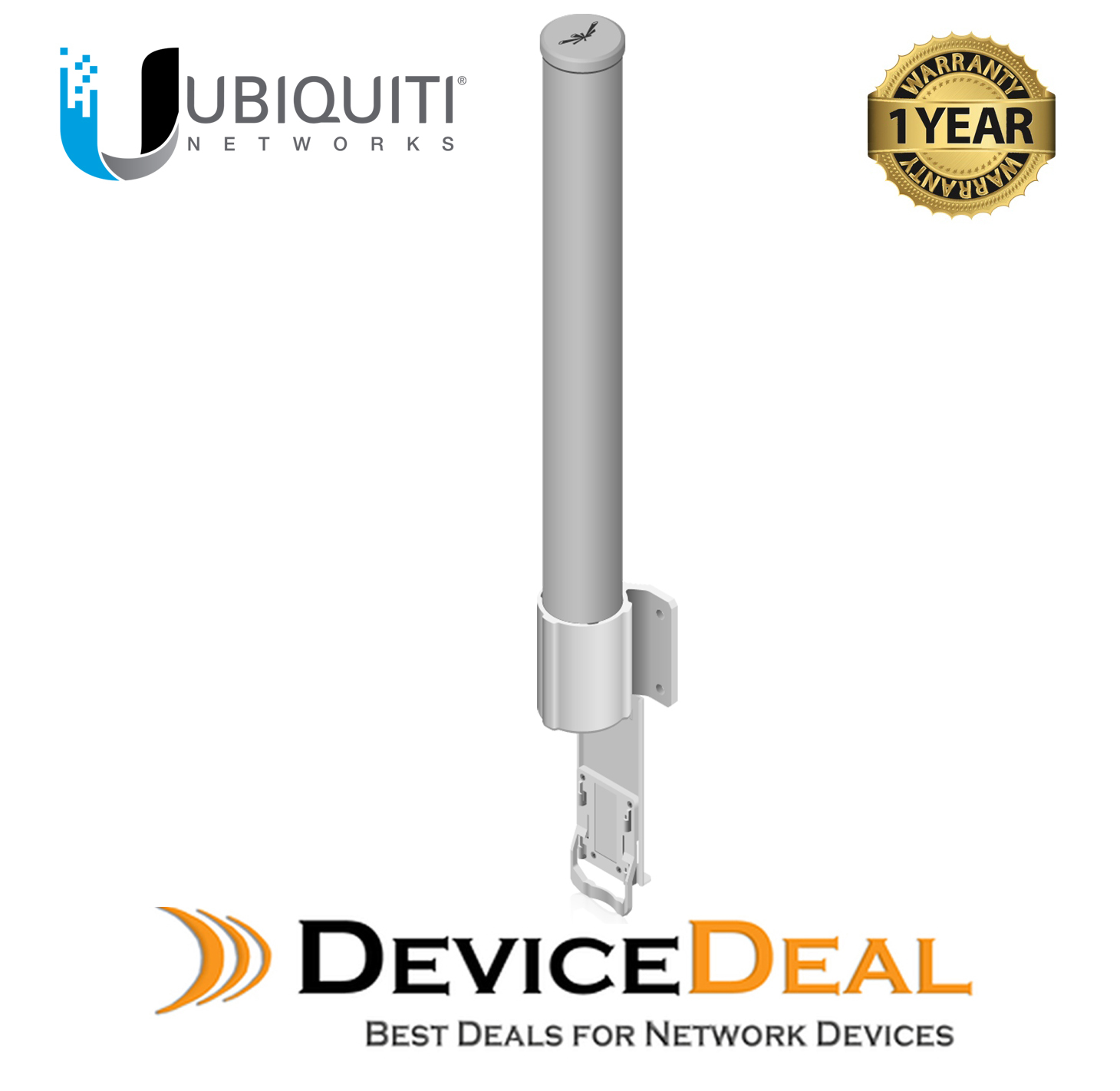

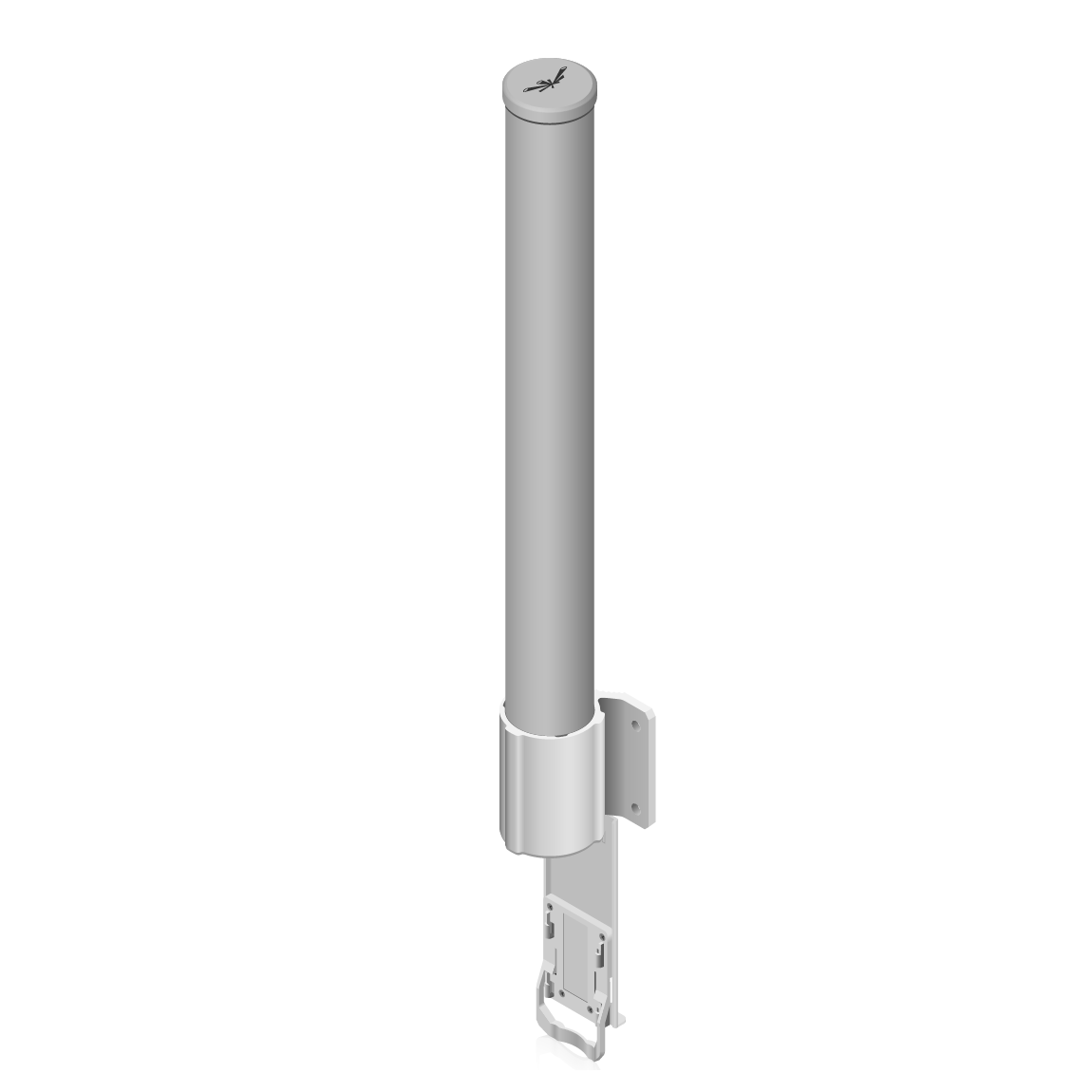

Ubiquiti AMO-2G10 airMAX 2.4 GHz 10 dBi Omni Antenna
A 2.4 GHz airMAX 2x2 dual-polarity omnidirectional antenna with 10 dBi gain, 360 deg horizontal coverage and included mounting hardware for compatible Rocket M radios.
Omnidirectional 2.4 GHz coverage for compatible Rocket M radios
The AMO-2G10 provides 360-degree horizontal coverage with dual-linear polarisation for compatible 2x2 point-to-multipoint base-station deployments.
360 deg horizontal coverage
The omnidirectional pattern provides full horizontal coverage.
10 dBi gain
The antenna provides 10 dBi gain.
2.35-2.55 GHz operation
The frequency range is 2.35 to 2.55 GHz.
12 deg elevation beamwidth
The elevation beamwidth is 12 degrees.
Dual-linear polarisation
Dual-linear polarisation supports 2x2 radio operation.
25 dB cross-polarisation isolation
Minimum cross-polarisation isolation is 25 dB.
Rocket M mounting
A Rocket M bracket and universal pole mount are included.
Weatherproof RF jumpers
Weatherproof RF jumper cables are included.
i
Outdoor installation
Professional installation, shielded Ethernet cabling and suitable grounding are required for outdoor deployment.
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AMO-2G10 is backed by a 1-year Ubiquiti manufacturer warranty, with support provided in accordance with Ubiquiti's warranty terms and conditions.
Frequently asked questions
Helpful answers for the Ubiquiti AMO-2G10.
What is the Ubiquiti AMO-2G10?
It is a 2.4 GHz airMAX 2x2 omnidirectional antenna for compatible point-to-multipoint networks.
Does it provide 360-degree coverage?
Yes. The antenna provides 360-degree horizontal coverage.
What is the antenna gain?
The antenna gain is 10 dBi.
Which frequency range is supported?
It operates from 2.35 to 2.55 GHz.
Which radio platform is supported?
The included bracket is designed for compatible Rocket M radios.
What mounting hardware is included?
A universal pole mount, Rocket M bracket and weatherproof RF jumper cables are included.
Does it require professional installation?
Yes. Professional outdoor installation, shielded Ethernet and suitable grounding are required.
What warranty does the Ubiquiti AMO-2G10 include?
The Ubiquiti AMO-2G10 is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(AMO-2G10)
Features and highlights
A 2.4 GHz airMAX 2x2 dual-polarity omnidirectional antenna with 10 dBi gain, 360 deg horizontal coverage and included mounting hardware for compatible Rocket M radios.
✓
360 deg horizontal coverage
The omnidirectional pattern provides full horizontal coverage.
✓
10 dBi gain
The antenna provides 10 dBi gain.
✓
2.35-2.55 GHz operation
The frequency range is 2.35 to 2.55 GHz.
✓
12 deg elevation beamwidth
The elevation beamwidth is 12 degrees.
✓
Dual-linear polarisation
Dual-linear polarisation supports 2x2 radio operation.
✓
25 dB cross-polarisation isolation
Minimum cross-polarisation isolation is 25 dB.
✓
Rocket M mounting
A Rocket M bracket and universal pole mount are included.
✓
Weatherproof RF jumpers
Weatherproof RF jumper cables are included.
Key product facts
360 deg : Horizontal coverage
10 dBi: Antenna gain
12 deg : Elevation beamwidth
2.1 kg: Product weight
Outdoor installation: Professional installation, shielded Ethernet cabling and suitable grounding are required for outdoor deployment.
Technical specifications
Product specifications for Ubiquiti model AMO-2G10.
Product details
Brand
Ubiquiti
Model / SKU
AMO-2G10
Product type
2.4 GHz 2x2 omnidirectional antenna
Horizontal coverage
360 deg
RF performance
Frequency range
2.35-2.55 GHz
Gain
10 dBi
Elevation beamwidth
12 deg
Polarisation
Dual-linear
Minimum cross-polarisation isolation
25 dB
Connections and physical
RF connectors
2 x RP-SMA
Dimensions
1012 x 122 x 105 mm
Weight
2.1 kg
Included mounting
Pole mount
Universal pole mount
Radio bracket
Rocket M bracket
RF cables
Weatherproof RF jumper cables
Installation
Requirement
Professional outdoor installation, shielded Ethernet and suitable grounding
Warranty
Manufacturer warranty
1 year Ubiquiti manufacturer warranty
Authorised reseller
DeviceDeal
SKU
AMO-2G10
Barcode #
810354020957
Brand
Ubiquiti
Shipping Weight
3.4000kg
Shipping Width
0.158m
Shipping Height
0.133m
Shipping Length
1.072m
Shipping Cubic
0.022527000m3
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AMO-2G10 is backed by a 1-year Ubiquiti manufacturer warranty.
Warranty support is provided in accordance with Ubiquiti's warranty terms and conditions.
