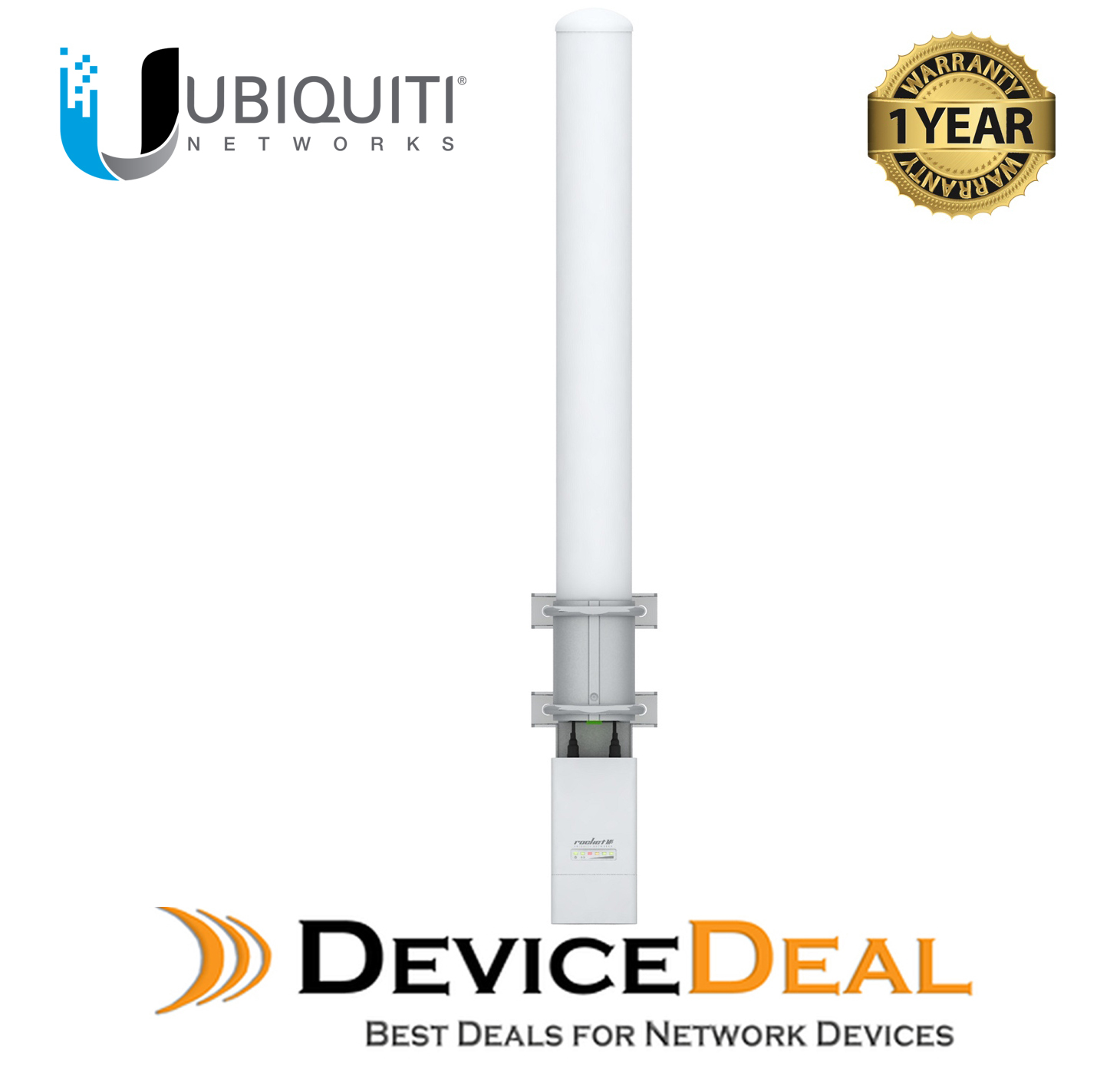

High-gain 360-degree airMAX coverage Ubiquiti AMO-5G13 airMAX 5 GHz 13 dBi 2x2 MIMO Omni Antenna
The Ubiquiti AMO-5G13 is a 5 GHz dual-polarity omnidirectional antenna for 360-degree airMAX point-to-multipoint coverage, with 13 dBi gain and integrated Rocket mounting.
5.45-5.85 GHz13 dBi gain360 deg coverage2x2 MIMO
DeviceDeal authorised Ubiquiti reseller 1 Year Ubiquiti manufacturer warranty
What is the AMO-5G13?
The Ubiquiti AMO-5G13 is a 5 GHz dual-polarity omnidirectional antenna for 360-degree airMAX point-to-multipoint coverage, with 13 dBi gain and integrated Rocket mounting.
Designed around the requirements that matter
Product-specific capabilities, deployment details and purchasing considerations for the AMO-5G13.
0113 dBi omnidirectional gain
The antenna combines 13 dBi gain with a 360-degree azimuth pattern.
02Dual-polarity 2x2 MIMO
Its dual-linear design supports 2x2 MIMO operation with compatible airMAX radios.
03Central-site PtMP coverage
The full-circle radiation pattern is suited to point-to-multipoint deployments from a central location.

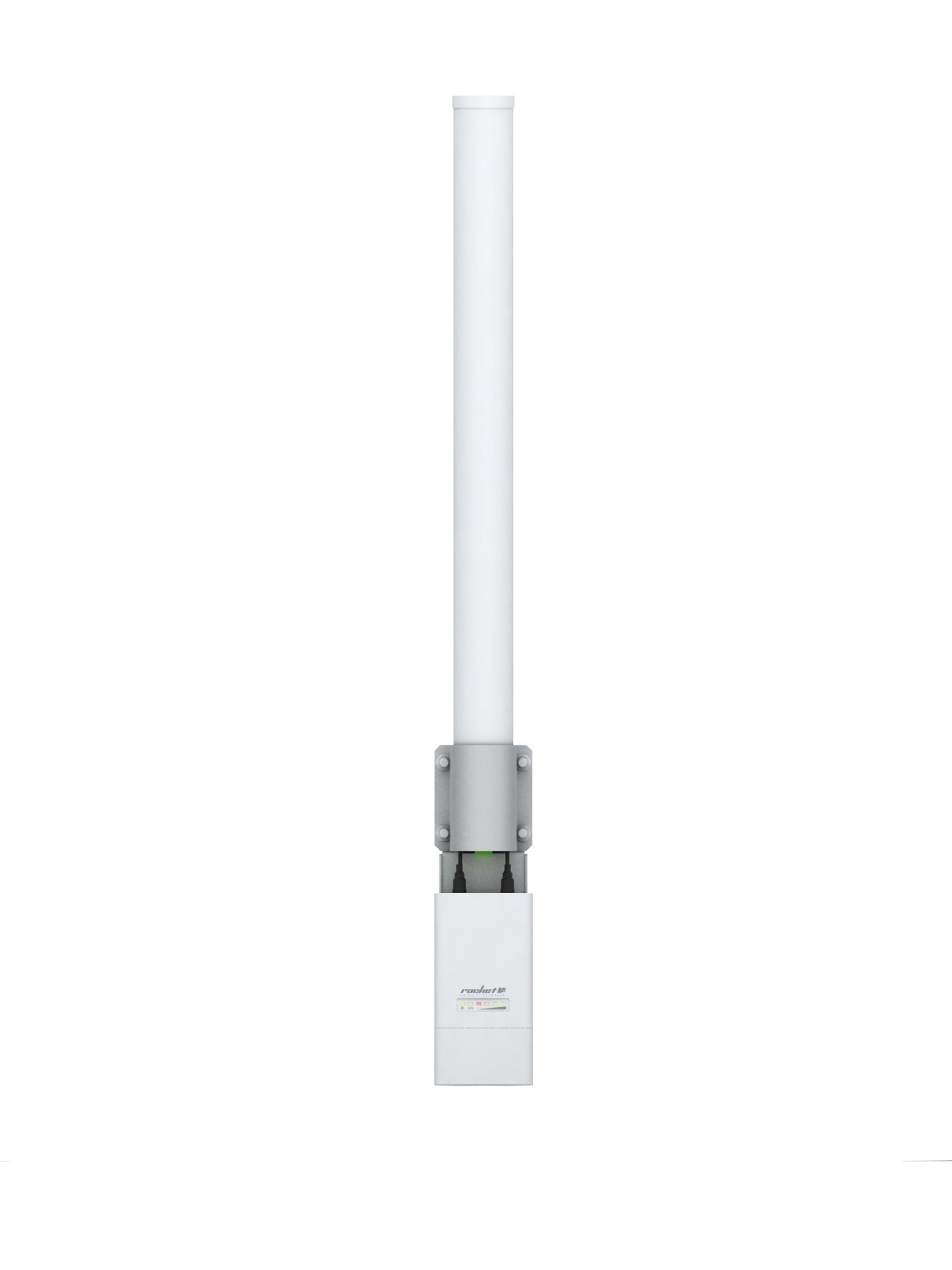

04Integrated Rocket mounting
The antenna includes a built-in mounting arrangement for a compatible Rocket M radio.
05Outdoor-ready assembly
Weatherproof construction, pole mounting and weatherproof RF jumpers support outdoor installation.
i
What to know before buying
- Designed to operate with a compatible Rocket M radio as part of an airMAX point-to-multipoint deployment.
1 YearManufacturer warranty
Authorised reseller and manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AMO-5G13 is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Frequently asked questions
Clear answers to common pre-purchase questions about the Ubiquiti AMO-5G13.
What is the Ubiquiti AMO-5G13?
It is a 5 GHz dual-polarity omnidirectional antenna for 360-degree airMAX point-to-multipoint coverage.
What frequency range does the AMO-5G13 use?
The AMO-5G13 operates across 5.45-5.85 GHz.
What antenna gain does it provide?
It provides 13 dBi antenna gain.
Does the AMO-5G13 support 2x2 MIMO?
Yes. Its dual-linear design supports 2x2 MIMO operation with compatible airMAX radios.
What RF connectors are provided?
The antenna provides two RP-SMA connectors.
What installation parts are included?
A universal pole mount, RocketM bracket and weatherproof RF jumpers are included.
What warranty does the Ubiquiti AMO-5G13 include?
The Ubiquiti AMO-5G13 is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(AMO-5G13)
Features and highlights
The Ubiquiti AMO-5G13 is a 5 GHz dual-polarity omnidirectional antenna for 360-degree airMAX point-to-multipoint coverage, with 13 dBi gain and integrated Rocket mounting.
0113 dBi omnidirectional gain
The antenna combines 13 dBi gain with a 360-degree azimuth pattern.
02Dual-polarity 2x2 MIMO
Its dual-linear design supports 2x2 MIMO operation with compatible airMAX radios.
03Central-site PtMP coverage
The full-circle radiation pattern is suited to point-to-multipoint deployments from a central location.
04Integrated Rocket mounting
The antenna includes a built-in mounting arrangement for a compatible Rocket M radio.
05Outdoor-ready assembly
Weatherproof construction, pole mounting and weatherproof RF jumpers support outdoor installation.
Key product points
- 5.45-5.85 GHz
- 13 dBi gain
- 360 deg coverage
- 2x2 MIMO
- Designed to operate with a compatible Rocket M radio as part of an airMAX point-to-multipoint deployment.
1 YearManufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AMO-5G13 is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Product details
| Brand | Ubiquiti |
|---|
| Model / SKU | AMO-5G13 |
|---|
| Product type | Dual-polarity omnidirectional antenna |
|---|
RF performance
| Frequency range | 5.45-5.85 GHz |
|---|
| Antenna gain | 13 dBi |
|---|
| Polarisation | Dual-linear |
|---|
| Azimuth beamwidth | 360 deg |
|---|
| RF connectors | 2 x RP-SMA |
|---|
Physical
| Dimensions | 799 x 90 x 65 mm |
|---|
| Weight | 0.82 kg |
|---|
| Installation | Outdoor, weatherproof |
|---|
Included parts
| Mounting | Universal pole mount and RocketM bracket |
|---|
| RF jumpers | Weatherproof RF jumpers included |
|---|
Warranty and purchasing confidence
| Manufacturer warranty | 1 Year Ubiquiti manufacturer warranty |
|---|
| Reseller | DeviceDeal is an authorised Ubiquiti reseller |
|---|
| SKU |
AMO-5G13 |
| Barcode # |
810354020995 |
| Brand |
Ubiquiti |
| Shipping Weight |
1.6500kg |
| Shipping Width |
0.148m |
| Shipping Height |
0.093m |
| Shipping Length |
0.866m |
| Shipping Cubic |
0.011920000m3 |
1 YearManufacturer warranty
Buying confidence Authorised reseller and manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AMO-5G13 is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Warranty typeUbiquiti manufacturer warranty Warranty duration1 Year Authorised resellerDeviceDeal
