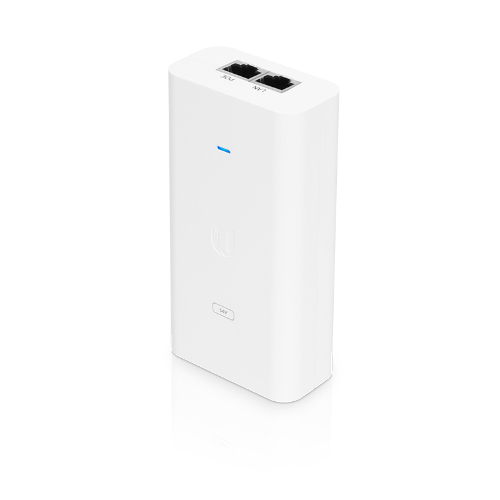

Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models. Australian (AU) Power cable included • Dimensions 123 x 65 x 34 mm • Weight 299 g • Output Voltage 54VDC @ 1.5A • LAN Activity Indicator No • Gigabit LAN Port Yes • Remote Reset Capability No • Reset Button 100-240AC @ 50/60Hz • Input Voltage 100-240AC @ 50/60Hz • Input Current 0.8A @ 120VAC • 0.4A @ 240VAC • Inrush Current <80A Peak @ 120VAC, • <120A Peak @ 230VAC • Efficiency 87+% • Output Ripple 1% Max • Switching Frequency 100 kHz Max. • Line Regulation ± 1% • Load Regulation ± 3% • 4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-) • Operating Temperature 0 to 40° C (32 to 104° F) • Storage Temperature -30 to 70° C (-22 to 158° F) • Operating Humidity 35 to 95% Noncondensing • AC Connector IEC-320 C6 • Data IN / POE RJ45 Shielded Socket • Surge Protection Difference and Common Mode • Clamping Protection 11V Data, 60V Power • Max. Surge Discharge 1500A (8/20 µs) Power • Peak Pulse Current 36A (10/1000 µs) Data • Shunt Capacitance <5 pF data • Response Time <1 ns • Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground RCM
