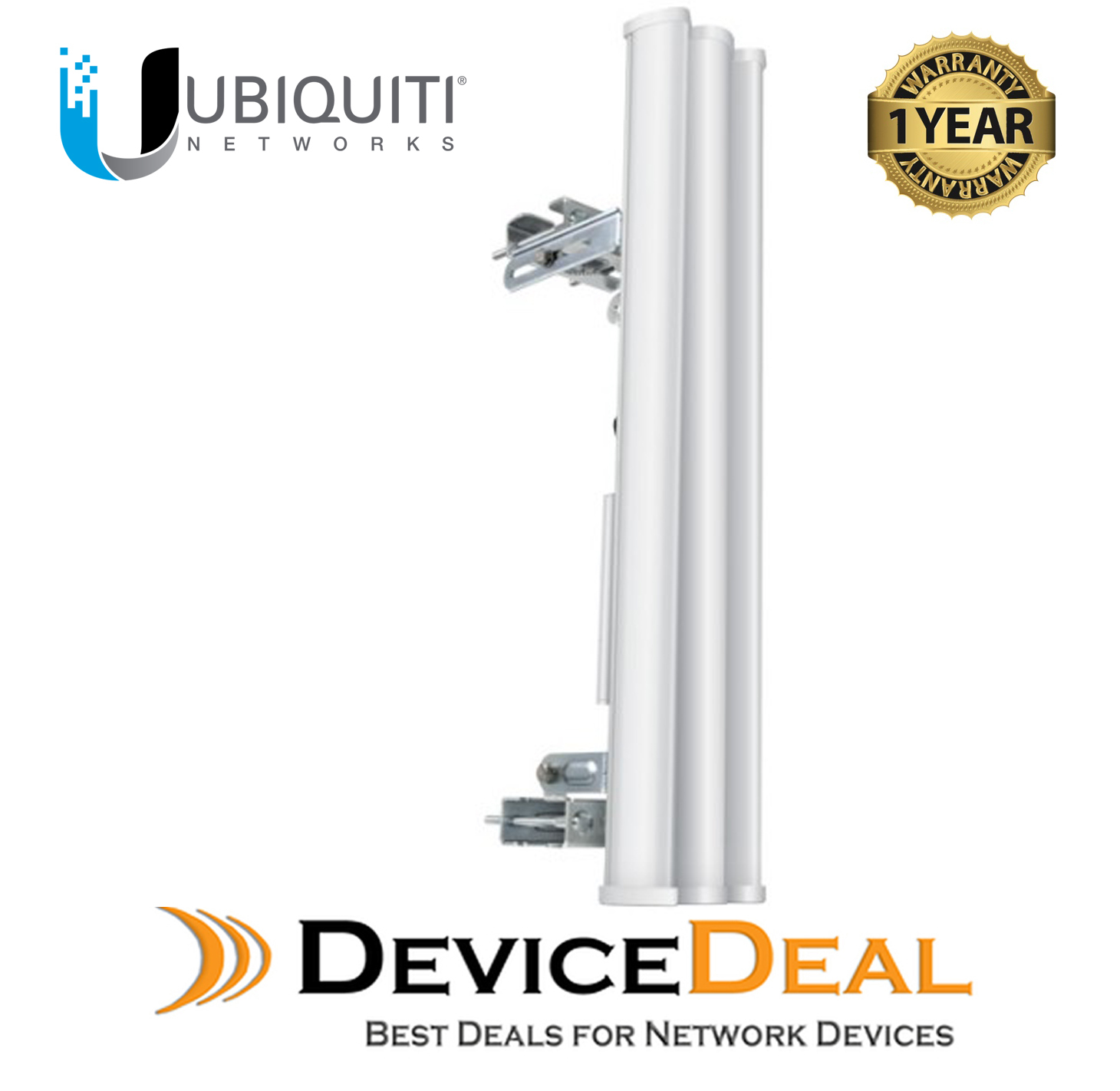

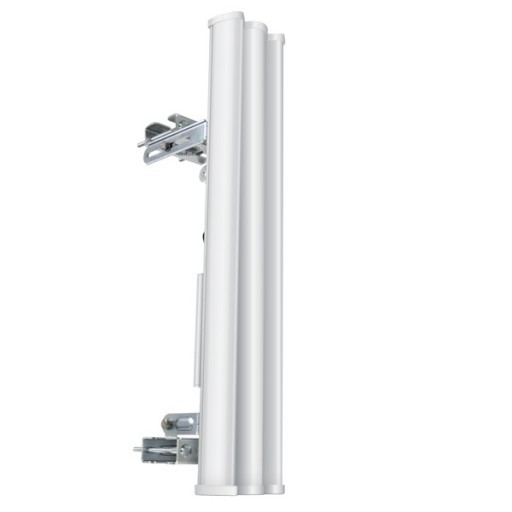

A 2.4 GHz airMAX 2x2 dual-polarity sector antenna with 90 deg coverage, 16-17 dBi gain and included mounting hardware for compatible Rocket M deployments.
Focused 90-degree coverage for point-to-multipoint networks
The AM-2G16-90 provides a narrower 90-degree sector pattern with dual-polarity performance for compatible Rocket M point-to-multipoint deployments.
90 deg sector coverage
The antenna provides a focused 90-degree sector pattern.
16-17 dBi gain
Gain ranges from 16.0 to 17.0 dBi.
2.3-2.7 GHz operation
The frequency range is 2.3 to 2.7 GHz.
Dual-linear polarisation
Dual-linear polarisation supports 2x2 radio operation.
28 dB cross-polarisation isolation
Minimum cross-polarisation isolation is 28 dB.
Rocket M integration
A Rocket M bracket is included for compatible radio mounting.
Universal pole mount
Pole-mount hardware is included.
Weatherproof RF jumpers
Weatherproof RF jumper cables are included.
i
Radio compatibility
This is a passive antenna. A compatible Rocket M radio is required and is not identified as part of the antenna package.
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AM-2G16-90 is backed by a 1-year Ubiquiti manufacturer warranty, with support provided in accordance with Ubiquiti's warranty terms and conditions.
Frequently asked questions
Helpful answers for the Ubiquiti AM-2G16-90.
What is the Ubiquiti AM-2G16-90?
It is a 2.4 GHz airMAX 2x2 sector antenna for compatible point-to-multipoint deployments.
What coverage angle does it provide?
The sector coverage is 90 degrees.
What is the supported frequency range?
The antenna operates from 2.3 to 2.7 GHz.
What gain is?
Gain ranges from 16.0 to 17.0 dBi.
Is mounting hardware included?
Yes. A universal pole mount, Rocket M bracket and weatherproof RF jumper cables are included.
Is a radio included?
This is a passive antenna; a compatible Rocket M radio is required.
What warranty does the Ubiquiti AM-2G16-90 include?
The Ubiquiti AM-2G16-90 is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(AM-2G16-90)
Features and highlights
A 2.4 GHz airMAX 2x2 dual-polarity sector antenna with 90 deg coverage, 16-17 dBi gain and included mounting hardware for compatible Rocket M deployments.
✓
90 deg sector coverage
The antenna provides a focused 90-degree sector pattern.
✓
16-17 dBi gain
Gain ranges from 16.0 to 17.0 dBi.
✓
2.3-2.7 GHz operation
The frequency range is 2.3 to 2.7 GHz.
✓
Dual-linear polarisation
Dual-linear polarisation supports 2x2 radio operation.
✓
28 dB cross-polarisation isolation
Minimum cross-polarisation isolation is 28 dB.
✓
Rocket M integration
A Rocket M bracket is included for compatible radio mounting.
✓
Universal pole mount
Pole-mount hardware is included.
✓
Weatherproof RF jumpers
Weatherproof RF jumper cables are included.
Key product facts
90 deg : Sector coverage
16-17 dBi: Gain
28 dB: Minimum cross-pol
3.9 kg: Product weight
Radio compatibility: This is a passive antenna. A compatible Rocket M radio is required and is not identified as part of the antenna package.
Technical specifications
Product specifications for Ubiquiti model AM-2G16-90.
Product details
Brand
Ubiquiti
Model / SKU
AM-2G16-90
Product type
2.4 GHz 2x2 sector antenna
Network topology
Point-to-multipoint
RF performance
Frequency range
2.3-2.7 GHz
Gain
16.0-17.0 dBi
Sector coverage
90 deg
Polarisation
Dual-linear
Minimum cross-polarisation isolation
28 dB
Physical
Dimensions
700 x 145 x 79 mm
Weight
3.9 kg
Included mounting
Pole mount
Universal pole mount
Radio bracket
Rocket M bracket
RF cables
Weatherproof RF jumper cables
Warranty
Manufacturer warranty
1 year Ubiquiti manufacturer warranty
Authorised reseller
DeviceDeal
SKU
AM-2G16-90
Barcode #
810354020872
Brand
Ubiquiti
Shipping Weight
4.6500kg
Shipping Width
0.195m
Shipping Height
0.162m
Shipping Length
0.895m
Shipping Cubic
0.028273000m3
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AM-2G16-90 is backed by a 1-year Ubiquiti manufacturer warranty.
Warranty support is provided in accordance with Ubiquiti's warranty terms and conditions.
