A tri-band Wi-Fi 6 router with 12 spatial streams, one Gigabit WAN port, four Gigabit LAN ports, a 4.7-inch touchscreen and support for up to 120 connected clients.
Tri-band Wi-Fi 612 spatial streams4x GbE LAN4.7 in touchscreen
Authorised Ubiquiti reseller1 Year Ubiquiti manufacturer warranty
4804 MbpsHigh-band 5 GHz1148 Mbps2.4 GHz120Maximum clients35 WMaximum power
High-capacity tri-band Wi-Fi 6 with touchscreen management
The AFi-ALN-R-AU combines three Wi-Fi bands, wired Gigabit networking and a colour touchscreen in the AmpliFi Alien cylindrical router design.
Tri-band Wi-Fi 6
The router uses one 2.4 GHz band and two 5 GHz bands.
12 spatial streams
The radio configuration provides 12 spatial streams.
High-band 5 GHz performance
The high-band 5 GHz radio is rated up to 4804 Mbps.

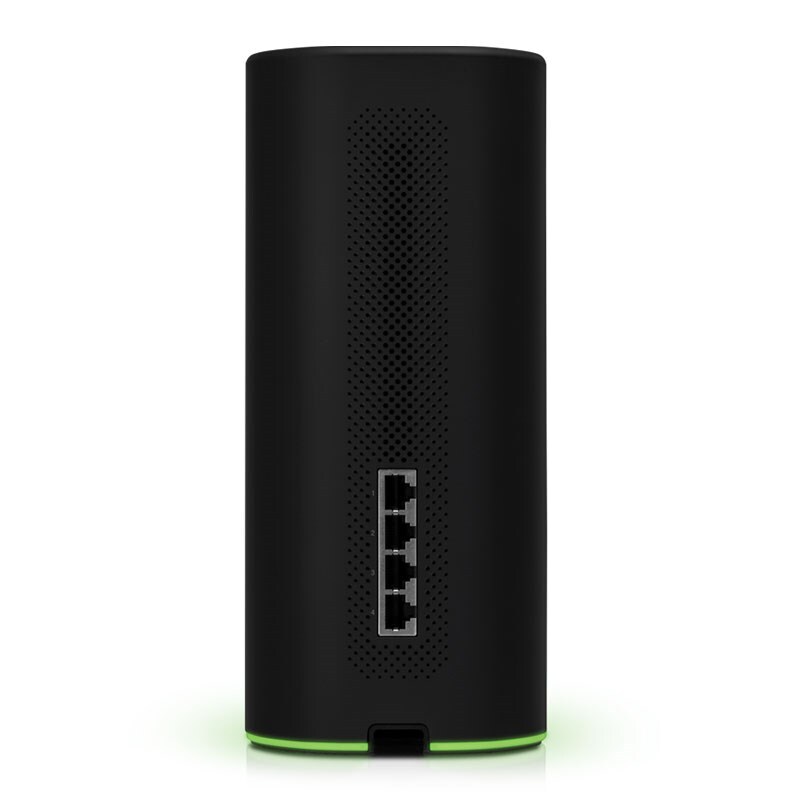

Four Gigabit LAN ports
Four Gigabit Ethernet LAN ports support wired client connections.

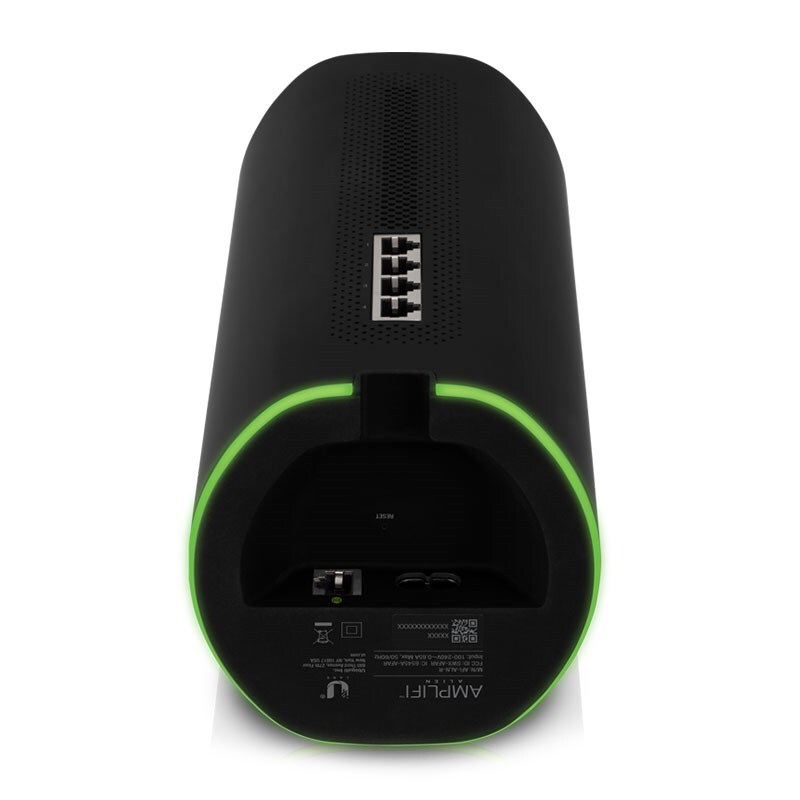

Dedicated Gigabit WAN
A separate Gigabit Ethernet WAN port connects to the upstream network.

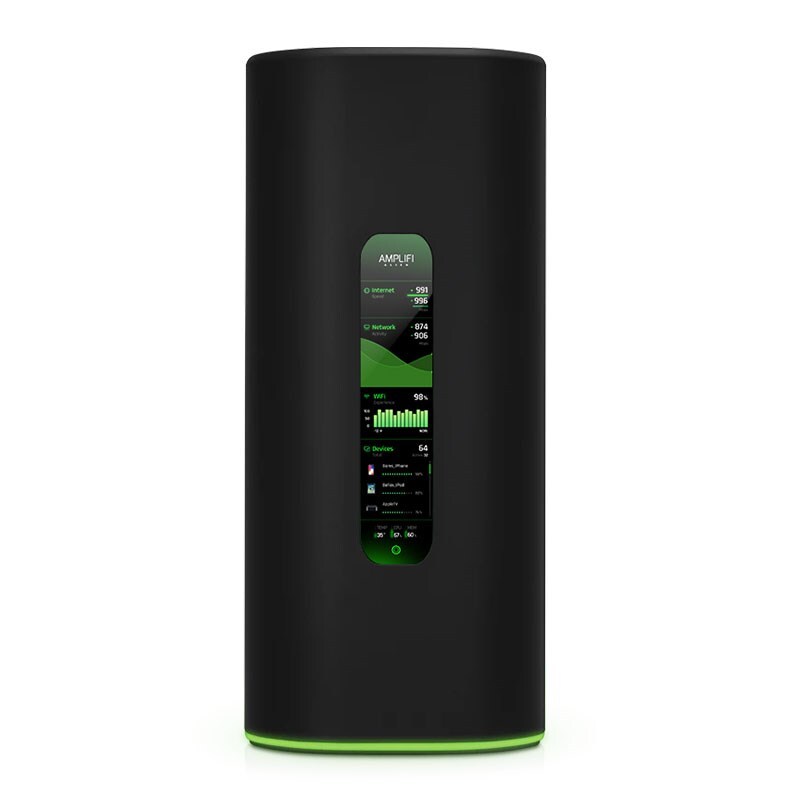

4.7-inch touchscreen
The integrated colour touchscreen provides local status and controls.
Up to 120 clients
The maximum client capacity is 120 devices.
Mesh expansion
The router supports expansion with compatible AmpliFi Alien MeshPoints.
i
Package contents

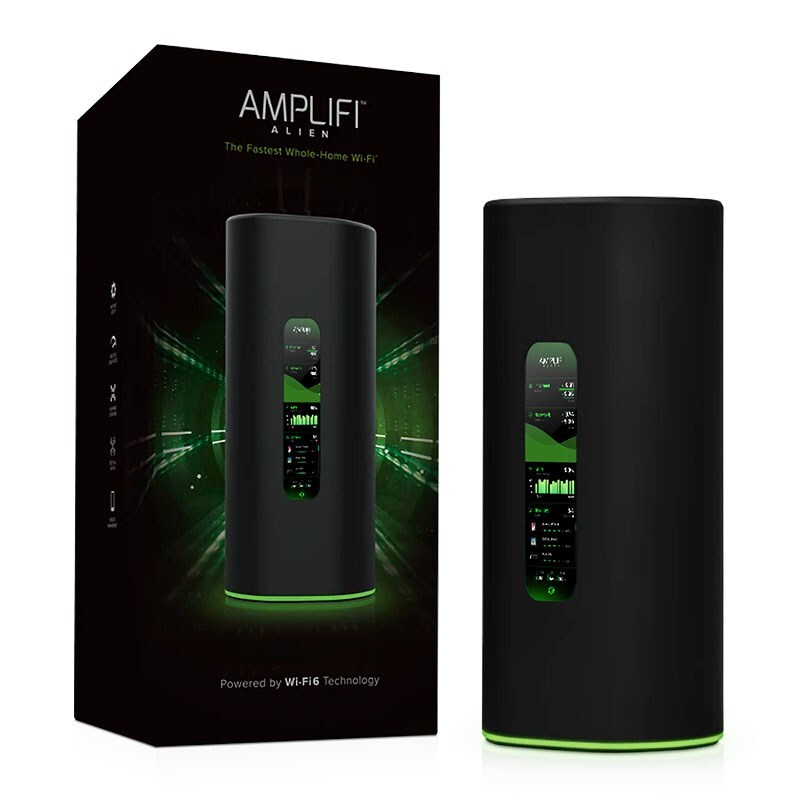

This SKU is the router-only configuration. The package includes the router, a 6.5 ft power cable and a 4.9 ft Ethernet cable.
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AFi-ALN-R-AU is backed by a 1-year Ubiquiti manufacturer warranty, with support provided in accordance with Ubiquiti's warranty terms and conditions.
Frequently asked questions
Helpful answers for the Ubiquiti AFi-ALN-R-AU.
What is the Ubiquiti AFi-ALN-R-AU?
It is the router-only version of the AmpliFi Alien tri-band Wi-Fi 6 platform.
How many Wi-Fi bands are provided?
The router uses one 2.4 GHz band and two 5 GHz bands.
What are the maximum wireless rates?
Maximum wireless rates are up to 1148 Mbps on 2.4 GHz, 1733 Mbps on low-band 5 GHz and 4804 Mbps on high-band 5 GHz.
How many Ethernet ports are included?
It provides one Gigabit WAN port and four Gigabit LAN ports.
Does the router have a touchscreen?
Yes. It includes a 4.7-inch colour touchscreen.
How many clients are supported?
The maximum client capacity is 120 devices.
Can the router be expanded into a mesh?
Yes. It supports compatible AmpliFi Alien MeshPoints.
What warranty does the Ubiquiti AFi-ALN-R-AU include?
The Ubiquiti AFi-ALN-R-AU is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(AFi-ALN-R-AU)
Features and highlights
A tri-band Wi-Fi 6 router with 12 spatial streams, one Gigabit WAN port, four Gigabit LAN ports, a 4.7-inch touchscreen and support for up to 120 connected clients.
✓
Tri-band Wi-Fi 6
The router uses one 2.4 GHz band and two 5 GHz bands.
✓
12 spatial streams
The radio configuration provides 12 spatial streams.
✓
High-band 5 GHz performance
The high-band 5 GHz radio is rated up to 4804 Mbps.
✓
Four Gigabit LAN ports
Four Gigabit Ethernet LAN ports support wired client connections.
✓
Dedicated Gigabit WAN
A separate Gigabit Ethernet WAN port connects to the upstream network.
✓
4.7-inch touchscreen
The integrated colour touchscreen provides local status and controls.
✓
Up to 120 clients
The maximum client capacity is 120 devices.
✓
Mesh expansion
The router supports expansion with compatible AmpliFi Alien MeshPoints.
Key product facts
4804 Mbps: High-band 5 GHz
1148 Mbps: 2.4 GHz
120: Maximum clients
35 W: Maximum power
Package contents: This SKU is the router-only configuration. The package includes the router, a 6.5 ft power cable and a 4.9 ft Ethernet cable.
Technical specifications
Product specifications for Ubiquiti model AFi-ALN-R-AU.
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AFi-ALN-R-AU is backed by a 1-year Ubiquiti manufacturer warranty.
Warranty support is provided in accordance with Ubiquiti's warranty terms and conditions.
