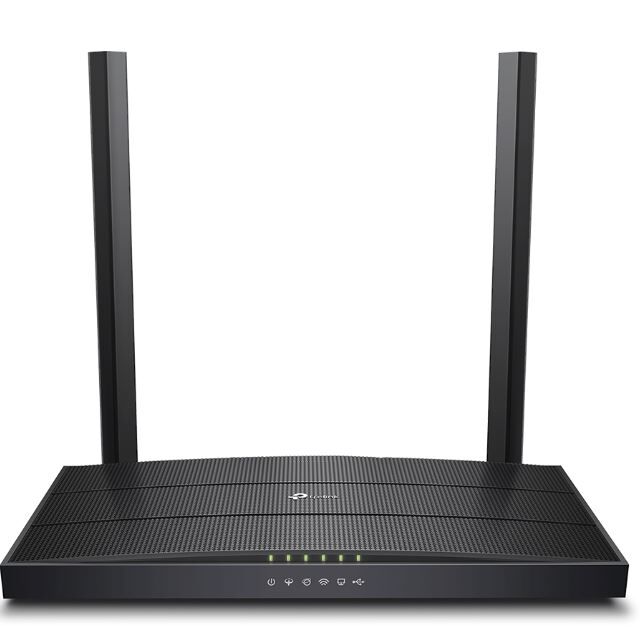

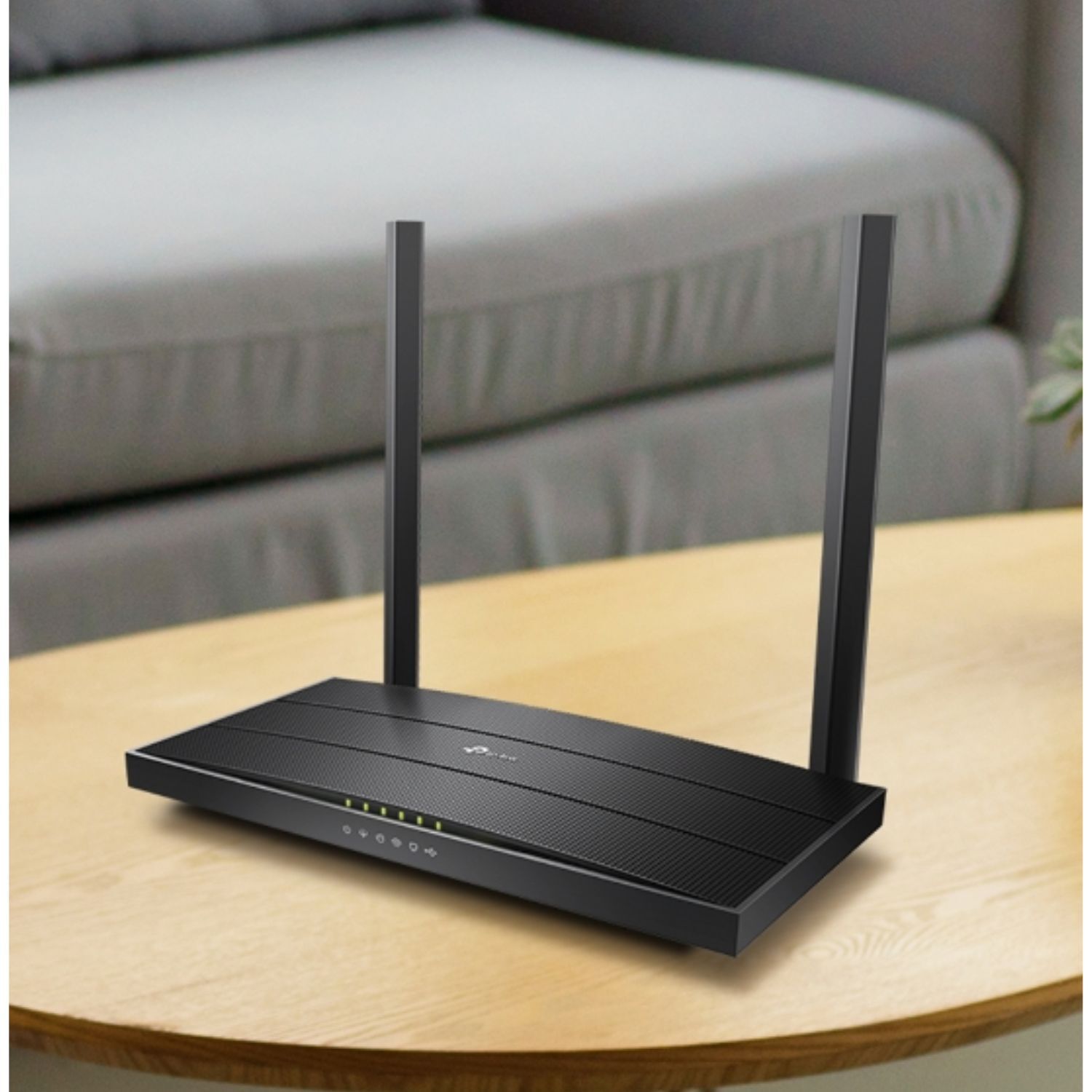

TP-Link Archer VR400 AC1200 Wireless VDSL/ADSL Modem Router

TP-Link Archer VR400 AC1200 Wireless VDSL/ADSL Modem Router - NBN Ready - IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz - 867Mbps at 5GHz, 300Mbps at 2.4GHz - 1x RJ45 WAN Port, 3x RJ45 LAN/WAN Ports, 1x RJ11 Port, 1x USB 2.0 Port - 3x external dual band antennas - 3 Years Limited Warranty

Superfast Wi-Fi - Up to 1.2Gbps

The Archer VR400 unlocks the full potential of your internet connection by providing combined dual band Wi-Fi speeds of up to 1.2Gbps, including 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, eliminating lag and buffering from your online experience.

Two dedicated Wi-Fi networks support more devices and reduce wireless interference to create stable connections.

5GHz 867Mbps
2.4GHz 300Mbps

Superfast VDSL Broadband

The latest VDSL2 technology allows the Archer VR400 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost five times faster than ADSL2+. The Archer VR400 serves as a DSL modem and wireless router, combining two devices in one. The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL.

Versatile Backup Connectivity

With multiple inputs, the Archer VR400 provides you with a variety of options when connecting to the Internet. As a backup, the EWAN port allows the Archer VR400 to accept connections from cable and fiber modems via Ethernet cable. Additionally, the USB port supports 3G/4G dongle connections.

Superior Range and Stability

Three high-performance external antennas help the Archer VR400 create an expansive home network. Advanced Beamforming technology* automatically locates wireless devices and forms targeted, highly efficient wireless connections.

*Archer VR400 only supports Beamforming Technology at 5GHz band.

Blazing Fast Wired Performance

To help your wired devices achieve peak performance, the router’s Gigabit Ethernet port operate 10x faster than standard Ethernet. Connecting an external drive to the USB 2.0 port allows you to share files, photos, music, and video with any device on the network.

Easy Setup and Use

Set up the Archer VR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.

(Archer-VR400)

Speedy Wi-Fi – Superb wireless experience with 300Mbps (2.4GHz) + 867Mbps (5GHz) dual band Wi-Fi connections
Superior Range – Three detachable antennas provide stable wireless connections and optimal coverage
Versatile Connectivity – Fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards, as well as fiber, cable and 3G/4G Internet services
Beamforming Technology – Improves wireless range and performance at 5GHz band
USB Port – Supports storage and print service sharing, FTP and media servers as well as 3G/4G dongle
Tether App – TP-LINK Tether provides the easiest way to access and manage the router on your iOS and Android devices

HARDWARE FEATURES

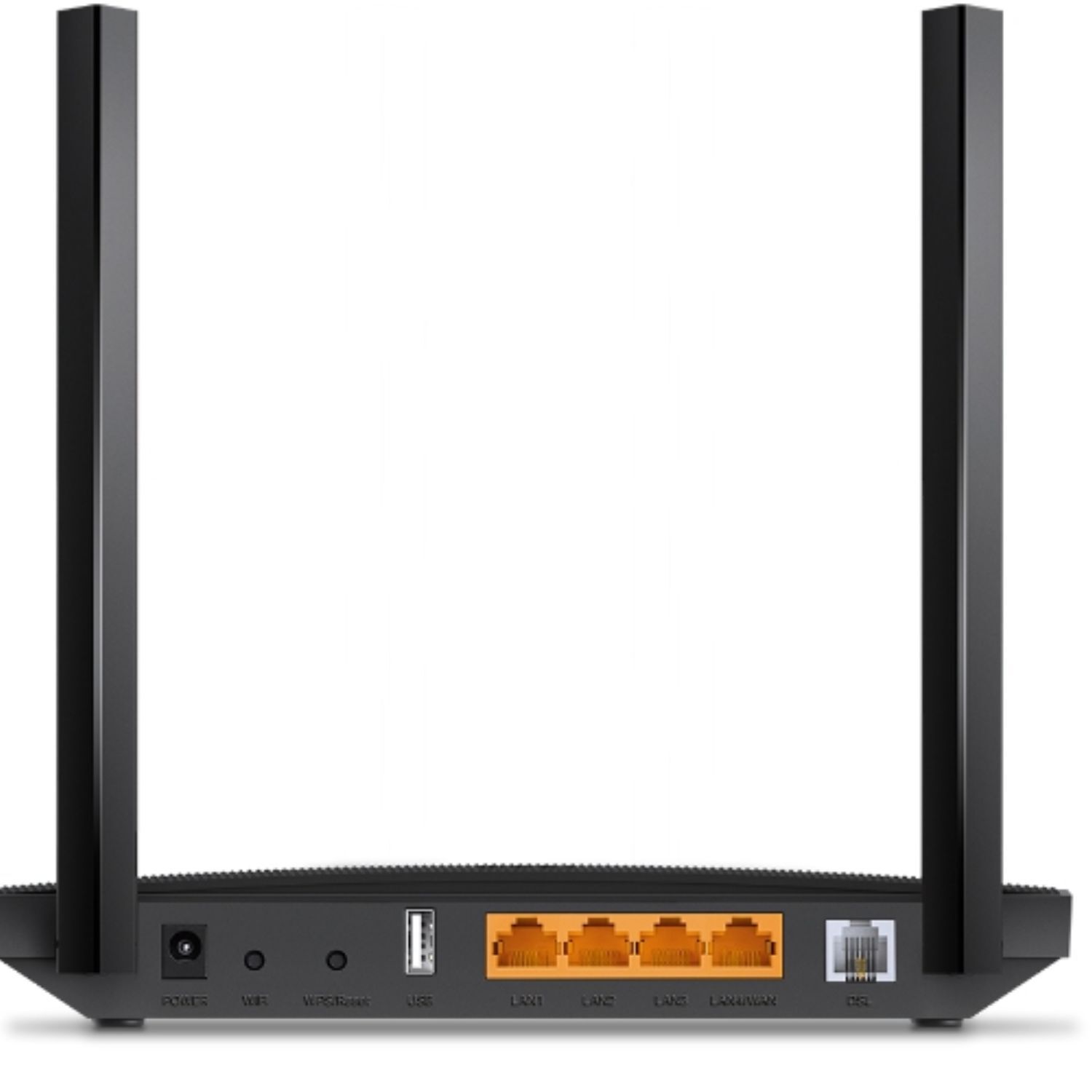

Interface	3 RJ45 LAN Ports 1 RJ45 LAN/WAN Port 1 RJ11 Port 1 USB 2.0 Port
Button	WPS Button Wireless On/Off Button Power On/Off Button Reset Button
Power Supply	12V/1.5A
IEEE Standards	IEEE 802.3 IEEE 802.3u 802.3ab
VDSL2 Standards	ITU G.993.2, Up to 17a prole (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP)
ADSL Standards	Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis)
ADSL2+ Standards	ITU-T G.992.5
Dimensions ( W x D x H )	243.5×167.5×32.7mm
Antenna Type	3 fixed external antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz
Wireless Speeds	867Mbps at 5GHz 300Mbps at 2.4GHz
Transmit Power	2.4GHz <20dBm(EIRP) 5GHz <23dBm(EIRP)
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, Wireless MAC Filtering
Wireless Schedule	Support 2.4GHz and 5GHz Wireless Schedule

SOFTWARE FEATURES
Quality of Service	ATM QoS, Bandwidth Control
Security	NAT Firewall, Access Control, IP and MAC Address Binding
Operating Modes	VDSL/ADSL Modem Router, Wireless Router,3G/4G Router
Management	Web Based Conguration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools
DHCP	Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Port Forwarding	Virtual Server, Port Triggering, DMZ, ALG, UPnP
Dynamic DNS	DynDns, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec Passthrough
Protocols	Supports IPv4 and IPv6
ATM/PPP Protocols	ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
Advanced Functions	Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3
USB Sharing	Support Samba(Storage)/FTP Server/Media Server/Printer Server, 3G/4G Modem
Guest Network	2.4GHz guest network, 5GHz guest network
IPSec VPN	Supports up to 10 IPSec VPN tunnels
Beamforming	5GHz

OTHERS
Certification	CE, RoHS
Package Contents	· AC1200 Wireless VDSL/ADSL Modem Router Archer VR400 · External Splitter · RJ11 DSL Cable · RJ45 Ethernet Cable · Power Adapter · Quick Installation Guide
System Requirements	· Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux · Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser · Subscription with an Internet Service Provider (for Internet access)
Environment	· Operating Temperature: 0℃~40℃ (32℉ ~104℉) · Storage Temperature: -40℃~70℃ (-40℉ ~158℉) · Operating Humidity: 10%~90% non-condensing · Storage Humidity: 5%~90% non-condensing
