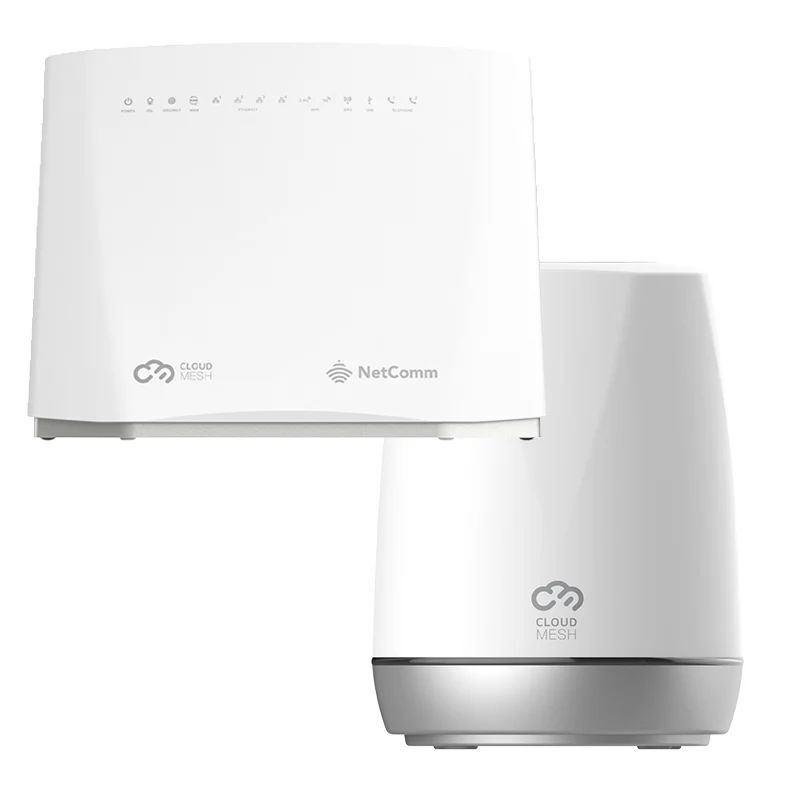

NetComm NF20MESH+NS-02 Bundle CloudMesh Wi-Fi 6 Dual-Band System - Includes 1x: NetComm NF20MESH Dual-Band Wi-Fi 6 CloudMesh VDSL/ADSL2+ Gateway + 1x NetComm NS-02 Dual-Band Wi-Fi 6 CloudMesh Satellite - NF20MESH+NS02


 Mesh-enabled for seamless connection to the CloudMesh Satellite
· Automated Wi-Fi issue resolution with Wi-Fi AutoPilot
· Gigabit connection to high-speed fibre networks
· Vertical PCB and Antenna design for increased Wi-Fi coverage and cooling
· Two (2) Gigabit ports for versatile connectivity (Satellite)

Router - The Ultimate Wi-Fi Fixer

Bringing the modern, adaptive Wi-Fi experience to the home user, the Wi-Fi 6 CloudMesh Gateway is a CloudMesh-enabled Gateway that utilizes Wi-Fi AutoPilot and the Wi-Fi Analytics Platform to deliver a world-class home Wi-Fi experience. Bring the new adaptive Wi-Fi experience to your home with the CloudMesh Gateway (NF20MESH).

Satellite - Seamless Wi-Fi Coverage

The CloudMesh Satellite brings the modern Wi-Fi experience to the home, expanding the coverage, minimizing dead zones and increasing customer service satisfaction. Paired with a CloudMesh Gateway, the Satellite utilizes innovative roaming technology to seamlessly transition Wi-Fi clients from the Gateway to the Satellite and has integrated platform support for the Wi-Fi Analytics Platform. The CloudMesh Satellite (NS-02) works wirelessly with a CloudMesh Gateway (NF20MESH), forming a single robust Whole Home Wi-Fi Mesh network coverage.


Wi-Fi 6 is Here

Wi-Fi 6 is the next generation of Wi-Fi. Delivering significant speed, performance and efficiency improvements, it provides up to four times more device capacity than Wi-Fi 5. These improvements enable end users to stream higher quality with more network devices while operating optimally. Your Wi-Fi 6 Gateway will future-proof your Wi-Fi experience and enable smart devices throughout your modern, connected home.

Mesh Enabled

The CloudMesh Gateway comes equipped with CloudMesh, and when wirelessly paired with a CloudMesh Satellite, it can form a robust Whole Home Wi-Fi Mesh network. With all the controls and setting centralized on the Gateway, it becomes the Wi-Fi Mesh master node, and the Wi-Fi client device can roam seamlessly between the Gateway and paired Satellites.

Adaptive Wi-Fi

Providing Wi-Fi AutoPilot as standard and integrated platform support for the Wi-Fi Analytics Platform means that CloudMesh can offer a superior data-driven Wi-Fi experience; both for the end user (The Wi-Fi AutoPilot dynamically and automatically scans and analyses the environment constantly, adjusting the Wi-Fi parameters as required), and for the service provider (The Wi-Fi Analytics Platform enables greater visibility into the Wi-Fi environment, reducing associated support costs and providing a better, more intuitive service).

Wi-Fi AutoPilot efficiently processes data at the edge and is designed to reduce latency and superior performance in real-time applications (such as gaming and video conferencing).

Easy to Pair with Satellites

Zero-touch provisioning (via a user-friendly cloud portal) or in-home setup (using the WPS button) makes pairing the CloudMesh Gateway with CloudMesh Satellite simple and easy for the end user.



Environmental and Physical

  • Operating temperature: 0-40 degrees C

  • Humidity: 10%-95% non-condensing

  • Storage temperature: -10-60 degrees C

  • Humidity: 5%-95% non-condensing

  • DC Input Voltage: 12V/2A

  • Dimensions: 230 (w) x 180 (h) x 70 (d) mm

  • Weight: 555g

Device Interface

  • 1 x RJ45 10/100/1000Mbps WAN port

  • 1 x ADSL / VDSL port

  • 4 x RJ45 10/100/1000Mbps LAN ports

  • 2 x RJ11 Phone ports (VoIP)

  • 1 x Reset button

  • 2 x WPS buttons (2.4GHz and 5GHz)

  • 1 x Power jack

  • 2 x USB 2.0 Ports (storage)

  • 1 x Power switch

  • LED (Power/DSL/Internet/WAN/LAN1-4/2.4GHz/5GHz/WPS/USB1-2/ Phone1-2)


  • PPPoE/PPPoA/IPoA/ Static IP/Dynamic IP/Bridge

  • ITU-T G.993.2 VDSL2

  • Supports 8a,8b,12a,12b,17a profile

  • Supports ATM and PTM

  • Supports G.INP


  • PPPoE/PPPoA/IPoA/Static IP/Dynamic IP/Bridge

  • ITU G.992.1 (G.dmt)

  • ITU G.992.2 (G.lite)

  • ITU G.992.3

  • ITU G.992.3 (Annex J)

  • ITU G.992.3 (Annex L)

  • ITU G.992.5

  • ITU G.992.5 (Annex M)

  • Supports multiple PVCs.

Ethernet WAN

  • PPPoE, DHCP client, Static IP


  • Compatible with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ax and IEEE 802.11ac

  • Supports concurrent dual-band (2.4GHz/5GHz) wireless

  • SSID broadcast or in stealth mode

  • Auto/Manual Channel selection


  • WPS button (Wi-Fi Protected Setup)

VoIP Protocol

  • SIP2.0

  • G.711, G.723, and G.726

  • FAX T.38 FAX Relay


  • File Sharing

  • DLNA


  • Firewall

  • MAC Filtering


  • Static Route

  • Dynamic Route (RIP v1/v2)

  • DMZ

  • Supports Layer 2 Bridge Mode


  • Quality of service

  • SNMP

  • UPnP

  • Syslog

  • Web-based UI

  • Remote Login

  • TR-069 Auto-provisioning

  • Backup/Restore Settings


  • RCM, NZ Telepermit.

Barcode # 9317773020885
Brand NetComm Wireless
Shipping Weight 3.0000kg
