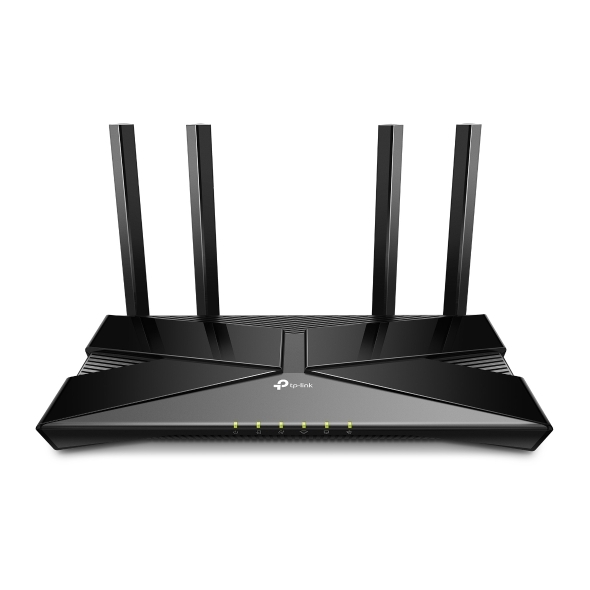

TP-LINK AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router
Model # Archer VX1800v
-
SKU: Archer-VX1800v
- Pick Up Available
- Australian Warranty
- Checkout Securely
TP-LINK AX1800 Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router
- Super VDSL – The Latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350Mbps, while G.vector and RNC technology ensure advanced data transmission stability
- Next-Gen Gigabit Wi-Fi 6 Speed - 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.
- 2×2 MU-MIMO – Simultaneously transfers data to multiple devices for 4x faster performance
- VoIP Support - Support multiple VoIP accounts and various call features to surpass traditional landlines.
- TP-Link Tether App – Easily access and manage your network, including remote control and automatic updates, using any iOS or Android mobile device
- Versatile Connectivity - Fully compatible with VDSL2/ADSL2+/ADSL2/ADSL standards, support Fiber and Cable connection through Ethernet port, as well as 3G/4G internet services through USB port.
(Archer-VX1800v)
| HARDWARE FEATURES | |
|---|---|

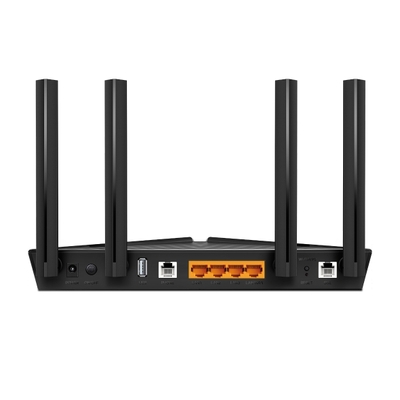

| Interface | 1× Gigabit WAN/LAN, 3× Gigabit LAN, 1× USB 2.0, 2× RJ11 (1× DSL + 1× FXS) |
| External Power Supply | 12V / 1.5A |
| IEEE Standards | IEEE 802.3, IEEE 802.3u, 802.3ab |
| VDSL2 Standards | ITU-T G.993.2, ITU-T G.993.5 (G.vector), ITU-T G.998.4 (G.INP) |
| ADSL Standards | Full-rate-ANSI T1.413 Issue 2, ITU-T G.992.1 (G.DMT), ITU-TG.992.2 (G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.11 |
| ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
| ADSL2+ Standards | ITU-T G.992.5(Annex A/L/M) |
| Dimensions ( W x D x H ) | 260.2 × 135.0 × 41.6 mm |
| Antenna | 4× External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| Wireless Speeds | 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Transmit Power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, WMM |
| Wireless Security | WPA2-PSK, WPA2-PSK/WPA-PSK, WPA3-Personal, WPA3-Personal/WPA2-PSK, WPA2-Enterprise, WPA/WPA2-Enterprise encryptions |
| Wireless Schedule | Supports 2.4 GHz and 5 GHz Wireless Schedule |
| VOIP FEATURES | |
|---|---|
| VoIP Standards | SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.722, G.729AB, G.726 |
| Integrated Answering Machine | Stores long voice messages internally on the modem router or store voice messages externally on USB storage devices |
| Advanced Telephone Functions | Call Forwarding, Call Transfer, Call Back on Busy, Call Blocking, Anonymous Call Blocks, Speed Dial, Emergency Number |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | IPTV, Parental Controls, Network Address Translation (NAT), Port Mapping (Grouping), Static Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
| Security | NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding |
| Operating Modes | VDSL/ADSL Modem Router, 3/4G Router, Wireless Router |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Port Forwarding, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP, TP-Link |
| VPN | OpenVPN, PPTP VPN, IPSec VPN |
| Protocols | Support IPv4 and IPv6 |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
| USB Sharing | Support Samba (Storage) / FTP Server / Media Server / 3G/4G Modem / SFTP Server / Web Storage |
| Guest Network | 2.4 GHz guest network, 5 GHz guest network |
| IPSec VPN | Support up to 10 IPSec VPN tunnels |
| OTHERS | |
|---|---|
| Certification | CE, RoHS |
| Package Contents | Wi-Fi 6 VDSL/ADSL Modem Router Archer VX1800v External Splitter RJ11 DSL Cable RJ45 Ethernet Cable Power Adapter Quick Installation Guide |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~60℃ (-40℉ ~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| SKU | Archer-VX1800v |
| Barcode # | 4895252503838 |
| Brand | TP-LINK |
| Shipping Weight | 1.5000kg |
