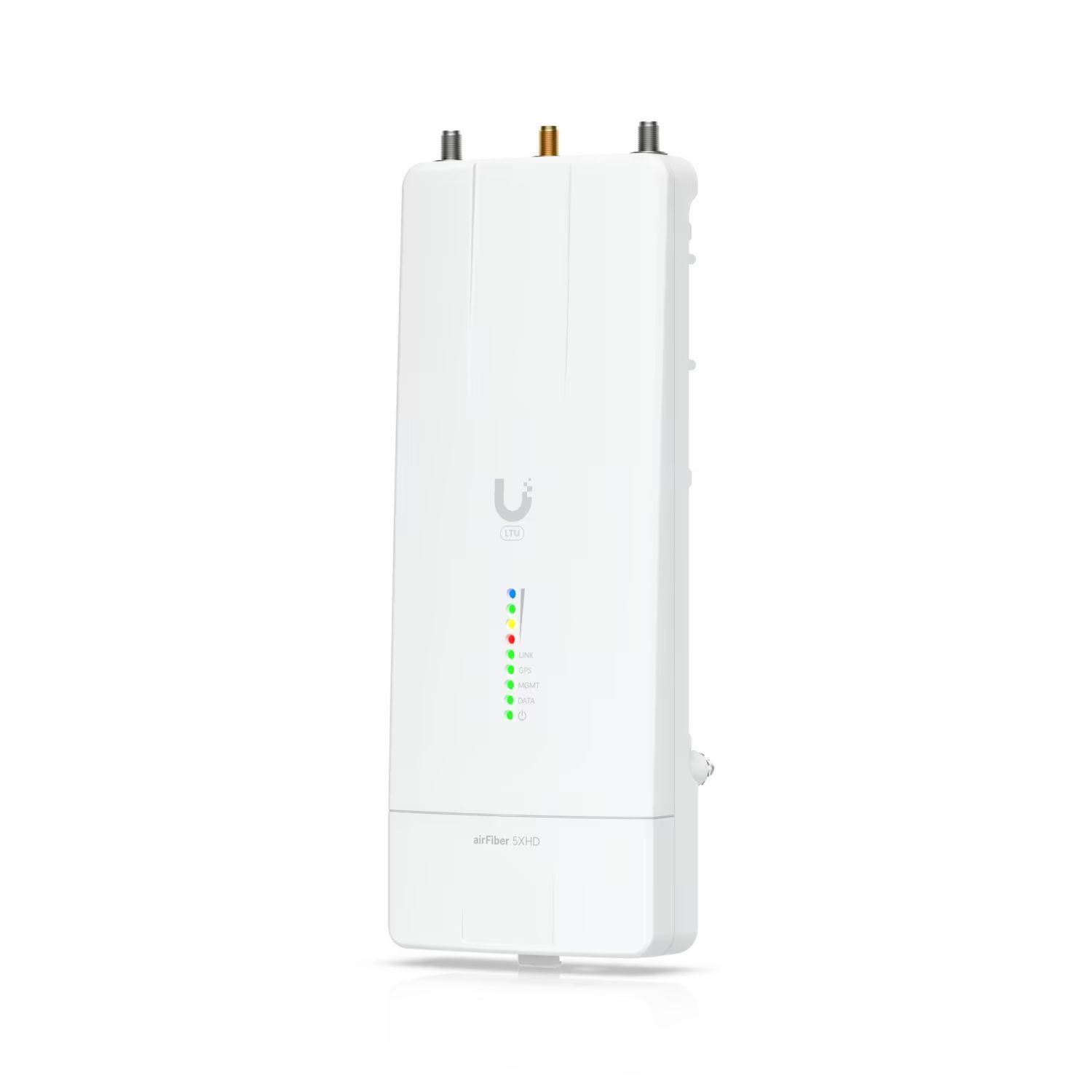

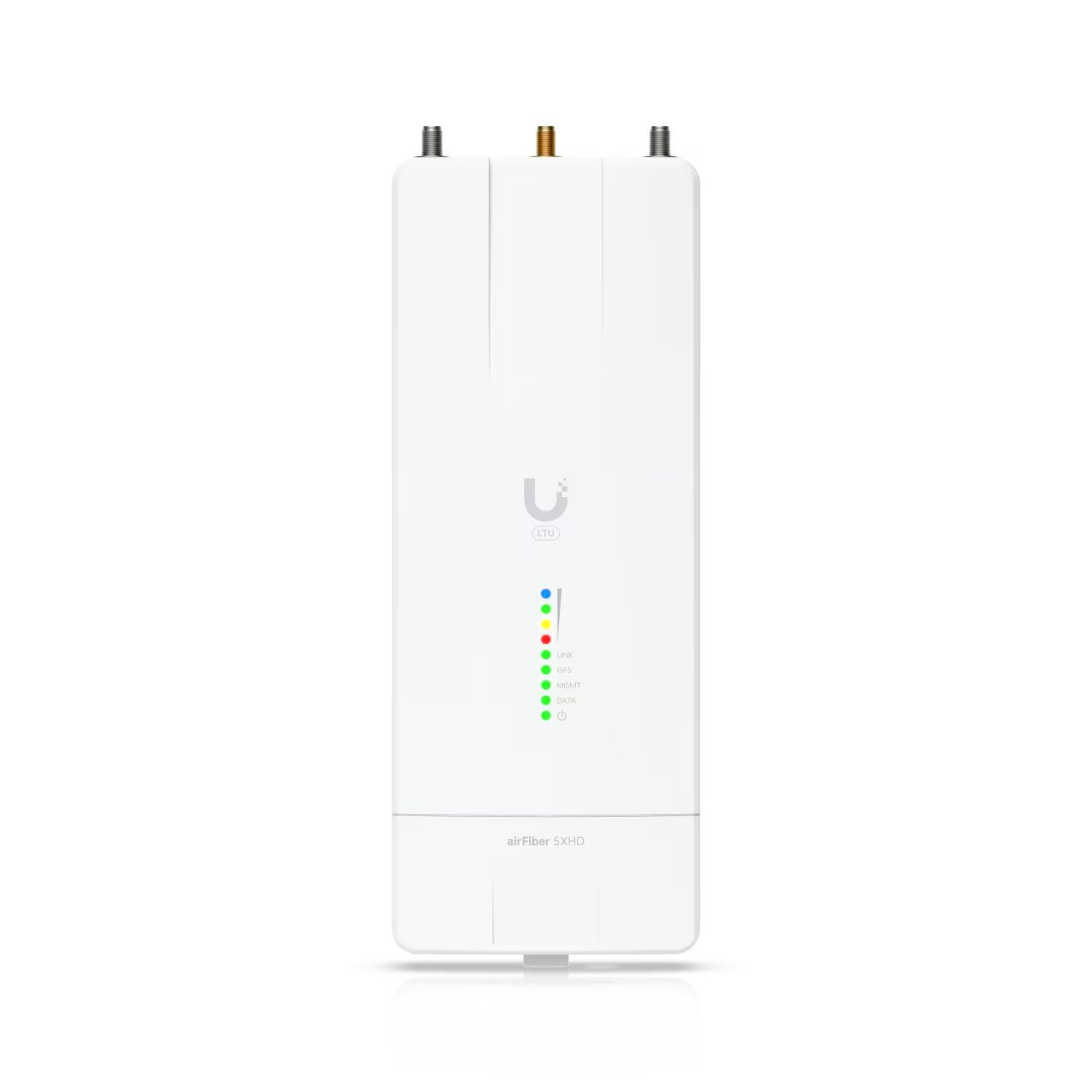

Ubiquiti AirFiber 5XHD - Long Range 5GHz Carrier Back-Haul Radio - True 1Gbps+, Noise Resilient PTP Technology
Model # AF-5XHD-AU
-
SKU: AF-5XHD-AU
- Pick Up Available
- Australian Warranty
- Checkout Securely
True 1+ Gbps spectrally efficient, noise resilient PTP technology specifically designed for WISP’s.
The AF-5XHD from Ubiquiti Networks is an IP67 rated 5GHz carrier radio with LTU technology that delivers up to 1+ Gbps real throughput at distances up to 100 kilometres.
The airFiber 5X HD is managed with the Ubiquiti Network Management System (UNMS). UNMS is a comprehensive management controller featuring an easy-to-navigate graphic user interface. The UNMS app provides instant access to the airOS configuration interface and can be downloaded for iOS and Android. UNMS allows you to set up, configure and manage your airFiber device and offers various configuration options once you're connected or logged in.
(AF-5XHD-AU)
| Mechanical | |
|---|---|
| Dimensions | 224 x 82 x 48 mm (8.8 x 3.2 x 1.9") |
| Weight | 0.4 kg (0.8 lb) |

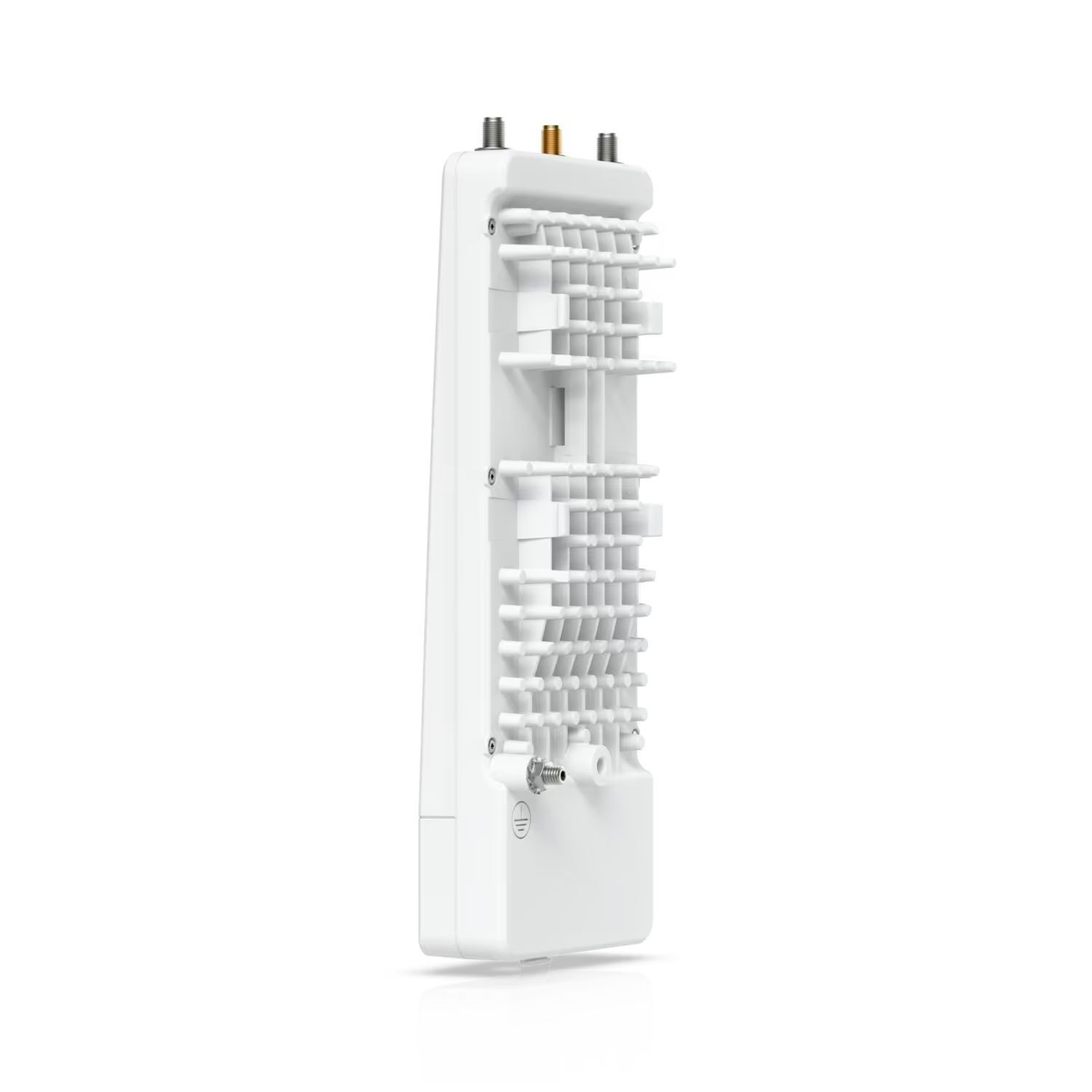

| Mounting | airFiber X mount (Rocket mount compatible) GPS Pole Mount (Included) |
| Weatherproofing | IP67* *After installation of IP67 upgrade kit (included). |
| Hardware | |

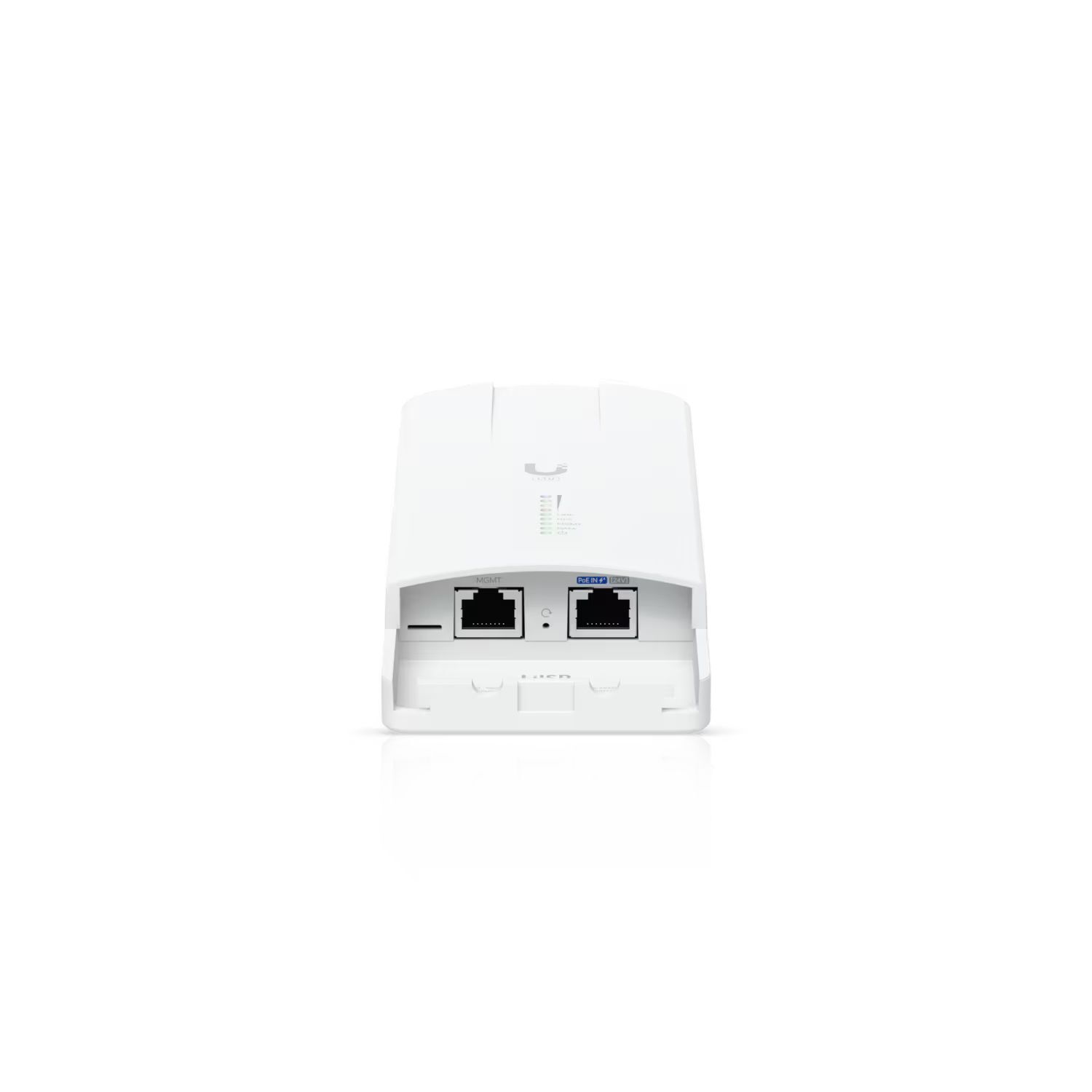

| Networking interface | (2) GbE RJ45 ports |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-) |
| Power supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported voltage range | 18—54V DC |
| Max. power consumption | 12W |
| GPS antenna | External, magnetic base |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software | |
| Modes | PtP Master/Slave |
| Max. throughput | 1+ Gbps |
| Max. range* | 100+ km *Throughput and range values may vary depending on the environmental conditions. |
| Encryption | AES-256 |
| RF | |
| Max. TX power* | 29 dBm *Depends on regional regulations. |
| Frequency accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz selectable Programmable Uplink and Downlink duty cycles |
| Operating Frequency (MHz) | |
| Worldwide | 4800 - 6200 MHz* *Depends on regional regulations. |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
| SKU | AF-5XHD-AU |
| Barcode # | 817882021739 |
| Brand | UBIQUITI |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.115m |
| Shipping Height | 0.110m |
| Shipping Length | 0.260m |
| Shipping Cubic | 0.003289000m3 |
Manufacturer Warranty : 1 Year Manufacturer Warranty
