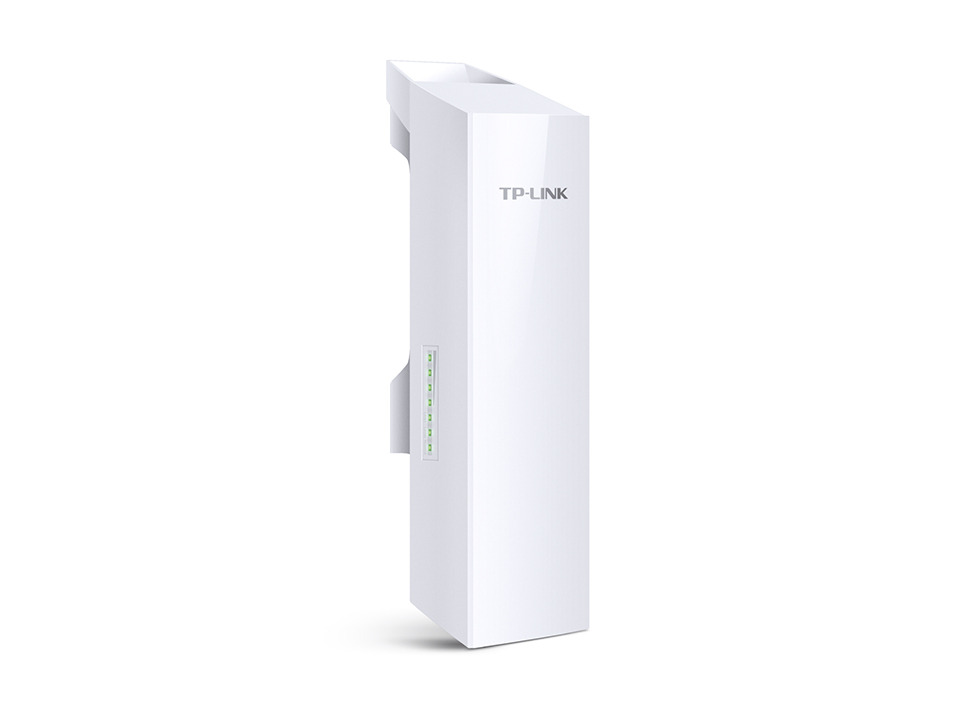

TP-LINK CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE

TP-LINK CPE210 2.4GHz 300Mbps 9dBi Outdoor CPE - Built-in 9dBi 2x2 dual-polarized directional MIMO antenna - 0 to 27dBm/500mw - 3 Years Limited Warranty

Features

Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 27dBm/500mw
System-level optimization for more than 5km long range wireless transmission
TP-LINK Pharos MAXtream TDMA(Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency, ideal for PTMP applications
Centralized Management System – Pharos Control
AP / Client / Repeater / AP Router / AP Client Router (WISP) operation modes
Outdoor stabilized enclosure with IPX5 waterproof certification
Dual Ethernet ports and grounding terminal integrated
6000V Lightning Protection, 15KV ESD Protection
Passive PoE Adapter supports up to 60 meters (200 feet) power over Ethernet deployment and allows for device reset remotely
Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
Selectable bandwidth of 5/10/20/40MHz
Provides Throughput Monitor, Spectrum Analyzer, Speed Test and Ping tools
Easy antenna alignment with wireless signal quality indicators via Web interface

(CPE210)

Antenna	Built-in 9dBi 2x2 Dual-polarized Directional Antenna Beam Width: 65° (H-Plane) / 35° (E-Plane) Note: For more details, please refer to datasheet
Data Rate	Up to 300Mbps (40MHz,Dynamic) Up to 144.4Mbps (20MHz,Dynamic) Up to 72.2Mbps (10MHz,Dynamic) Up to 36.1Mbps (5MHz,Dynamic)
Dimension	224 x 79 x 60 mm
Gain
Interface	1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) 1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough) 1 Grounding Terminal 1 Reset Button
Mounting
Security	WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption SSID Broadcast Enable/Disable Multi-SSID with VLAN Tagging (AP mode only) Distance/ACK Timeout Setting Wireless MAC Address Filter Wireless Advanced: > Beacon Interval/RTS Threshold/Fragmentation >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Typical Application
Weight
Wireless Features	Pharos MAXtream TDMA Technology 802.11b/g/n Modes Selectable Channel Width: 5/10/20/40MHz Automatic Channel Selection Transmission Power Control Dynamic Frequency Selection (DFS) WDS Enable/Disable
Wireless frequency range	2.4~2.483GHz

SKU	CPE210
Barcode #	845973071677
Brand	TP-Link
Shipping Weight	0.7000kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.270m
Shipping Cubic	0.001350000m3

Manufacturer Warranty: 3 Years Limited Warranty
Manufacturer Contact Info: http://www.tp-link.com.au
1300 875 465
