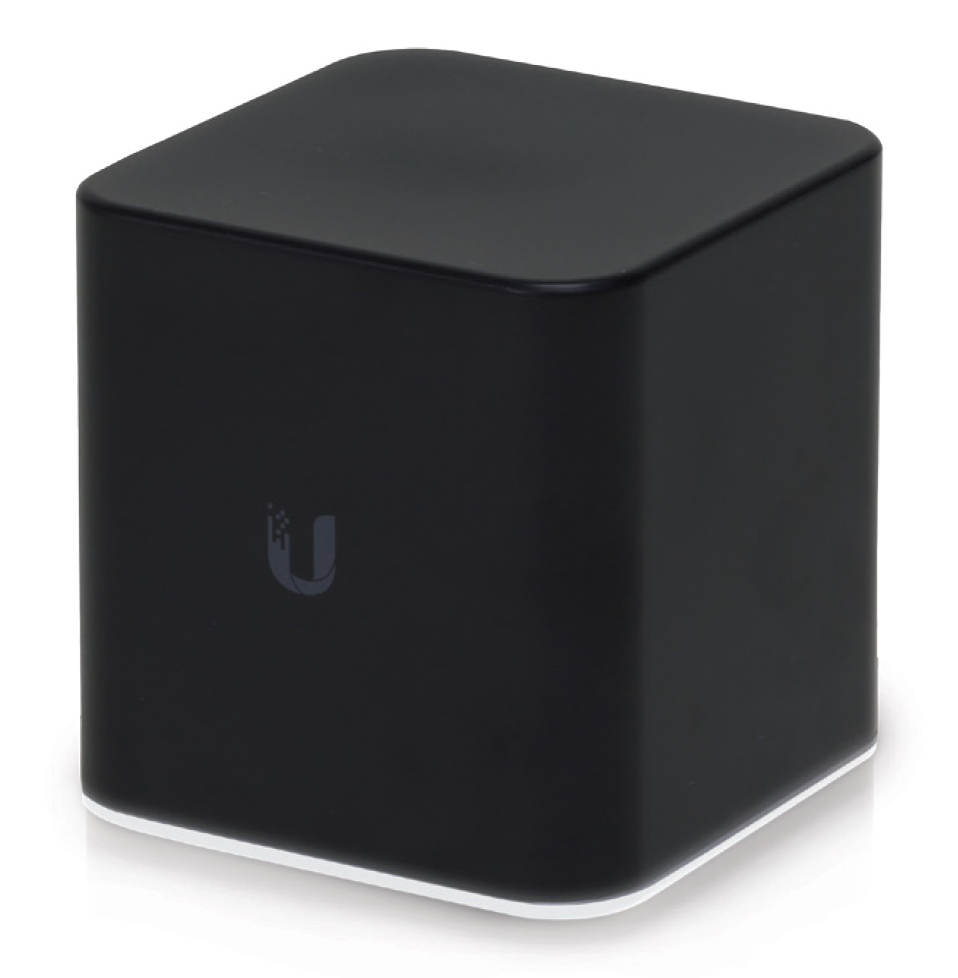

Dual-band airCube access pointUbiquiti ACB-AC airCube Dual-Band Wi-Fi Access Point
A compact dual-band 802.11ac 2x2 Wi-Fi access point with four Gigabit Ethernet ports, 24V PoE input and controllable 24V PoE output on the WAN port.
2.4 GHz + 5 GHz802.11ac 2x24x Gigabit Ethernet24V PoE passthrough
Authorised Ubiquiti resellerUbiquiti manufacturer warranty
Compact Wi-Fi and wired connectivity
A compact dual-band 802.11ac 2x2 Wi-Fi access point with four Gigabit Ethernet ports, 24V PoE input and controllable 24V PoE output on the WAN port.
Dual-band wireless
Operates on 2.4 GHz and 5 GHz simultaneously, with maximum wireless rates of 300 Mbps and 866.7 Mbps.
Four Gigabit ports
Four Gigabit Ethernet ports support wired devices and network connections.
24V PoE passthrough
Supports 24V PoE input and controllable 24V PoE output on the WAN port.
Remote and mobile management
Supports UISP/UNMS management and mobile setup for iOS and Android.
i
Power configuration
Supports a 22-26V input range, 24V PoE input on Ethernet port 1 and controllable 24V PoE output on the WAN port. A 24V power supply is included.
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti ACB-AC is backed by a 1 Year Ubiquiti manufacturer warranty, with warranty support provided in accordance with Ubiquiti's warranty terms and conditions.
Frequently asked questions
Helpful answers for the Ubiquiti ACB-AC.
What is the Ubiquiti ACB-AC airCube?
The ACB-AC is a compact dual-band Wi-Fi access point designed to interoperate with compatible airMAX CPE devices.
Which Wi-Fi bands does the ACB-AC use?
It operates on 2.4 GHz and 5 GHz simultaneously.
What Wi-Fi standard does the ACB-AC support?
The ACB-AC supports 802.11ac 2x2 wireless.
How many Ethernet ports are included?
The ACB-AC provides four Gigabit Ethernet ports.
Does the ACB-AC support 24V PoE passthrough?
Yes. It supports 24V PoE input and controllable 24V PoE output on the WAN port.
Is a power supply included with the ACB-AC?
Yes. A 24V power supply is included.
How can the ACB-AC be managed?
It supports Wi-Fi or Ethernet management, UISP/UNMS and mobile setup for iOS and Android.
What warranty does the Ubiquiti ACB-AC include?
The Ubiquiti ACB-AC is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(ACB-AC)
Features and highlights
A compact dual-band 802.11ac 2x2 Wi-Fi access point with four Gigabit Ethernet ports, 24V PoE input and controllable 24V PoE output on the WAN port.
802.11ac 2x2 Wi-Fi
Dual-band 2.4 GHz and 5 GHz wireless operation in a compact airCube enclosure.
Gigabit Ethernet
Four Gigabit Ethernet ports support wired connectivity.

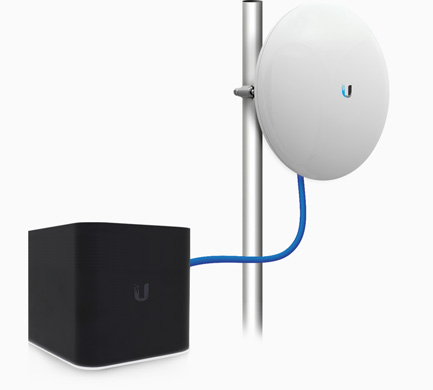

Integrated PoE passthrough
24V PoE input can be combined with controllable 24V PoE output on the WAN port.

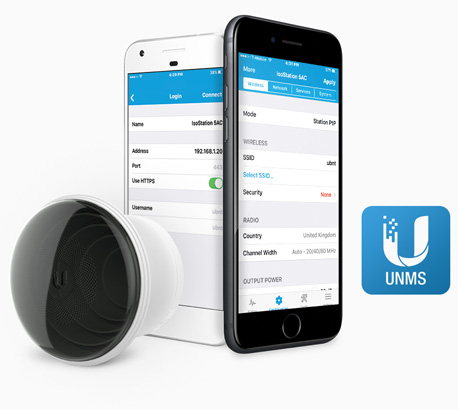

Management options
Wi-Fi or Ethernet management, UISP/UNMS support and mobile setup support are available.

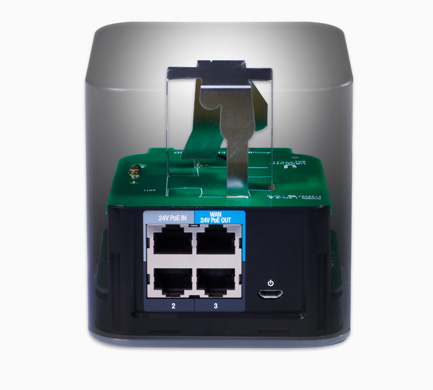

Wide-area antenna design
The Super Antenna design supports broad wireless coverage.
Power supply included
A 24V power supply is included with this model.
Key product points
- 2.4 GHz + 5 GHz
- 802.11ac 2x2
- 4x Gigabit Ethernet
- 24V PoE passthrough
1 YearUbiquiti manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti ACB-AC is backed by a 1 Year Ubiquiti manufacturer warranty, with warranty support provided in accordance with Ubiquiti's warranty terms and conditions.
Technical specifications
Technical details for the Ubiquiti ACB-AC.
Wireless
| Wi-Fi standard | 802.11ac 2x2 |
|---|
| Frequency bands | 2.4 GHz and 5 GHz simultaneous dual-band operation |
|---|
| Maximum 2.4 GHz wireless rate | 300 Mbps |
|---|
| Maximum 5 GHz wireless rate | 866.7 Mbps |
|---|
Interfaces and management

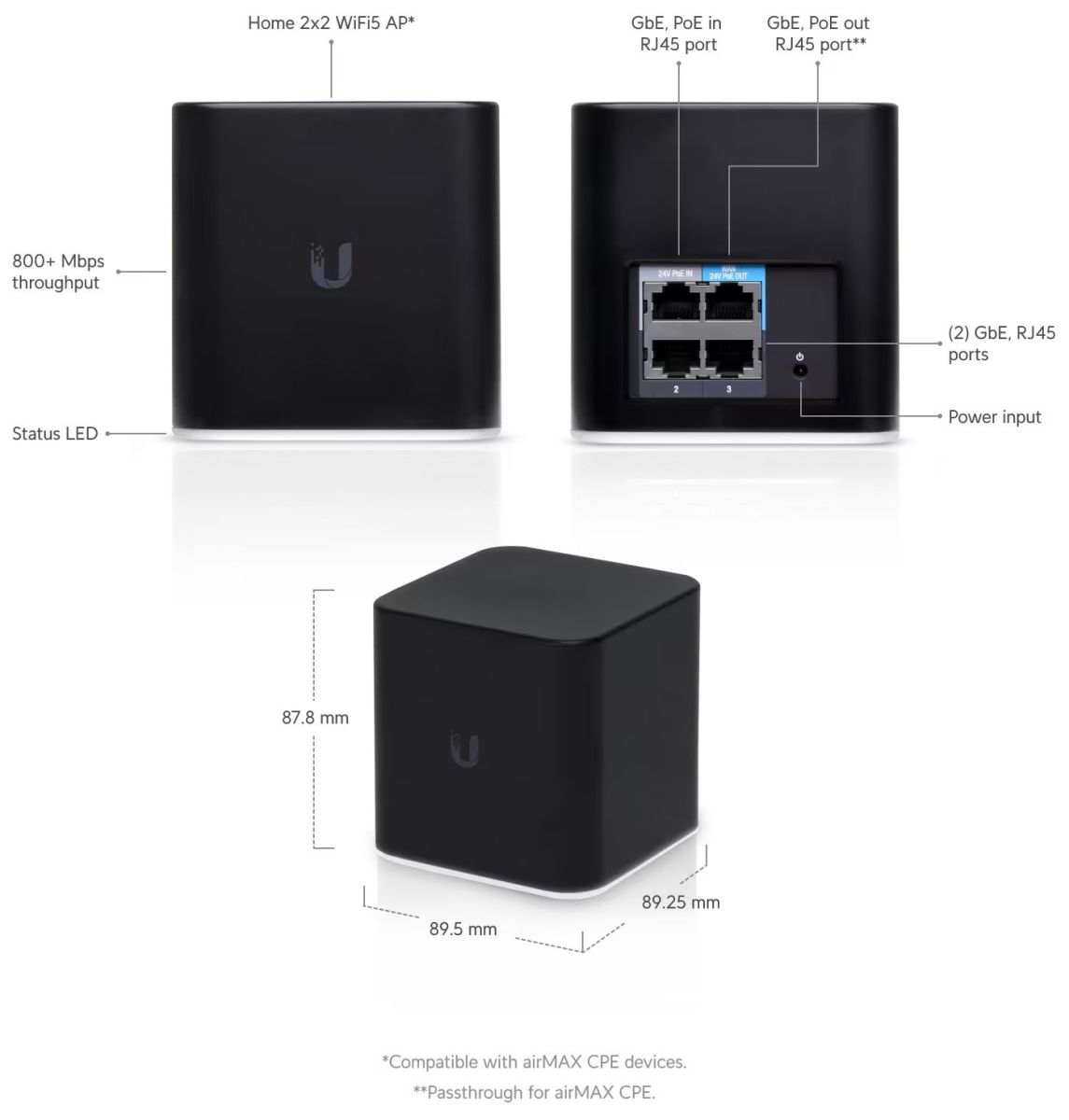

| Ethernet interfaces | 4 x Gigabit Ethernet ports |
|---|
| Management | Wi-Fi or Ethernet; UISP/UNMS support |
|---|
| Mobile setup | iOS and Android |
|---|
Power
| Supported input range | 22-26V |
|---|
| PoE input | 24V PoE on Ethernet port 1 |
|---|
| PoE output | Controllable 24V PoE output on the WAN port |
|---|
| Power supply | 24V power supply included |
|---|
Warranty
| Warranty coverage | 1 Year Ubiquiti manufacturer warranty |
|---|
| Reseller | DeviceDeal - authorised Ubiquiti reseller |
|---|
| SKU |
ACB-AC |
| Barcode # |
817882023535 |
| Brand |
Ubiquiti |
| Shipping Weight |
0.3688kg |
| Shipping Width |
0.123m |
| Shipping Height |
0.140m |
| Shipping Length |
0.135m |
| Shipping Cubic |
0.002325000m3 |
