DECO-BE85-3-PACK

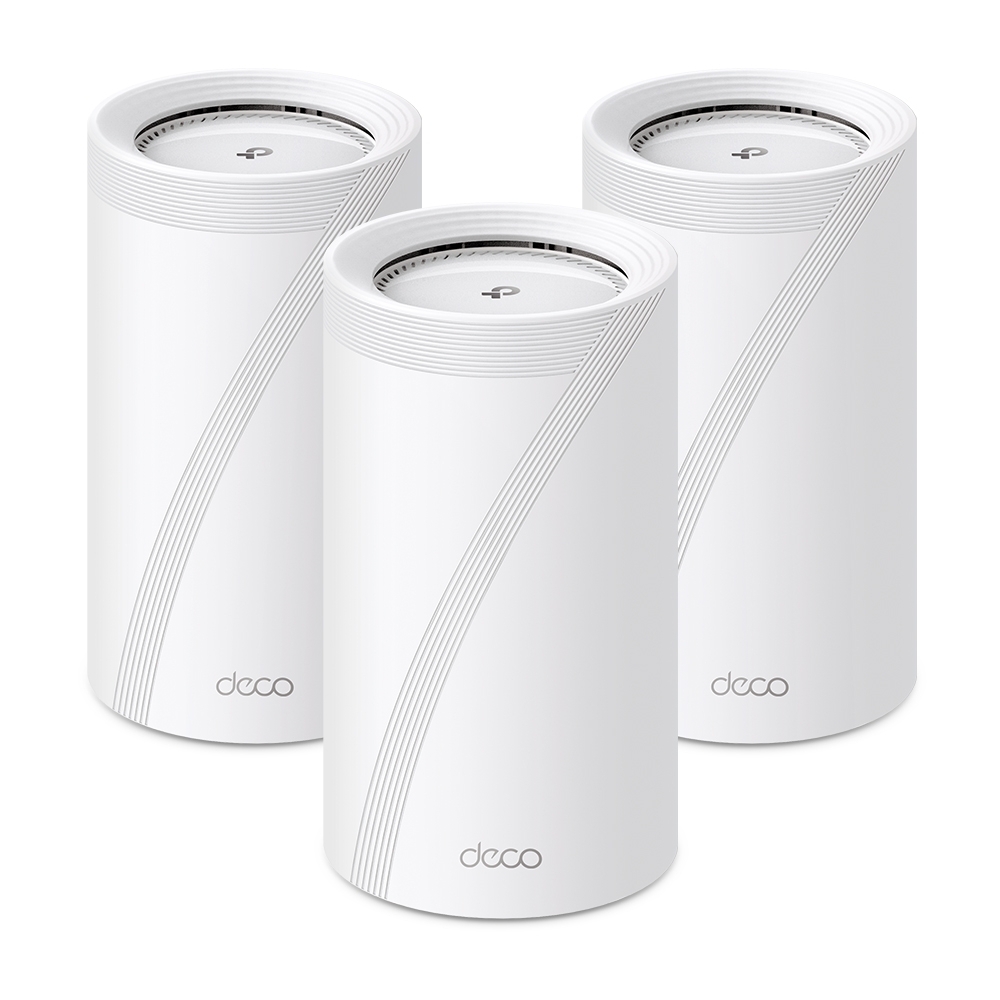

Deco BE85 BE22000 Tri-Band Whole Home Mesh Wi-Fi 7 System - 3 pack

12-Stream 22 Gbps Tri-Band Wi-Fi – 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz) + 1376 Mbps (2.4 GHz).^†
Unprecedented 10 Gbps Network – 1× 10 Gbps Ethernet/Fibre Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.^§

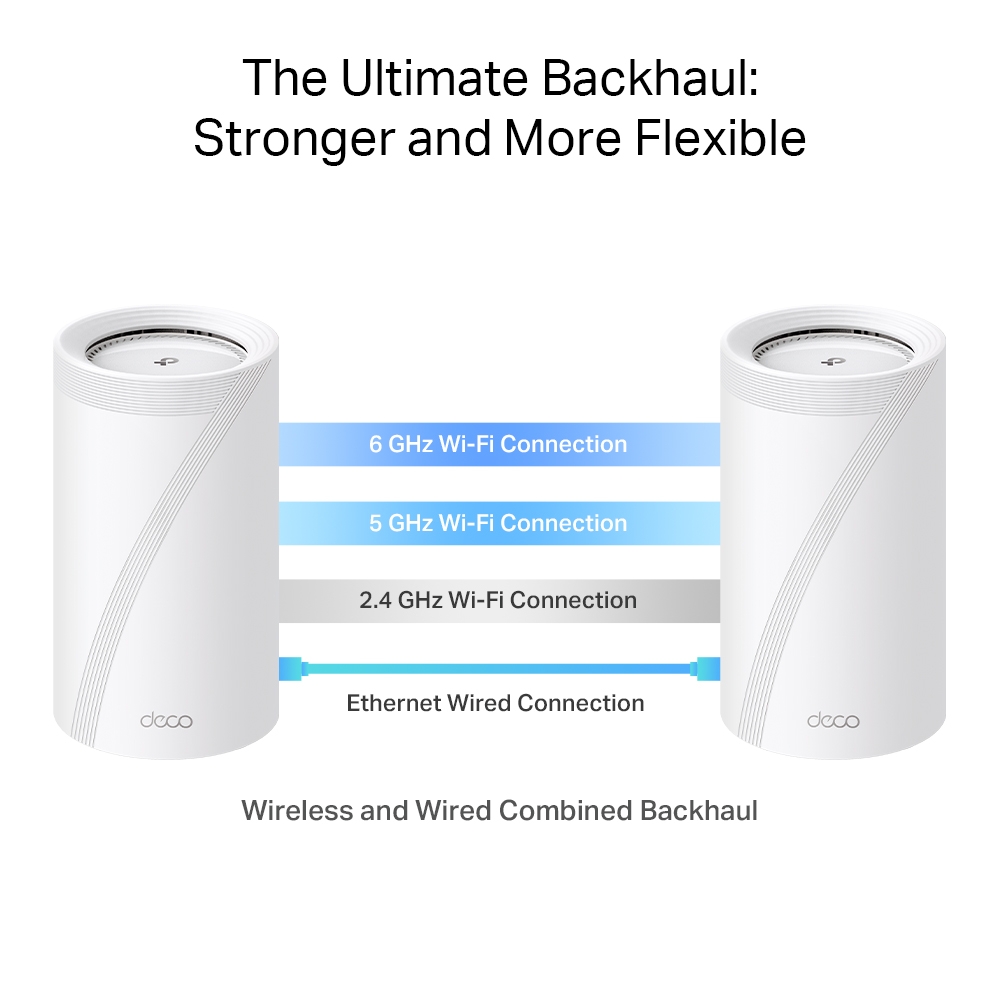

Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.^△
320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.^△
Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.^△
TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
Universal Compatibility – Backward compatible with all Wi-Fi generations and works with any internet service provider (ISP) and modem.^☆

A True Whole-Home Multi-Gigabit Mesh Wi-Fi BE22000 Whole-Home Mesh Wi-Fi 7 System

TP-Link Tri-Band WiFi 7 BE22000 Whole Home Mesh System (Deco BE85) | 12-Stream 22 Gbps | 2× 10G + 2× 2.5G Ports Wired Backhaul, 8× High-Gain Antennas | VPN, AI-Roaming, 4×4 MU-MIMO, HomeShield(3-Pack)

(DECO-BE85-3-PACK)

WIRELESS
Standards	Wi-Fi 7 IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz
WiFi Speeds	BE22000 6 GHz: 11520 Mbps (802.11be) 5 GHz: 8640 Mbps (802.11be) 2.4 GHz: 1376 Mbps (802.11be) * The 240 MHz bandwidth might not be available on the 5 GHz band in some regions/countries due to regulatory restrictions.
WiFi Range	Broader Whole Home Coverage TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 8× High-Gain Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Tri-Band The greenfield 6 GHz band brings more bandwidth and faster speeds
WiFi Capacity	Very High Tri-Band Distribute devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 7 clients 12 Streams More than enough bandwidth for connected devices
Working Modes	Router Mode Access Point Mode
Advanced Functions	• Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant • IoT Network

HARDWARE

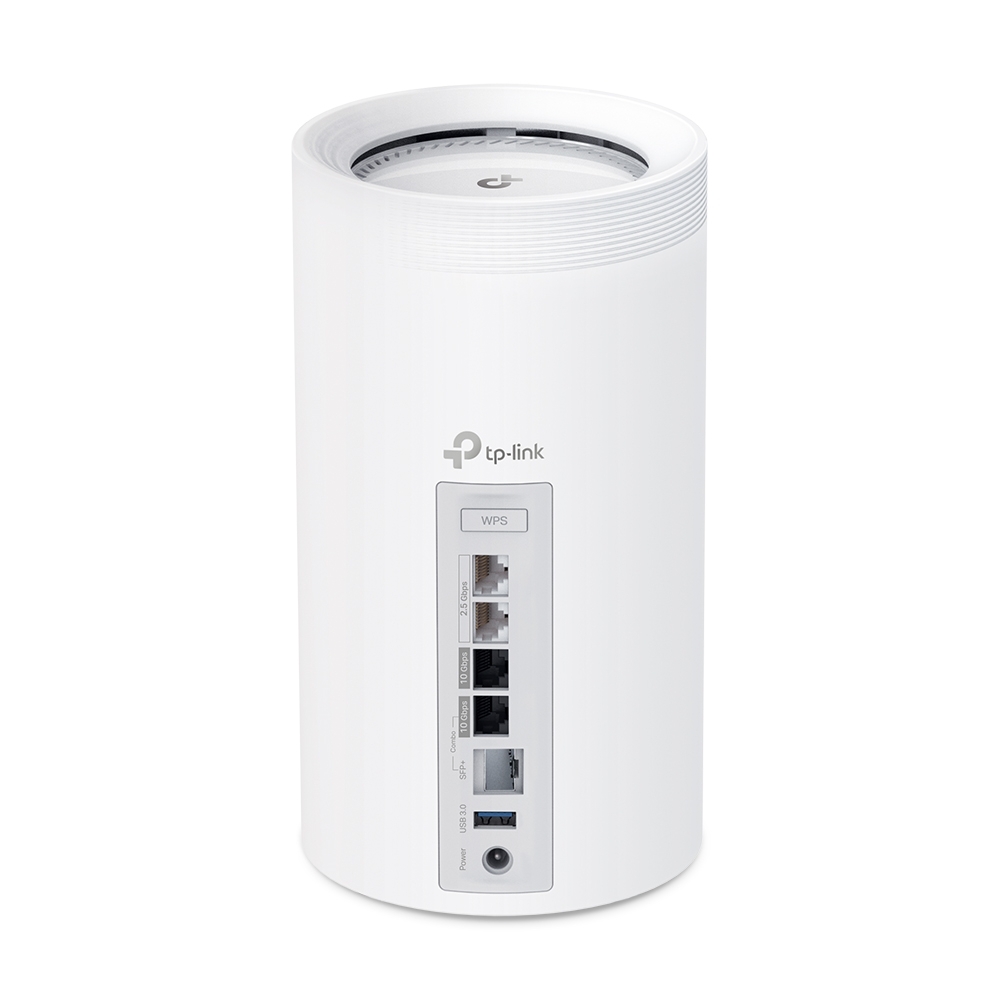

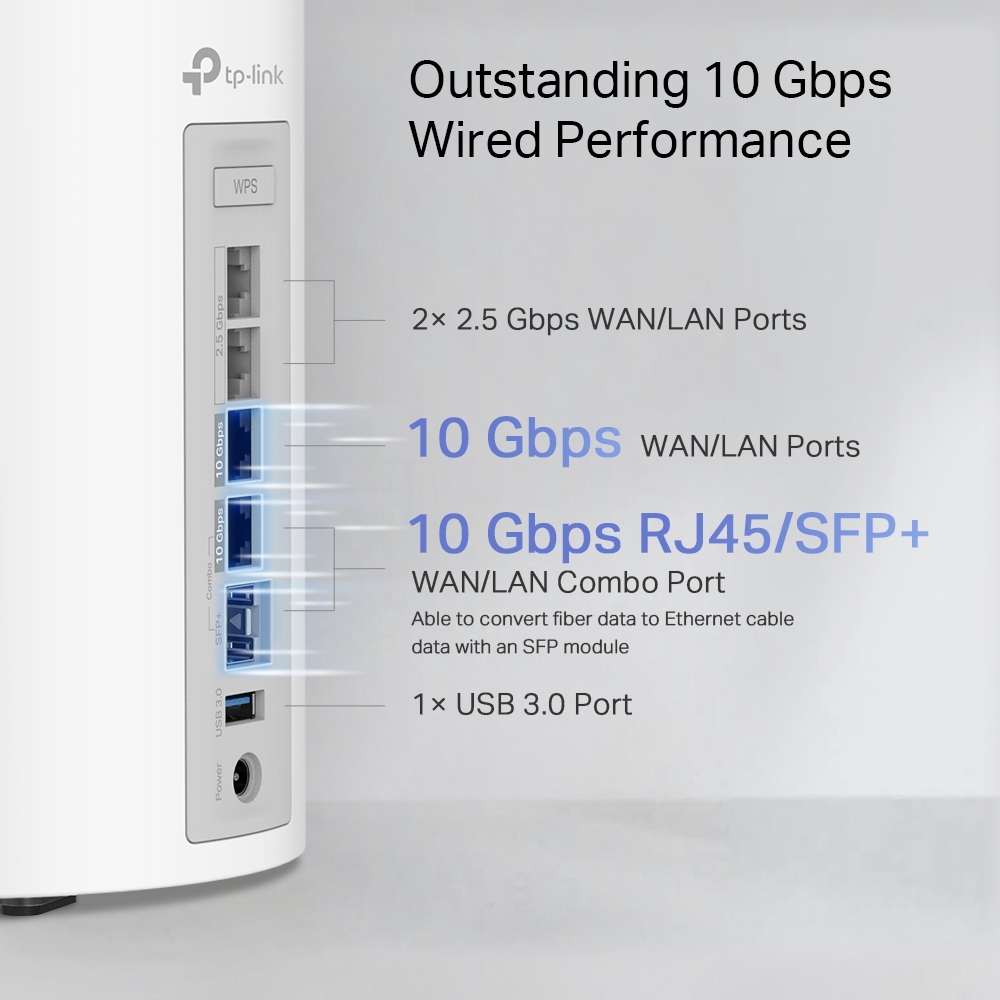

Ethernet Ports	• 1× 10 Gbps • 1× 10 Gbps SFP+/RJ45 Combo • 2× 2.5 Gbps *Per Deco Unit Supports WAN/LAN auto-sensing
USB Support	1× USB 3.0 Port FTP Server Media Server Apple Time Machine Samba Server
Buttons	1× Reset Button 1× WPS

SECURITY
WiFi Encryption	WPA-Personal WPA2-Personal WPA3-Personal
Network Security	SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	• OpenVPN Server • PPTP VPN Server • L2TP VPN Server
VPN Client	• OpenVPN Client • PPTP VPN Client • L2TP VPN Client

SOFTWARE
Advanced Features	• Reboot Schedule • Tapo/Kasa Onboarding • IoT network & Device Isolation • Static Route Function • Node/Band Connection Preference
Protocols	IPv4 IPv6
Service Kits	HomeShield Learn More>
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	HomeShield QoS QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management	Deco App

PHYSICAL
Dimensions (W×D×H)	5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm)

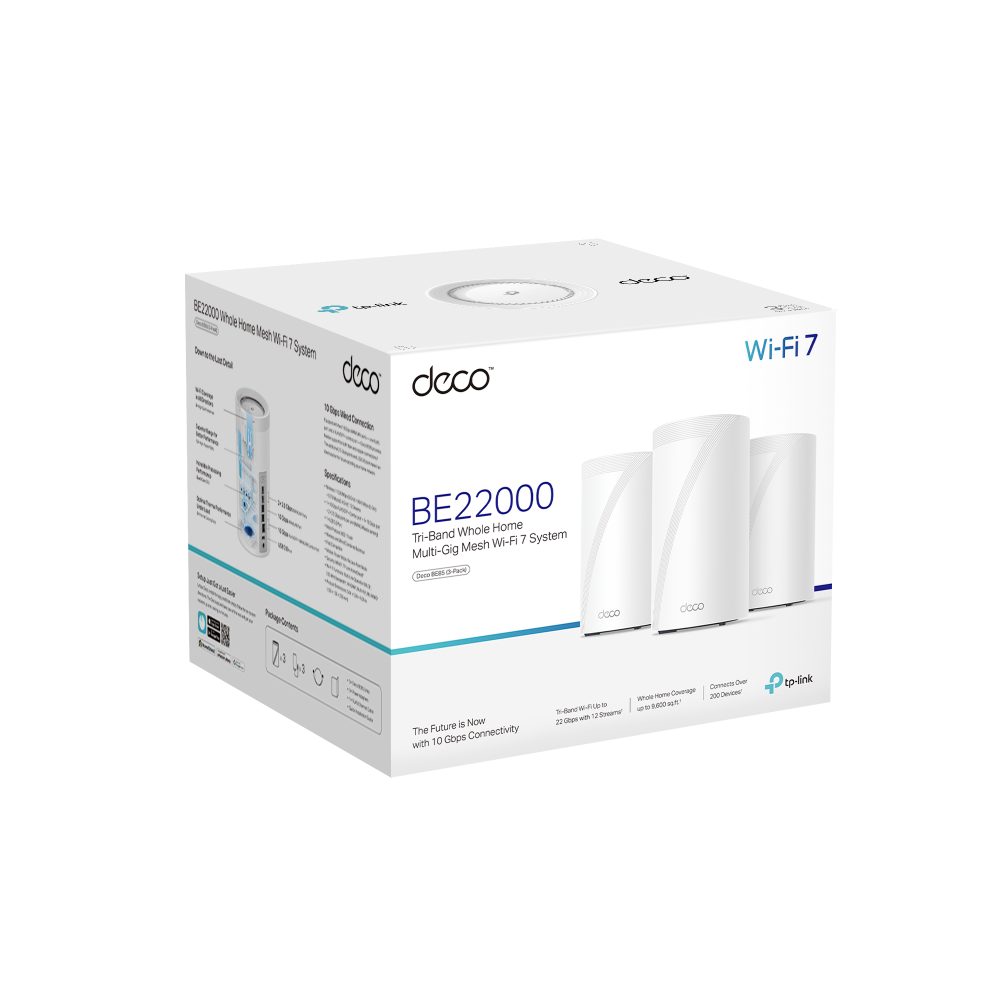

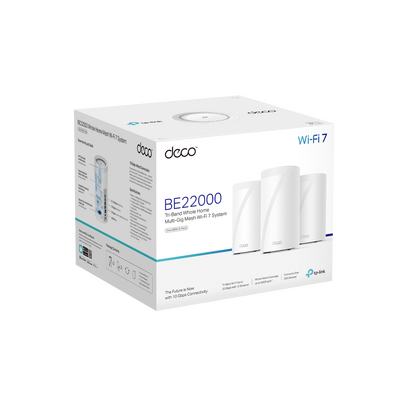

Package Contents	Deco BE85 (3-pack) 3 Deco BE85 units 1 RJ45 Ethernet cable 3 Power adapters Quick Installation Guide Deco BE85 (2-pack) 2 Deco BE85 units 1 RJ45 Ethernet cable 2 Power adapters Quick Installation Guide Deco BE85 (1-pack) 1 Deco BE85 unit 1 RJ45 Ethernet cable 1 Power adapter Quick Installation Guide

OTHERS
Certifications	CE, FCC, RCM, RoHS
Environment	Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH
