TP-Link Archer A6 AC1200 Dual-Band MU-MIMO Gigabit Router - Dual Band Frequency: 2.4GHz Up to 300Mbps & 5GHz Up to 867Mbps - 4x 10/100/1000Mbps LAN Ports & 1x 10/100/1000Mbps WAN Port - 12V/1A Power Supply - Supports 802.11ac Standard - Easy Network Management - Beamforming Technology - 3 Years Limited Warranty
(ArcherA6)
| SYSTEM |
| System Requirements |
Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) |
| ENVIRONMENT |
| Operating Temperature |
0℃~40℃ (32℉ ~104℉) |
| Storage Temperature |
-40℃~70℃ (-40℉ ~158℉) |
| Operating Humidity |
10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
| PACKAGE CONTENTS |
| Package Contents |
Wireless Router Archer A6
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| HARDWARE FEATURES |

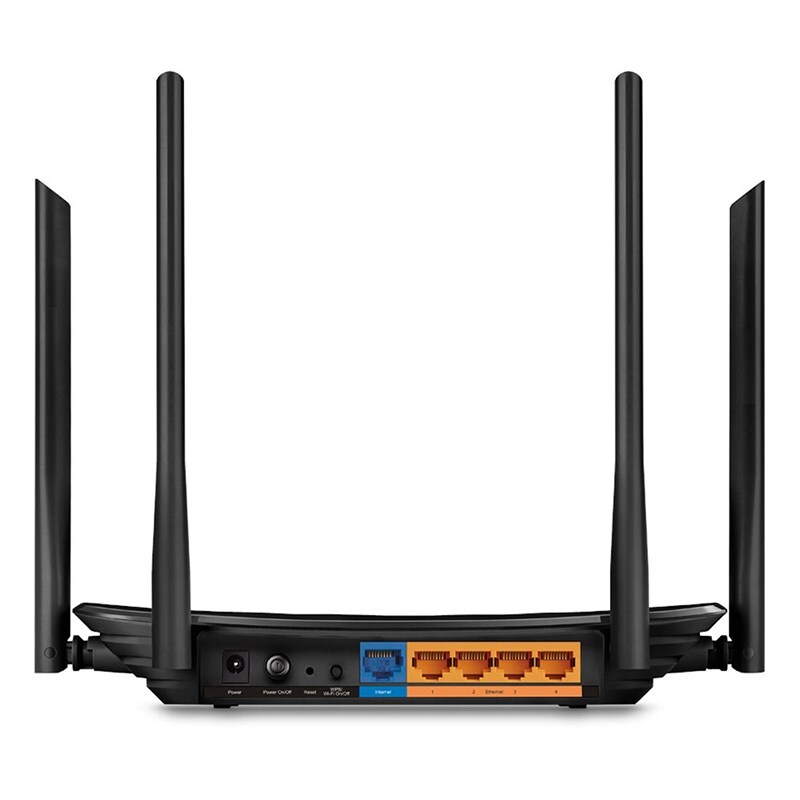

| Ports |
4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port |
| Button |
Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button |
| Power Supply |
12V/1A |
| Dimensions ( W x D x H ) |
9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
| Antenna |
4 Fixed External Antennas and 1 Internal Antenna |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency |
2.4GHz and 5GHz |
| Signal Rate |
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps |
| Reception Sensitivity |
5GHz:
11a 6Mbps:-93dBm；11a 54Mbps:-78dBm；
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm； |
| Transmit Power |
CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz)
FCC EIRP: <30dBm(2.4GHz); <30dBm(5GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics |
| Wireless Security |
64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption |
| SOFTWARE FEATURES |
| WAN Type |
Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual
Access), BigPond |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| Access Control |
Parental Controls, Local Management Control, Host List, White List, Black List |
| Firewall Security |
DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols |
IPv4, IPv6 |
| Guest Network |
2.4GHz guest network, 5GHz guest network |
| VPN Server |
OpenVPN，PPTP VPN |
| SKU |
ArcherA6 |
| Barcode # |
6935364088910 |
| Brand |
TP-LINK |
| Shipping Weight |
0.8000kg |
| Shipping Width |
0.140m |
| Shipping Height |
0.040m |
| Shipping Length |
0.230m |
| Shipping Cubic |
0.001159000m3 |
Manufacturer Warranty: 3 Year Manufacturer Warranty
