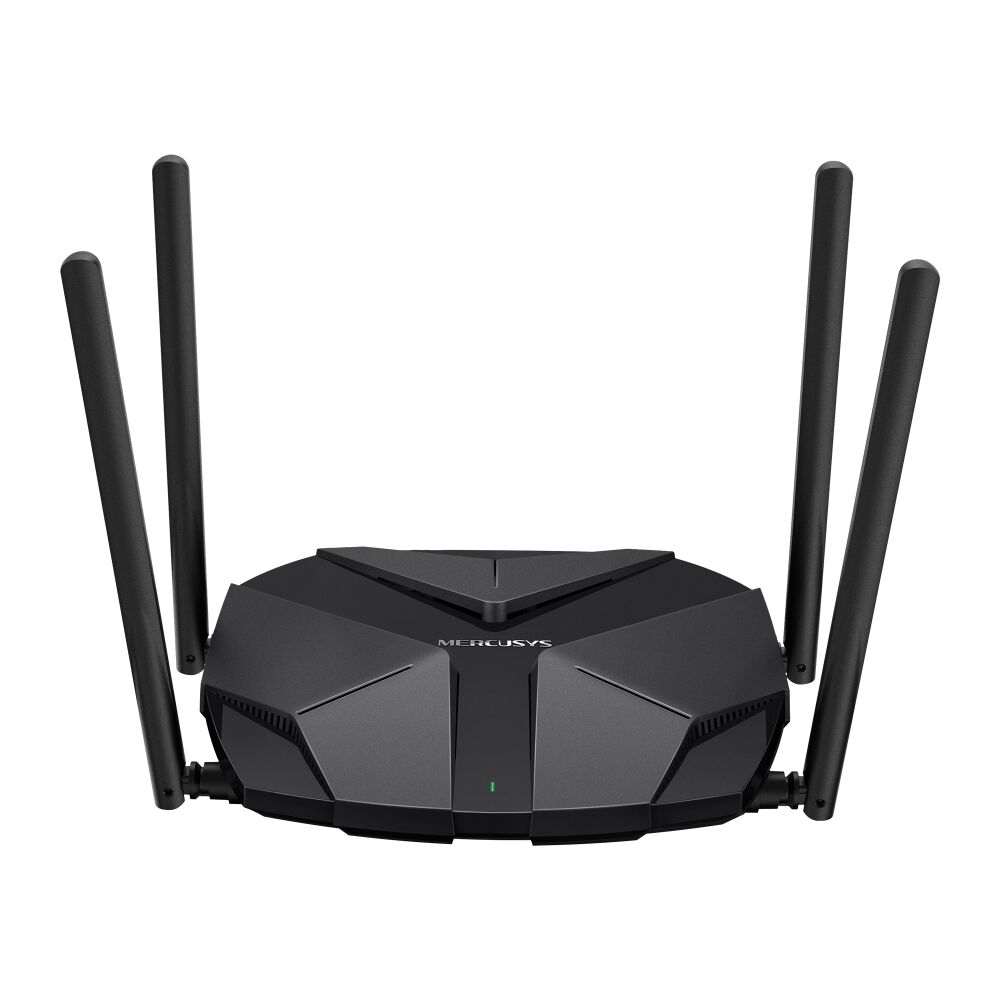

AX3000 Dual-Band Wi-Fi 6 Router

Name: Mercusys MR85X AX3000 Dual-Band Wi-Fi 6 Router
Brand: TP-LINK
SKU: MR85X
Price: 119 AUD
Availability: InStock

OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.

2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.

MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.

WiFi THAT GOES FARTHER – 4× multi-directional antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security

GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance

ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions

LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring

SMART CONNECT – Intelligently chooses the best available band for each device

(MR85X)

Wireless Features

Category	Specification
Wireless Standards	Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards
Signal Rate	• 5 GHz: 2402 Mbps• 2.4 GHz: 574 Mbps
Reception Sensitivity	• 2.4 GHz:11g 6 Mbps: -97 dBm11g 54 Mbps: -79 dBm11n HT20 MCS7: -77 dBm11n HT40 MCS7: -74 dBm• 5 GHz:11a 6 Mbps: -97 dBm11a 54 Mbps: -79 dBm11ac VHT20 MCS8: -75 dBm11ac VHT40 MCS9: -71 dBm11ac VHT80 MCS9: -67 dBm11ax VHT20 MCS11: -67 dBm11ax VHT40 MCS11: -64 dBm11ax VHT80 MCS11: -61 dBm
Transmission Power	• 2.4 GHz: < 20 dBm (EIRP)• 5 GHz Band 1/2: < 23 dBm• 5 GHz Band 3: < 30 dBm
Wireless Security	WPA / WPA2-Personal, WPA2 / WPA3-Personal
Wireless Functions	Enable/Disable Wireless Radio, WMM

Software Features

Category	Specification
WAN Type	Dynamic IP, Static IP, PPPoE, L2TP, PPTP
Management	Access Control, Local Management, Remote Management
DHCP	DHCP Server, DHCP Client List
NAT Forwarding	Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security	SPI Firewall, IP and MAC Address Binding
Guest Network	2.4 GHz and 5 GHz Guest Networks
VPN Server	OpenVPN, PPTP, L2TP, IPSec (Server and Client modes)

Hardware Features

Category	Specification
Dimensions (W × D × H)	8.2 × 6.8 × 1.7 in (209 × 171.7 × 42.4 mm)

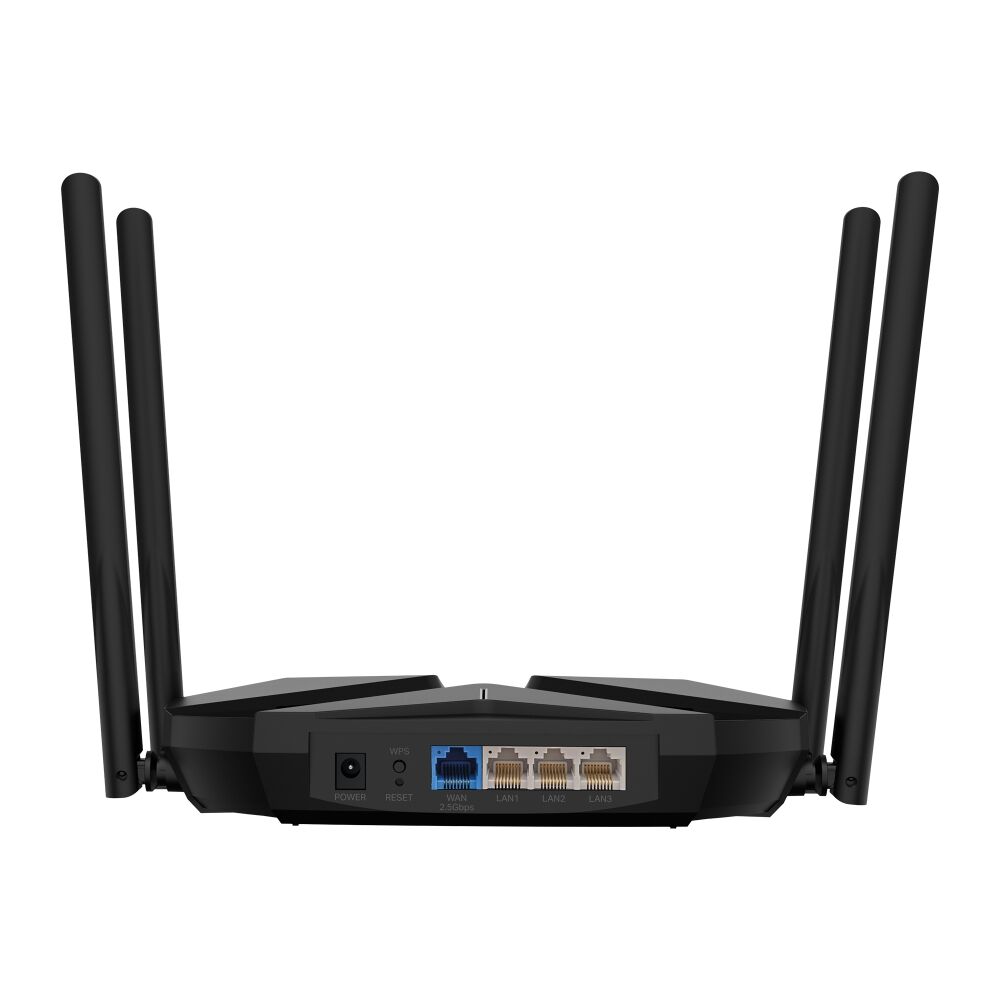

Interfaces	1× 2.5 Gbps WAN Port + 3× Gigabit LAN Ports
Buttons	Reset Button, WPS Button
Antenna Type	4× Fixed Omnidirectional Antennas

Package Contents

Item	Quantity
AX3000 Dual Band Wi-Fi 6 Router (MR85X)	1
Power Adapter	1
RJ45 Ethernet Cable	1
Quick Installation Guide	1

Environmental

Category	Specification
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity	10% ~ 90% RH (Non-Condensing)
Storage Humidity	5% ~ 90% RH (Non-Condensing)
