AC10 leads the way in next generation routers, offering dual-band Gigabit wireless with all-new 802.11ac Wave 2.0 Wi-Fi. Its powerful 1GHz CPU and 128MB DDR3 provide the best performance in both 2.4GHz and 5GHz. The 5GHz band works at up to 867Mbps, while the 2.4GHz frequency tops 300Mbps, serving an incredible combined bandwidth of 1167Mbps.

Attributes

Main Specifications

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Data Transfer Rate

1167 Mbps

Device Type

Wireless router

Dimensions (WxDxH)

22 cm x 14.15 cm x 4.9 cm

Enclosure Type

Desktop

Features

Repeating mode, print server, MAC address filtering, parental control, Access Point operational mode, WISP mode, WPS, DHCP server, Samba support, FTP server, reset button, bandwidth control, DHCP client, static routing, DHCP reservation, Beamforming+, MU-

Frequency Band

2.4 GHz / 5 GHz

Network / Transport Protocol

PPTP, L2TP, IPSec, PPPoE

Power

AC 120/230 V (50/60 Hz)

Product Description

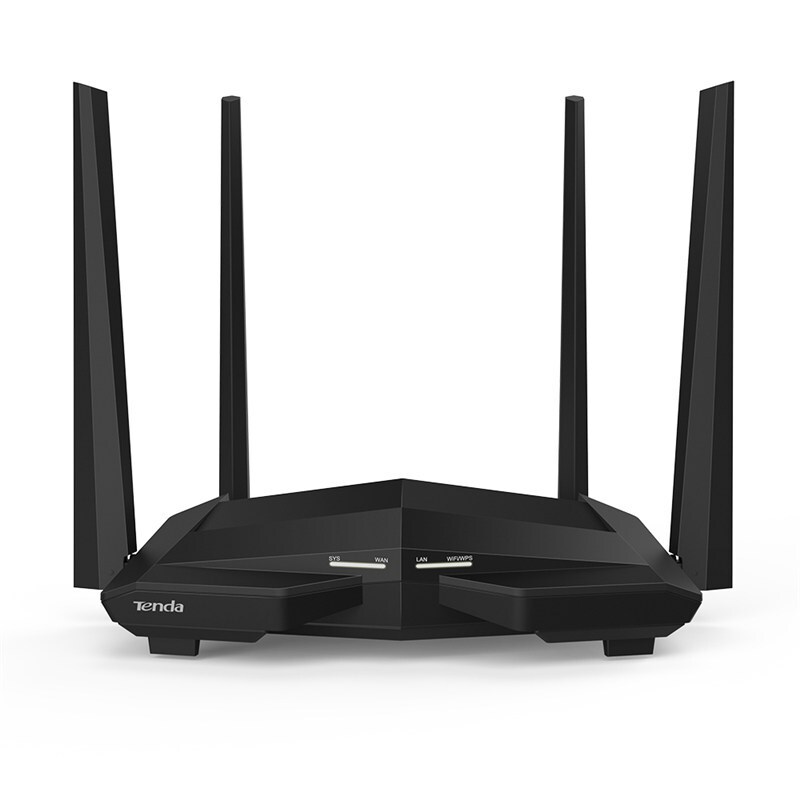

Tenda AC10 - wireless router - Wi-Fi 5 - desktop

Routing Protocol

Static IP routing

System Requirements

UNIX, Linux, Apple MacOS X, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10

WAN Ports Qty

1

Weight

350 g

General

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, BSMI, IC, FCC, RoHS, EAC, NCC

Connectivity Technology

Wireless, wired

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac

Data Transfer Rate

1167 Mbps

Device Type

Wireless router

Enclosure Type

Desktop

Encryption Algorithm

WPA, WPA2, WPA-PSK, WPA2-PSK

Features

Repeating mode, print server, MAC address filtering, parental control, Access Point operational mode, WISP mode, WPS, DHCP server, Samba support, FTP server, reset button, bandwidth control, DHCP client, static routing, DHCP reservation, Beamforming+, MU-

Frequency Band

2.4 GHz / 5 GHz

Network / Transport Protocol

PPTP, L2TP, IPSec, PPPoE

RAM

128 MB DDR3 SDRAM

Routing Protocol

Static IP routing

Status Indicators

System, WAN, LAN, WPS

Wi-Fi Rating

AC1200

Expansion / Connectivity

Interfaces

WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45

Antenna

Antenna Qty

4

Directivity

Omni-directional

Gain Level

5 dBi

Power

Power Device

External power adapter

Voltage Required

AC 120/230 V (50/60 Hz)

Miscellaneous

Cables Included

1 x network cable

Software / System Requirements

OS Required

UNIX, Linux, Apple MacOS X, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10

Dimensions & Weight

Depth

14.15 cm

Height

4.9 cm

Weight

350 g

Width

22 cm

Dimensions & Weight ( Shipping)

Shipping Depth

39 cm

Shipping Height

7 cm

Shipping Weight

810 g

Shipping Width

19.8 cm

Environmental Parameters

Humidity Range Operating

10 - 90% (non-condensing)

Max Operating Temperature

40 °C

Min Operating Temperature

0 °C
