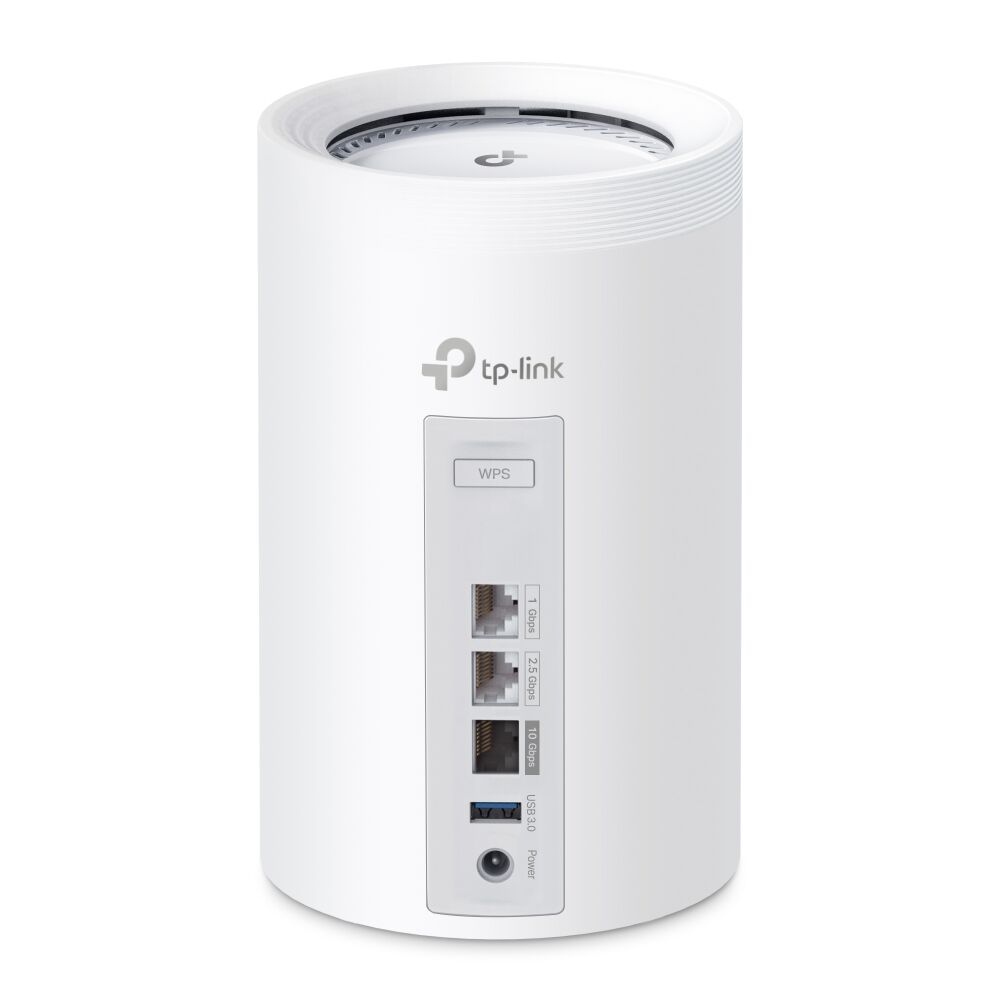

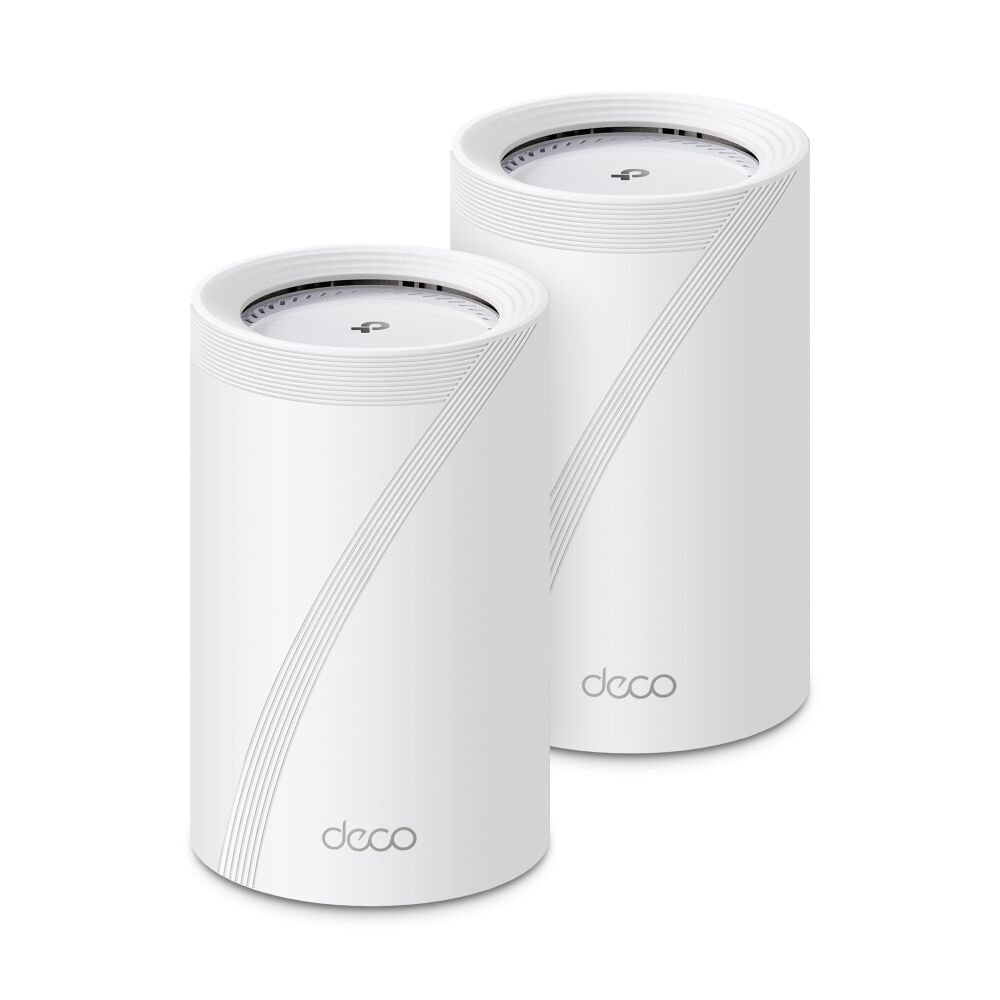

Deco-BE68-2-pack

BE14000 Tri-Band Whole Home Mesh Wi-Fi 7 System

8-Stream 14 Gbps Tri-Band Wi-Fi – 8647 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz).^†
Unprecedented 10 Gbps Network – 1× 10 Gbps WAN/LAN port + 1× 2.5 Gbps WAN/LAN port + 1× 1.0 Gbps port ensure max flexibility and boosted throughput.^§
Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.^△
320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.^△
Works on the 6 GHz Band – Minimises congestion with greenfield spectrum, delivering robust high-speed connections.^△
TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
Universal Compatibility – Backward compatible with all Wi-Fi generations and works with any internet service provider (ISP) and modem.^☆

(Deco-BE68-2-pack)

WIRELESS
Standards and Protocols	Wi-Fi 7 IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz
WiFi Speeds	BE14000 6 GHz: 8647 Mbps (802.11be) 5 GHz: 4324 Mbps (802.11be) 2.4 GHz: 688 Mbps (802.11be)
WiFi Range	Broader Whole Home Coverage TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 8× High-Gain Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Tri-Band The greenfield 6 GHz band brings more bandwidth and faster speeds
WiFi Capacity	Very High Tri-Band Distribute devices to different bands for optimal performance 3×3 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 7 clients 8 Streams More than enough bandwidth for connected devices
Working Modes	Router Mode Access Point Mode
Advanced Features	• Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant

SECURITY
Network Security	SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network Effective Time Bandwidth Control
VPN Server	• OpenVPN Server • PPTP VPN Server • L2TP/IPSec VPN Server • WireGuard VPN Server
VPN Client	• OpenVPN Client • PPTP VPN Client • L2TP/IPSec VPN Client • WireGuard VPN Client
WiFi Encryption	WPA-Personal WPA2-Personal WPA3-Personal

HARDWARE
Ethernet Ports	• 1× 10 Gbps • 1× 2.5 Gbps • 1× 1.0 Gbps *Per Deco Unit Supports WAN/LAN auto-sensing
USB Support	1× USB 3.0 Port FTP Server Media Server Samba Server
Buttons	1× Reset Button 1× WPS

SOFTWARE
Advanced Features	• Reboot Schedule • Tapo/Kasa Onboarding • IoT network & Device Isolation • Static Route Function • Node/Band Connection Preference
Protocols	IPv4 IPv6
Service Kits	HomeShield Learn More>
Parental Controls	HomeShield Parental Controls Youtube Restriction SafeSearch Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	HomeShield QoS QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management Features	Deco App

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 22 Protocol: TCP • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP

PHYSICAL
Dimensions (W×D×H)	4.23 × 4.23 × 6.93 in (107.5 × 107.5 × 176 mm)
Package Content	Deco BE68 (3-pack) 3 Deco BE68 units 1 RJ45 Ethernet cable 3 Power adapters Quick Installation Guide Deco BE68 (2-pack) 2 Deco BE68 units 1 RJ45 Ethernet cable 2 Power adapters Quick Installation Guide Deco BE68 (1-pack) 1 Deco BE68 unit 1 RJ45 Ethernet cable 1 Power adapter Quick Installation Guide

OTHERS
Certifications	CE, FCC, RoHS
Environment	Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH
