DECO-XE75-3PK

AXE5400 Tri-Band Mesh Wi-Fi 6E System

Whole-Home WiFi 6E – Cover up to 500 m2 with next-gen seamless WiFi and make dead zones and buffering a thing of the past^†‡
True Tri-Band Speed – All three WiFi bands work together to unleash your network’s total speeds up to 5,400 Mbps for 200 devices^†
AI-Driven Mesh – Unites your home under one name and password while delivering the best connections as you move room to room*
TP-Link HomeShield – Keeps your home network safe with cutting-edge features for network and IoT protection^§
Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step
Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem

(DECO-XE75-3PK)

WIRELESS
Standards and Protocols	Wi-Fi 6E IEEE 802.11ax 6 GHz IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds	AXE5400 6 GHz: 2402 Mbps (802.11ax, HE160) 5 GHz: 2402 Mbps (802.11ax, HE160) 2.4 GHz: 574 Mbps (802.11ax)
WiFi Range	4-7+ Bedroom Houses (3-pack) 3-5 Bedroom Houses (2-pack) 1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 4× High-Gain Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Tri-Band A newly-opened 6 GHz band brings more bandwidth and faster speeds Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity	Very High Tri-Band Distribute devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 6 Streams More than enough bandwidth for connected devices
Working Modes	Router Mode Access Point Mode

SECURITY
Network Security	SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
Guest Network	1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
VPN Server	• Open VPN Server • PPTP VPN Server • L2TP/IPSec VPN Server
VPN Client	• Open VPN Client • PPTP VPN Client • L2TP/IPSec VPN Client
WiFi Encryption	WPA-Personal WPA2-Personal WPA3-Personal

HARDWARE
Ethernet Ports	3× Gigabit Ports *Per Deco Unit Supports WAN/LAN auto-sensing
Buttons	Reset Button

SOFTWARE
Advanced Features	• Reboot Schedule • Tapo/Kasa onboarding • IoT network & Device Isolation • Static Routing Function • Node/Band Connection Preference
Protocols	IPv4 IPv6
Service Kits	HomeShield Learn More>
Parental Controls	HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports
WAN Types	Dynamic IP Static IP PPPoE PPTP L2TP
Quality of Service	HomeShield QoS QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management Features	Deco App

OTHER
Network Services Enabled by Default	Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DNS DNS • Port: 53 Protocol: TCP & UDP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 22 Protocol: TCP • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP

TEST DATA
WiFi Transmission Power	CE: <20 dBm (2.4 GHz) <23 dBm (5 GHz) <23 dBm (6 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm(5 GHz) <30 dBm(6 GHz)

PHYSICAL

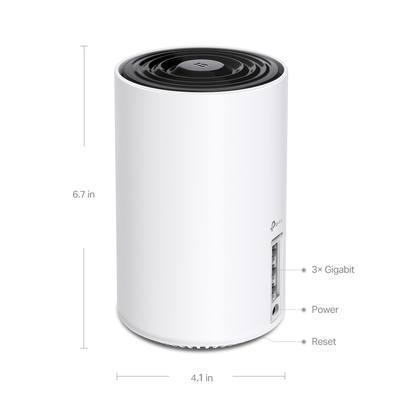

Dimensions (W×D×H)	4.1 × 4.1 × 6.7 in (105 × 105 × 169 mm)
Package Content	Deco XE75 (3-pack) 3 Deco XE75 units 1 RJ45 Ethernet cable 3 Power adapters 1 Quick Installation Guide Deco XE75 (2-pack) 2 Deco XE75 units 1 RJ45 Ethernet cable 2 Power adapters 1 Quick Installation Guide Deco XE75 (1-pack) 1 Deco XE75 units 1 RJ45 Ethernet cable 1 Power adapters 1 Quick Installation Guide

OTHERS
Certifications	CE, FCC, RoHS
Environment	Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH

SKU	DECO-XE75-3PK
Barcode #	4897098687147
Brand	TP-LINK
Shipping Weight	2.6500kg
Shipping Width	0.120m
Shipping Height	0.340m
Shipping Length	0.250m
