Physical Dimensions & Build

• Dimensions: Ø100 x 95 mm (Ø3.9 x 3.7")

• Weight: 550 g (1.2 lb)

• Enclosure Material: Aluminum alloy, polycarbonate

• Weatherproofing: IP66 (Dustproof & Water-resistant)

• Tamper Resistance: IK04 (Impact-resistant)

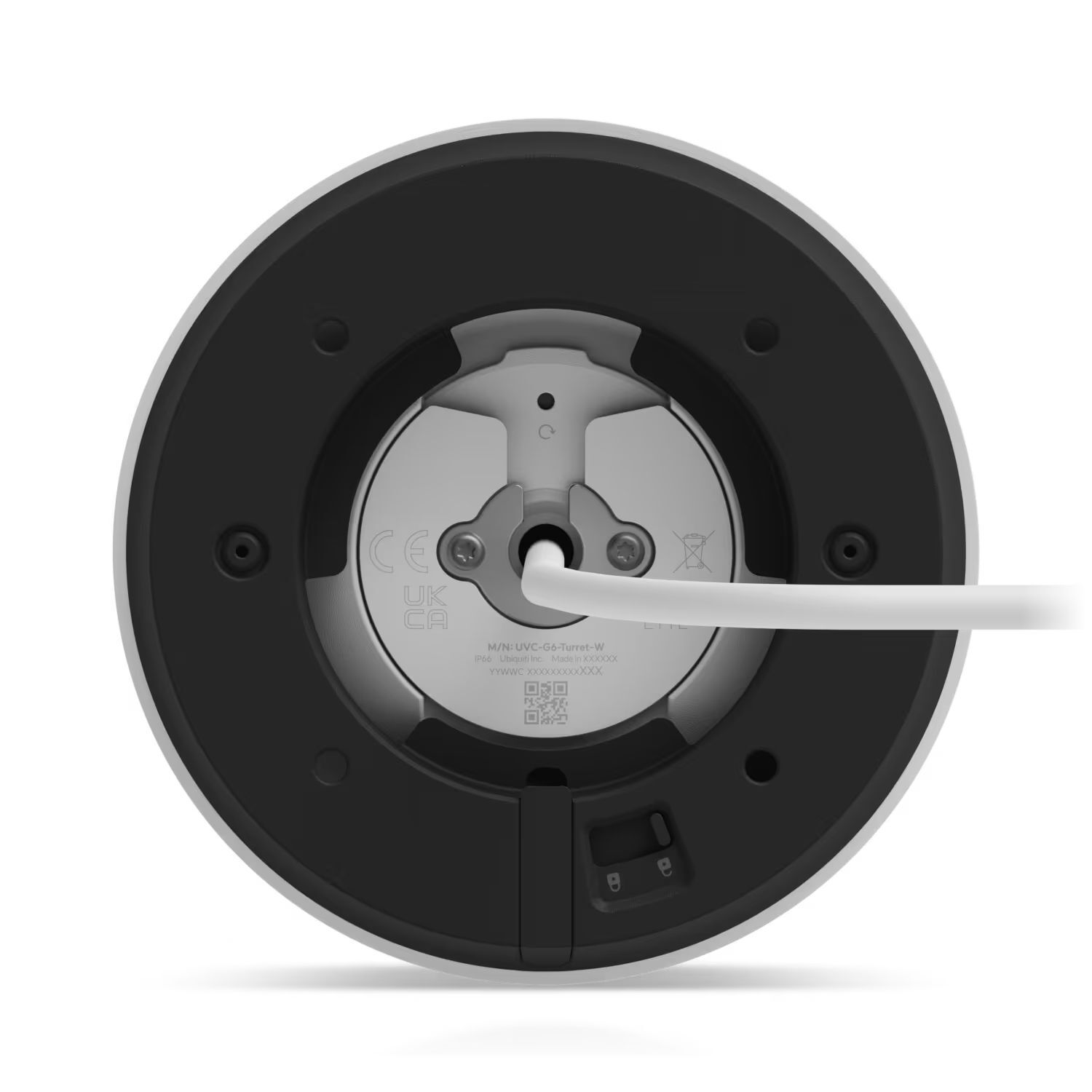

• Mounting Options:

  • Included: Ceiling, wall

  • Optional: Arm, pendant, junction box

Camera & Image Features

• Resolution: 4K (8MP) – 3864 x 2160 (16:9)

• Field of View:

  • Horizontal: 109.9°

  • Vertical: 56.7°

  • Diagonal: 134.1°

• Frame Rate: 30 FPS

• Sensor: 1/1.8" 8MP

• Lens: Fixed focal length

• Night Vision: 30m (98 ft) IR Night Vision with built-in IR LED illumination and IR cut filter

• Image Adjustments: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR & 3DNR noise reduction, HDR, motion-based NR, masking, text overlay

AI & Smart Features

• Face Recognition: ✅ Yes

• License Plate Recognition: ✅ Yes

• Smart Detections: People, Vehicles, Animals

Audio

• Microphone: ✅ Yes (Built-in)

Connectivity & Networking

• Network Interface: 10/100 MbE RJ45 port

• Power Method: PoE (Power over Ethernet)

• Max Power Consumption: 12.5W

• Supported Voltage Range: 37–57V DC

• Processor: Quad-core Arm® Cortex®-A53

Environmental Specifications

• Operating Temperature: -30 to 50º C (-22 to 122º F)

• Operating Humidity: 0 to 90% non-condensing

Certifications

• ✅ CE

• ✅ FCC

• ✅ IC

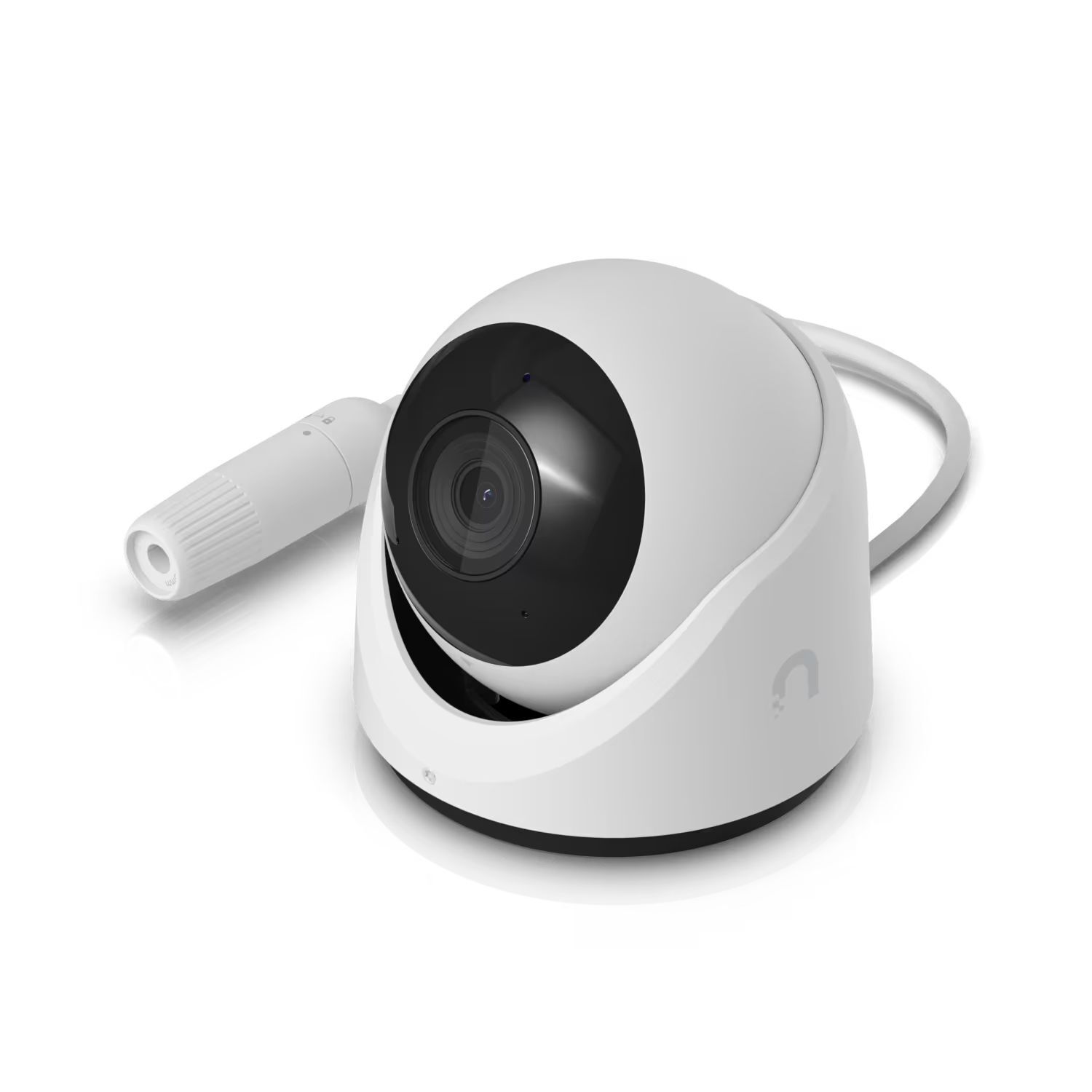

Cable & Connector

• Connector Type: RJ45

• Cable Diameter: 4.5 mm (0.2")

• Cable Length: 30 cm (1 ft)

• Jacket Material: Thermoplastic elastomer

• Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")

• Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber

Manufacturer Warranty : 1 Year Manufacturer Warranty
