TP-Link VIGI 4MP C540-W(4mm) Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera, 4mm Lens, Smart Detectio,2YW (LD)

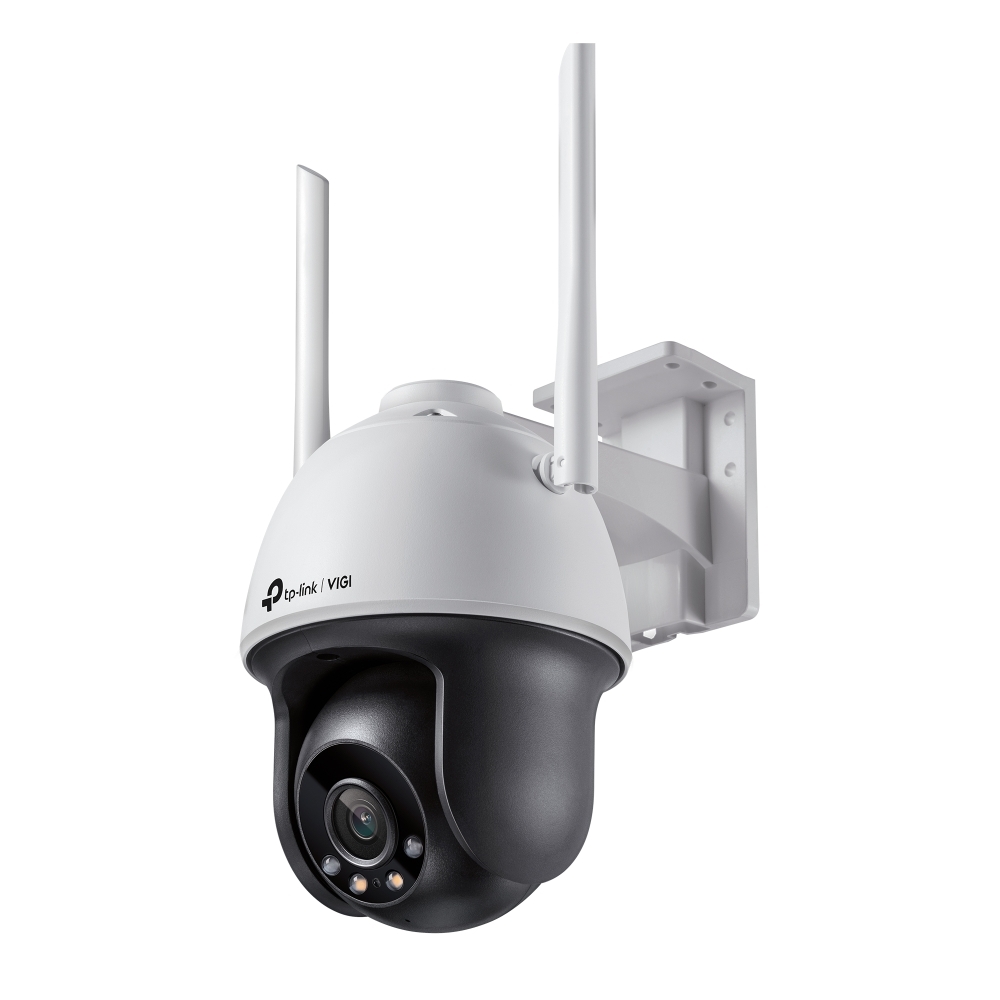

VIGI C540-W VIGI 4MP Outdoor Full-Colour Wi-Fi Pan Tilt Network Camera

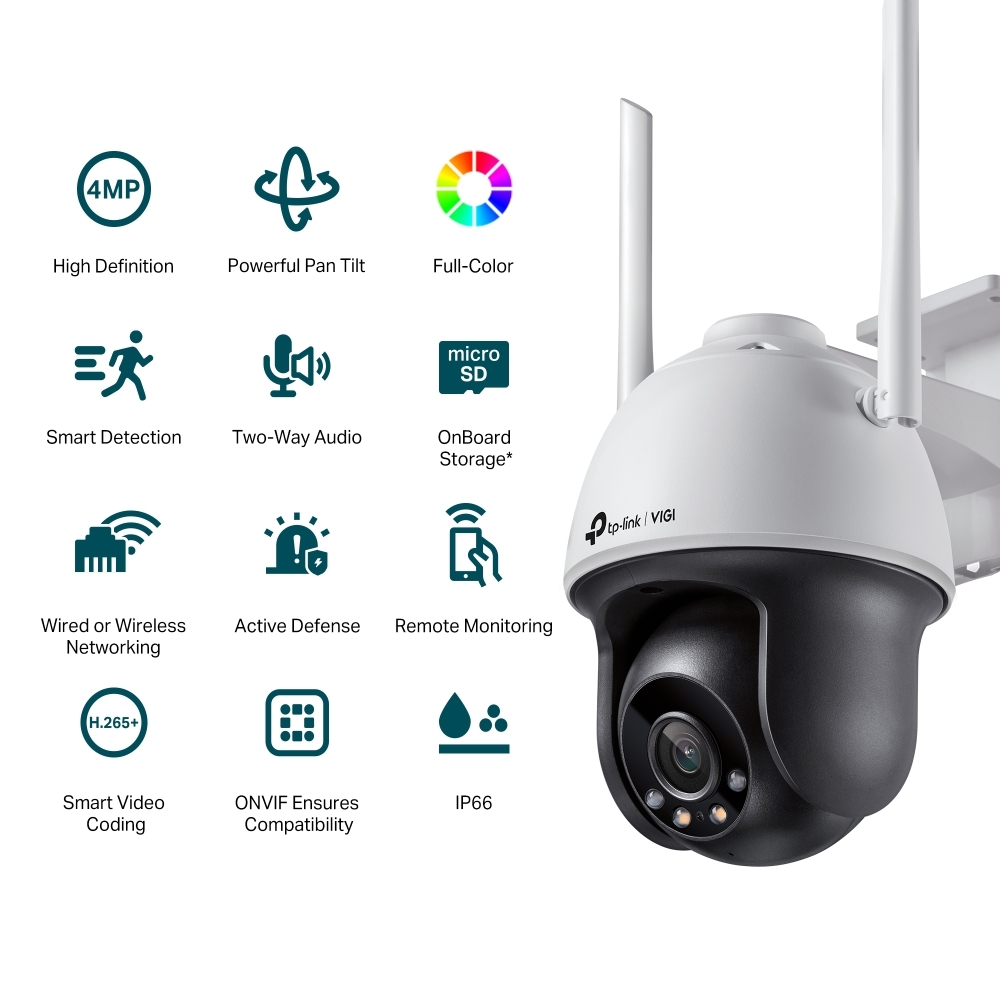

  • 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
  • 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via a high-sensitivity sensor and included spotlight LEDs.
  • Powerful Pan Tilt: Customised patrol routes and auto-tracking provide more intelligent options to monitor key areas and improve security within your property.
  • Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
  • Waterproof: Reliable IP66 for stable outdoor performance.
  • Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • VIGI App: Manage your security from the palm of your hand with the VIGI app.


Image Sensor 1/3” Progressive Scan CMOS
Minimum Illumination 0 lux with IR/white Light
Day/Night Mechanism IR Cut Filter
Lens Fixed focal lens (4 mm)
Aperture 4 mm: F1.6
Lens Mount M12
Viewing Angle (4mm) Horizontal FOV: 79°Vertical FOV: 43°Diagonal FOV: 93°
Digital Zoom Yes
IR Working Distance 30m
Illumination Distance 30 m
Pan/Tilt Range Pan: 0° to 350°, Tilt: 0° to 120°
Weatherproof Rating IP66
Digital Noise Reduction 3D DNR
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Wireless Rate 11 Mbps (802.11b)
54 Mbps (802.11g)
150 Mbps (802.11n)
Frequency 2.4 GHz
Wireless Security WPA/WPA2-PSK
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Input Built-in Microphone
Audio Output Built-in Speaker
Button Reset Button
On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
Package Contents VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Power Adapter
Mounting Accessories
Operating Temperature -30–60 °C
Dimensions( H X W X D ) 120 × 172 × 198 mm
Material Plastic
General Features Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
Power Consumption 12V DC: Max 15.5W
Certifications CE, RCM, BSMI, VCCI, RoHS, NCC, JRF, KC
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Frame Rate & Resolutions Main Stream
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Video Streaming Main Stream
Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
Smart Event Area Intrusion Detection, Line-Crossing Detection, Human Detection
Basic Event Motion Detection, Camera Tampering Detection, Exception ( illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
SKU VIGI-C540-W-4mm
Barcode # 4897098683798
Shipping Weight 1.2000kg
Shipping Width 0.160m
Shipping Height 0.240m
Shipping Length 0.240m

Manufacturer Warranty: 2 Years Limited Warranty
