VIGI-C540-4G-4mm

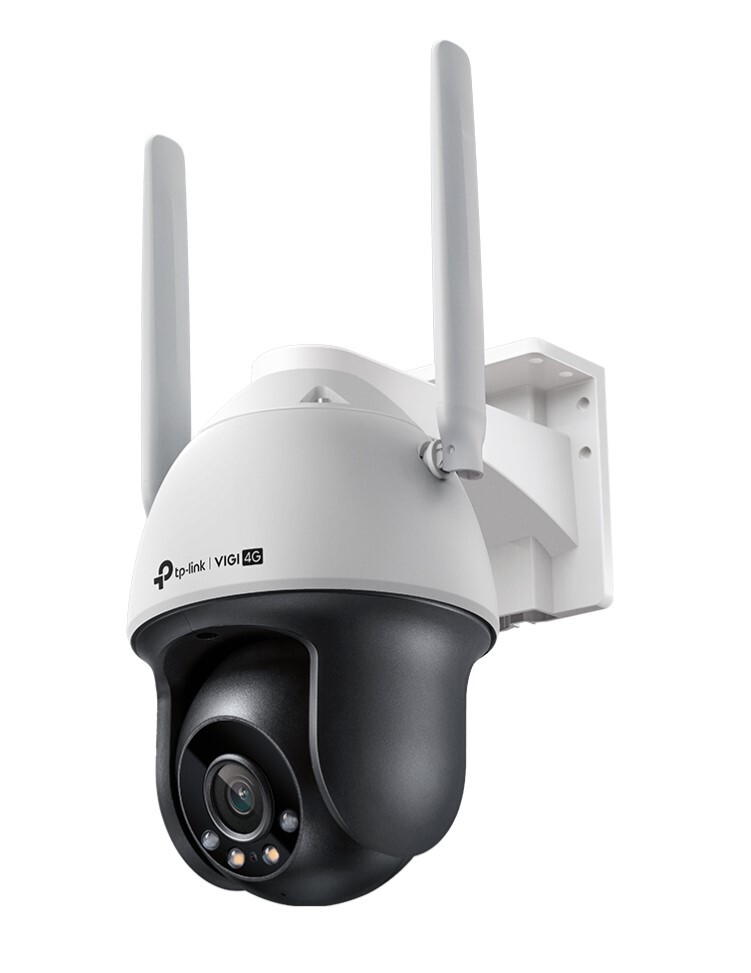

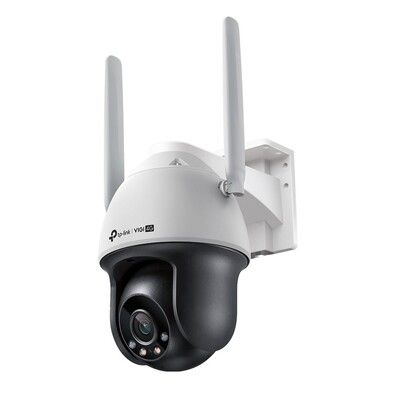

TP-Link VIGI 4MP C540-4G(4mm) Outdoor Full-Color 4G Pan Tilt Network Camera, 4mm Lens, 4G Mobile Networking, Automatic Tracking, 360° Monitoring:

VIGI 4MP Outdoor Full-Color 4GPan Tilt Network Camera

4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Experience clear, vibrant 24-hour monitoring, even in total darkness.
4G Mobile Networking: Enjoy hassle-free installation and simple monitoring in places where the internet is not available.
360° Monitoring: Cover every corner and eliminate blind spots.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
Automatic Tracking: Automatically tracks persons or vehicles of interest and provides seamless and longer video.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof: Reliable IP66 for stable outdoor performance.
Remote Management: Take full control over your security anytime and anywhere on the VIGI app or PC client.
Onboard Storage: Support on-board storage up to 256 GB (SD card slot).*

(VIGI-C540-4G-4mm)

CAMERA Image Sensor 1/3.06 Progressive Scan CMOS Shutter Speed 1/3 to 1/10000 s Slow Shutter Yes Minimum Illumination 0.005 Lux; 0 Lux with IR/White Light Day/Night Mechanism IR Cut Filter Day/Night Switch Unified/ Scheduled/ Auto LENS Type Fixed Focal Lens Focal Length 4 mm Aperture F1.6 FOV Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94° Lens Mount M12*0.5 DORI Distance Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft) PTZ Pan/tilt Range Pan: 0° to 348°, Tilt: 0° to 120° Pan/tilt Speed Pan Speed: Configurable from 8° to 44°/s; Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s, Preset Speed 44°/s Manual Control Speed Configurable from 8° to 35°/s Presets 300 Patrol Scan 8 patrols, up to 8 presets for each patrol Power-off Memory Yes; Auto restore to previous PT and lens status after power failure Park Action Yes; Preset; Patrol Scan 3D Positioning Yes ANGLE ADJUSTMENT (MANUAL) Range Pan: 0° to 348° Tilt: 0° to 120° ILLUMINATOR IR LED Quantity: 2 Range: 30m Wavelength: 850nm White LED Quantity: 2 Range: 30m Illuminator On/Off Control Auto/Scheduled/Always on/Always off VIDEO Max. Resolution 2560 X 1440 Main Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Sub-Stream Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. Bit Rate Control CBR, VBR Video Compression Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 H.264 Type Main Profile/High Profile H.264+ Main Stream Supported H.265 Type Main Profile H.265+ Main Stream Supported Video Bit Rate Main Stream: 256 Kbps to 3 Mbps Sub-Stream: 64 Kbps to 512 Kbps IMAGE Image Settings Mirror Brightness Contrast Saturation Sharpness Exposure, WDR, White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software Rotation (90°/270°) Image Enhancement BLC/3D DNR/HLC/SmartIR Wide Dynamic Range DWDR SNR ? 52 dB Image Parameters Switch Yes Privacy Mask Up to 4 Masks ROI 1 Region OSD Setting Yes AUDIO Audio Communication Two-Way Audio Audio Input Yes Audio Output Yes Audio Compression Yes Audio Sampling Rate 8KHz Environment Noise Filtering Yes Audio Bit Rate 64 Kbps(G.711 alaw) NETWORK Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS ONVIF Yes API ONVIF Simultaneous Live View 2 Main Streams & 2 Sub-Streams Client VIGI App, VIGI Security Manager, Web UI Web Browser Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above Cloud Yes Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication 4G Standard LTE-TDD/LTE-FDD/WCDMA SIM Type Nano SIM Category 4 Frequency LTE-FDD: B 1/3/5/7/8/20/28 LTE-TDD: B 38/40/41 WCDMA: B 1/5/8 ALARM AND EVENT MANAGEMENT Smart Event Human & Vehicle Classification Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection People Detection Vehicle Detection Basic Event Motion Detection Video Tampering Detection Exception (Illegal Login) Alarm Linkage Memory Card Video Recording Message Push Audible Warning White Light Flashing Linkage Method N/A Output Notification Message Push INTERFACES Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port Alarm N/A Reset Button Yes Power DC Power Port On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB Built-in Nano-SIM Card Slot Yes Built-in Microphone Yes; Records Anything Going on within a 15-ft Radius of the Camera Built-in Speaker Yes Audio N/A GENERAL Operating Temperature -3060 °C Storage Temperature -4060 °C Operating Humidity 95% or Less (Non-Condensing) Storage Humidity 95% or Less (Non-Condensing) Package Contents VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories Power Adapter Material Plastic Net Weight 0.69 Kg Gross Weight 1.16 Kg Power Supply 12V DC/1A, 5.5mm Coaxial Power Plug Antenna Quantity: 2 Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna Gain: Ant1?0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2?0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz Protection IP66 Product Dimensions (L x W x H) 120 × 182 × 201 mm (excluding antennas) Certifications CE, RCM, BSMI, RoHS, NCC
