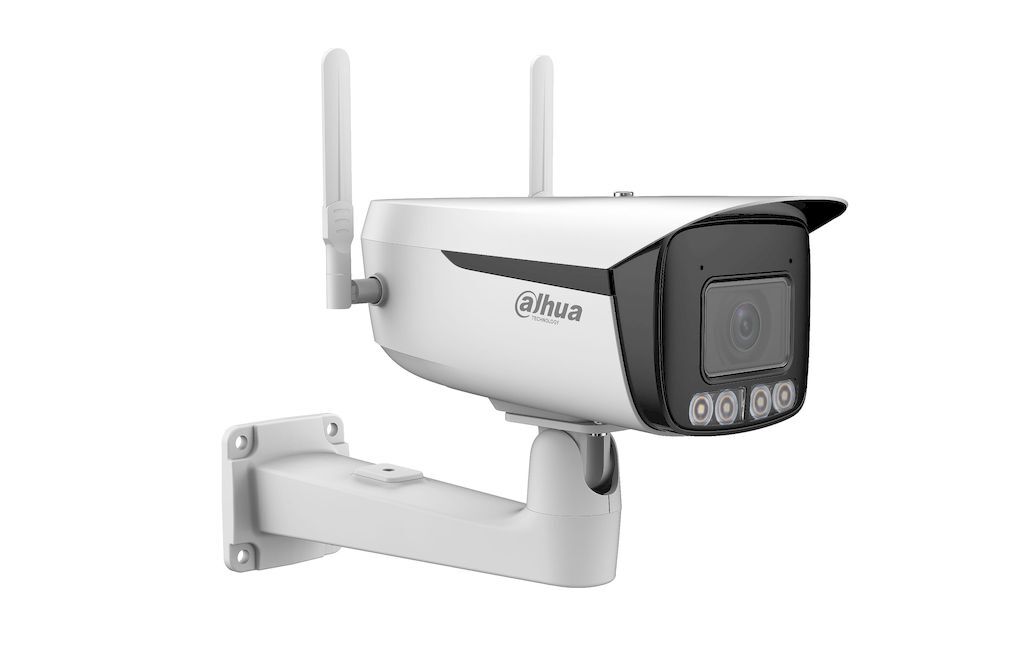

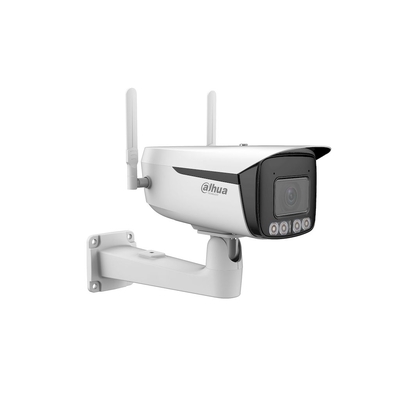

Camera Image Sensor 1/1.8" CMOS Max. Resolution 3840 (H) × 2160 (V) ROM 4 GB RAM 1 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.005 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >56 dB Illumination Distance 120 m (393.70 ft) (IR LED) Illuminator On/Off Control Auto; Zoomprio; Manual Illuminator Number 4 (IR LED); 4 (Warm light) Lens Lens Type Motorized vari-focal Lens Mount Module Focal Length 8 mm–32 mm Max. Aperture F1.6 Field of View H: 42°–14.9° V: 23.3°–8.6° D: 48.5°–16.9° Iris Control Auto Close Focus Distance 3 m (9.84 ft) DORI Distance Lens Detect Observe Recognize Identify W 213.6 m (700.79 ft) 85.4 m (280.18 ft) 42.7 m (140.09 ft) 21.3 m (69.89 ft) T 572.8 m (1879.27 ft) 229.1 m (751.64 ft) 114.5 m (375.66 ft) 57.28 m (187.93 ft) Intelligence IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection Heat Map Yes Smart Object Detection Smart abandoned object; smart missing object Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. People Counting Tripwire people counting and people counting in area, queue management; 4 rules can be set for tripwire, people counting in area and queue management. Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) Smart Codec Smart H.265+; Smart H.264+ AI Coding AI H.265 (Compression rate?25%) AI H.264 (Compression rate?25%) Video Frame Rate Main stream: 3840 × 2160@(1–25/30 fps) sub stream: D1@(1–25/30 fps) third stream: 1080p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Stream Capability 3 streams Resolution 3840 × 2160; 3072 × 2048; 3072 ×1728; 2592 × 1944; 2688 × 1520; 2560 × 1440; 2048 × 1536; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps Day/Night Auto(ICR)/Color/B/W BLC Yes HLC Yes WDR 120 dB Scene Self-adaptation (SSA) Yes White Balance Auto; natural; street lamp; outdoor; manual; regional custom Gain Control Auto Noise Reduction 3D NR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest (RoI) Yes (4 areas) Image Stabilization Electronic Image Stabilization (EIS) Smart Illumination Yes Defog Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower) Mirror Yes Privacy Masking 4 areas Audio Built-in MIC Yes Built-in Speaker Yes Audio Compression PCM; G.711a; G.711Mu; G.726; G.723 Alarm Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; scene changing; audio detection; voltage detection; external alarm; face detection; security exception Network Network Port RJ-45 (10/100 Base-T) Frequency 5G SA:N1/N3/N7/N8/N20/N28/N38/N40/N41/N75/N76/ N77/N78 NSA:N1/N3/N7/N8/N20/N28/N38/N40/N41/N77/N78 4G FDD-LTE: B1/B3 /B7 /B20 TDD-LTE: B41 3G WCDMA:B1 /B8 SDK and API Yes Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P User/Host 20 (Total bandwidth: 80 M) Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS Browser IE: IE9 and later Chrome Firefox Safari: Safari 12 and later Management Software Smart PSS; DSS; DMSS Mobile Client iOS; Android Certification CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 CE RED Anatel: 00791-22-09038 Port RS-485 1 (baud rate range:1200 bps–115200 bps) Audio Input 1 channel (RCA port) Audio Output 1 channel (RCA port) Alarm Input 3 channels in: 5mA 3V–5V DC Alarm Output 2 channels out: 300mA 12V DC Power Power Supply 12 VDC (±30%) Power Consumption Basic: 6.6 W (12 VDC) Max. (H.265 + WDR + max. stream + intelligence on+ illuminator on + active deterrence + vari-focal + power output): 20 W (12 VDC) Environment Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F) Operating Humidity ?95% Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F) Protection IP67 Structure Casing Material Metal + plastic Product Dimensions 281.3 mm × 171.8 mm × 191.7 mm (11.07" × 6.76" × 7.55") (L × W × H) Net Weight 2074 g (4.57 lb) Gross Weight 2290 g (5.05 lb)
