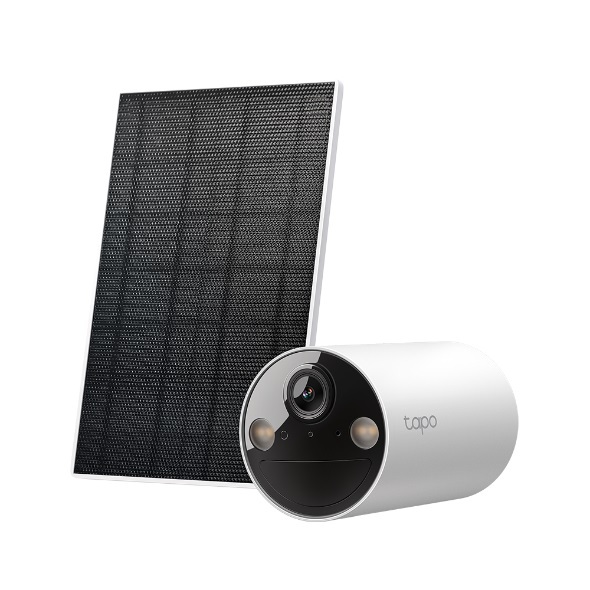

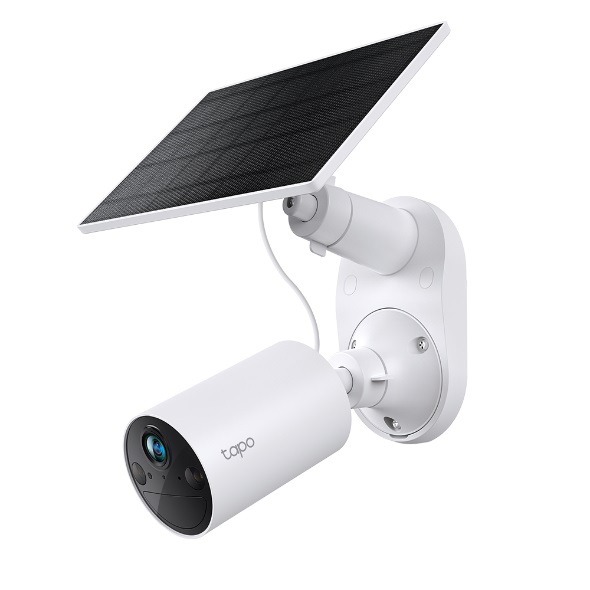

Solar-Powered Security Camera Kit

TC82 KIT

Uninterrupted Power Supply: Enjoy a maintenance-free security experience with the Tapo Solar Panel, which provides a continuous power supply and flexible installation.
Wire-Free, Installs Almost Anywhere: Eliminates the need for outlets and enables flexible placement. Add security to your home, wherever, whenever.
Superior 2K 3MP Visuals: Capture every detail in crystal-clear 2K resolution, with advanced algorithms ensuring perfect exposure day and night.
Color Night Vision: See the night in vivid colors with the large aperture lens and built-in spotlights effective up to 30 feet (9m).
Flexible Storage Options: Choose from local microSD storage up to 512GB or the secure Tapo Care cloud service for additional peace of mind.
Smart Person Detection: Get alerts when a person is detected, reducing false alerts and unnecessary notifications.
Intelligent Phone Notifications: Customize activity zones for precise motion detection and phone alerts, focusing on what truly matters.
IP65 Weatherproof: Offers excellent waterproof and dustproof performance for outdoor scenarios.

(TC82-KIT)

SPECIFICATIONS

CAMERA

Image Sensor:

1/2.8” Progressive Scan CMOS Starlight Sensor

Lens:

Focal Length: 3.17 mm
Aperture: F1.65
Field of View: 125° (Diagonal), 111°(Horizontal), 56°(Vertical)

Night Vision:

850 nm IR LED (30 ft / 9.1 m)
Full-Color Night Vision

Lighting:

2× Spotlights

Interface & Button :

1× POWER Button
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)

SOLAR PANEL

Connection Capacity:

A solar panel can only connect to one camera.

Output Port:

Type-C

VIDEO & AUDIO

Maximum Resolution:

2K 3MP (2304 × 1296 px)

Frame Rate:

15 fps

Video Compression:

H.264

Live View:

Yes

Image Enhancement:

3D DNR
WDR

Audio Input & Output:

Built-in Microphone and Speaker

Audio Communication:

Two-Way Audio with Noise Cancellation

Siren Volume:

94 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage:

MicroSD Card Slot on Camera (Up to 512 GB)

Cloud Storage:

Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

Sensor:

Single Motion Sensor (FOV: 110° horizontal)
Single Ambient Light Sensors

AI Detection:

Motion Detection
Person Detection
Pet Detection
Vehicle Detection

Activity Zones:

Yes

Output Notification :

System Notification
System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity:

Connect via Wi-Fi

Wireless Connectivity:

IEEE 802.11b/g/n, 2.4 GHz Wi-Fi

SECURITY

128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

POWER

Power Source:

6400 mAh Built-in Rechargeable Lithium-ion Battery
Solar Panel: Tapo A201

Input Voltage:

Adapter Input: 100-240 V, 50/60 Hz

Output Voltage:

Adapter Output: 5.0 V, 1.0 A
Solar Panel Max Charging Voltage: 5.2 V
Solar Panel Max Charging Power: 2.5 W

GENERAL

Smart Integration:

Google Assistant, Amazon Alexa

Weather Resistance:

IP65

System Requirements :

Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher

Mounting Options:

Tabletop
Ceiling-Mounted
Wall-Mounted

Operating Temperature:

-20℃~45℃

Storage Temperature:

-20℃~60℃

Operating Humidity:

10%~90% RH, Non-condensing

Storage Humidity:

5%~90% RH, Non-condensing

Charging Temperature:

0-45℃

Dimensions:

Camera Dimensions: D60mm × 89mm
Solar Panel Dimensions: 173.42 × 120.42 × 15.7 mm (6.83 × 4.74 × 0.62 in)

Package Contents:

TC82 Camera ×1
Tapo A201 Solar Panel ×1
Tapo A201 Solar Panel Bracket ×1
USB Adapter Cable ×1
Base Cover ×1
Extension Wire ×1
Mounting Screws ×6
Mounting Anchors ×6
Waterproof Seals ×2
Screw Caps ×2
Cable Zip Tie ×1
Mounting Templates ×2
Quick Start Guide

Certifications:

CE, FCC, DOE, CEC, RCM, KC, NCC, BSMI, NTRA, IP65
