Physical Dimensions & Build

• Without Mount: Ø82 x 88.8 mm (Ø3.2 x 3.5")

• With Mount: Ø82 x 153 mm (Ø3.2 x 6")

• Weight:

  • Without mount: 587 g (1.3 lb)

  • With mount: 737 g (1.6 lb)

• Enclosure Material: Polycarbonate, aluminum alloy

• Mount Material:

  • Wall Mount: Aluminum alloy, polycarbonate

  • Pole Mount: Aluminum alloy

• Weatherproofing: IP66 (Dustproof & Water-resistant)

• Tamper Resistance: IK04 (Impact-resistant)

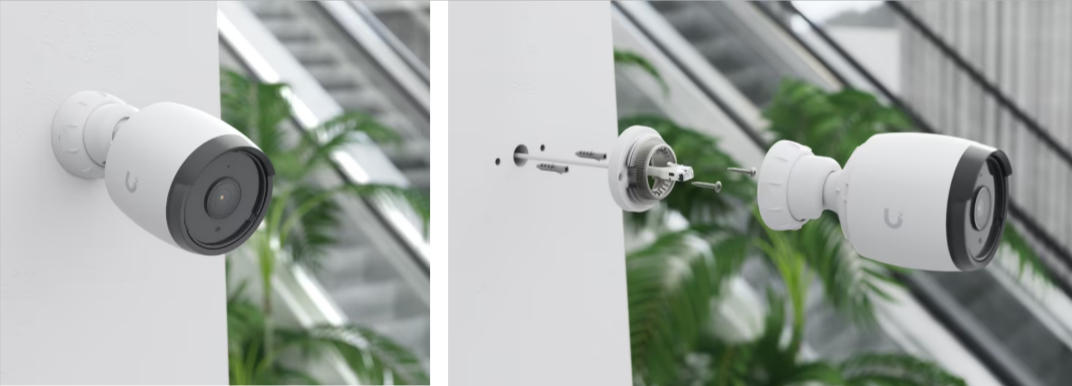

• Mounting Options:

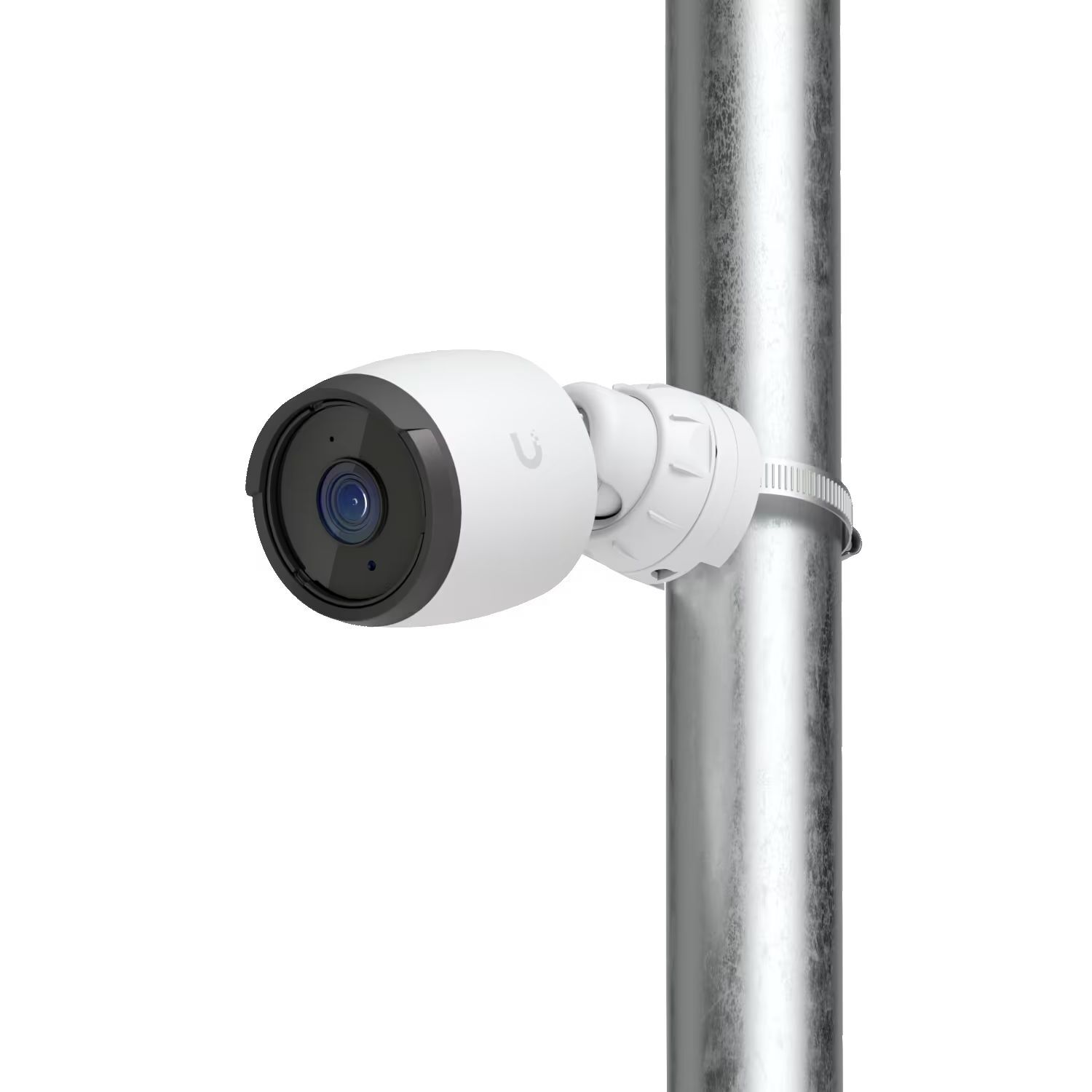

  • Included: Wall, ceiling, pole mount (1.5–2" / 38–50 mm diameter)

  • Optional: Junction box, angled base

Camera & Image Features

• Resolution: 4K (8MP) – 3840 x 2160 (16:9)

• Field of View:

  • Horizontal: 109.9°

  • Vertical: 56.7°

  • Diagonal: 134.1°

• Frame Rate: 30 FPS

• Sensor: 1/1.8" 8MP

• Lens: Fixed focal length

• Night Vision: 30m (98 ft) IR Night Vision with built-in IR LED illumination and IR cut filter

• Image Adjustments: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR & 3DNR noise reduction, HDR, motion-based NR, masking, text overlay

AI & Smart Features

• Face Recognition: ✅ Yes

• License Plate Recognition: ✅ Yes

• Smart Detections: People, Vehicles, Animals

Audio

• Microphone: ✅ Yes (Built-in)

Connectivity & Networking

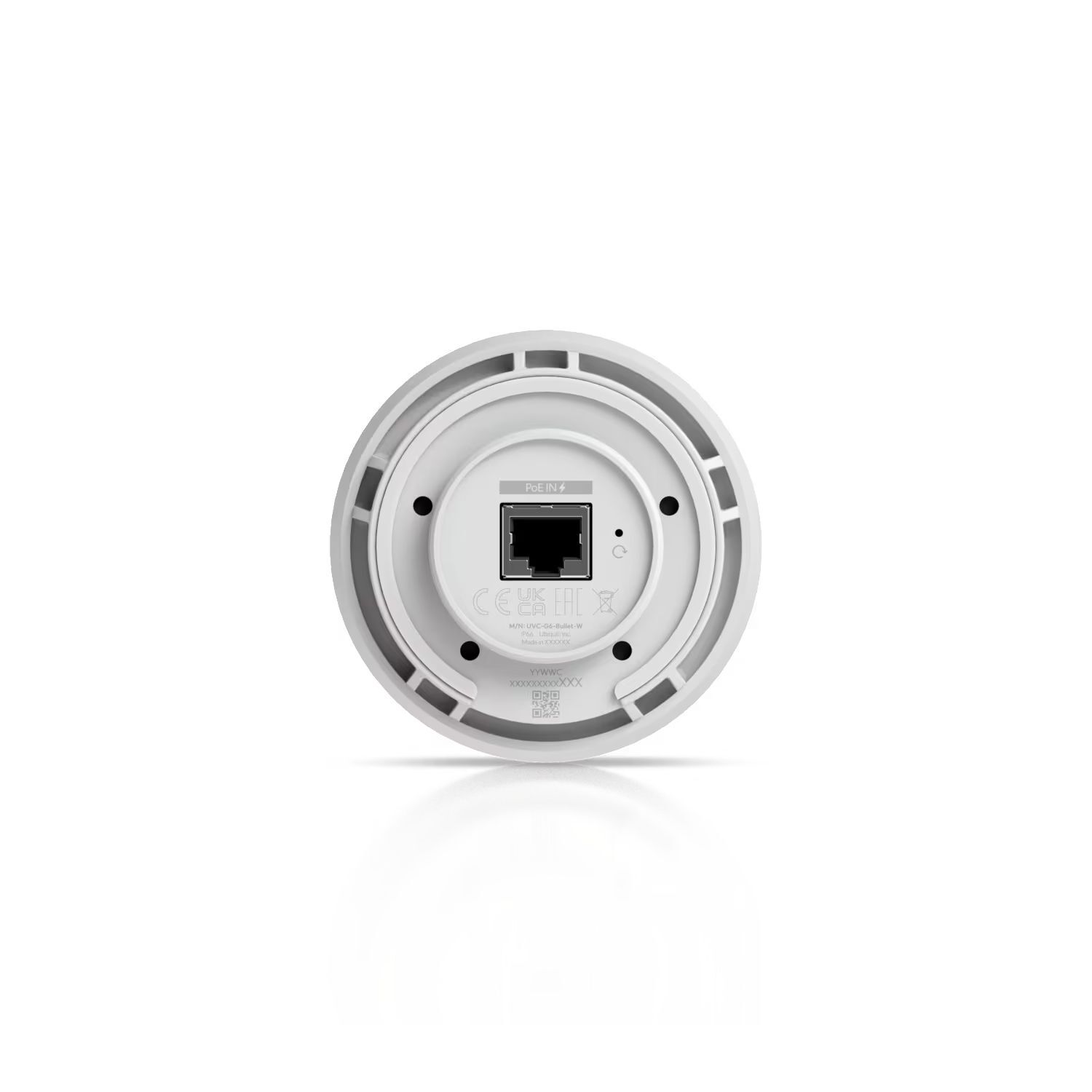

• Network Interface: 10/100 MbE RJ45 port

• Power Method: PoE (Power over Ethernet)

• Max Power Consumption: 9.9W

• Supported Voltage Range: 37–57V DC

• Processor: Quad-core Arm® Cortex®-A53

Environmental Specifications

• Operating Temperature: -20 to 50° C (-4 to 122° F)

• Operating Humidity: 0 to 90% non-condensing

Certifications

• ✅ CE

• ✅ FCC

• ✅ IC

Additional Features

• Factory Reset Button: ✅ Yes

Manufacturer Warranty : 1 Year Manufacturer Warranty
