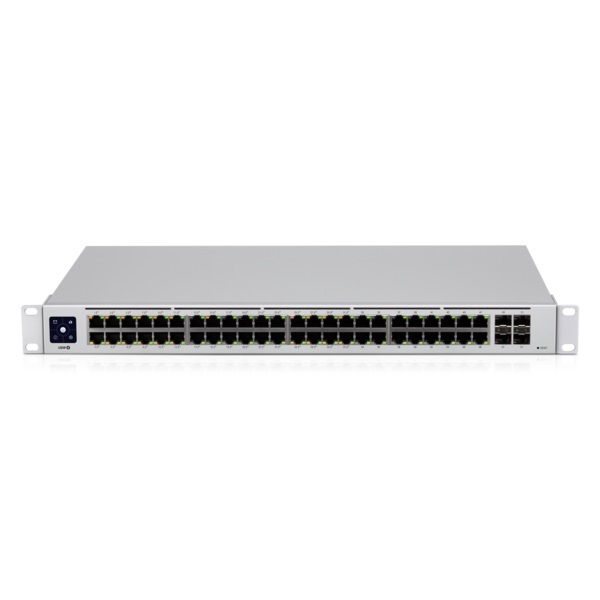

The USW-48-PoE is a configurable Gigabit Layer 2 switch with 48 Gigabit Ethernet ports including 32 auto-sensing 802.3at PoE+ ports, and 4 SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-48-PoE features a 1.3? touch LCM to provide status Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-48-PoE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere. Features: (48) Gigabit Ethernet Ports including (32) 802.3at PoE+ (4) 1G SFP Ports 1.3? touch LCM Managed by UniFi Controller 210W Power supply Product Specifications: Dimensions 442.4 x 285 x 43.7 mm (17.42 x 11.22 x 1.72?) Weight With Rackmount Brackets 4.52 kg (9.97 lb) 4.61 kg (10.16 lb) Interfaces Networking Management (48) 10/100/1000 RJ45 Ports (4) 1G SFP Ethernet Ports Ethernet In-Band Power Method 100-240VAC, 50/60 Hz, Universal Input Power Supply AC/DC, Internal, 240W Supported Voltage Range 100 to 240VAC Max. Power Consumption (Excluding PoE Output) 45W LEDs RJ45 Data Ports SFP Data Ports PoE; Speed/Link/Activity Link/Activity ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV Shock and Vibration ETSI300-019-1.4 Standard Operating Temperature -5 to 40° C (23 to 104° F) Operating Humidity 10 to 90% Noncondensing Certifications CE, FCC, IC POE PoE Interfaces Ports 1-32 POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) Max. PoE Wattage per Port by PSE 802.3at 32W Voltage Range 802.3af Mode 44-57V Voltage Range 802.3at Mode 50-57V

A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.

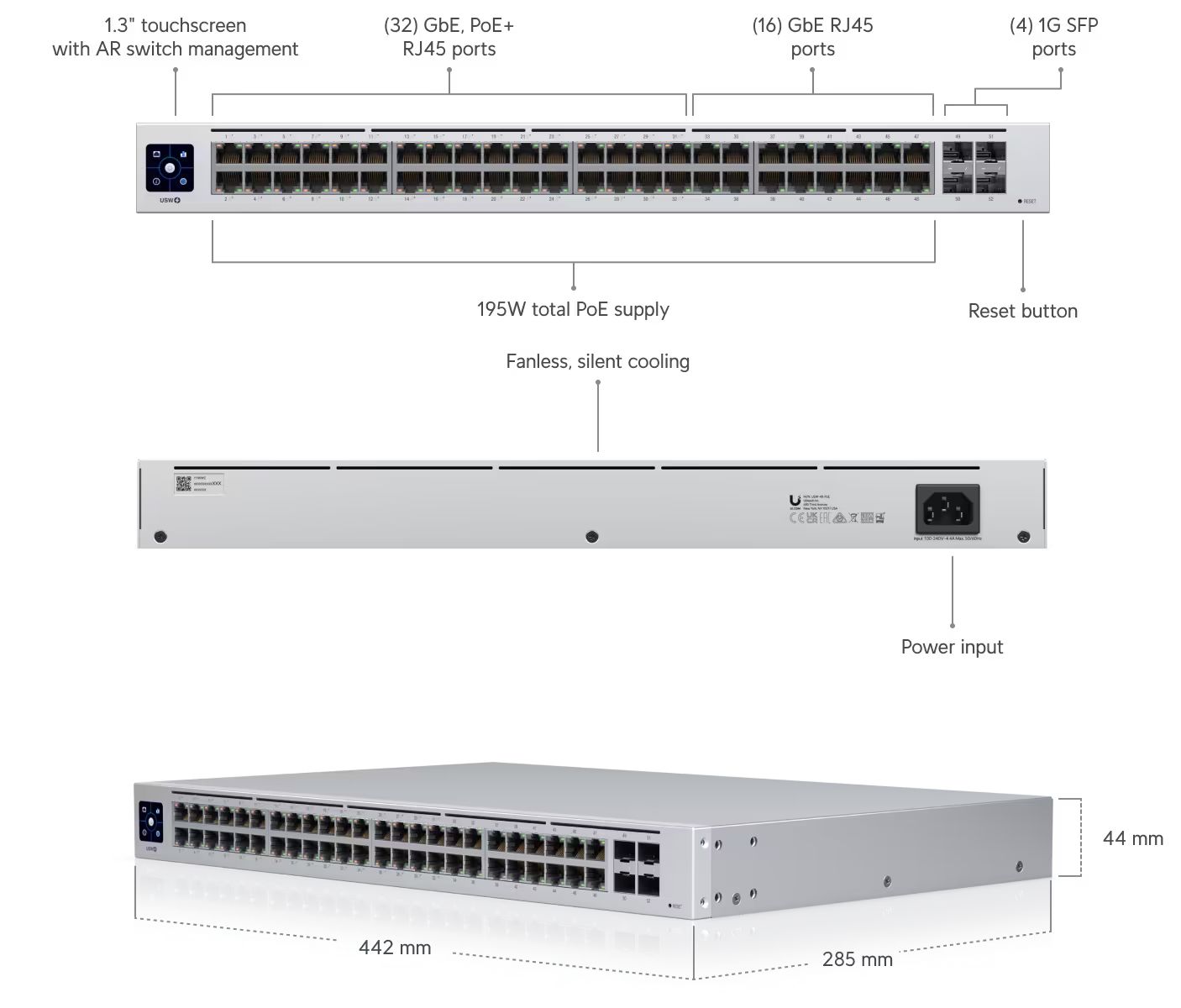

(32) GbE PoE+, (16) GbE ports

(4) 1G SFP ports

195W total PoE availability

Fanless, silent cooling
