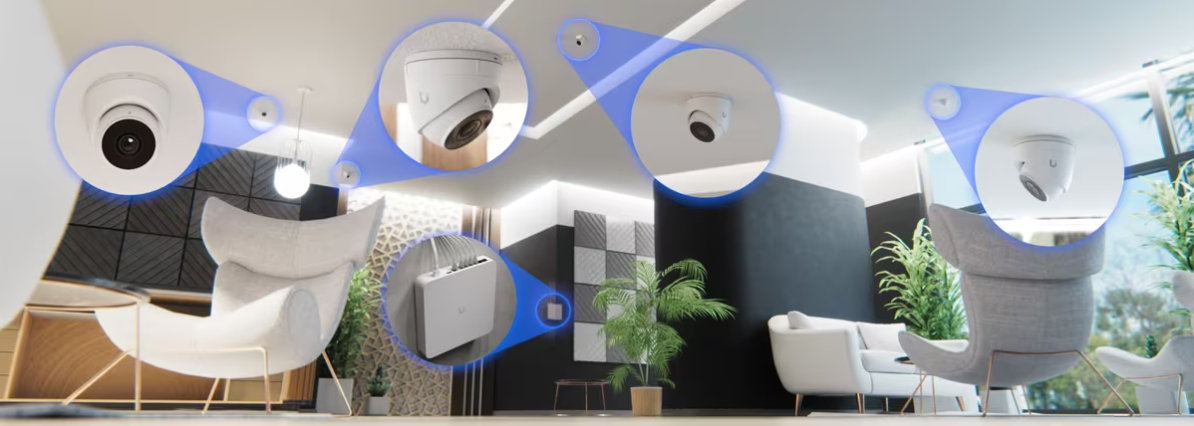

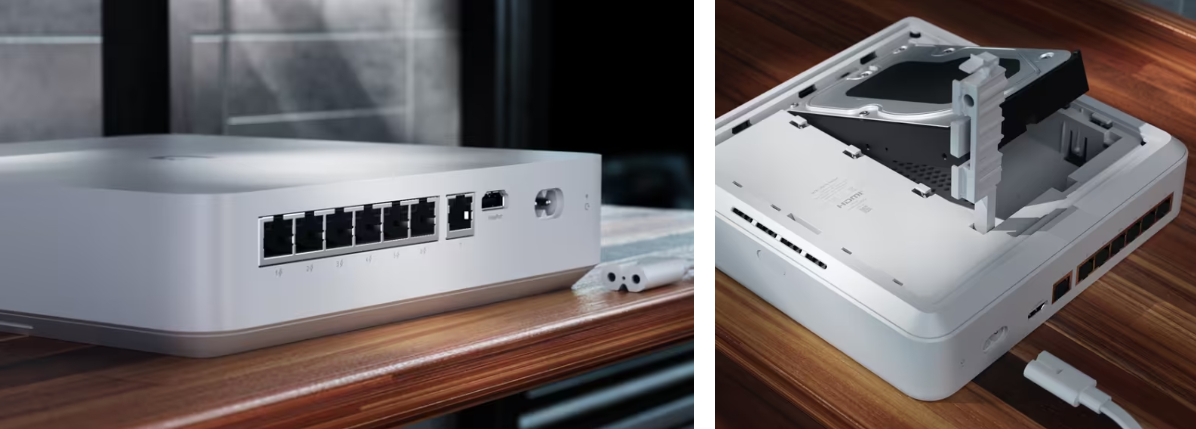

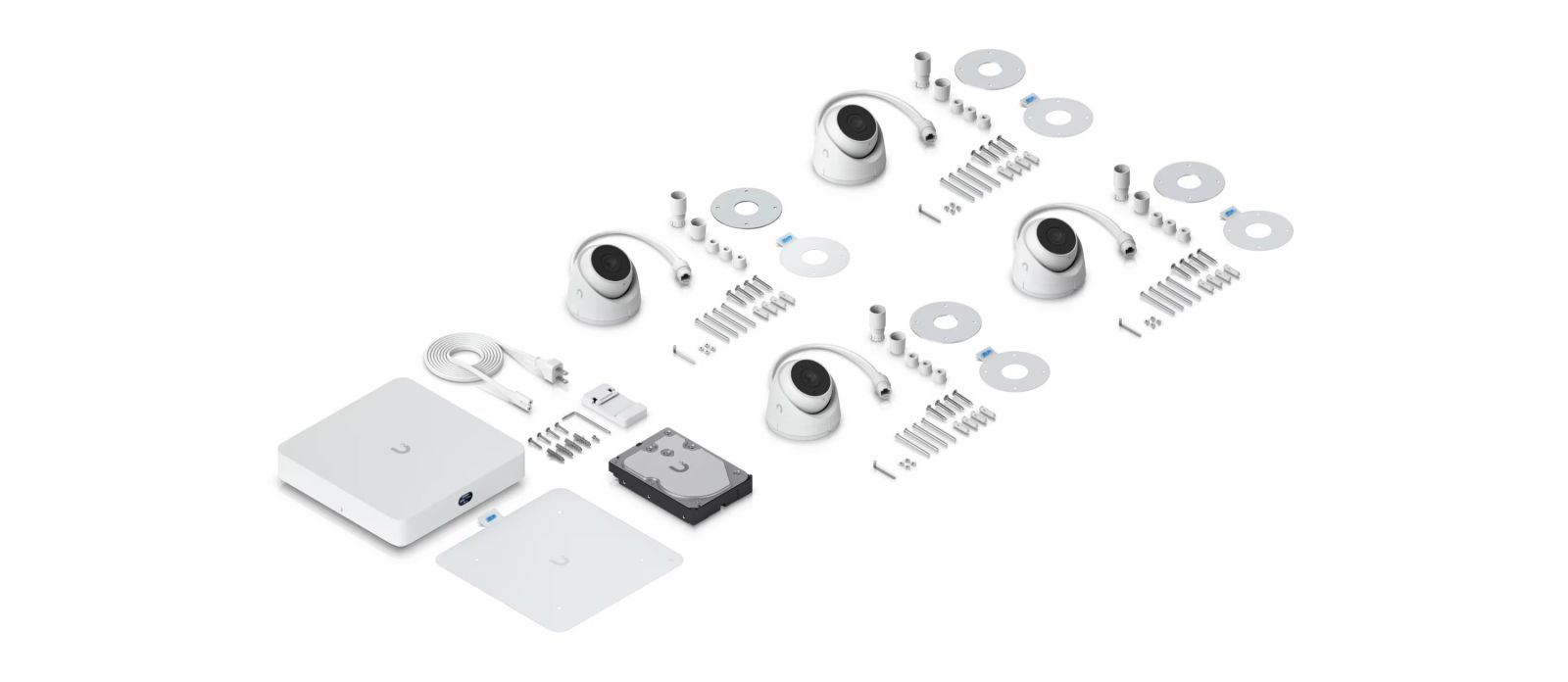

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.

(UNVR-INSTANT-KIT)

Feature	Specification
Dimensions	220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
UniFi Protect	✓
UniFi Access	✓
Managed Cameras	(15) HD / (8) 2K / (6) 4K
Managed Access Hubs	50
Storage Capacity	(1) 3.5" drive bay
Data Protection	✓
Vantage Point	✓

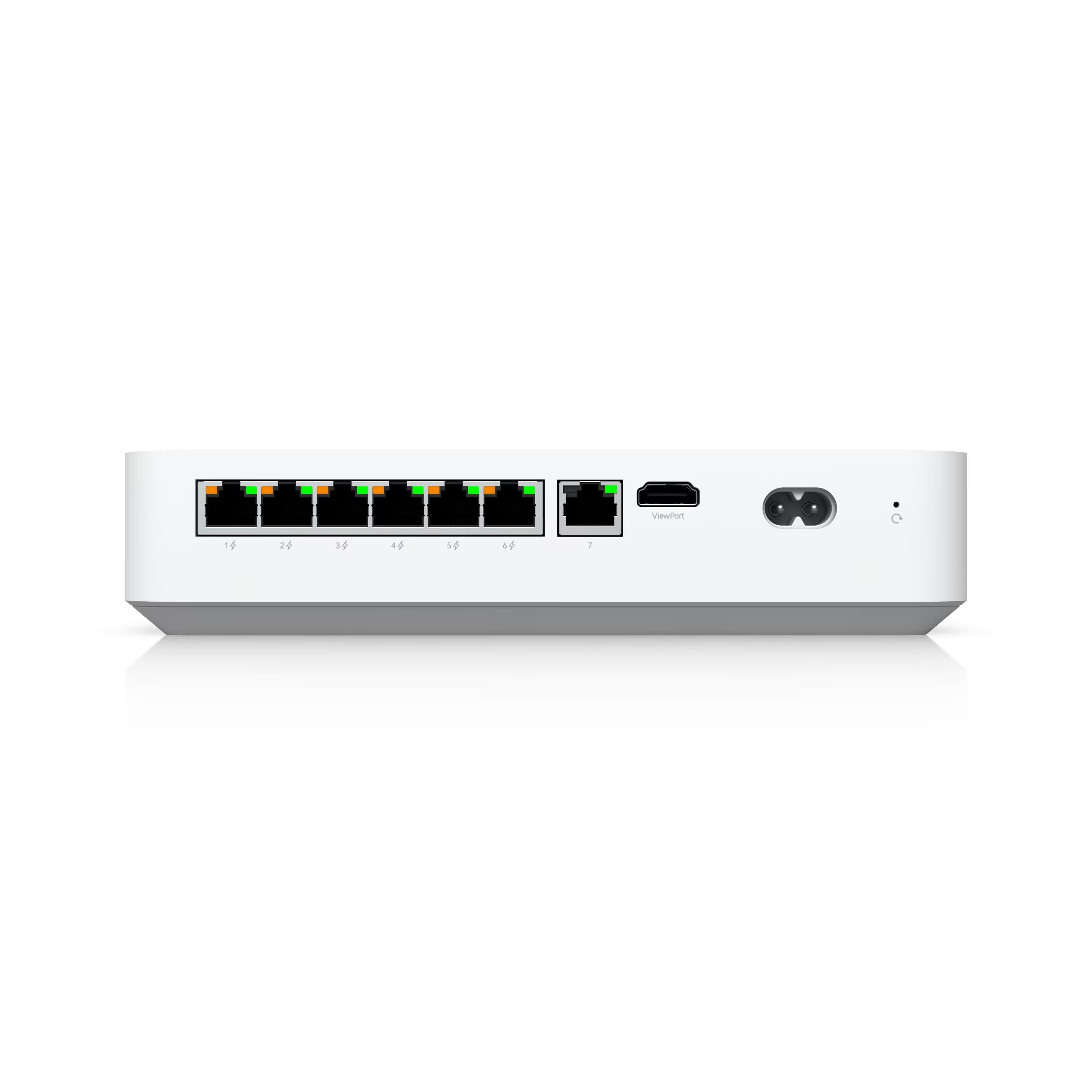

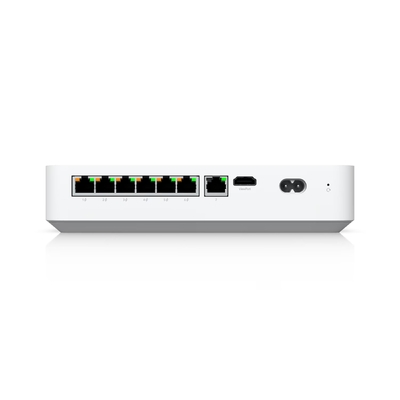

Networking Interface	(1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport)
Form Factor	Compact Desktop
Mounting	Wall, Din rail mount (Included)
Door Access Support	✓

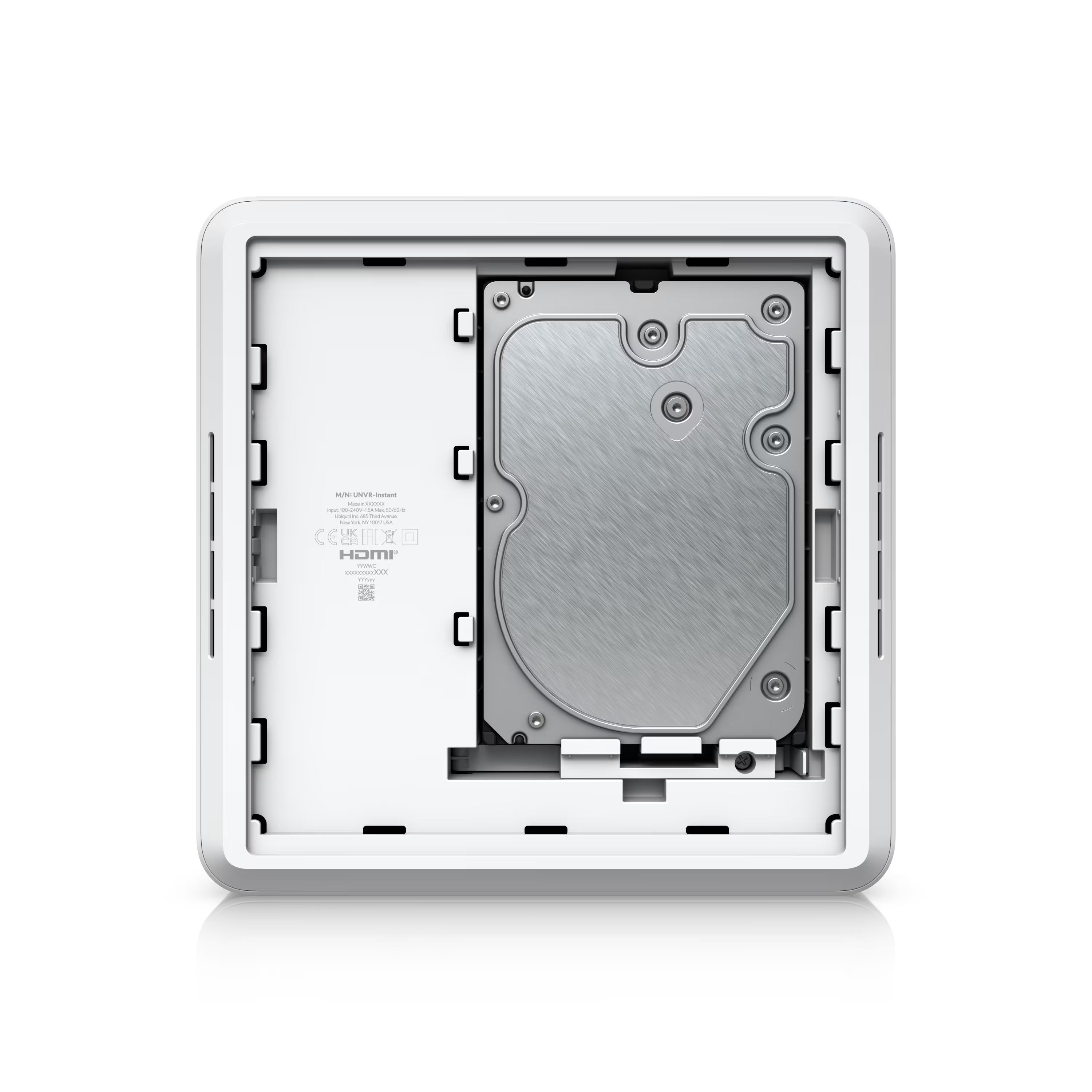

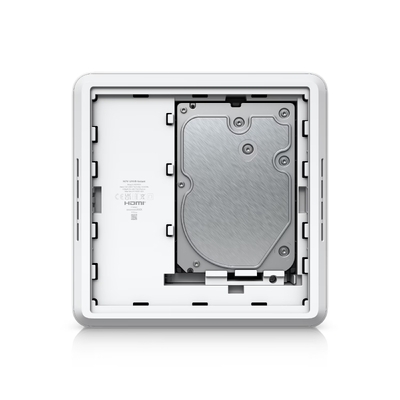

Hard Drive Support	(1) 3.5" HDD
Max. Power Budget for Drives	11W
Max. Power Consumption	9W
Power Method	Universal AC input, 100–240VAC, 1.5A Max, 50/60 Hz
Power Supply	AC/DC, Internal, 60W
PoE Budget	40W
Max. PoE Wattage per Port	15.4W
PoE Voltage Range	44–57V
Processor	Quad-core ARM® Cortex®-A55 @ 1.7 GHz
Memory	4 GB
Management	Ethernet, Bluetooth

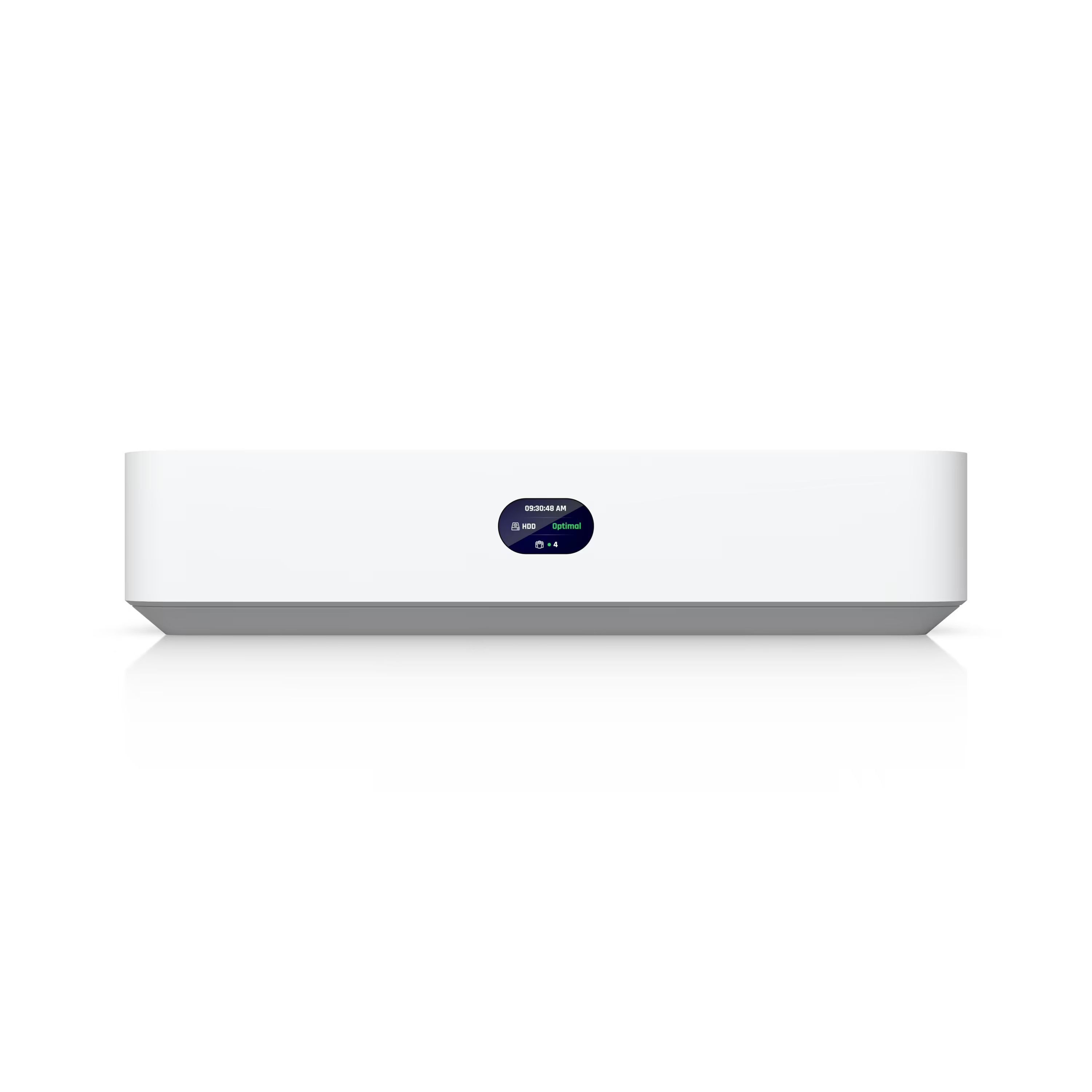

Display	1.14" screen
Weight	1.04 kg (2.3 lb)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
LEDs	Ethernet ✓ / PoE ✓
Operating Temperature	0 to 40° C (32 to 104° F)
Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	FCC, IC, CE, Electrical Safety

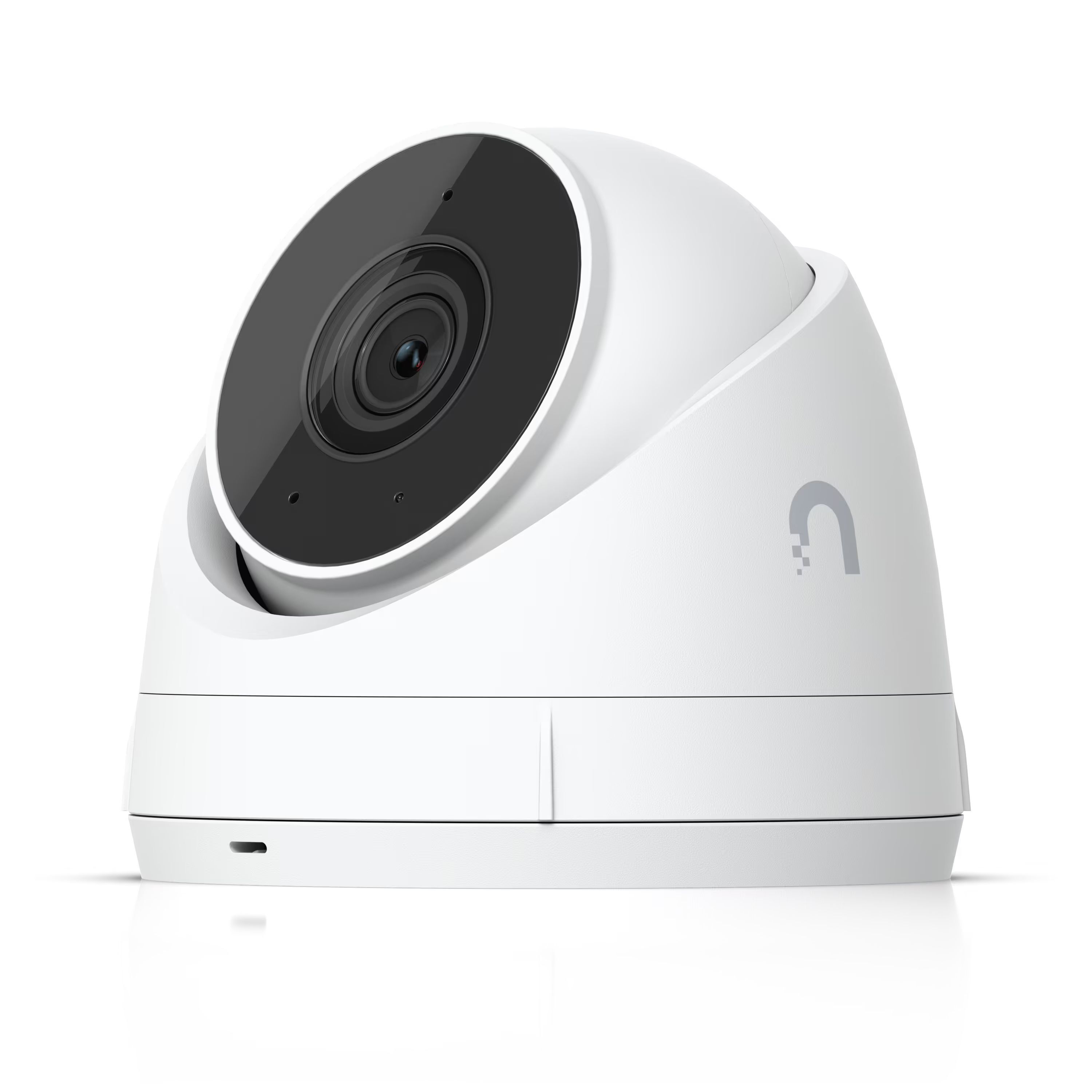

G5 Turret Ultra Specifications

Feature	Specification
Dimensions	Ø90 x 71.2 mm (Ø3.5 x 2.8")
IR Night Vision	30 m (98 ft)
Smart Detections	People, Vehicles, Animals ✓
Resolution	2K
Field of View	H: 102.4° / V: 54.9° / D: 120.6°
Audio	Microphone
Weatherproofing	IP66
Tamper Resistance	IK04

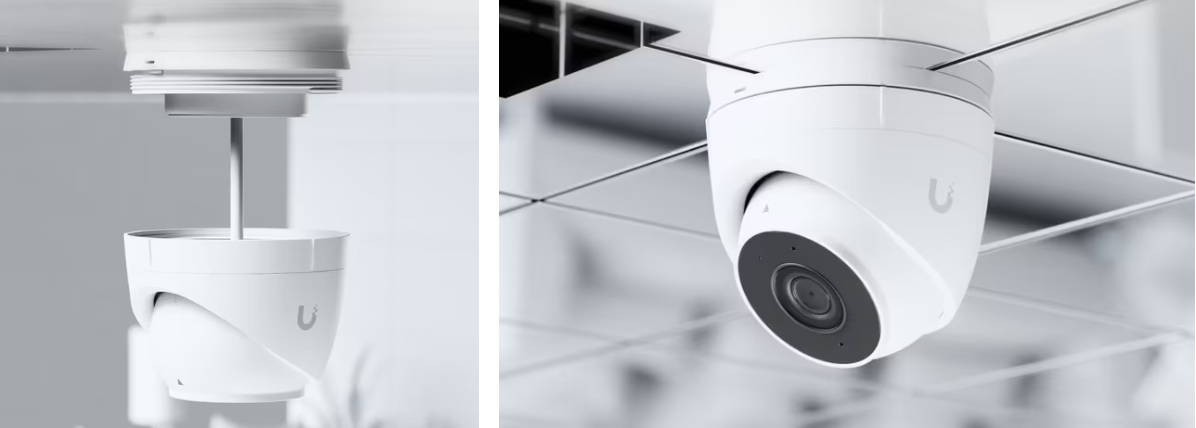

Mounting	Wall, ceiling mount (Included) Junction box, arm mount (Optional)
Networking Interface	10/100 MbE RJ45 port
Max. Frame Rate	30 FPS
Video Resolution	4MP 2688 x 1512 (16:9)
Image Settings	Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Sensor	1/2.4" CMOS
Lens	Fixed focal length
Night Mode	Built-in IR LED illumination and IR cut filter
Max. Power Consumption	4W
Supported Voltage Range	37–57V DC
Power Method	PoE
Processor	Dual-core Arm® Cortex®-A7
Weight	330 g (11.6 oz)
Enclosure Material	Aluminum alloy, UV-stabilized polycarbonate
Mount Material	Polycarbonate
Button	(1) Factory-reset
Cable Connector	RJ45
Cable Diameter	5 mm (0.2")
Cable Length	30 cm (1 ft)
Jacket Material	Polycarbonate
Jacket Enclosure Dimensions	Ø20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material	Thermoplastic elastomer, polycarbonate, silicone rubber
Operating Temperature	-30 to 50° C (-22 to 122° F)
Operating Humidity	0 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC

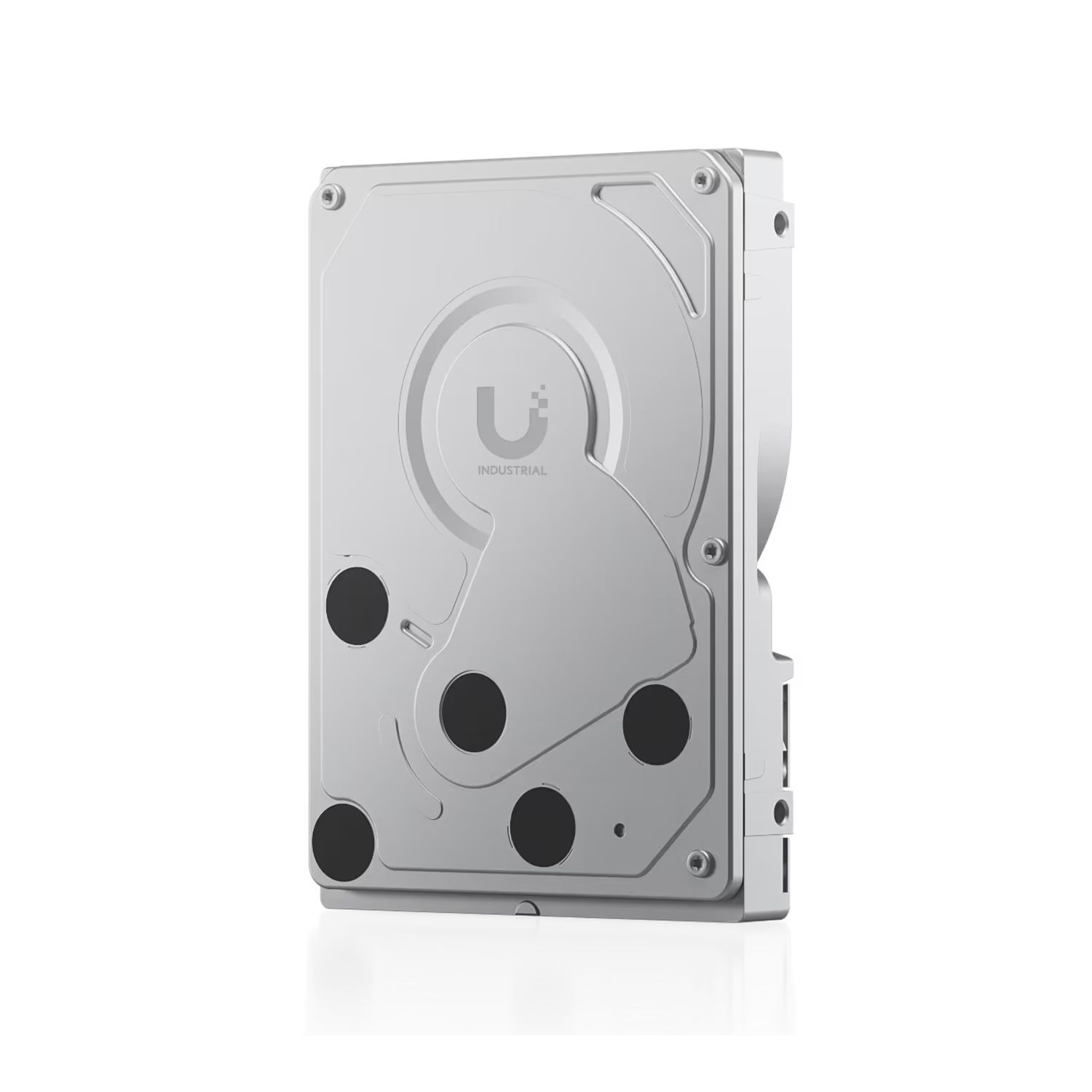

HDD Specifications

Feature	Specification
Dimensions	147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Form Factor	3.5-inch
Weight	0.45 kg (0.99 lb)
Storage Capacity	1 TB
Power Method	5V / 12V input
Management Interface	SATA 6 Gb/s
Rotation Speed	5400 RPM
Workload Rating	180 TB/year
MTBF	1,000,000 h
Operating Temperature	0 to 65° C (32 to 149° F)
Operating Humidity	5 to 95% noncondensing
NDAA Compliant	✓
Certifications	FCC, CE, TUV, RCM, KC, BSMI

SKU	UNVR-INSTANT-KIT
Barcode #	810177164937
Brand	UBIQUITI
Shipping Weight	4.8200kg
Shipping Width	0.126m
Shipping Height	0.494m
Shipping Length	0.304m

Manufacturer Warranty: 1 Year Manufacturer Warranty
