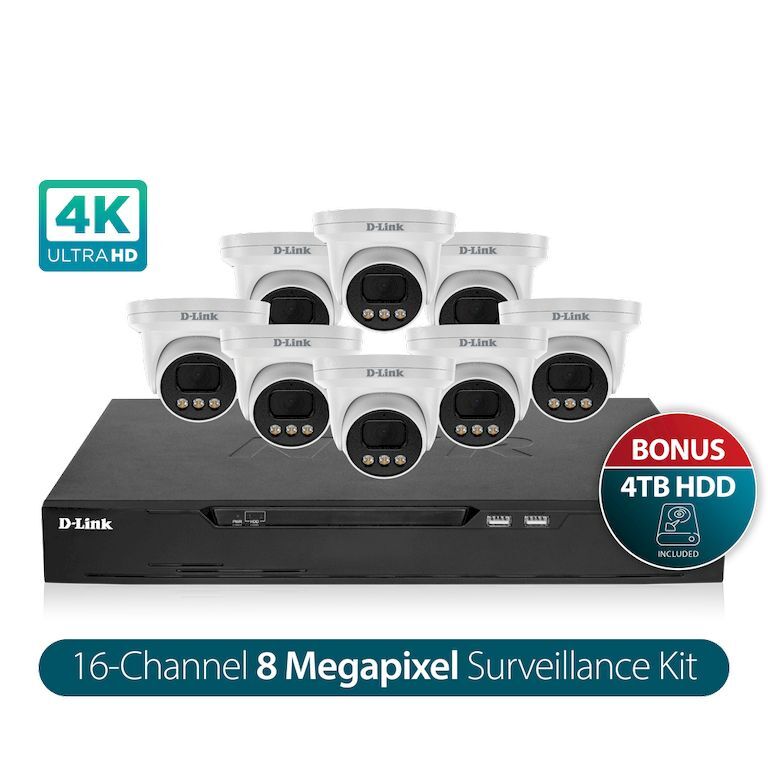

D-Link DNR16P-8MP-4TB 16-Channel 8MP Vigilance Camera Kit

A Vigilance surveillance kit with eight 8MP outdoor cameras, a 16-channel network video recorder and a 4TB hard drive, combining PoE connectivity with intelligent video features.

Eight 8MP cameras

Includes eight high-resolution outdoor cameras for compatible surveillance coverage.

16-channel NVR

Provides room to manage the included cameras within a sixteen-channel recording platform.

4TB hard drive included

Supplies local recording storage as part of the kit.

High-resolution camera system

Each supplied camera uses a 1/2.7-inch 8-megapixel progressive CMOS sensor and supports video up to 3840 x 2160 at 30fps.

Video and image processing

H.265, H.264 and MJPEG codecs, True WDR, white balance, HLC, BLC, DNR, defog and 2D/3D noise reduction are listed.

Intelligent detection

The supplied camera features include motion, human and vehicle detection, plus intrusion, tripwire, loitering, wrong-way and illegal-parking detection.

Outdoor-ready deployment

IP66 protection, -40°C to 60°C operation, 20m infrared illumination, a built-in microphone, microSD slot, ONVIF Profile S and PoE support are stated.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised D-Link reseller. This product is supplied under the applicable D-Link manufacturer warranty.

Frequently asked questions

What is included in the kit?

The supplied description identifies eight 8MP cameras, a 16-channel NVR and a 4TB hard drive.

What image sensor is used?

A 1/2.7-inch 8-megapixel progressive CMOS sensor is stated.

What is the maximum camera resolution?

Resolution up to 3840 x 2160 at 30fps is listed.

Which video codecs are supported?

H.265, H.264 and MJPEG are stated.

Does the camera support True WDR?

Yes. True Wide Dynamic Range is included.

Which intelligent detection functions are listed?

Motion, human, vehicle, intrusion, tripwire, loitering, wrong-way and illegal-parking detection are stated.

What is the infrared range?

The built-in infrared illuminator has a stated range of 20 metres.

Is the camera weather resistant?

Yes. An IP66 water-resistant and dust-tight housing is listed.

Does the camera support PoE?

Yes. Built-in PoE support is stated.

What warranty applies?

The kit is supplied under the applicable D-Link manufacturer warranty.

(DNR16P-8MP-4TB)

D-Link DNR16P-8MP-4TB 16-Channel 8MP Vigilance Camera Kit features

Complete eight-camera kit

Combines the listed cameras, 16-channel recorder and 4TB storage.

8MP video capture

Supports the stated 4K-class resolution at 30fps.

Intelligent video detection

Includes the supplied motion, object and perimeter-event functions.

Outdoor camera design

Combines IP66 protection, infrared illumination and wide-temperature operation.

Plan camera placement, PoE connectivity, storage retention and network capacity before deployment.

D-Link DNR16P-8MP-4TB 16-Channel 8MP Vigilance Camera Kit specifications

Product details

Model	DNR16P-8MP-4TB
Product type	Vigilance camera and NVR kit
Included cameras	8 x 8MP outdoor cameras
Recorder channels	16
Included storage	4TB hard drive
Image sensor	1/2.7-inch 8MP progressive CMOS
Maximum resolution	3840 x 2160 at 30fps
Video codecs	H.265 / H.264 / MJPEG
Wide Dynamic Range	True WDR
Detection	Motion / human / vehicle / intrusion / tripwire / loitering / wrong-way / illegal parking
Infrared range	20m
Ingress protection	IP66
Operating temperature	-40°C to 60°C
Built-in microphone	Yes
microSD card slot	Yes
ONVIF	Profile S compliant
PoE	Built in
