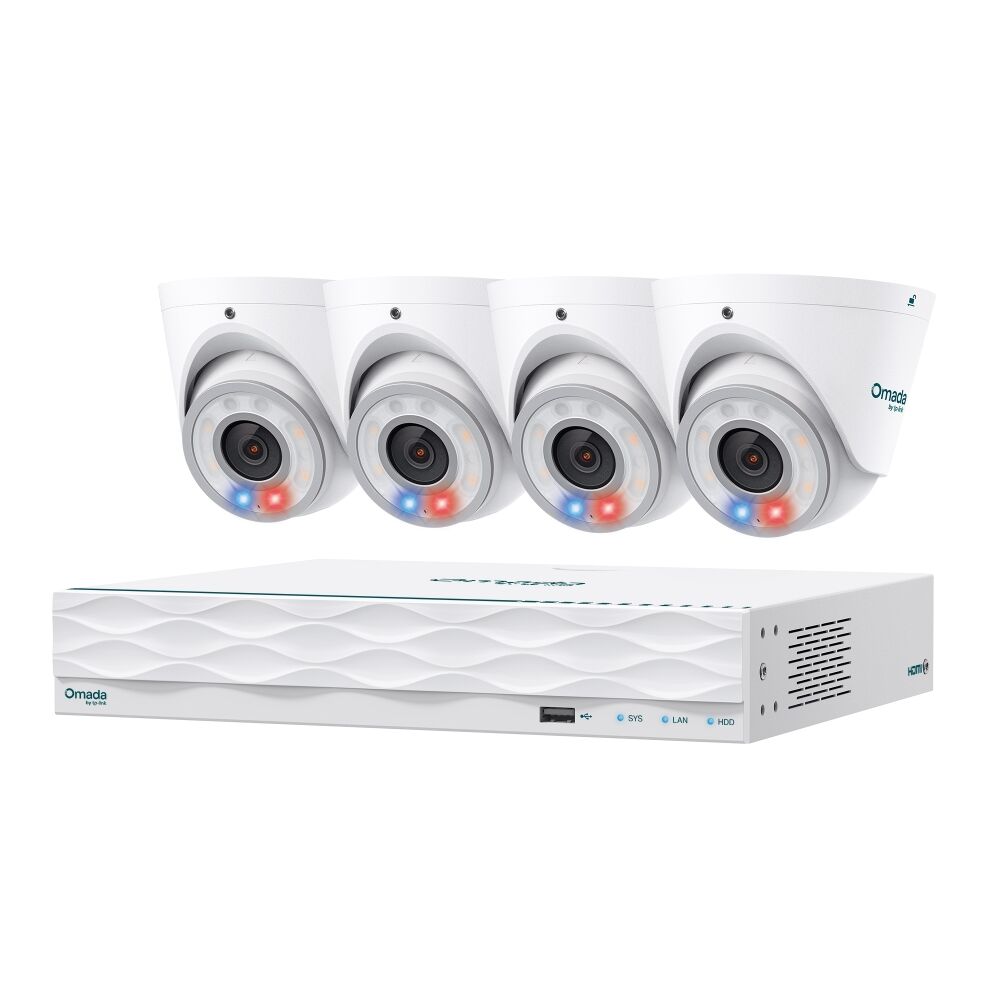

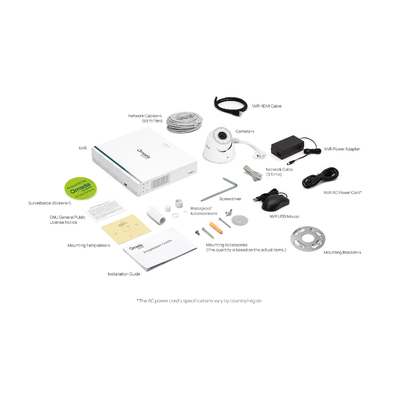

Omada 8MP Turret PoE Security Camera System with 2TB HDD, 4 Cameras with 16-Channel NVR

16 Channel NVR with 8 PoE+ Ports*
4× 8MP Full-Colour PoE Turret Cameras
Red & Blue Flashing Lights and Sirens
Person/Vehicle/Pet Detection
24/7 Continuous Recording and Local Storage
Effortless Installation with PoE+
NVR with 2TB HDD Built-in (Expandable to 16 TB)
Camera with All-Metal Housing, IP67 Weatherproof and IK08 Vandal-Proof

(Omada-T8S4-2T)

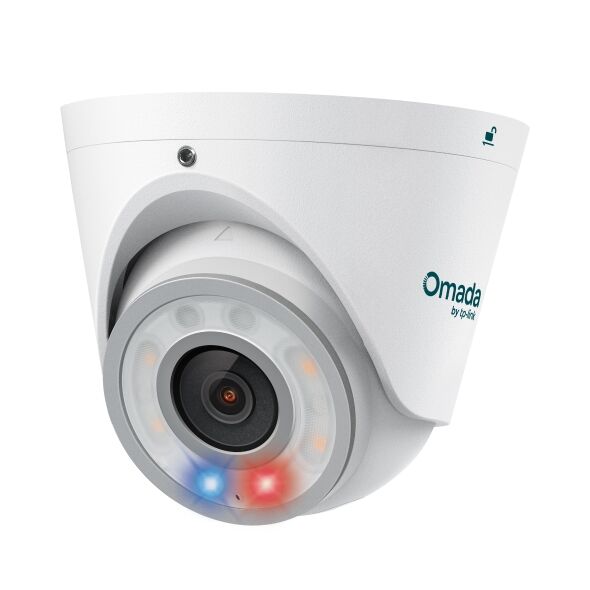

CAMERA
Image Sensor	1/2.7” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Aperture	F1.6
Lens	4 mm, Fixed Focal Lens, M12
FOV	Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Auto
White LED	• Quantity: 4 • Range: 98 ft (30m)
IR LED	• Quantity: 4 • Range: 98 ft (30 m) • Wavelength: 850nm
Illuminator On/Off Control	Auto/Always on/Always off
Max. Resolution	3840 x 2160 (8MP)
Main Stream	• Frame Rate: 50Hz: 25fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) 60Hz: 24fps (3840x2160, 2560x1440, 2304x1296, 2048x1280,1920x1080) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 25fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) 60Hz: 24fps (840x480,704x576,640x480, 640x360, 352x288, 320x240) • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. If 120dB WDR is turned on, the frame rate can only support up to 20fps.
Video Bit Rate	• Main Stream: 256 Kbps to 8192 Kbps • Sub-Stream: 64 Kbps to 1024 Kbps
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
Event	• Motion Detection (Person/Vehicle/Pet Detection) • Line-Crossing Detection • Intrusion Detection
Recording Modes	Event-Triggered Recording, Scheduled Recording, 24/7 Recording (Default)

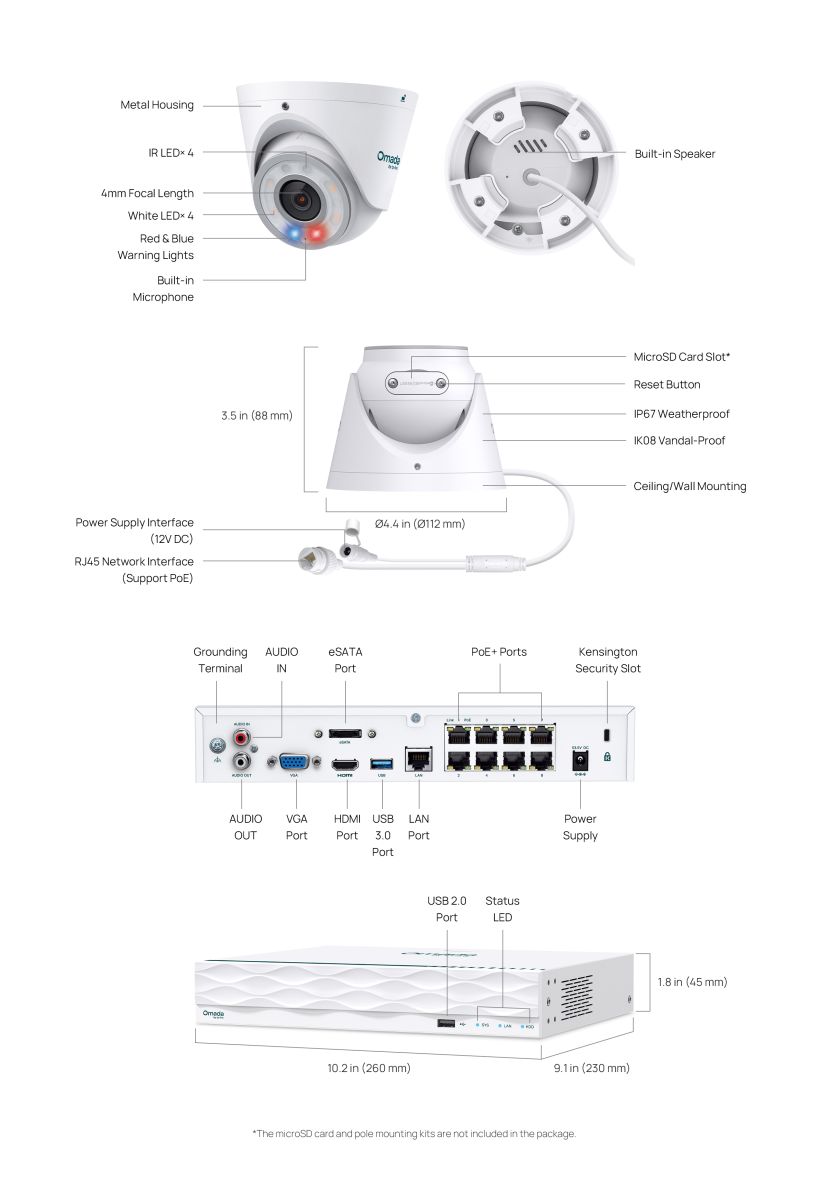

Interface & Button	• Buit-in Microphone; Records Anything Going on within a 16.4ft (5m) Radius of the Camera • Buit-in Speaker • 1× RJ45 10/100Mbps Self-Adaptive Ethernet Port, PoE • 1× DC Port • Reset Button • Red & Blue Warning Lights • Buit-in Memory Card Slot, Support MicroSD Card, up to 521GB^△
Operating Temperature	-30 °C to 60 °C (-22 ℉ to 140 ℉)
Operating Humidity	95% or Less (Non-Condensing)
Power Supply	DC • 12V DC ± 5%, Max. 12 W, 5.5 mm Coaxial Power Plug • Recommended Power Supply: T120100-2C1 (for EU Regions) PoE • PoE: 802.3af/at, Max. 12.5 W ErP Information • Power consumption in networked standby when all wired network ports are connected and all wireless network ports are activated: 2.7 W
Protection	• IP67 Weatherproof • IK08 Vandal Proof
Product Dimensions (L x W x H)	4.4 × 4.4 × 3.5 in (112 × 112 × 88 mm)
Weight	• Gross Weght: 0.84 kg (1.85 lbs) • Net Weght: 0.5 kg (1.10 lbs)

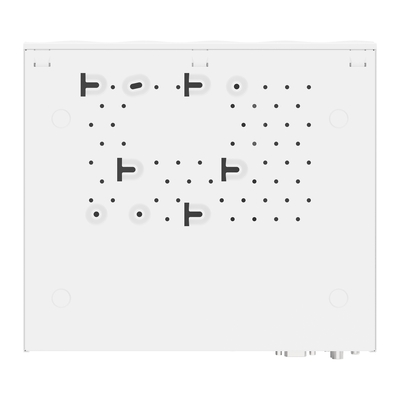

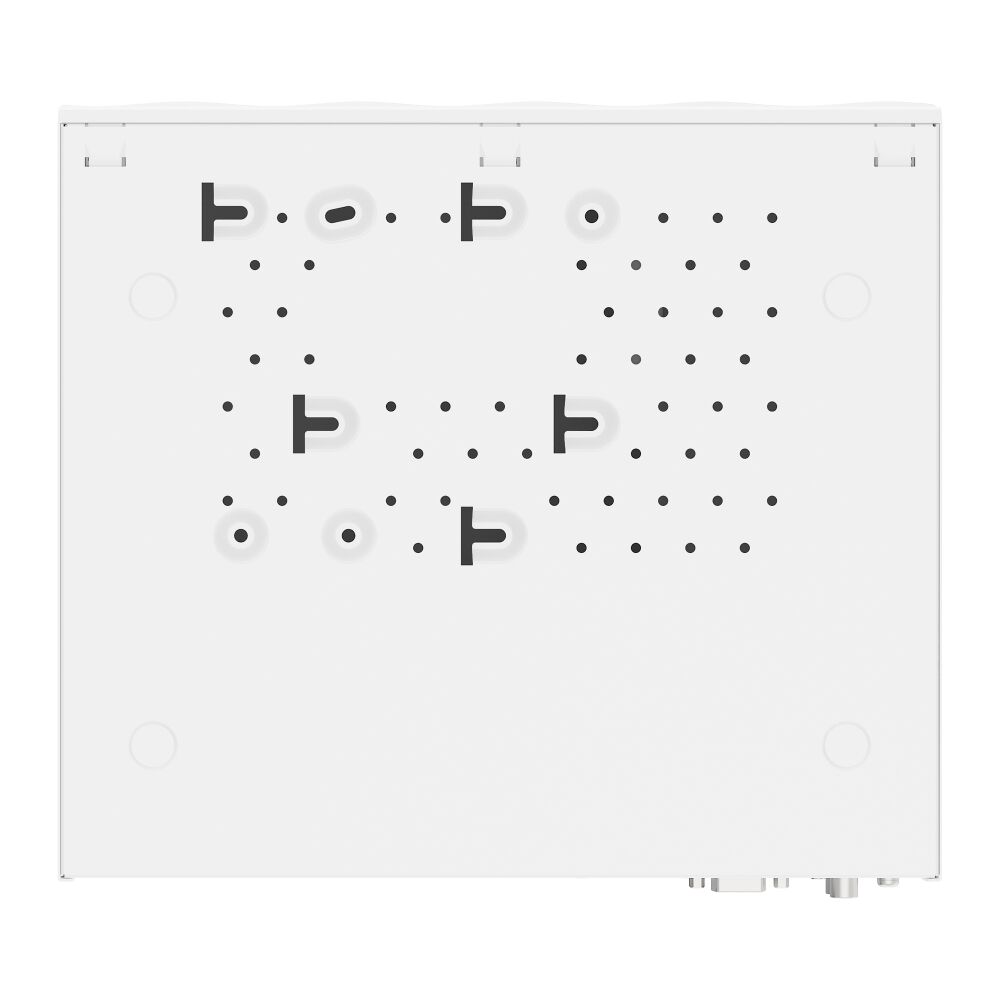

NVR
IP Video Input	16-Channel*
Managed Cameras	• 16 (HD) • 16 (2K/5MP) • 12 (4K/8MP) • 8 (12MP) • 6 (16MP)
HDMI Output Resolution	1 Channel, Resolution: 3840x2160/30Hz, 2560x1440/60Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Compression	H.265+/H.265/H.264+/H.264
Record Resolution	16MP / 12MP / 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF/ QCIF
Synchronous Playback	16-Channel
Decoding Capability	• 25fps: 10-ch @ 2MP • 30fps: 1-ch @ 16MP, 2-ch @ 8MP, 4-ch @ 5MP, 5-ch @ 4MP, 6-ch @ 3MP
Hard Disk	• 1× SATA Interface, Up to 16 TB Capacity • 1× 2TB HDD Preinstalled
PoE Budget	115 W Available for All PoE+ Ports, 30 W Max per Port

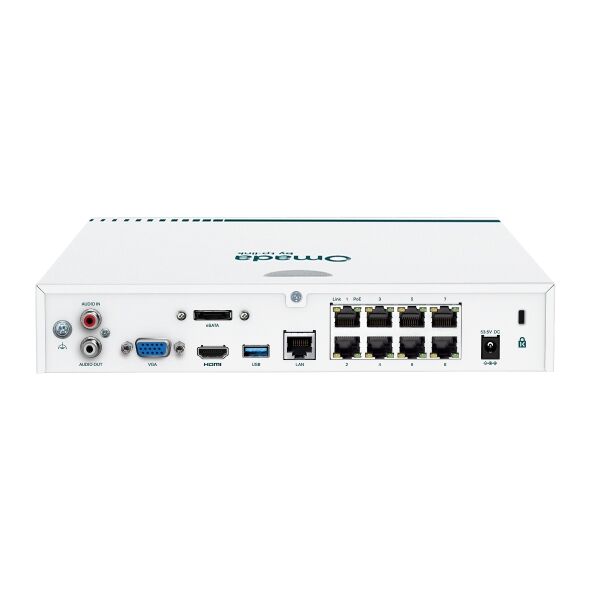

External Interfaces	• 1× eSATA, Supports External Storage Devices up to 16TB • 1× HDMI Port • 1× VGA Port • 1× Front USB 2.0 Port, 1× Rear USB 3.0 Port • 1-ch RCA Audio Input (1.4 Vp-p, 10KΩ), 1-ch RCA Audio Output (2.8 Vp-p, 1KΩ) • 1× 10/100/1000 Mbps Self-Adaptive Ethernet Port • 1× DC Power Supply Port • 8× PoE+ Ports
Network Protocol	• UPnP (Plug and Play) • NTP (Network Timing) • SMTP • DNS • TCP/IP • UDP • ICMP • HTTP • HTTPS • DHCP • RTSP • SSL/TLS • RTP • IPv4 • ARP • LLDP • FTP • IPv6 • SNMP
Web Browser	• Chrome (57+) • Firefox (52+) • Edge (91+)
Max. User Access	40 Users; Support up to 32 Simultaneous Video Streams
Power Supply	53.5V DC/2.43 A
Working Temperature	• NVR: -10 °C to 55 °C (14 ℉ to 131 ℉） • Power Adapter: 0 °C to 40 °C (32 ℉ to 104 ℉)
Interoperability	ONVIF Profile G/S/T
Product Dimensions (L x W x H)	10.2 × 9.1 × 1.8 in (260 × 230 × 45 mm)
Weight	• Net Weight: 1.86 Kg (4.1 lbs) • Gross Weght: 3.25 Kg (7.17 lbs)
