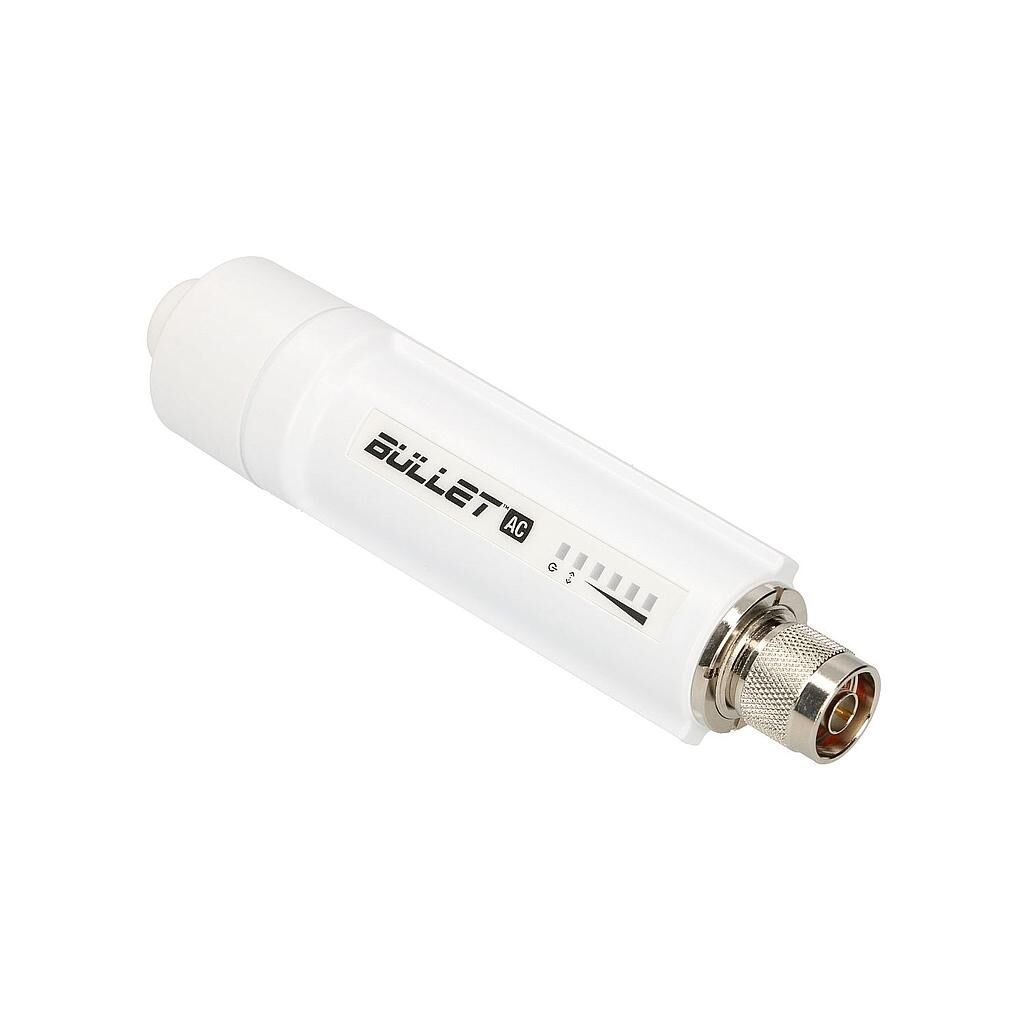

Compact dual-band airMAX radio Ubiquiti B-DB-AC Bullet AC Dual-Band Outdoor airMAX Radio
The Ubiquiti B-DB-AC Bullet AC is a compact dual-band outdoor radio with 2.4 GHz and 5 GHz operation, a Gigabit Ethernet interface, passive PoE power and an N-type antenna connector.
2.4 GHz and 5 GHz1 x GbE RJ45Passive PoEN-type connector
DeviceDeal authorised Ubiquiti reseller 1 Year Ubiquiti manufacturer warranty
What is the B-DB-AC?
The Ubiquiti B-DB-AC Bullet AC is a compact dual-band outdoor radio with 2.4 GHz and 5 GHz operation, a Gigabit Ethernet interface, passive PoE power and an N-type antenna connector.
Designed around the requirements that matter
Product-specific capabilities, deployment details and purchasing considerations for the B-DB-AC.
01Dual-band wireless
The radio operates in both the 2.4 GHz and 5 GHz bands for flexible airMAX deployments.
02Compact antenna coupling
An N-type connector supports direct connection to a compatible external antenna.
03Gigabit network interface
One Gigabit Ethernet RJ45 port carries network data and passive PoE power.
04UISP app compatibility
The radio supports setup and management through the UISP application.
05Low-power outdoor design
The polycarbonate enclosure and 7W maximum power consumption suit compact outdoor installations.
i
What to know before buying
- A 24V DC, 0.3A Gigabit PoE adapter is not included and must be selected separately when required.
1 YearManufacturer warranty
Authorised reseller and manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti B-DB-AC is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Frequently asked questions
Clear answers to common pre-purchase questions about the Ubiquiti B-DB-AC.
What is the Ubiquiti B-DB-AC?
It is a compact dual-band outdoor airMAX radio with Gigabit Ethernet, passive PoE and an N-type antenna connector.
Which wireless bands does it support?
The B-DB-AC supports both 2.4 GHz and 5 GHz operation.
What throughput is available?
The stated throughput is 160+ Mbps at 2.4 GHz and 300+ Mbps at 5 GHz.
How does the radio connect to an antenna?
It uses an N-type connector for direct coupling to a compatible external antenna.
How is the B-DB-AC powered?
It uses two-pair passive PoE with a supported input range of 20-27V DC.
Is a PoE adapter included?
No. A 24V DC, 0.3A Gigabit PoE adapter is not included.
What warranty does the Ubiquiti B-DB-AC include?
The Ubiquiti B-DB-AC is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(B-DB-AC)
Features and highlights
The Ubiquiti B-DB-AC Bullet AC is a compact dual-band outdoor radio with 2.4 GHz and 5 GHz operation, a Gigabit Ethernet interface, passive PoE power and an N-type antenna connector.
01Dual-band wireless
The radio operates in both the 2.4 GHz and 5 GHz bands for flexible airMAX deployments.
02Compact antenna coupling
An N-type connector supports direct connection to a compatible external antenna.
03Gigabit network interface
One Gigabit Ethernet RJ45 port carries network data and passive PoE power.
04UISP app compatibility
The radio supports setup and management through the UISP application.
05Low-power outdoor design
The polycarbonate enclosure and 7W maximum power consumption suit compact outdoor installations.
Key product points
- 2.4 GHz and 5 GHz
- 1 x GbE RJ45
- Passive PoE
- N-type connector
- A 24V DC, 0.3A Gigabit PoE adapter is not included and must be selected separately when required.
1 YearManufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti B-DB-AC is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Product details
| Brand | Ubiquiti |
|---|
| Model / SKU | B-DB-AC |
|---|
| Product type | Dual-band outdoor airMAX radio |
|---|
| Enclosure material | Polycarbonate |
|---|
Wireless
| Frequency bands | 2.4 GHz and 5 GHz |
|---|
| Maximum output power | 22 dBm |
|---|
| Throughput | 160+ Mbps at 2.4 GHz; 300+ Mbps at 5 GHz |
|---|
| Antenna connection | N-type |
|---|
Networking and power
| Network interface | 1 x Gigabit Ethernet RJ45 |
|---|
| Power method | Two-pair passive PoE |
|---|
| Supported input | 20-27V DC |
|---|
| Maximum power consumption | 7W |
|---|
| PoE adapter | 24V DC, 0.3A Gigabit PoE adapter not included |
|---|
Physical and environmental
| Dimensions | 190 x 46 mm |
|---|
| Weight | 116 g |
|---|
| ESD/EMP protection | +/-24 kV |
|---|
| Operating temperature | -40 to 70 deg C |
|---|
| Operating humidity | 5-95% non-condensing |
|---|
Warranty and purchasing confidence
| Manufacturer warranty | 1 Year Ubiquiti manufacturer warranty |
|---|
| Reseller | DeviceDeal is an authorised Ubiquiti reseller |
|---|
| SKU |
B-DB-AC |
| Barcode # |
817882021319 |
| Brand |
Ubiquiti |
| Shipping Weight |
0.5000kg |
1 YearManufacturer warranty
Buying confidence Authorised reseller and manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti B-DB-AC is backed by a 1 Year Ubiquiti manufacturer warranty. Warranty service is provided in accordance with Ubiquiti's applicable warranty terms and conditions.
Warranty typeUbiquiti manufacturer warranty Warranty duration1 Year Authorised resellerDeviceDeal
