D-Link product

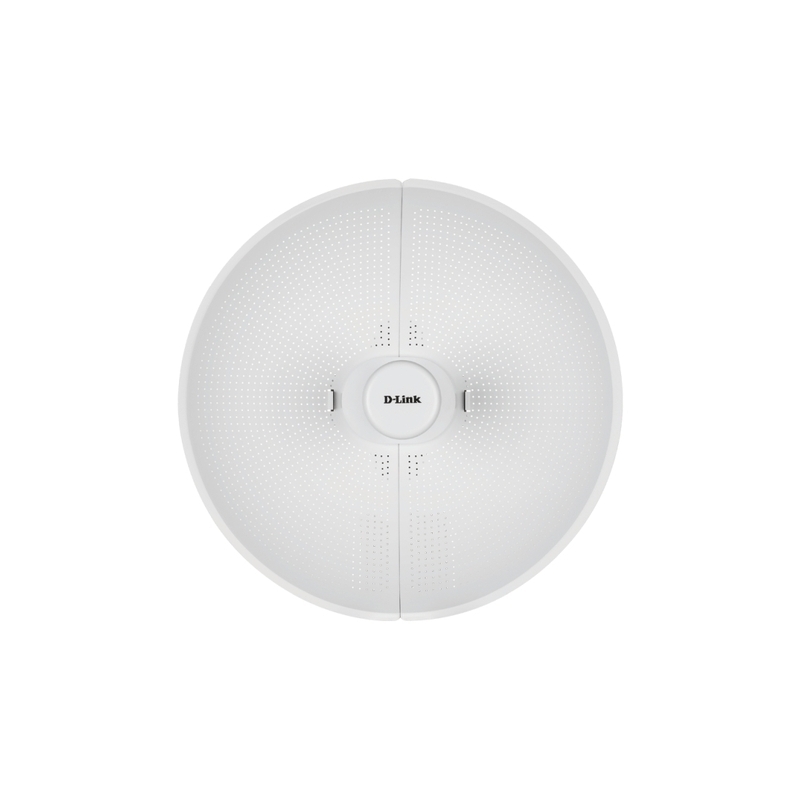

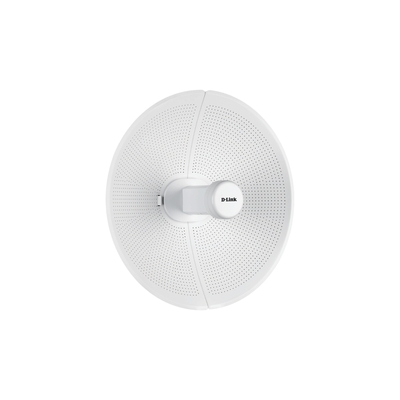

D-Link DAP-3712 Long-Range Wi-Fi 5 Wireless Bridge 2 Pack

A two-pack of outdoor Wi-Fi 5 wireless bridges designed for point-to-point or point-to-multipoint links across distances of up to 20km.

Up to 20km wireless links

Creates long-distance connections between sites using the stated directional bridge design.

867Mbps Wi-Fi 5

Uses 802.11ac on the 5GHz band with aggregate data rates up to 867Mbps.

IP66 outdoor construction

Combines an IP66-rated enclosure with 8kV surge protection for outdoor deployment.

Connect separated sites

The DAP-3712 supports point-to-point and point-to-multipoint connectivity for locations such as offices, construction sites and transport facilities.

Directional long-range design

A 23dBi directional antenna, high-power 27dBm design and TDMA technology support stable long-distance wireless links.

Outdoor-ready installation

The wall-mountable units are specified for outdoor use, with an IP66 rating and an operating range from -40°C to 65°C.

PoE-powered deployment

IEEE 802.3at PoE+ at 48V carries power to the bridge using the stated twisted-pair network connection.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated D-Link limited lifetime manufacturer warranty.

Frequently asked questions

How many DAP-3712 units are included?

This listing is a two-pack.

What maximum link distance is stated?

The supplied product information states a distance of up to 20km.

Is the DAP-3712 designed for outdoor use?

Yes. It is listed for outdoor use with an IP66-rated enclosure and 8kV surge protection.

(DAP-3712-2PK)

D-Link DAP-3712 Long-Range Wi-Fi 5 Wireless Bridge 2 Pack features

Long-distance bridging

Supports wireless links between geographically separated network sites.

TDMA performance

Uses the stated TDMA technology to improve wireless bridge performance.

Directional antenna system

A 23dBi directional antenna focuses the wireless link between sites.

Outdoor protection

IP66 housing and surge protection support exposed installations.

Confirm line of sight, mounting position, PoE requirements and the planned link distance before installation.

D-Link DAP-3712 Long-Range Wi-Fi 5 Wireless Bridge 2 Pack specifications

Product details

Model	DAP-3712
Pack quantity	2
Product type	Point-to-point / point-to-multipoint wireless bridge
Wireless standard	Wi-Fi 5 / IEEE 802.11ac
Wireless band	5GHz
Channel widths	20 / 40 / 80MHz
Aggregate data rate	Up to 867Mbps
Maximum stated distance	Up to 20km
Antenna	23dBi directional
Transmit power	27dBm
Network ports	1
Mounting	Wall mount
Application	Outdoor
Ingress protection	IP66
Surge protection	8kV
Power	IEEE 802.3at PoE+, 48V
Media	Twisted pair
Compliance	CE, FCC
Operating temperature	-40°C to 65°C

Warranty

Coverage	Limited lifetime warranty

SKU	DAP-3712-2PK
Barcode #	790069201479
Brand	D-LINK
Shipping Weight	4.5600kg
Shipping Width	0.550m
Shipping Height	0.250m
Shipping Length	0.450m
