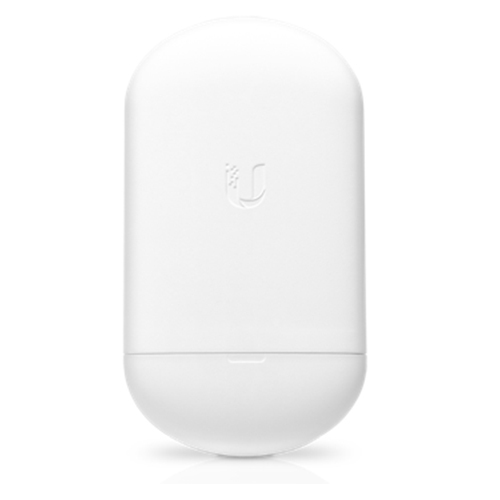

Ubiquiti NanoStationAC - 5GHz airMax AC Radio - Single Pack, 10+ km Link Range, 450+ Mbps Throughput, Dedicated Spectral Analysis Radio
Model # Loco5AC
-
SKU: LOCO5AC
- Pick Up Available
- Australian Warranty
- Checkout Securely
Designed for deployment in a variety of environments in which point to multi-point communication is needed, the NanoStation AC loco 5 GHz airMAX ac Radio from Ubiquiti Networks offers enhanced connectivity options. This radio comes equipped with a Gigabit Ethernet networking interface and supports 10/20/30/40/50/60/80 MHz channel bandwidths. Installation is simple, thanks to the included pole-mount kit, while the outdoor UV stabilized plastic enclosure allows the airMAX ac radio to be installed in nearly any environment.
UMobile App
The NanoStation AC loco integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. Accessing airOS via Wi-Fi
The UMobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UMobile allows you to set up, configure, and manage your device, and offers various configuration options once you're connected or logged in.
The UMobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UMobile allows you to set up, configure, and manage your device, and offers various configuration options once you're connected or logged in.
Technology
airMAX ac
Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
Intelligent QoS
Priority assigned to voice/video for seamless streaming.
Scalability
High capacity and scalability.
Long Distance
Capable of high-speed, carrier-class links.
Enhanced Performance
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Throughput Breakthrough
airMAX ac supports high data rates, which require dense modulation: 256QAM - a significant increase from 64QAM, which is used in airMAX. With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mb/s real TCP/IP throughput - up to triple the throughput of standard airMAX products.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
Intelligent QoS
Priority assigned to voice/video for seamless streaming.
Scalability
High capacity and scalability.
Long Distance
Capable of high-speed, carrier-class links.
Enhanced Performance
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Throughput Breakthrough
airMAX ac supports high data rates, which require dense modulation: 256QAM - a significant increase from 64QAM, which is used in airMAX. With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mb/s real TCP/IP throughput - up to triple the throughput of standard airMAX products.
Hardware
Versatile Mounting
The NanoStation AC loco 5 GHz airMAX ac Radio is suitable for indoor and outdoor installations.
Improved Surge Protection
The NanoStation AC loco utilizes the latest ESD protection to help protect against power surges.
Efficient Footprint
The radio and antenna are combined into a single body that takes up minimal space.
Ubiquiti Networks UBNT Nanostation LocoM5 802.11a/c MIMO airMAX Antenna - 5Ghz, 150+ Mbps - TDMA AirMax protocol - Indoor/Outdoor usage - PoE - 10km+ Range - NS-5ACL
Compact, UISP-ready WiFi radio sporting a classic NanoStation design and an updated airMAX AC chipset.
5 GHz, 10+ km link range
450+ Mbps throughput
Dedicated spectral analysis radio
(LOCO5AC)

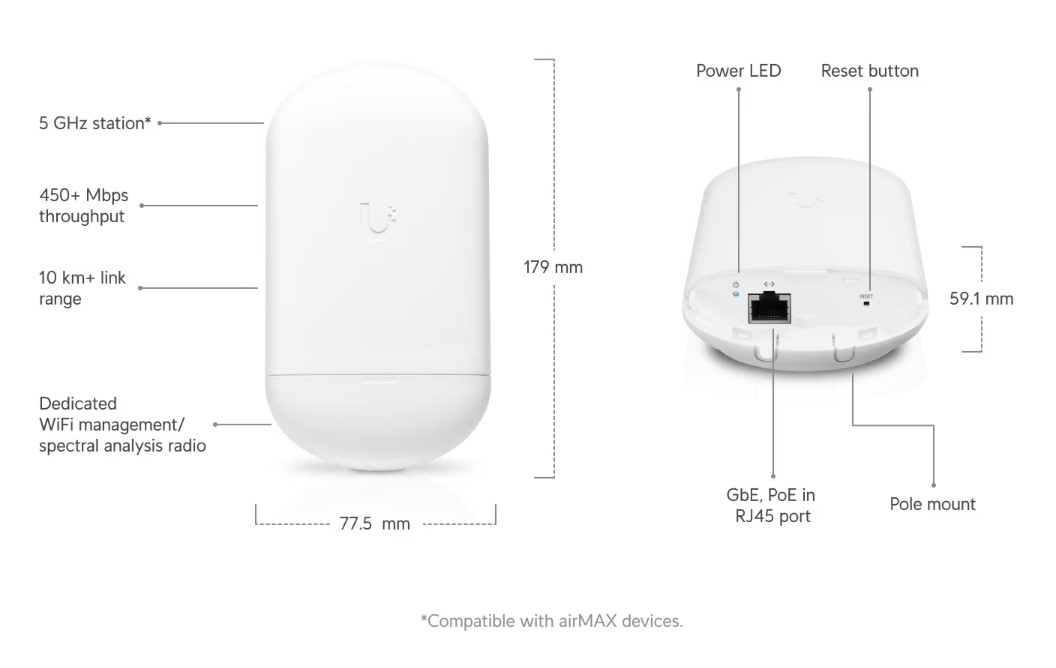

Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
| Weight | 0.18 kg (6.35 oz) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mounting kit (Included) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-Pair (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 0.3A Gigabit PoE supply* *PoE adapter not included. |
| Supported voltage range | 24V ±10% |
| Max. power consumption | 7W |
| LEDs | Power, Ethernet, (4) signal strength |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 13 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pol isolation | 20 dB min. |
| Max. VSWR | 1.8:1 |
| Beamwidth | 45° (H-pol) / 45° (V-pol) / 45° (Elevation) |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
| SKU | LOCO5AC |
| Barcode # | 817882027250 |
| Brand | UBIQUITI |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.530m |
| Shipping Height | 0.290m |
| Shipping Length | 0.470m |
| Shipping Cubic | 0.072239000m3 |
Manufacturer Warranty : 1 Year Manufacturer Warranty
