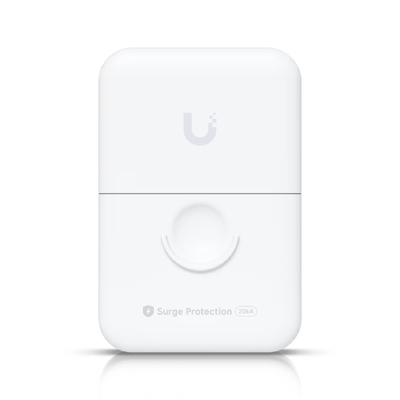

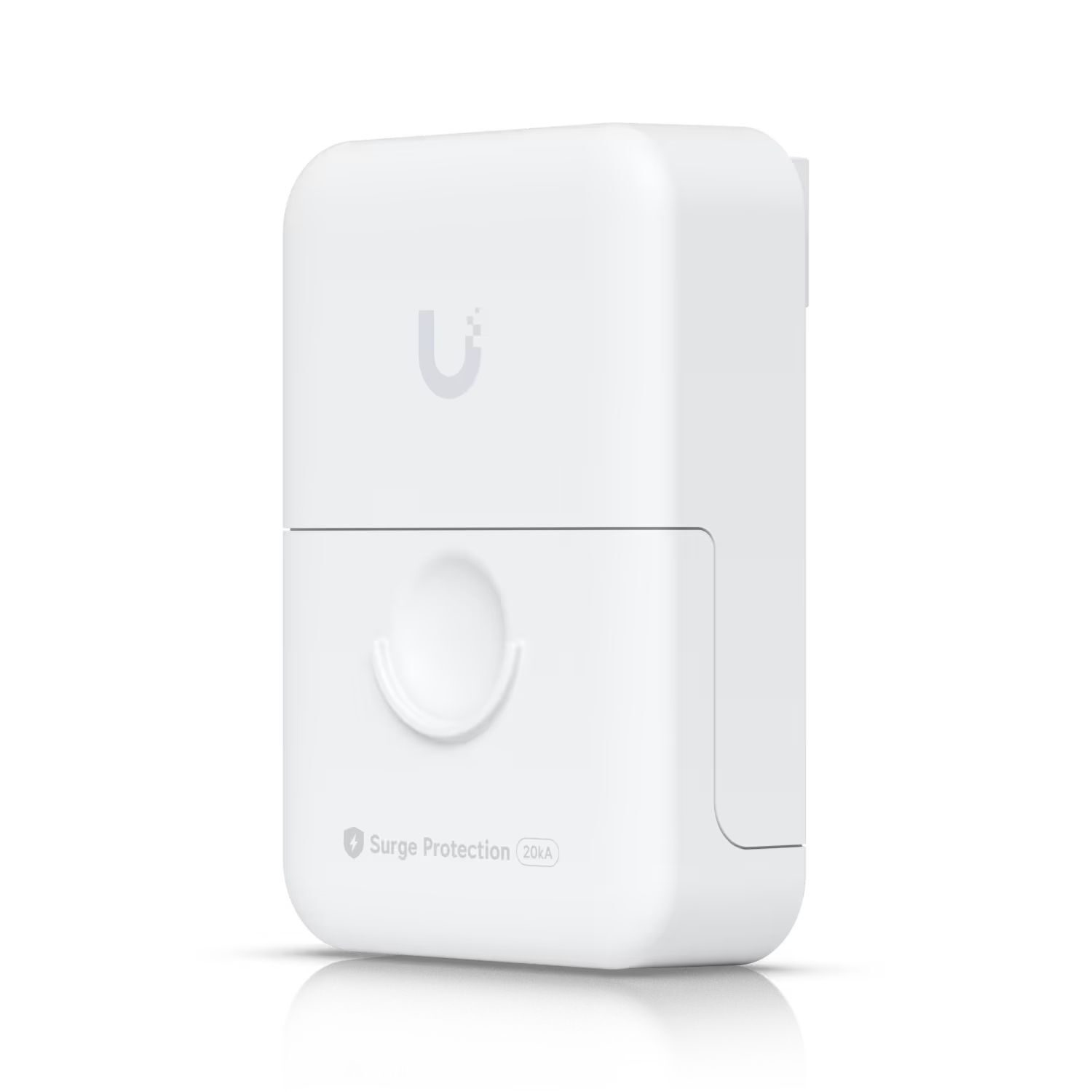

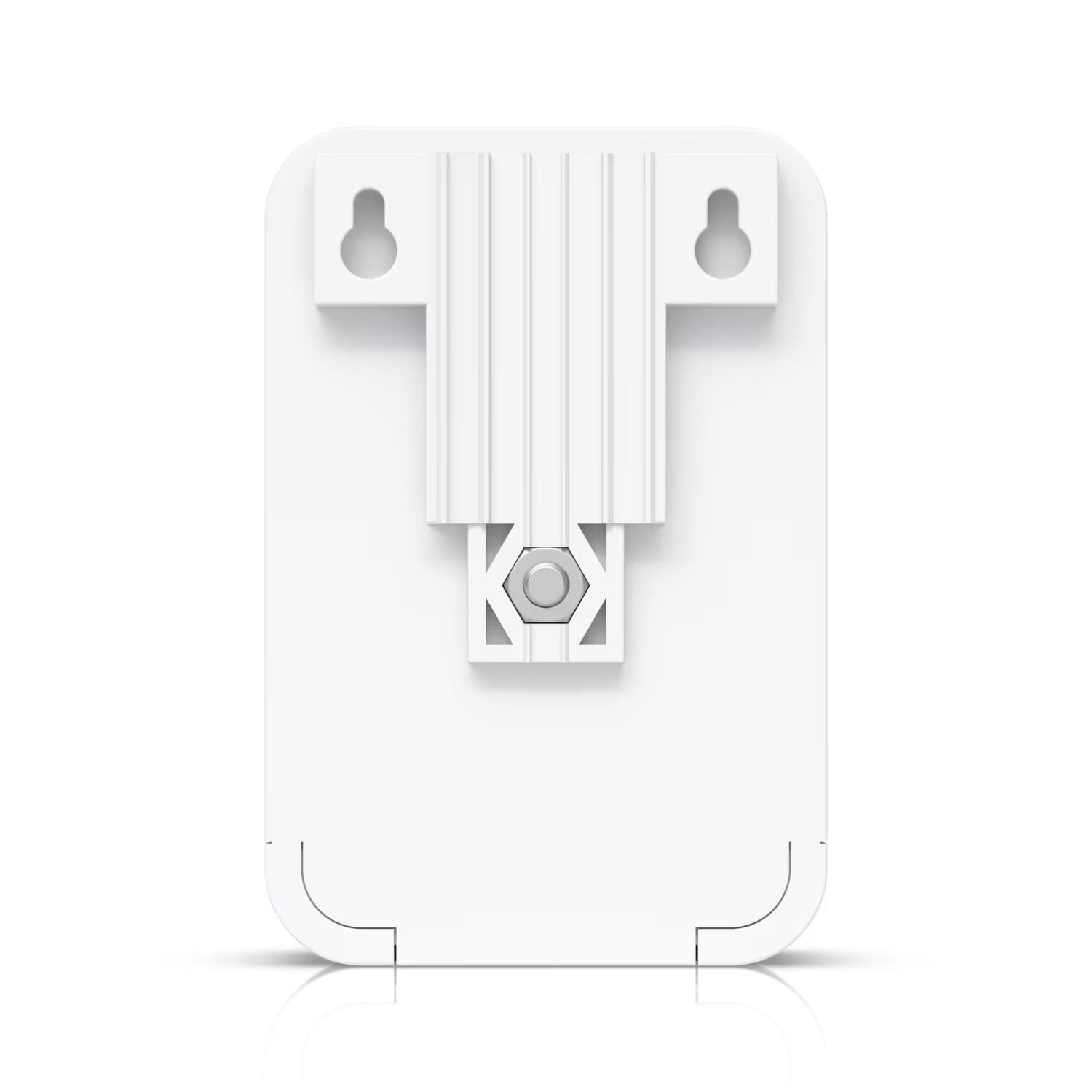

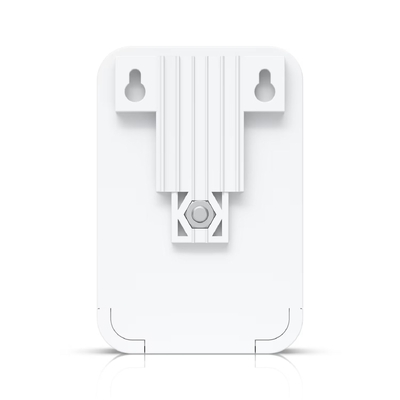

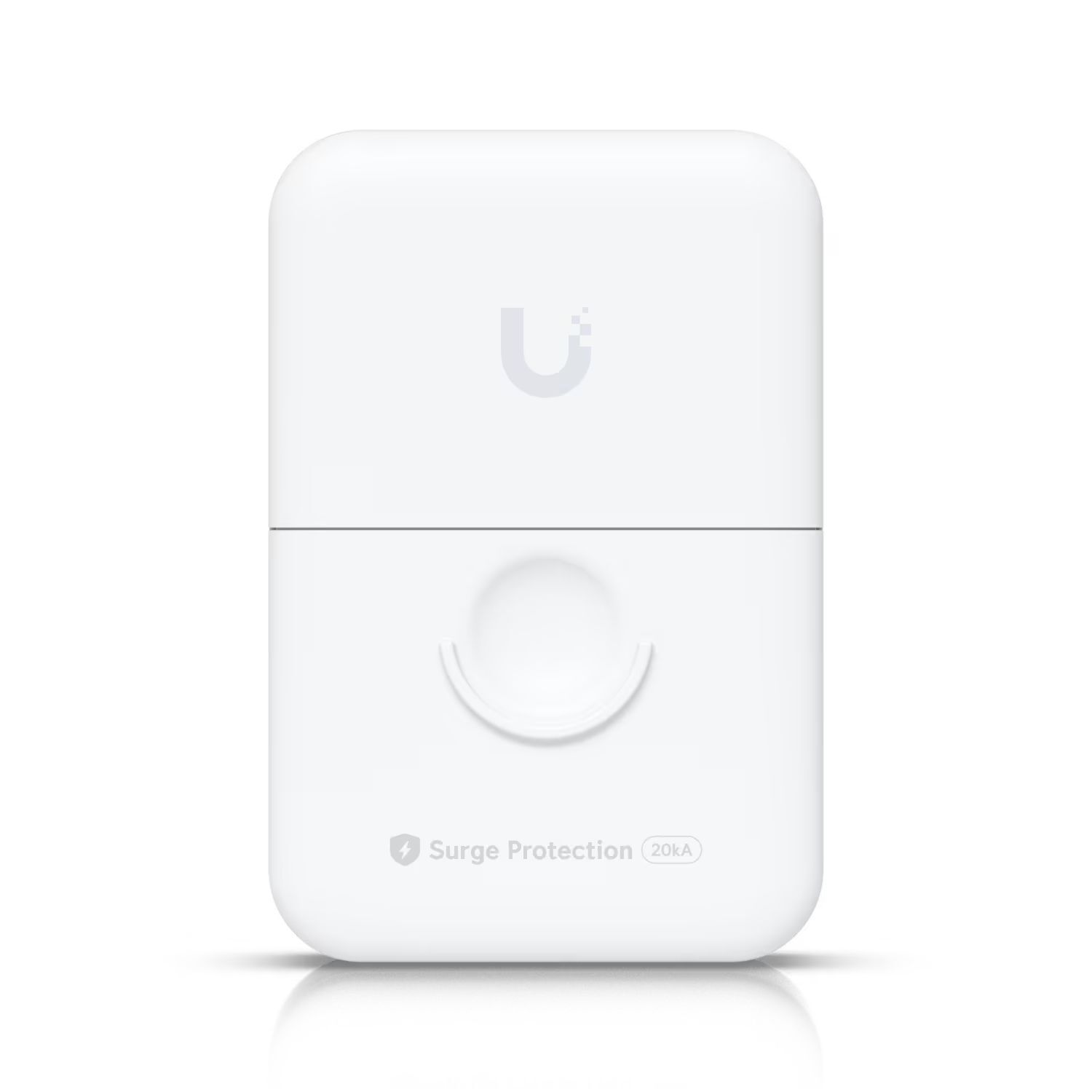

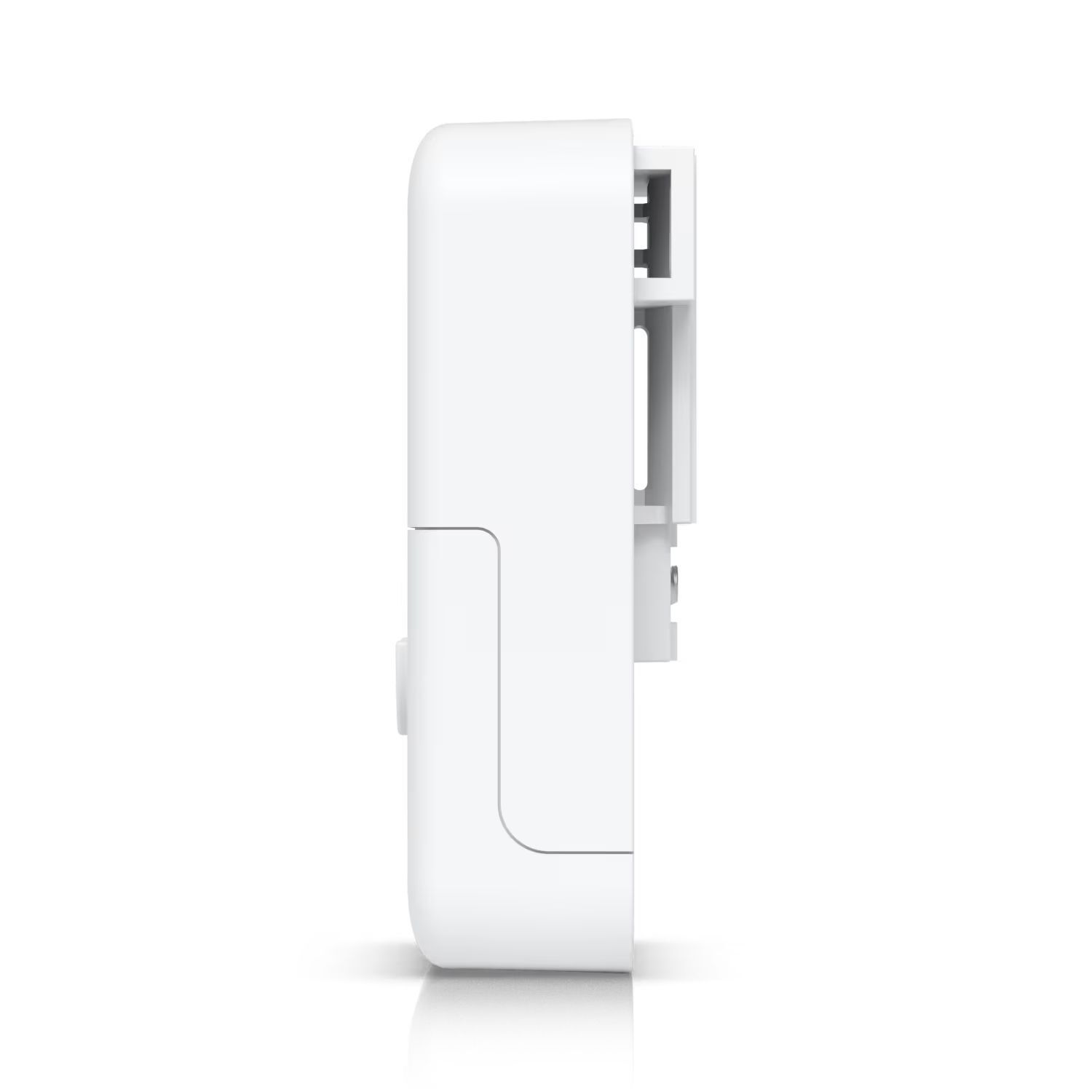

Ubiquiti UACC-ETH-SP-Pro Ethernet Surge Protection Outdoor 10GbE

ESD protection for outdoor high-speed networks.

Protects outdoor Ethernet devices, up to 20kA discharge current.

(2) Passive, surge-protected RJ45 connections

Quick and easy installation

Compatible with 10 GbE networks

(UACC-ETH-SP-Pro)

Category Specification
Mechanical
Dimensions 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
Weight 95 g (3.35 oz)
Enclosure Material Polycarbonate
Weatherproofing IPX5
Hardware

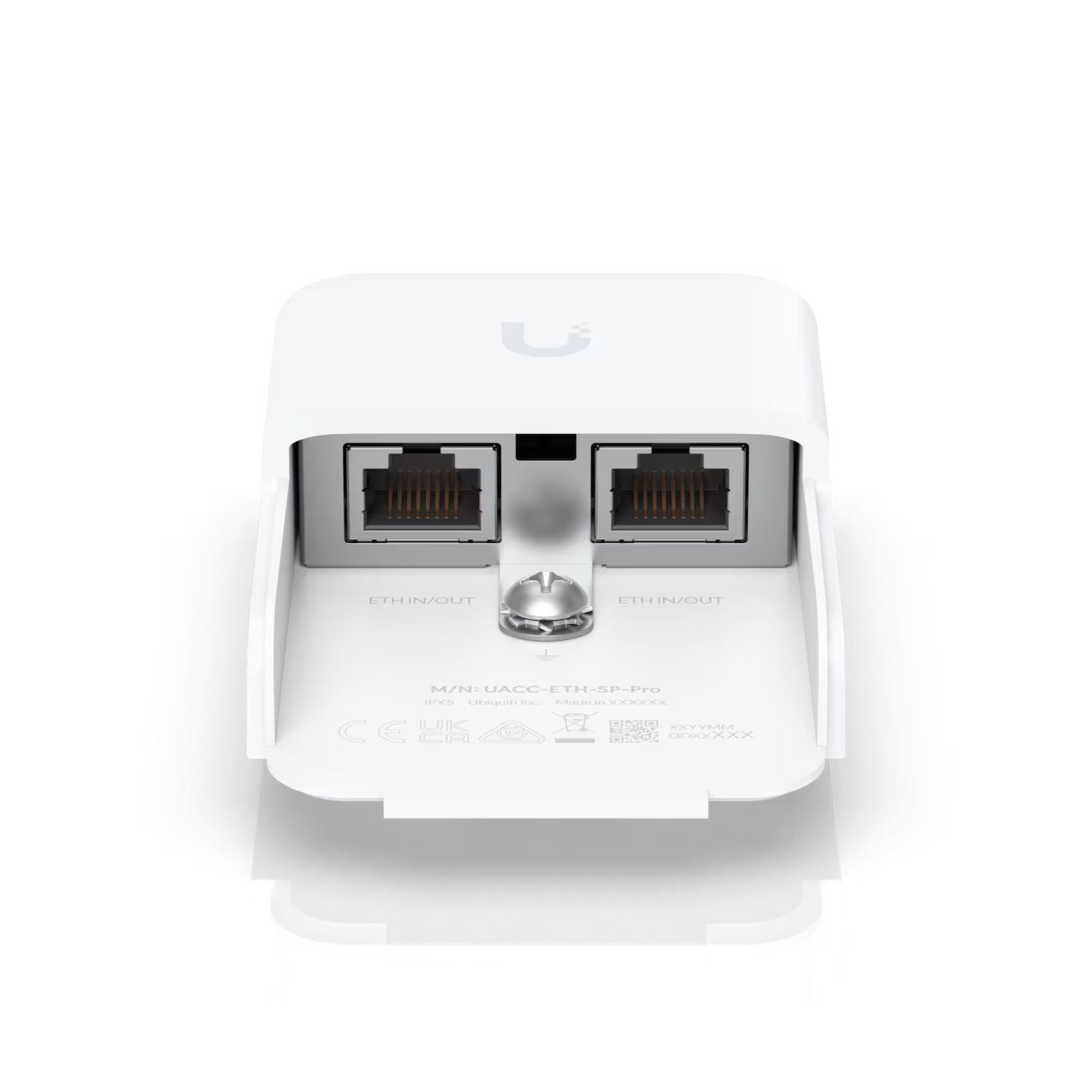

Networking Interface (2) RJ45 female connectors
ESD/EMP Protection Absorbs transient current; surge voltage response from 100V/s to 1kV/µs
DC Spark-Over Voltage 90V @ 100V/s
Max. Impulse Spark-Over Voltage 600V @ 1kV/µs
Discharge Current 20kA
Insulation Max. Resistance: 1G ohm @ 50V
Max. Capacitance 1.0 pF @ 1 MHz
Data Line Protection Up to 10 Gbps
PoE Support ✓
Environmental
Operating Temperature -30 to 65° C (-22 to 149° F)
Operating Humidity 10 to 90% non-condensing
Shock and Vibration Certification ETSI300-019-1.4 Standard



SKU UACC-ETH-SP-Pro
Brand Ubiquiti
Shipping Weight 0.1000kg
Shipping Width 0.090m
Shipping Height 0.032m
Shipping Length 0.060m
Shipping Cubic 0.000172800m3
